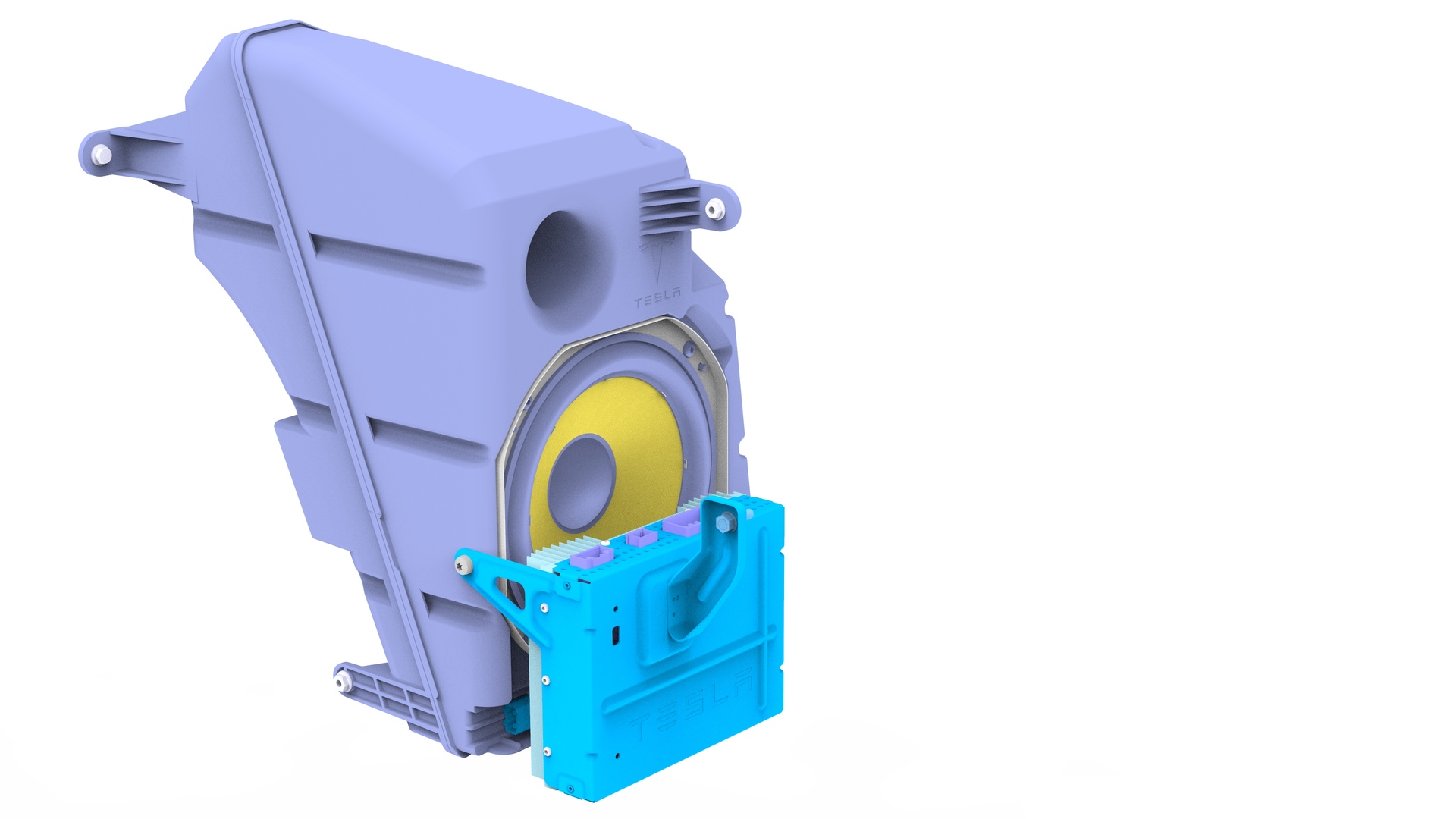

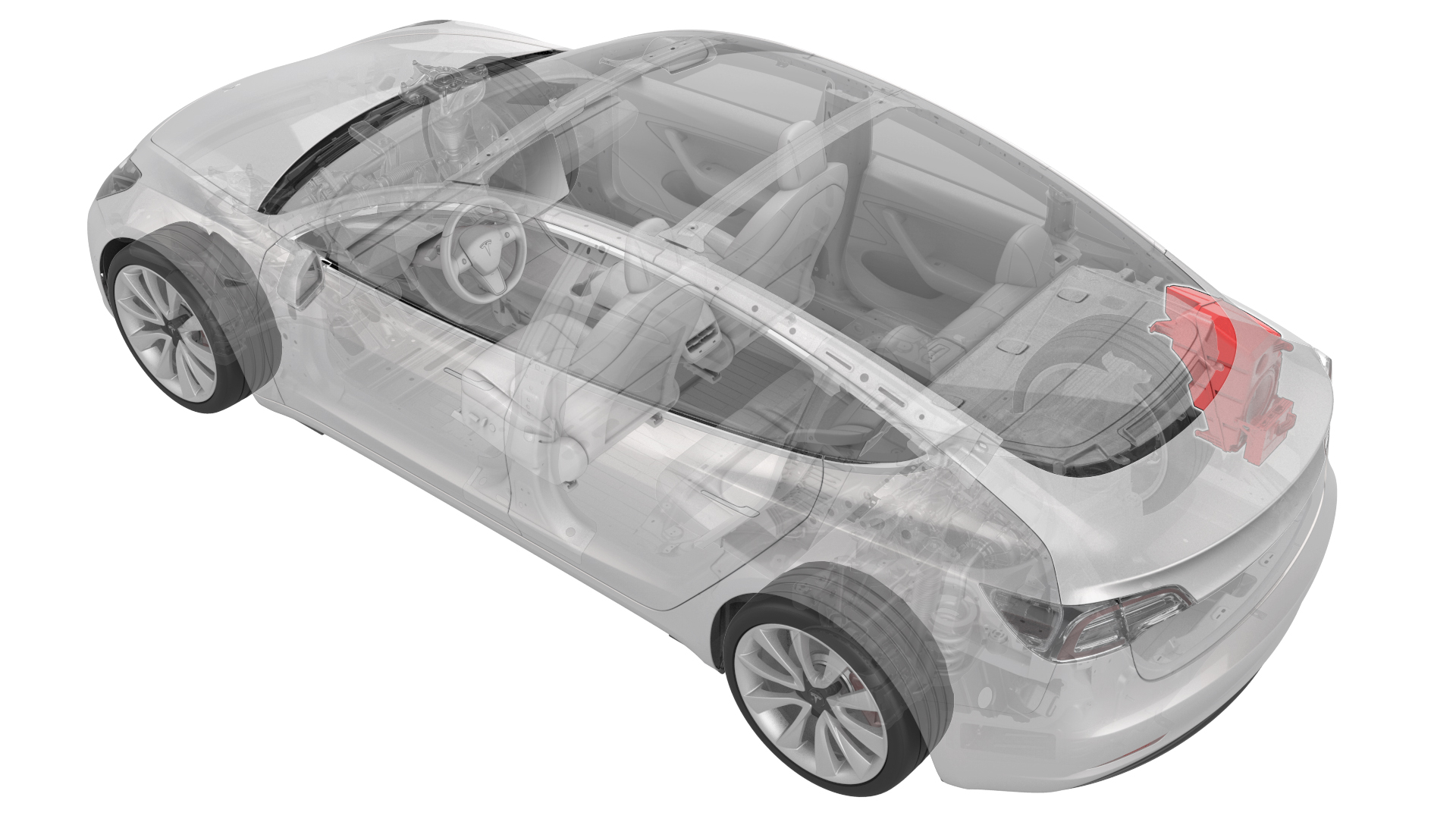

Subwoofer (Remove and Replace)

Correction code 2121200221212002

Remove

Disconnect 12V power. See 12V Power (Disconnect and Connect).
Remove the RH trunk side trim. See Trim - Side - Trunk - RH (Remove and Replace).

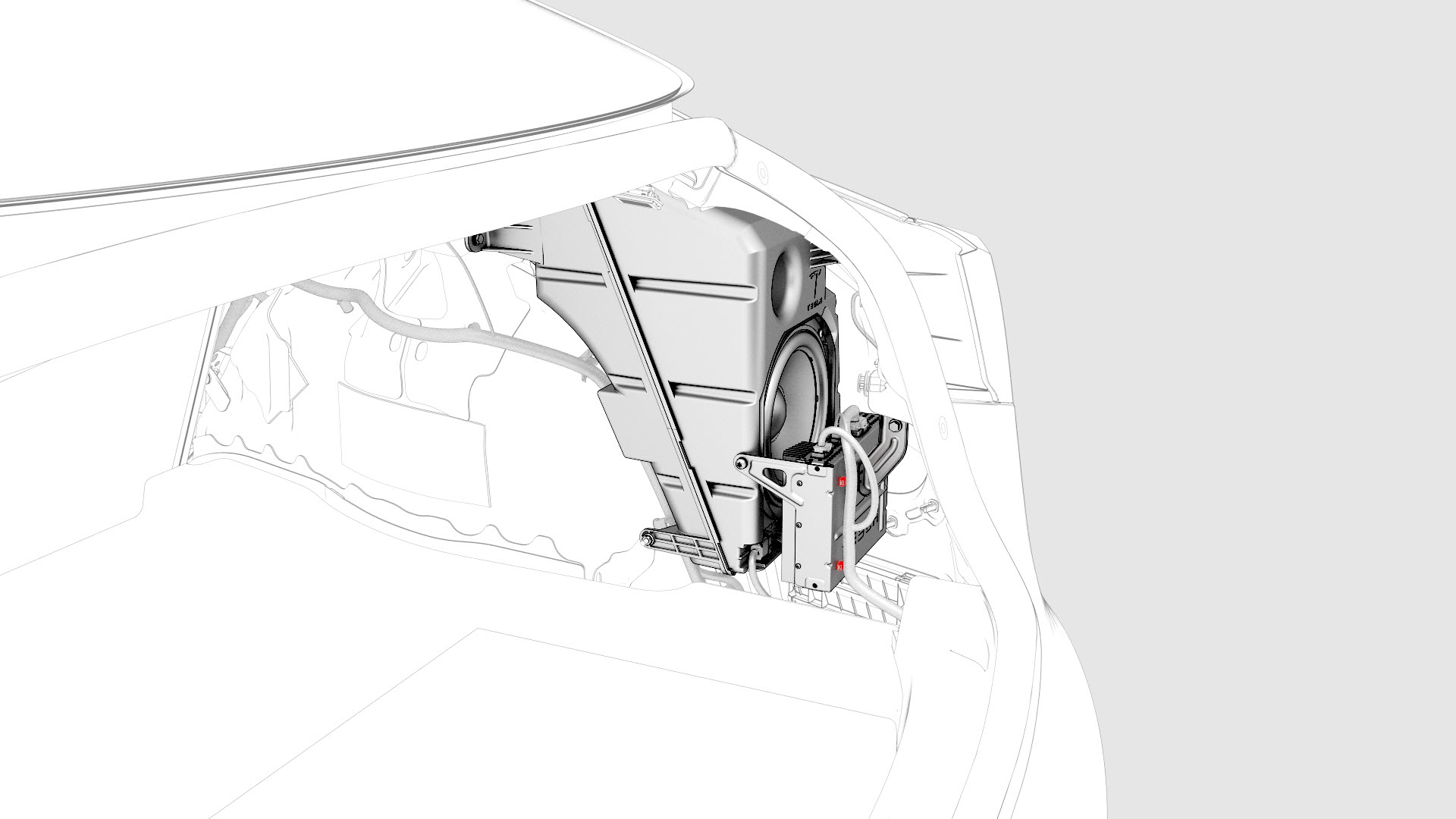

Disconnect the electrical harness from the amplifier connectors.
Release the clips that attach the electrical harness to the subwoofer.

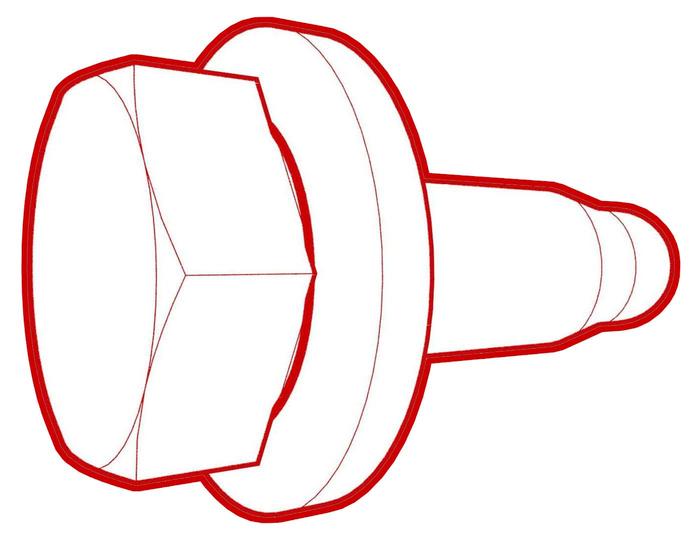

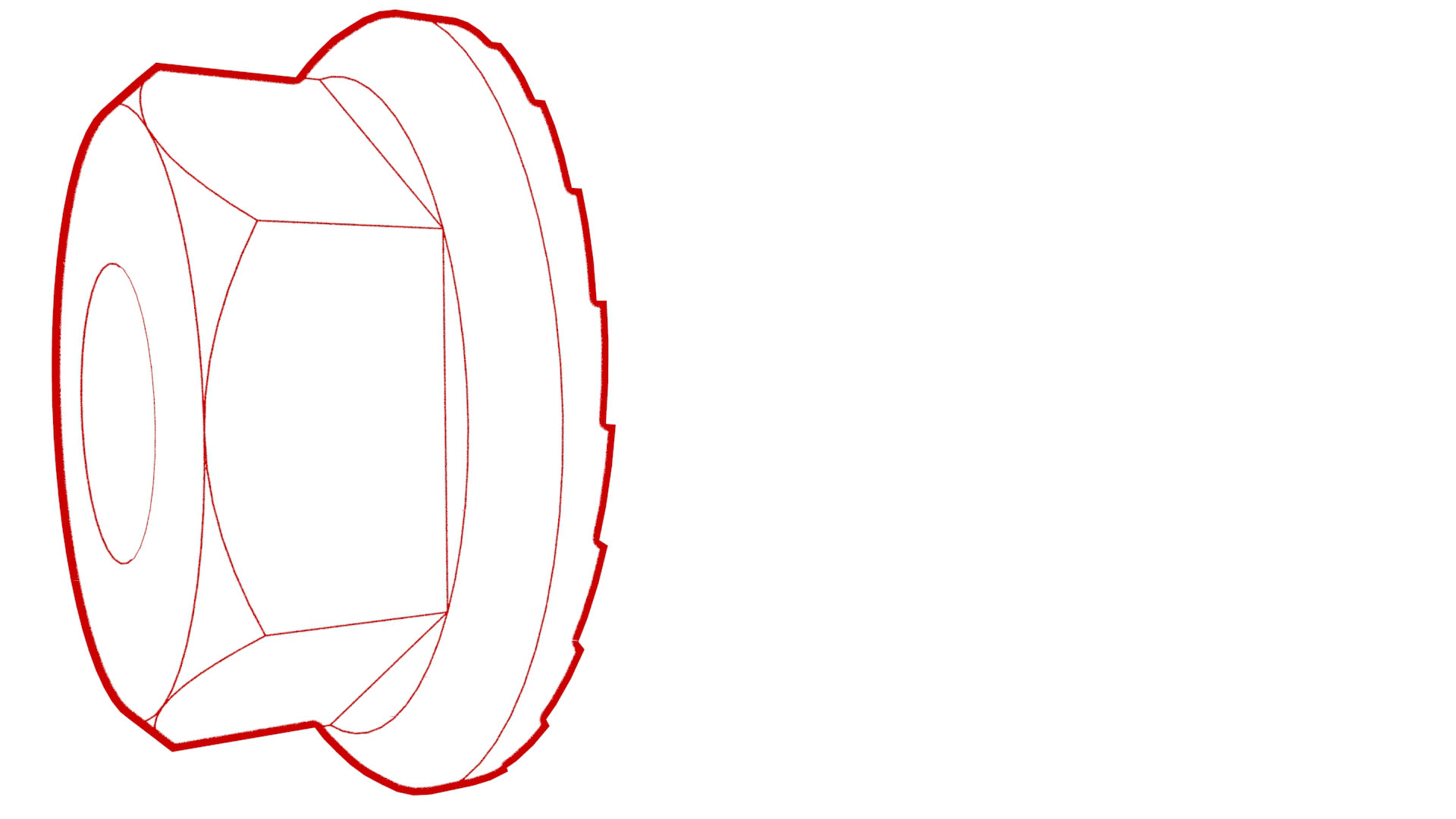

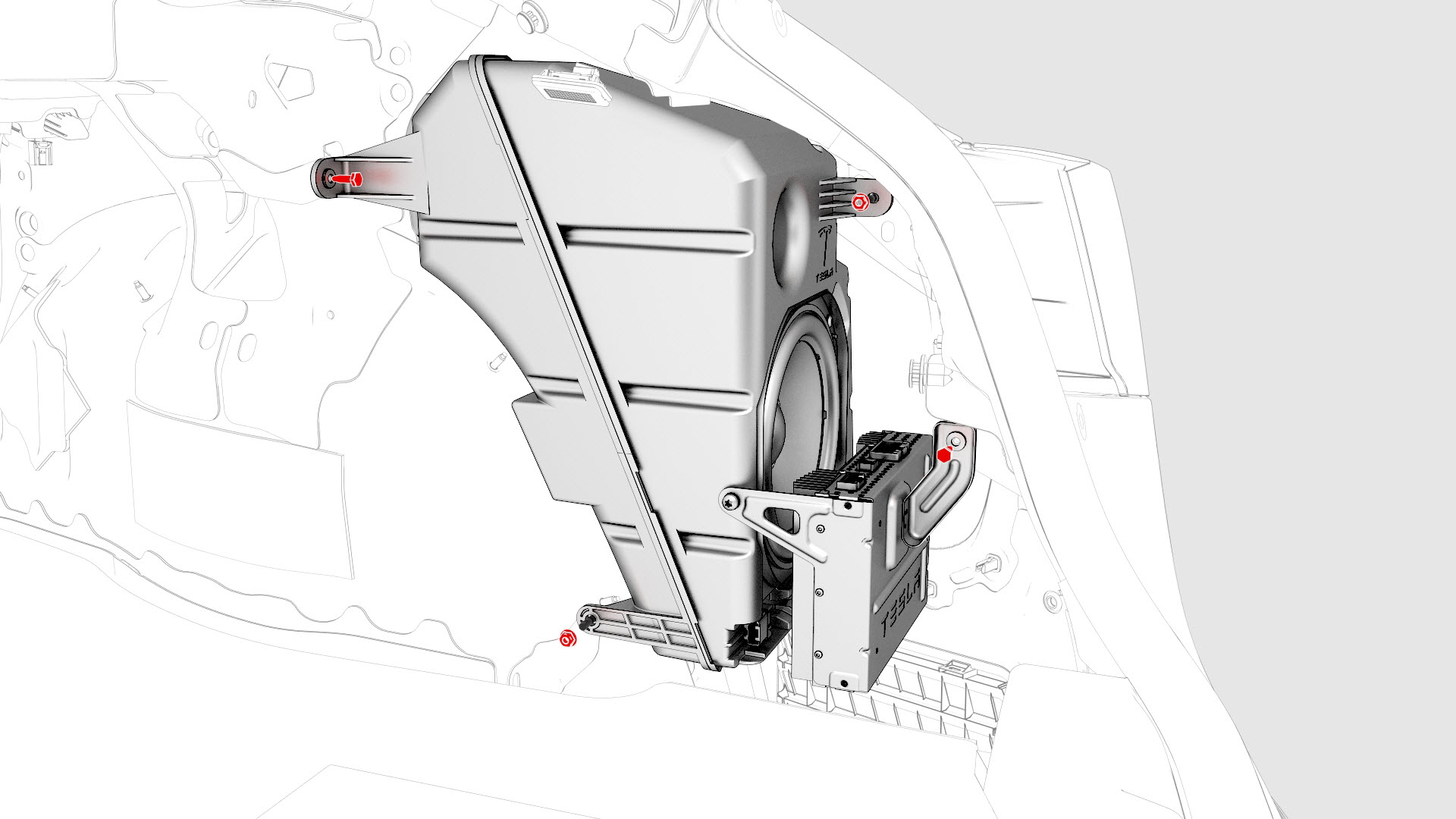

Remove the bolts and nuts that attach the subwoofer to the body, and then remove the subwoofer from the vehicle.
Torque 4.5 Nm
Torque 4.5 Nm

		1	Disconnect 12V power. See 12V Power (Disconnect and Connect).
		2	Remove the RH trunk side trim. See Trim - Side - Trunk - RH (Remove and Replace).
		3	Disconnect the electrical harness from the amplifier connectors.
		4	Release the clips that attach the electrical harness to the subwoofer.
		5	Remove the bolts and nuts that attach the subwoofer to the body, and then remove the subwoofer from the vehicle. Torque 4.5 Nm Torque 4.5 Nm

Install

Installation procedure is the reverse of removal.
