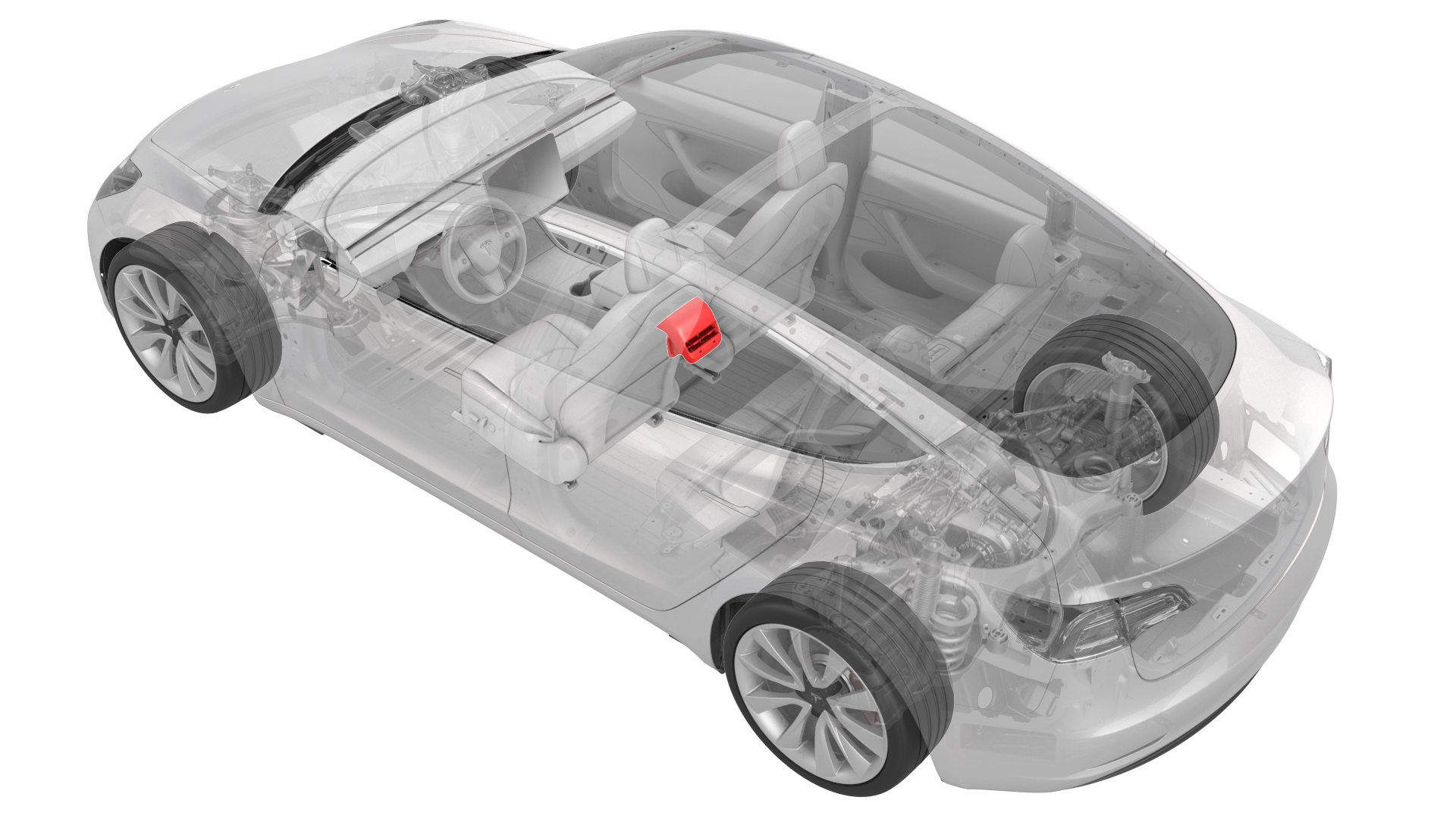

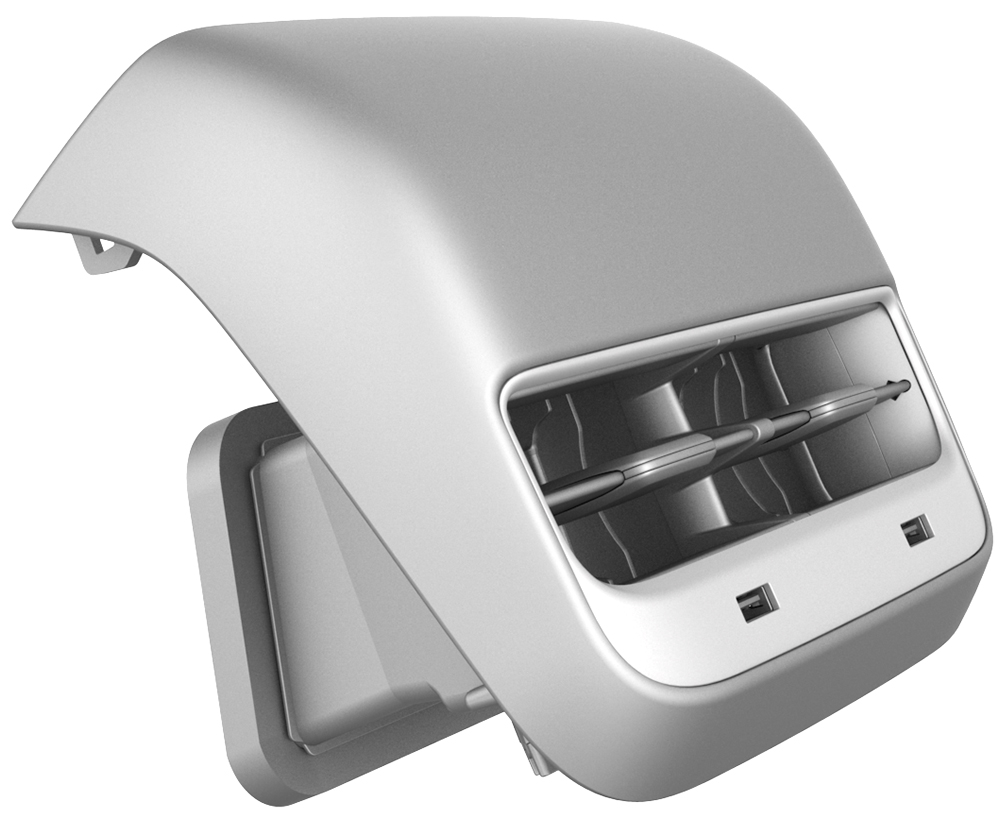

Panel - Air Vent - Center Console (Remove and Replace)

Correction code 1519070215190702

Remove

Move the driver seat and front passenger seat forward.

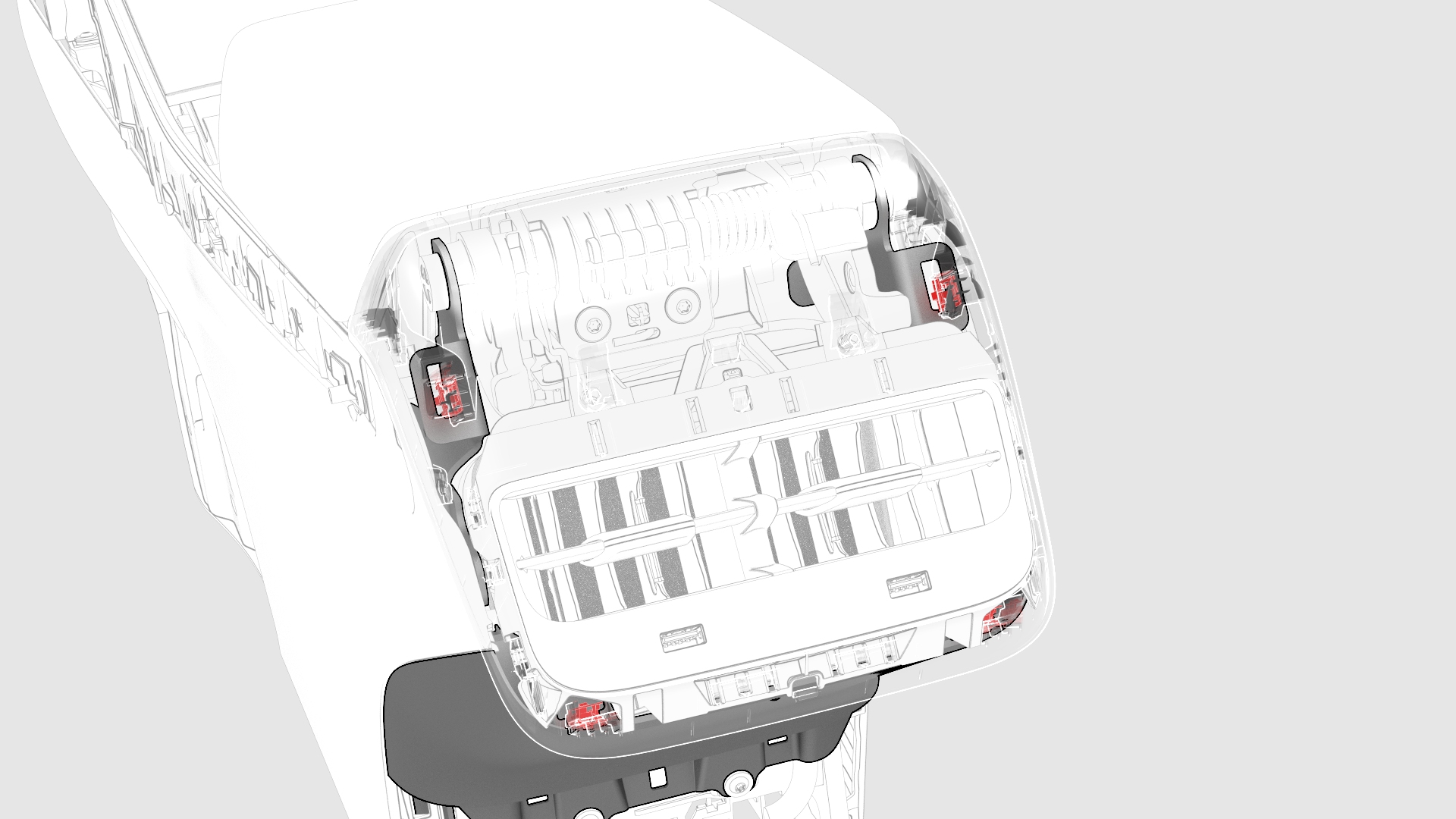

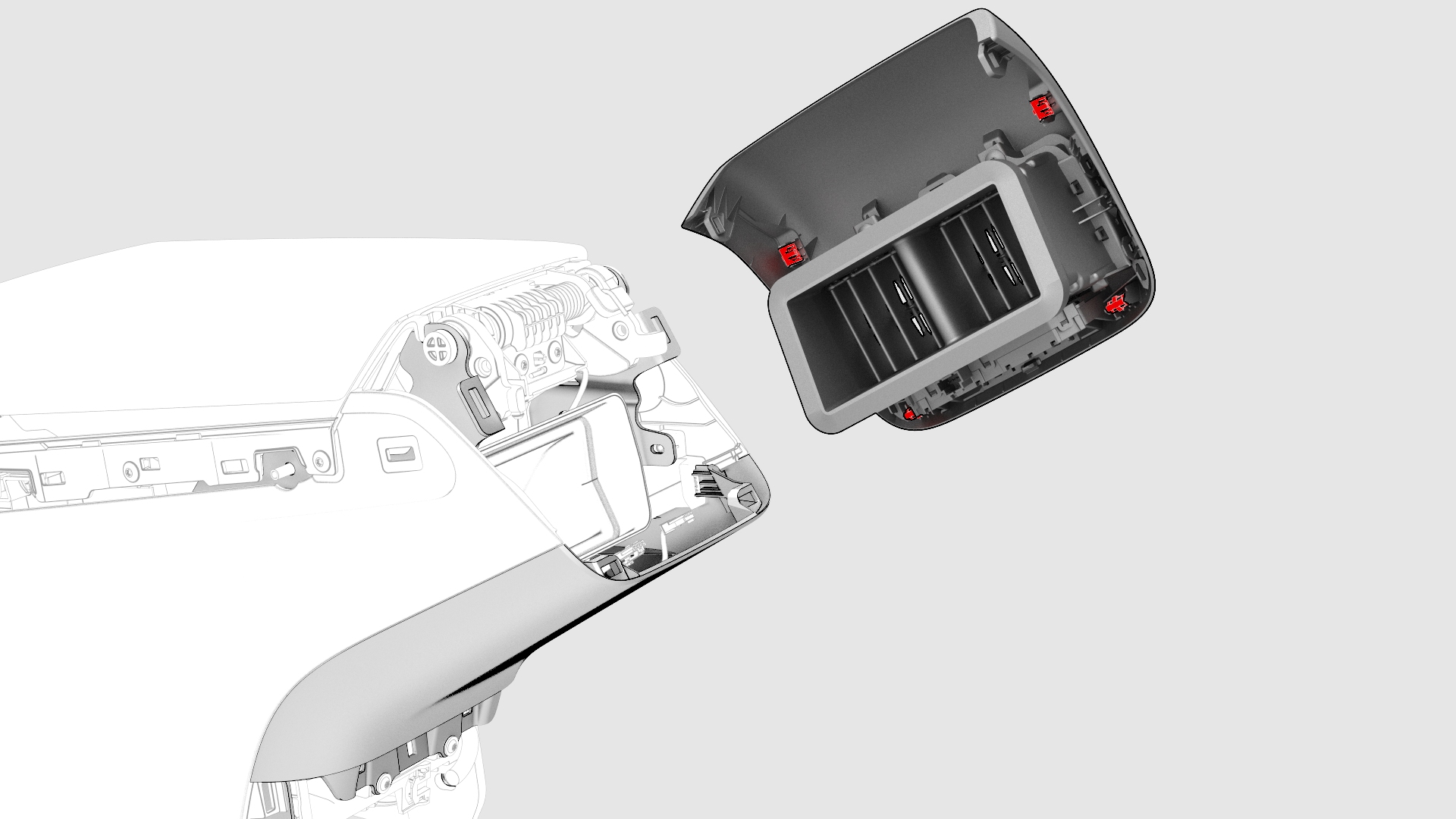

Release the clips (x4) that attach the center console air vent panel to the center console, and separate the panel from the console.

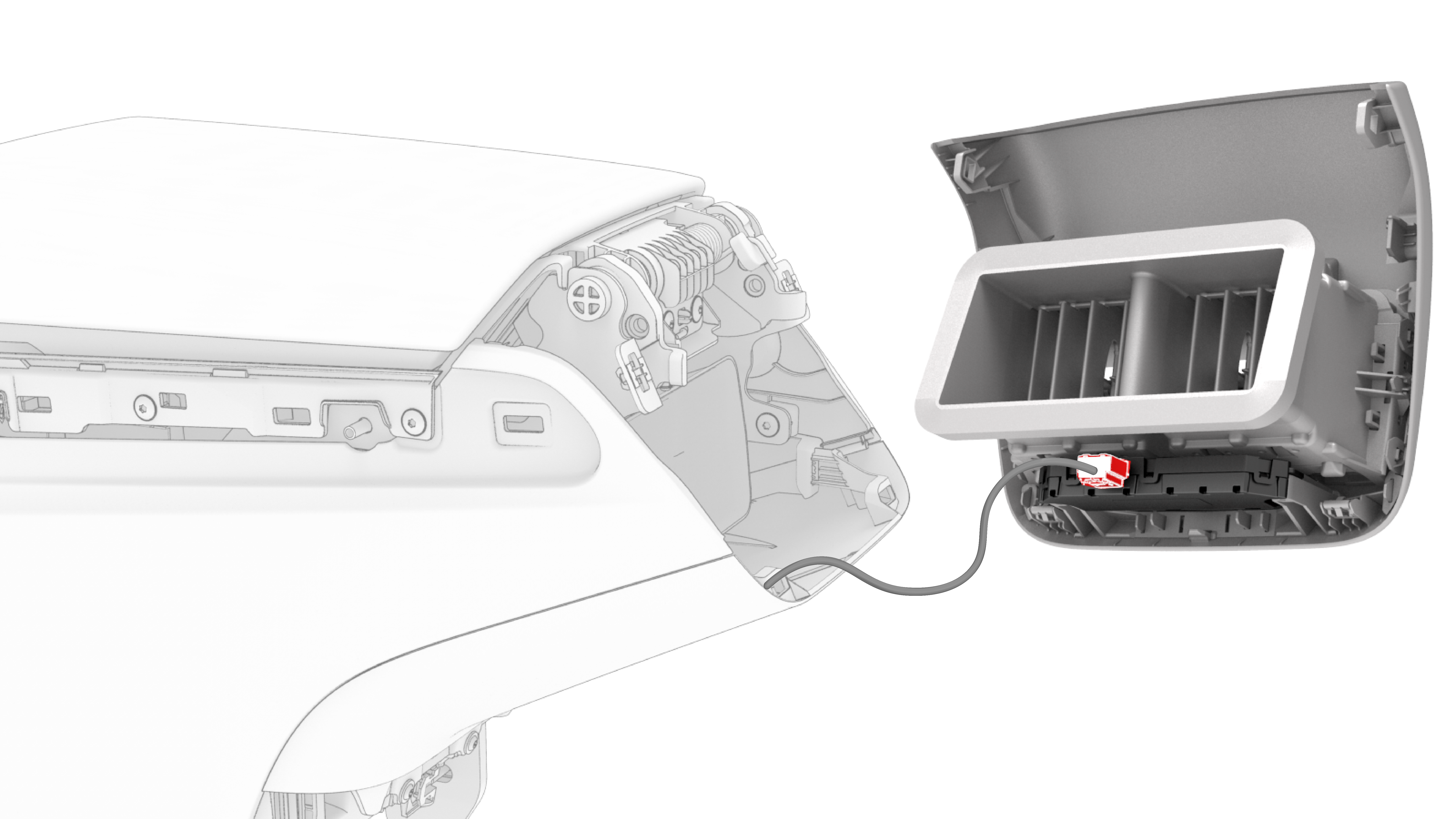

Disconnect the electrical harness from the center console rear USB hub connector, and then remove the center console air vent panel from the vehicle.

		1	Move the driver seat and front passenger seat forward.
		2	Release the clips (x4) that attach the center console air vent panel to the center console, and separate the panel from the console.
		3	Disconnect the electrical harness from the center console rear USB hub connector, and then remove the center console air vent panel from the vehicle.

Install

Installation procedure is the reverse of removal.
