Reflex Lens - Rear - RH (Remove and Replace)

Correction code 1740450217404502
Parent topic: 1740 - Exterior Lights

Remove

Note: This procedure applies only to the RH side. The LH rear reflex lens is part of the charge port.
  1. Apply masking around the RH rear reflex lens.

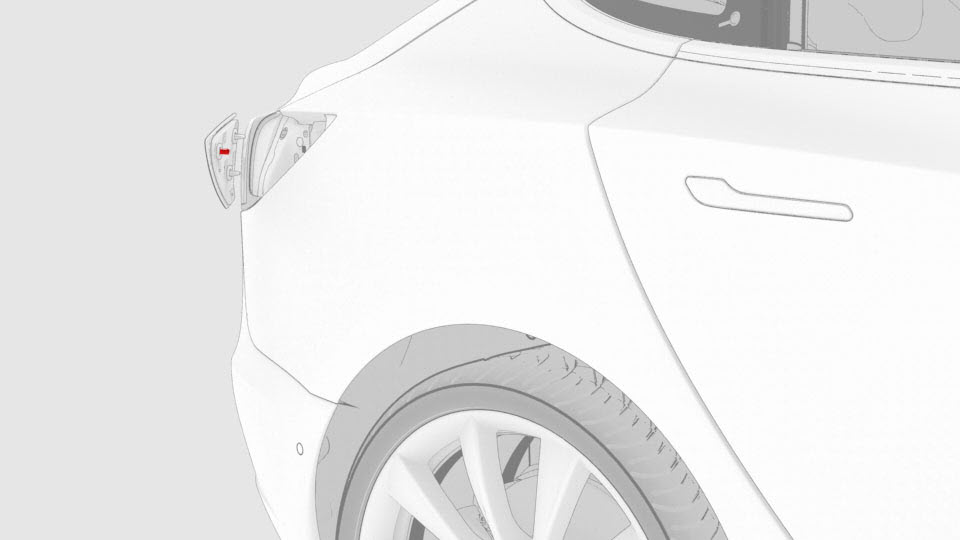

  2. Use a plastic trim tool to release the clips that attach the RH rear reflex lens to the body, and then remove the RH rear reflex lens from the vehicle.
    Note: Partially release the upper right clip first, then release the rest of the clips.
1Apply masking around the RH rear reflex lens.
2Use a plastic trim tool to release the clips that attach the RH rear reflex lens to the body, and then remove the RH rear reflex lens from the vehicle.
Note: Partially release the upper right clip first, then release the rest of the clips.

Install

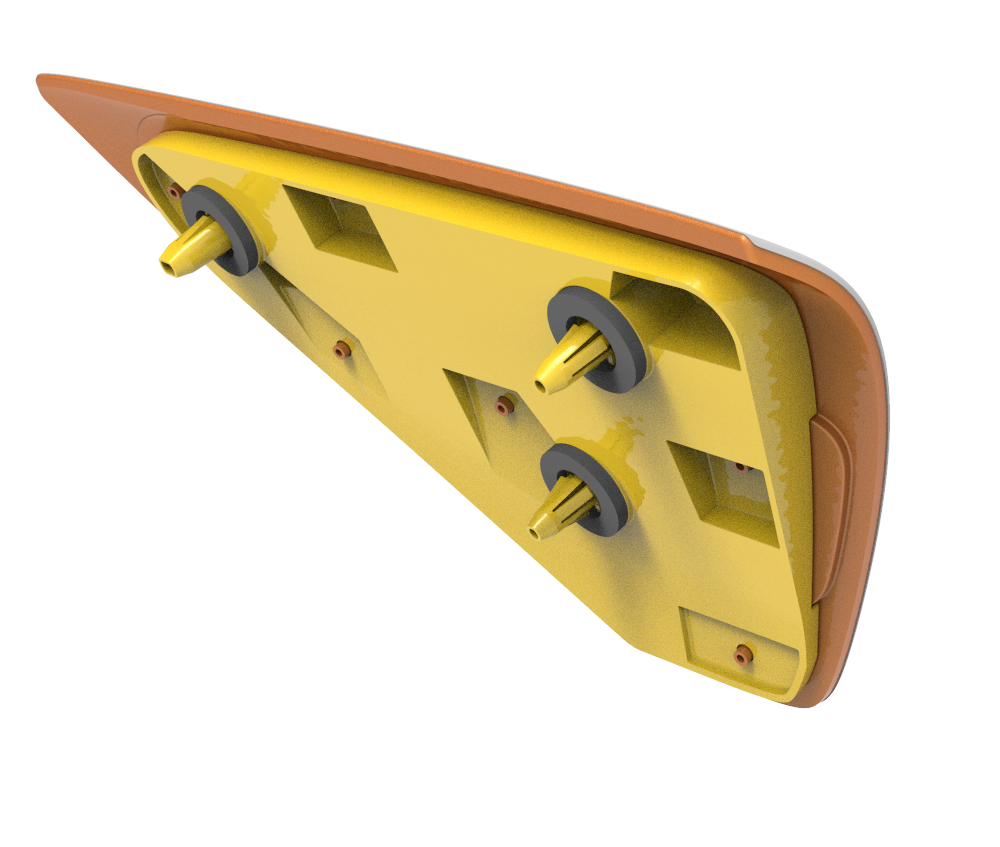

  1. Install the RH rear reflex lens to the vehicle, and then fasten the clips that attach the lens to the body.
    Note: Carefully and firmly press the RH rear reflex lens to fully seat the clips.
  2. Remove the masking tape from the body.
  3. Make sure that the RH rear reflex lens to body gap and flush are within specifications.
1Install the RH rear reflex lens to the vehicle, and then fasten the clips that attach the lens to the body.
Note: Carefully and firmly press the RH rear reflex lens to fully seat the clips.
2Remove the masking tape from the body.
3Make sure that the RH rear reflex lens to body gap and flush are within specifications.
