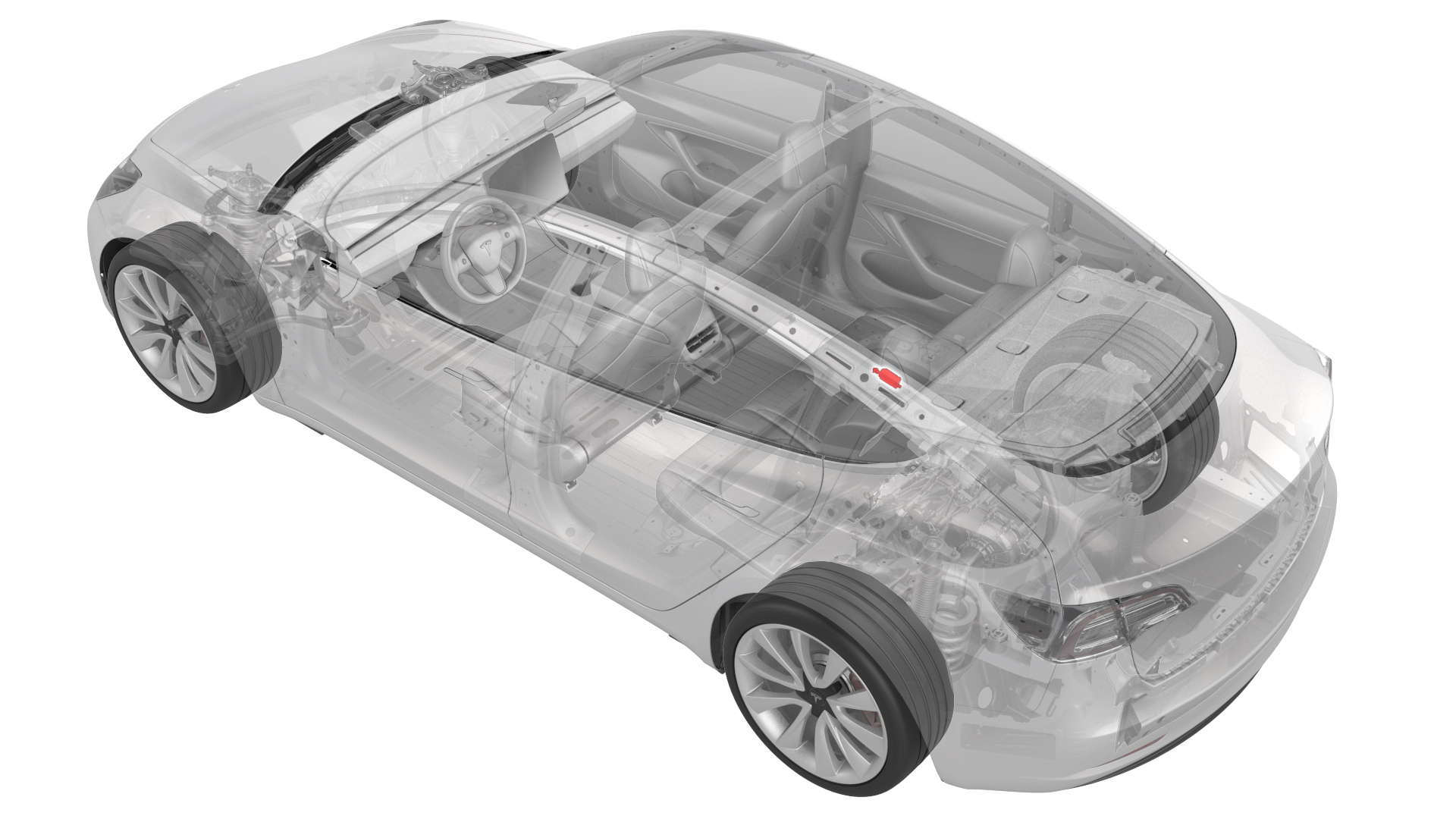

Amplifier - Antenna - FM (Remove and Replace)

Correction code 2121350221213502

Remove

Remove the LH side rail trim. See Trim - Side Rail - LH (Remove and Install).

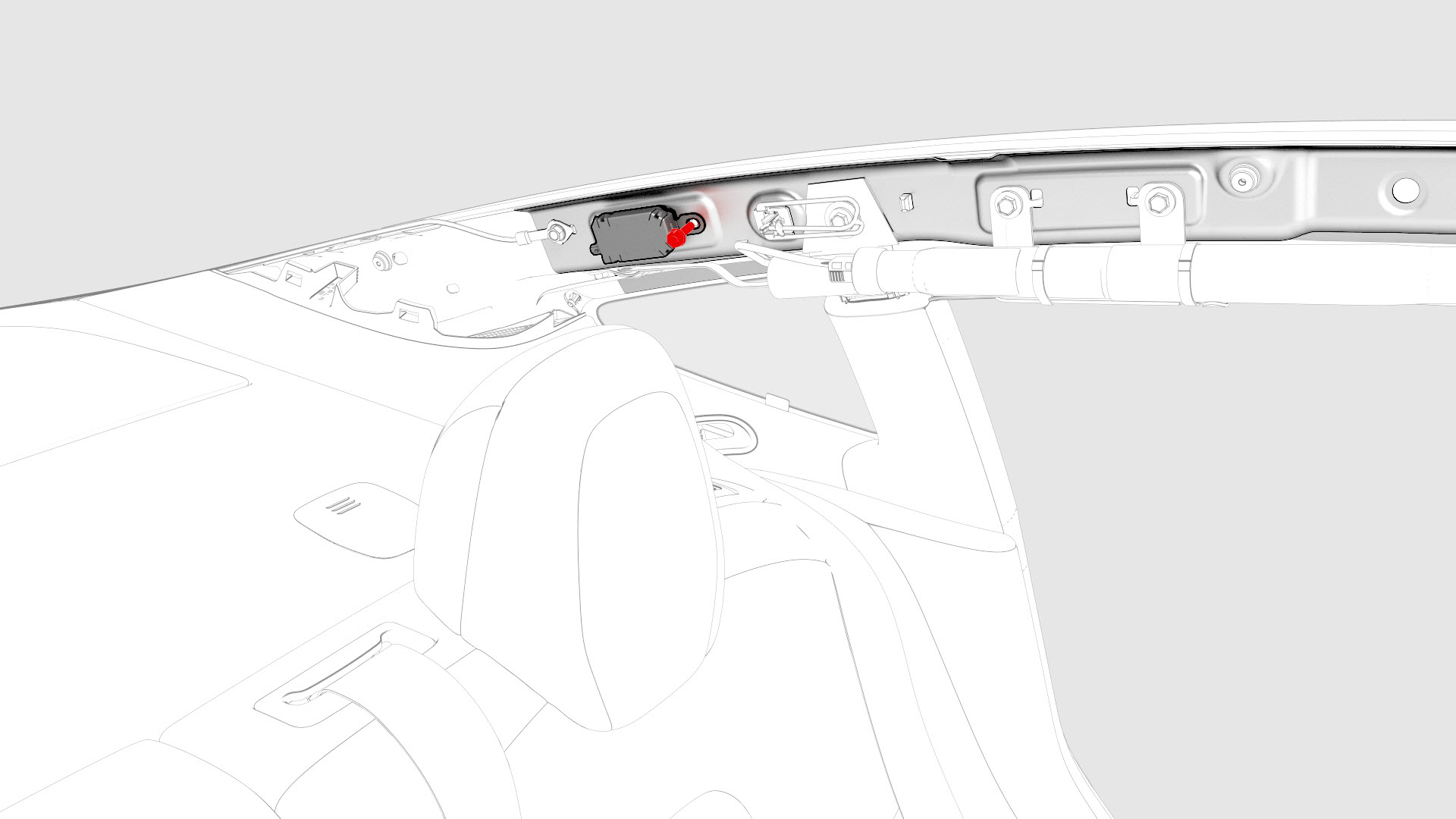

Disconnect the electrical connector from the FM antenna amplifier.

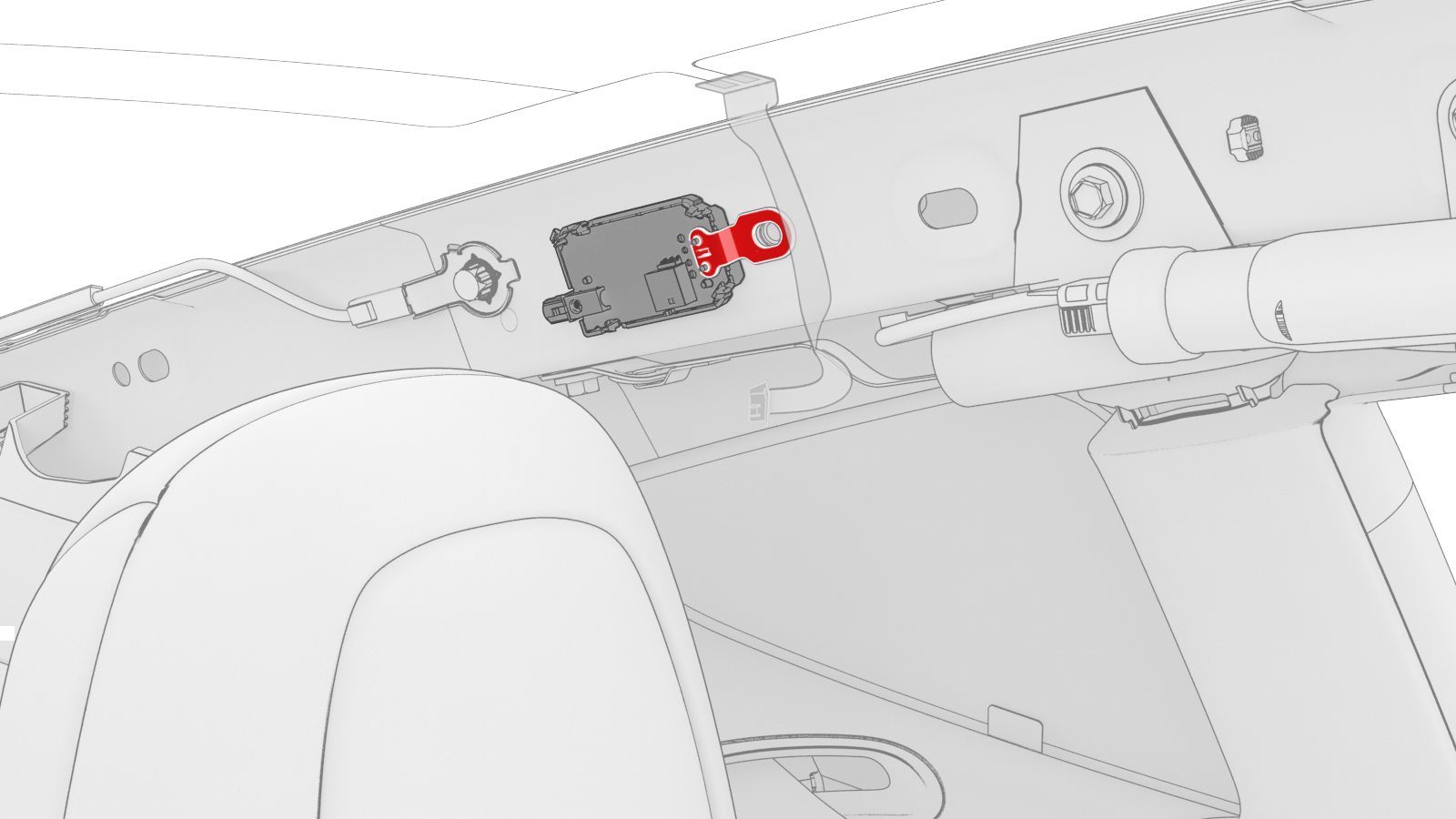

Remove the bolt and release the clip that attach the FM antenna amplifier to the C-pillar, and then remove the amplifier from the C-pillar.

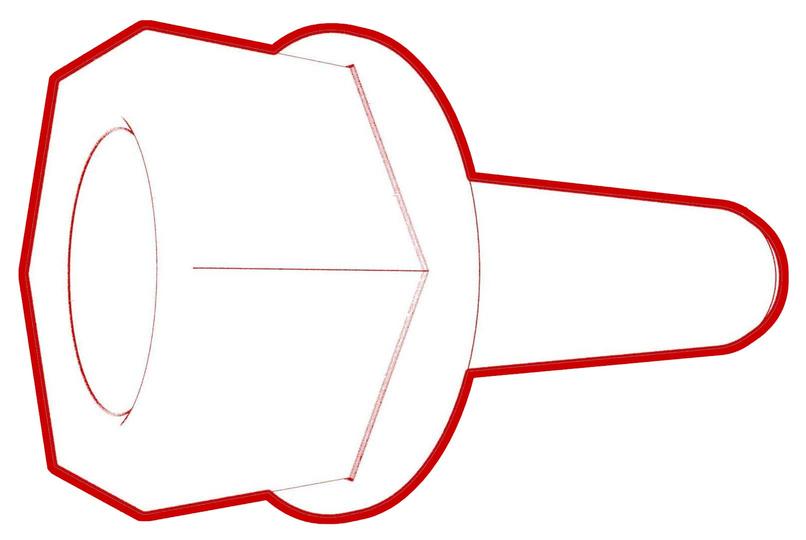

Torque 4 Nm

Note: The FM antenna amplifier is still connected to the backlight harness.

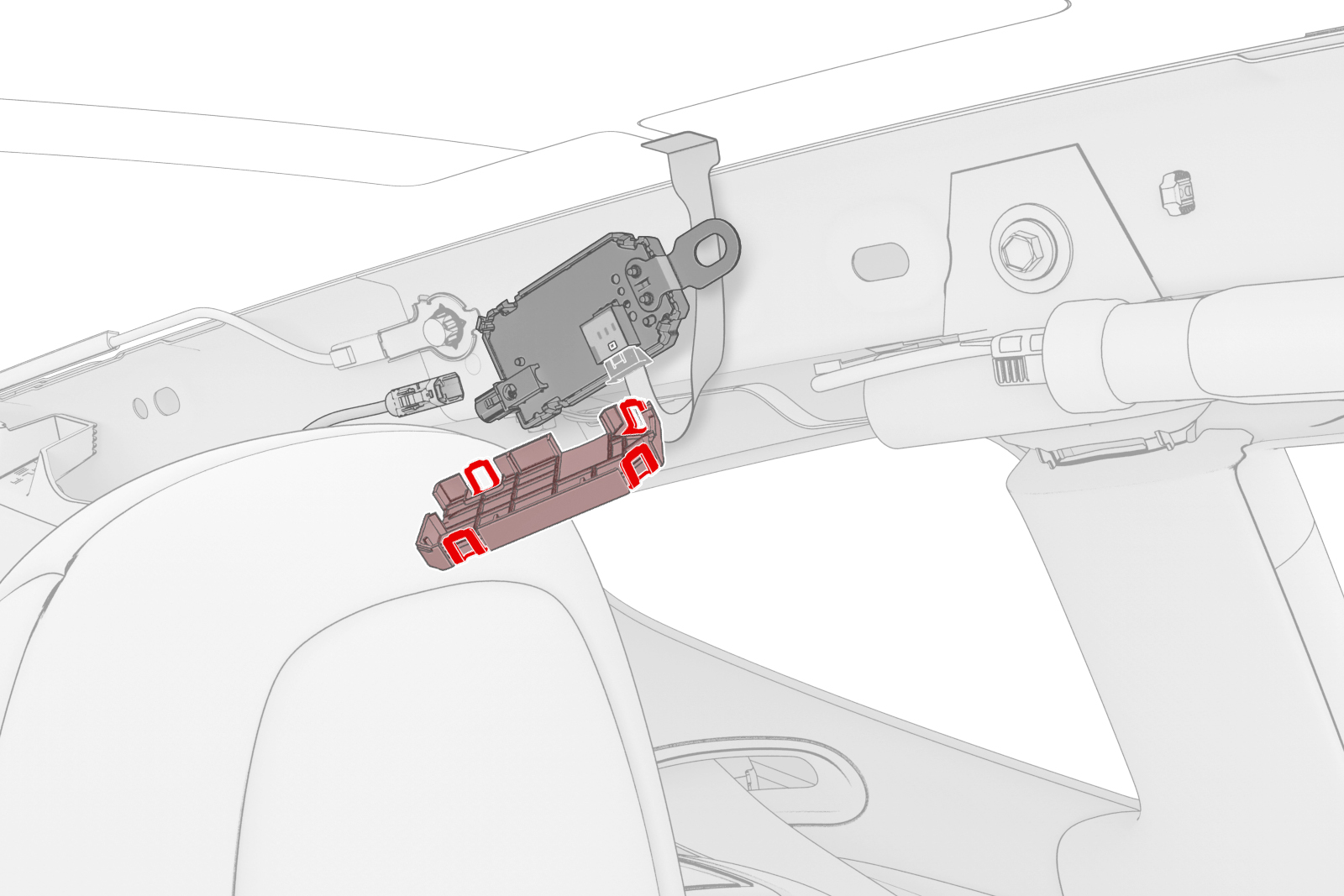

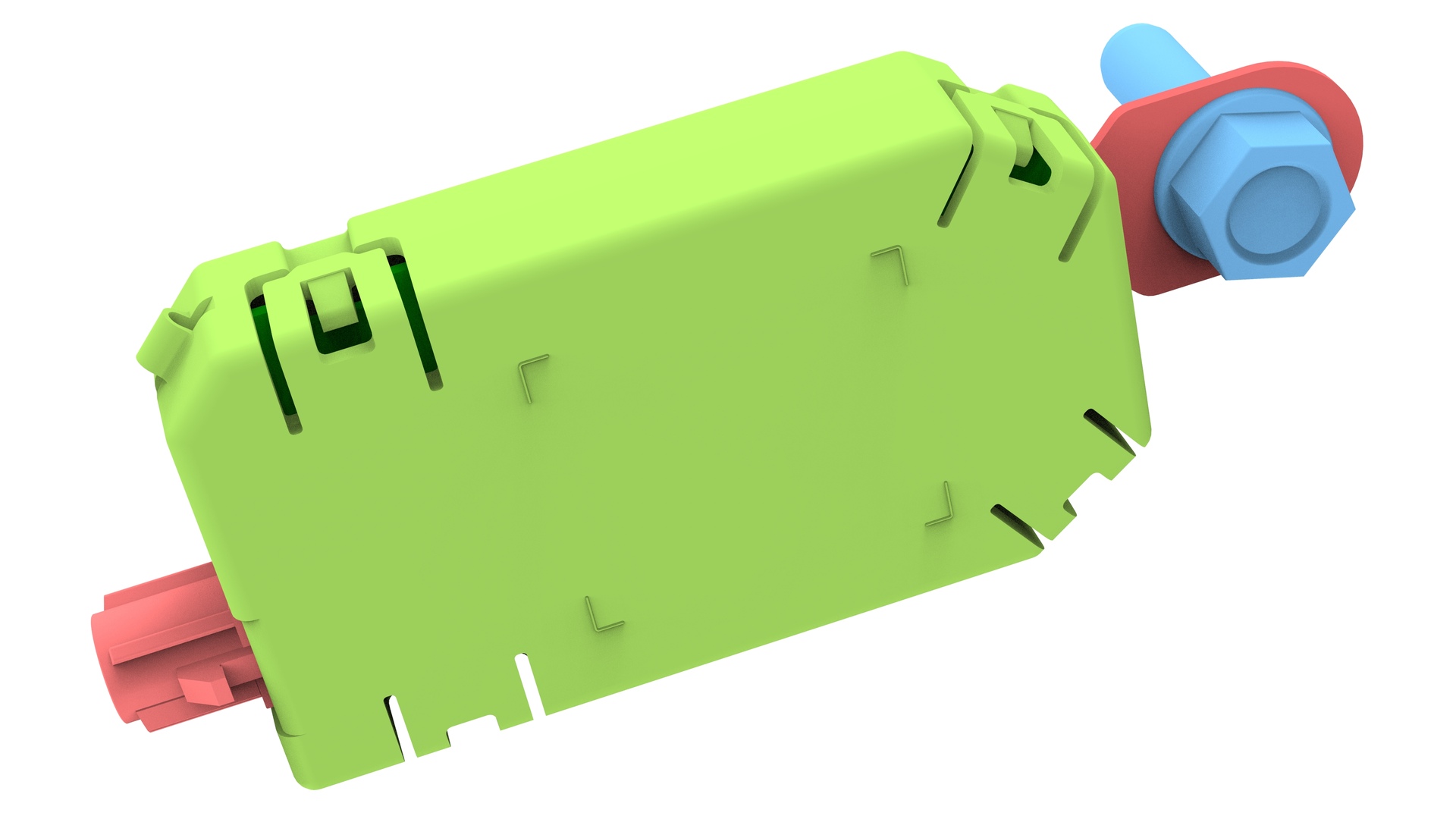

Release the tabs that attach the FM antenna amplifier cover to the FM antenna amplifier, and then remove the cover.
Disconnect the backlight electrical connector from the FM antenna amplifier.

		1	Remove the LH side rail trim. See Trim - Side Rail - LH (Remove and Install).
		2	Disconnect the electrical connector from the FM antenna amplifier.
		3	Remove the bolt and release the clip that attach the FM antenna amplifier to the C-pillar, and then remove the amplifier from the C-pillar. Torque 4 Nm Note: The FM antenna amplifier is still connected to the backlight harness.
		4	Release the tabs that attach the FM antenna amplifier cover to the FM antenna amplifier, and then remove the cover.
		5	Disconnect the backlight electrical connector from the FM antenna amplifier.

Install

Installation procedure is the reverse of removal.
