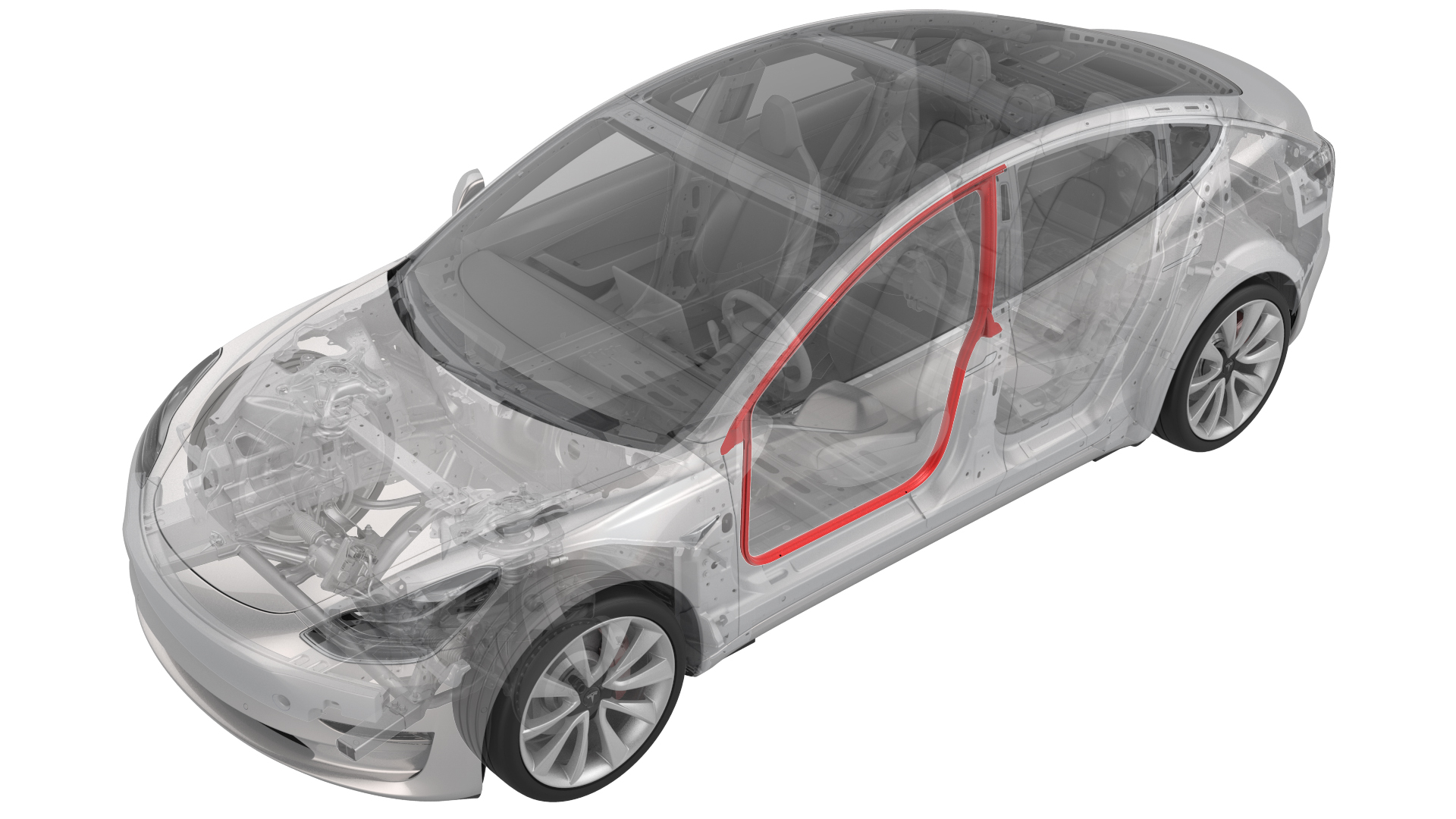

Seal - Body - Side - Front - Primary - LH (Remove and Replace)

Correction code 1170030211700302
Parent topic: 1170 - Seals Body Closures

Remove

  1. Remove the LH B-pillar applique. See Applique - B-Pillar - LH (Remove and Replace).

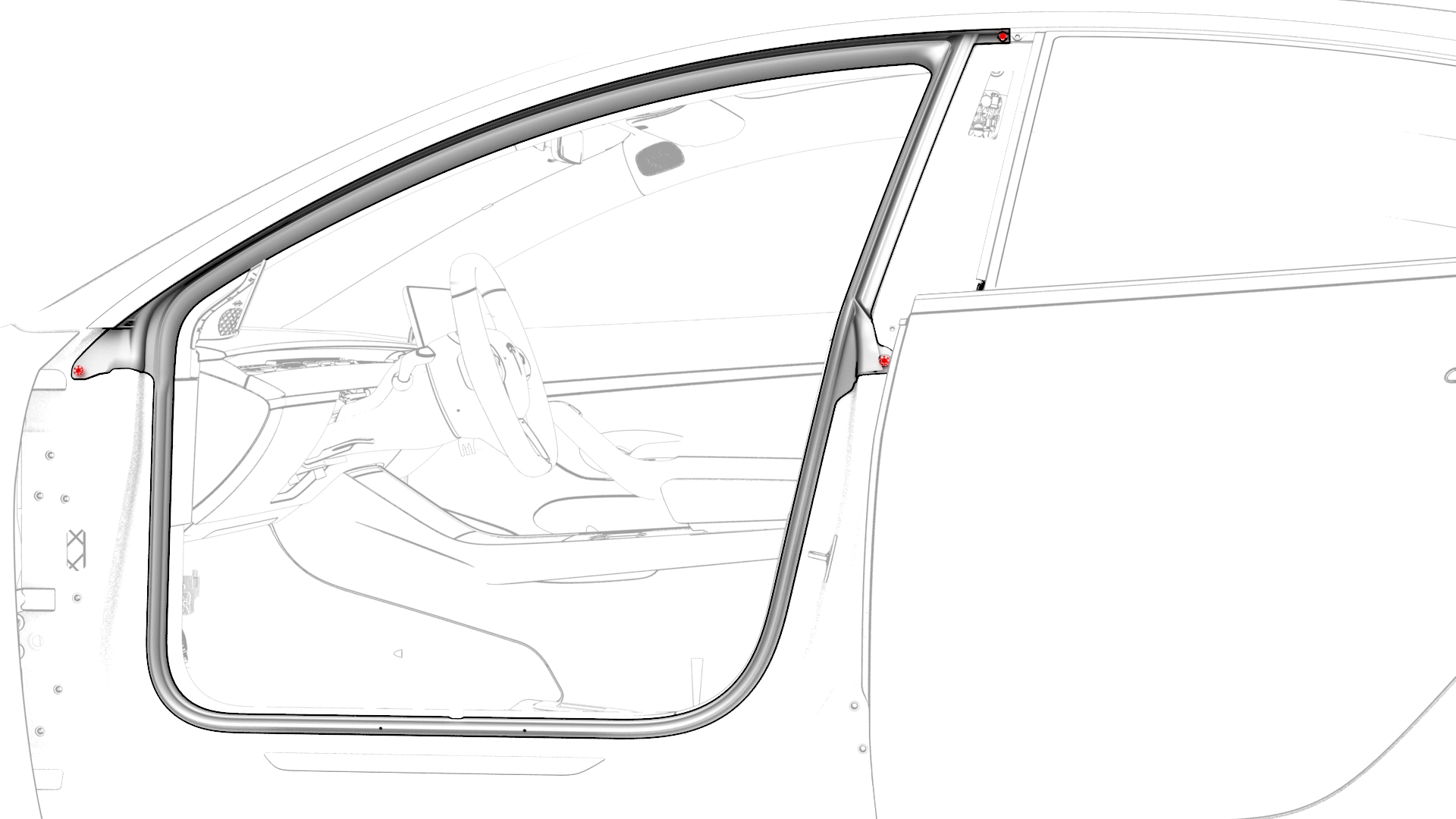

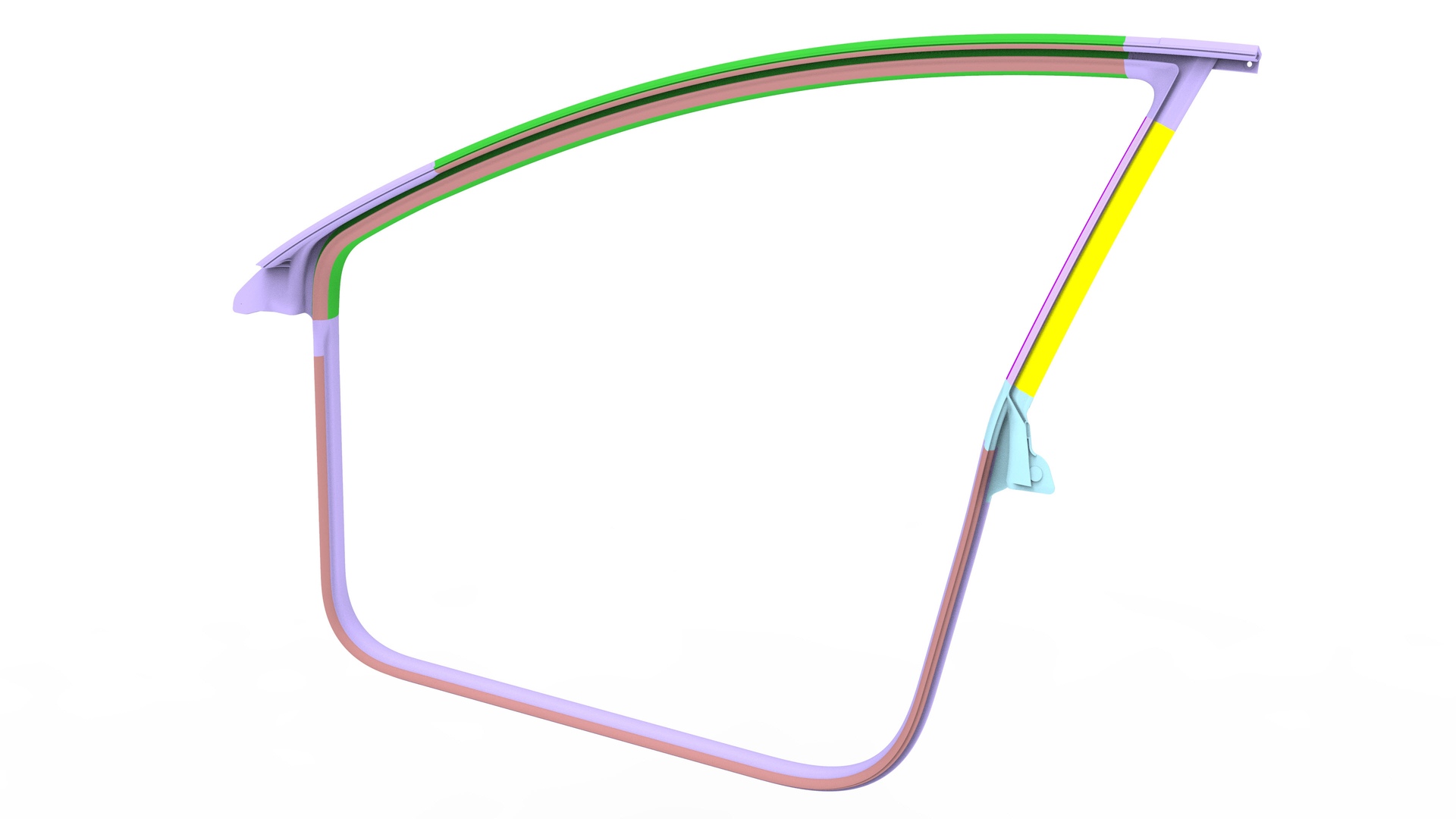

  2. Release the clips (x3) that attach the front LH primary body seal to the mid B-pillar, the upper B-pillar, and the mid A-pillar.
  3. Pull on the seal to remove it from the body.
1Remove the LH B-pillar applique. See Applique - B-Pillar - LH (Remove and Replace).
2Release the clips (x3) that attach the front LH primary body seal to the mid B-pillar, the upper B-pillar, and the mid A-pillar.
3Pull on the seal to remove it from the body.

Install

  1. Loosely install the front LH primary body seal to the body.
  2. Fasten the clips (x3) that attach the front LH primary body seal to the mid A-pillar, the upper B-pillar, and the mid B-pillar.
  3. Tuck the seal into the bright molding, and make sure that it fits properly to the trim panels and the headliner.
  4. Press the seal into the lower corners, and then install the rest of the seal to the body.
    Note: Stretch and tuck the seal so that it is evenly distributed around the perimeter.
  5. Install the LH B-pillar applique. See Applique - B-Pillar - LH (Remove and Replace).
1Loosely install the front LH primary body seal to the body.
2Fasten the clips (x3) that attach the front LH primary body seal to the mid A-pillar, the upper B-pillar, and the mid B-pillar.
3Tuck the seal into the bright molding, and make sure that it fits properly to the trim panels and the headliner.
4Press the seal into the lower corners, and then install the rest of the seal to the body.
Note: Stretch and tuck the seal so that it is evenly distributed around the perimeter.
5Install the LH B-pillar applique. See Applique - B-Pillar - LH (Remove and Replace).
