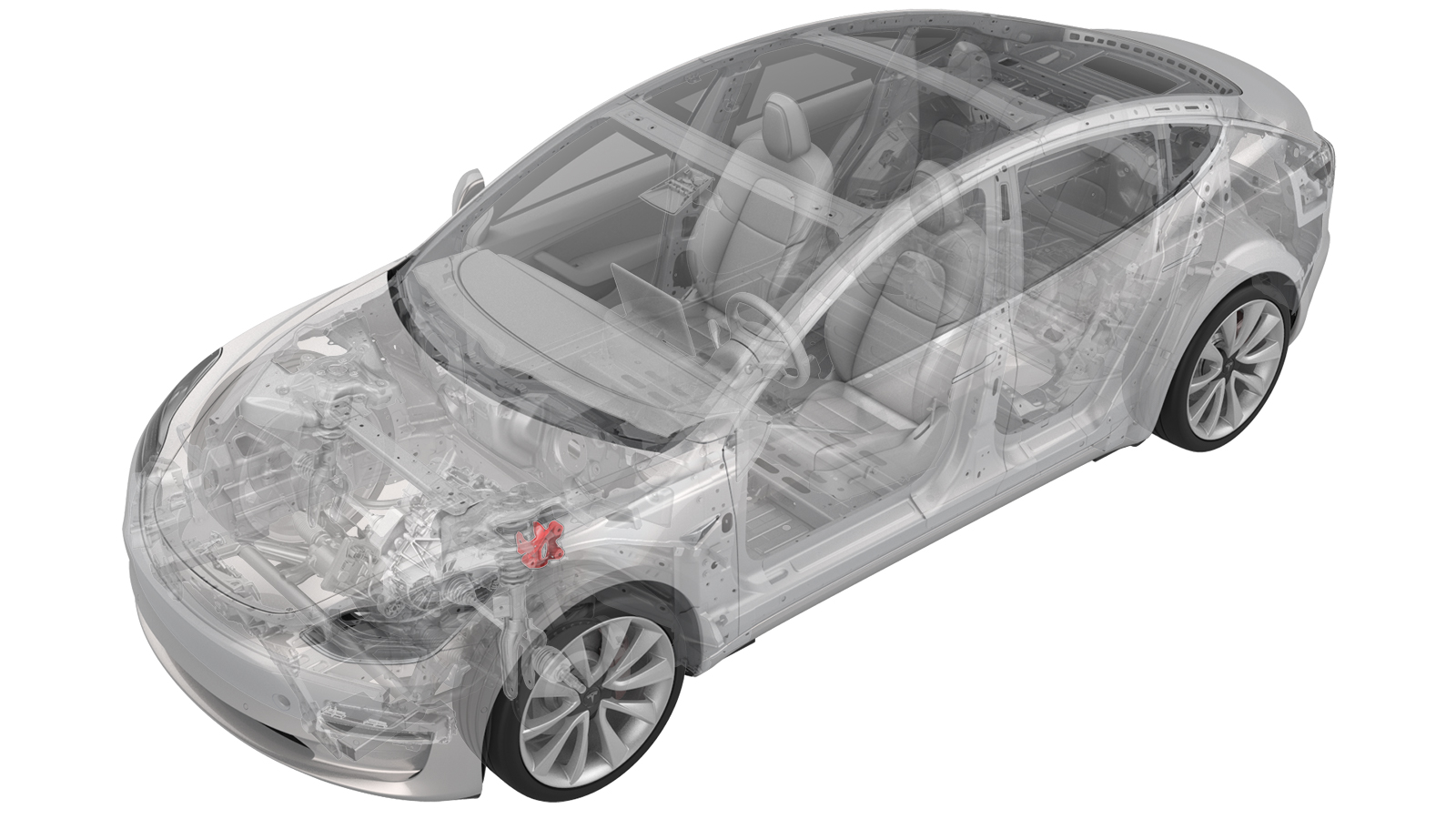

Isolator - Motor Mount - Front - LH (Remove and Replace)

Correction code 3001102230011022
Parent topic: 3001 - Chassis and Subframes

Remove

  1. Remove the front subframe assembly from the vehicle. See Subframe Assembly - Front (Dual Motor) (Remove and Install).

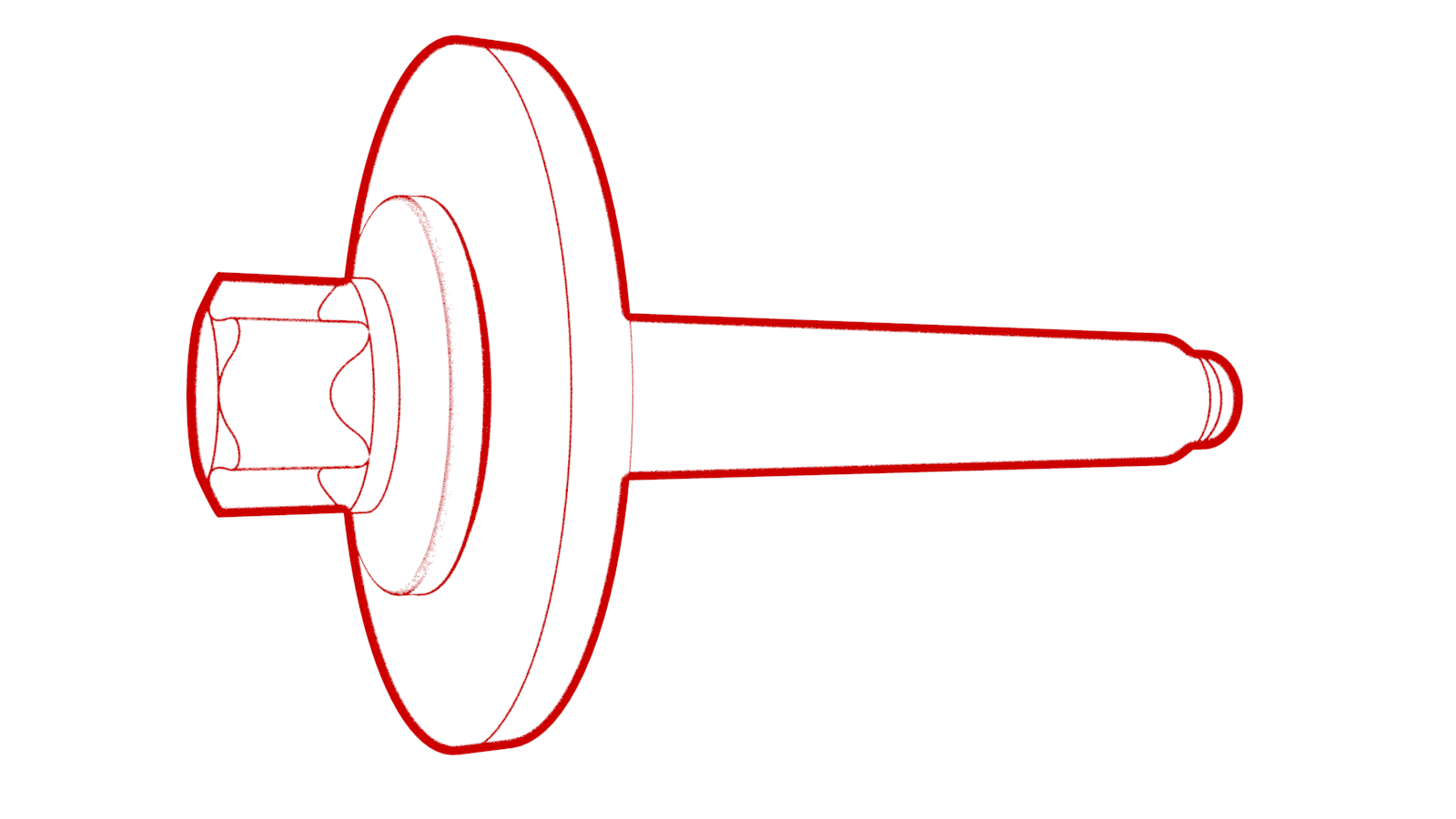

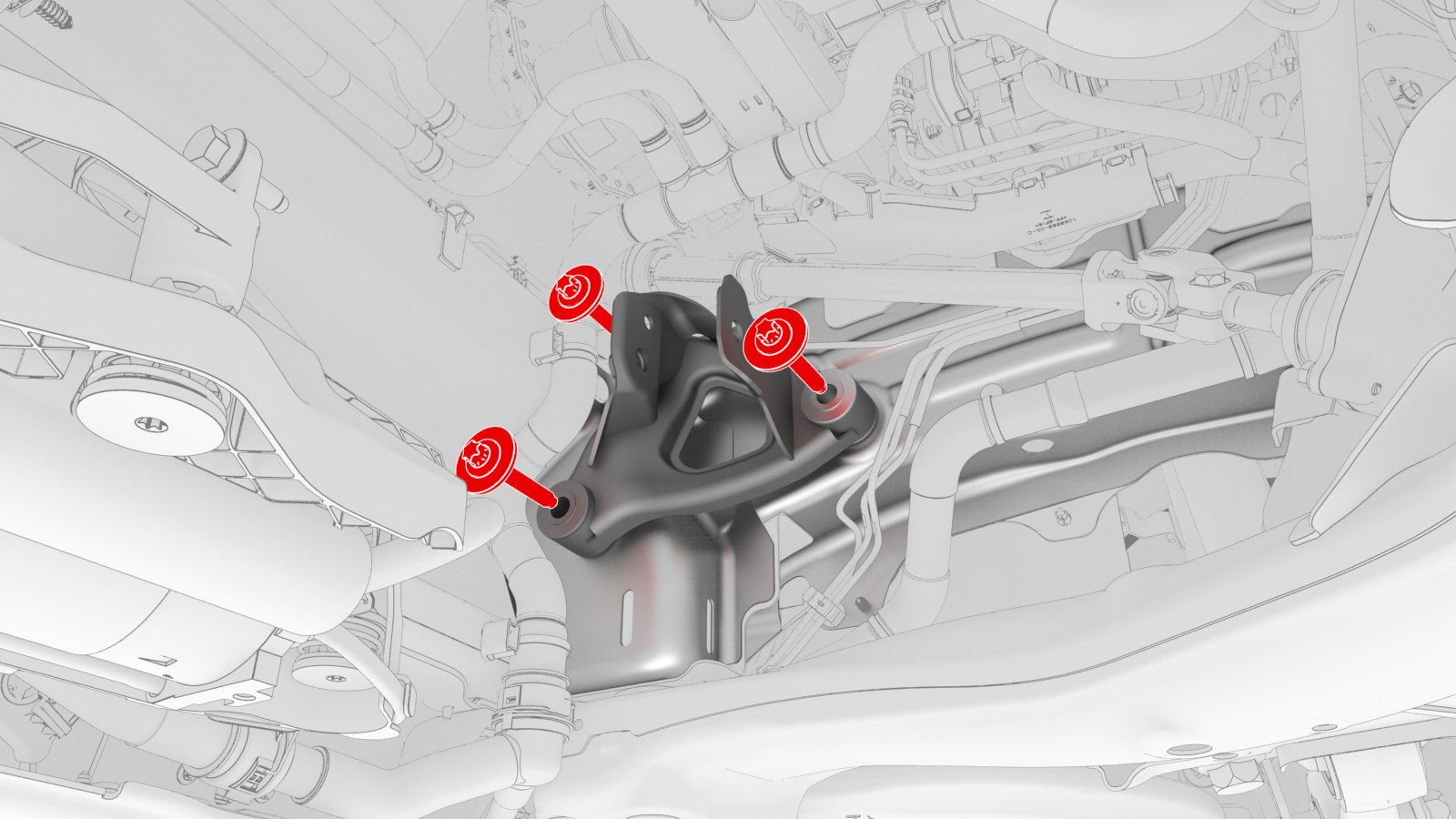

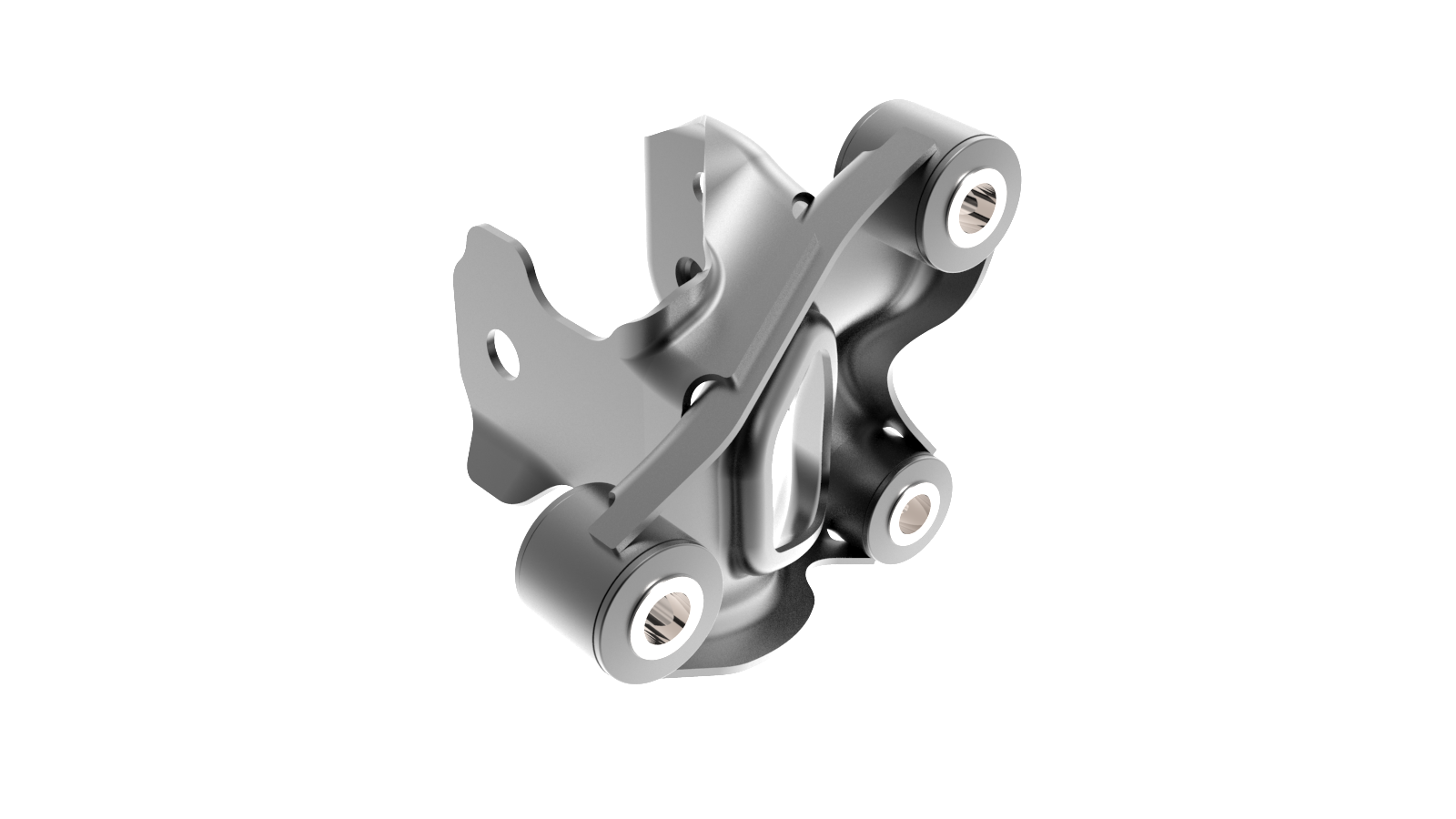

  2. Remove and discard the bolts that attach the LH front motor mount isolator to the body, and then remove the isolator from the vehicle.
    Warning: Secure the LH front motor mount isolator while removing the bolts, as the isolator will fall once unbolted.
1Remove the front subframe assembly from the vehicle. See Subframe Assembly - Front (Dual Motor) (Remove and Install).
2Remove and discard the bolts that attach the LH front motor mount isolator to the body, and then remove the isolator from the vehicle.
Warning: Secure the LH front motor mount isolator while removing the bolts, as the isolator will fall once unbolted.

Install

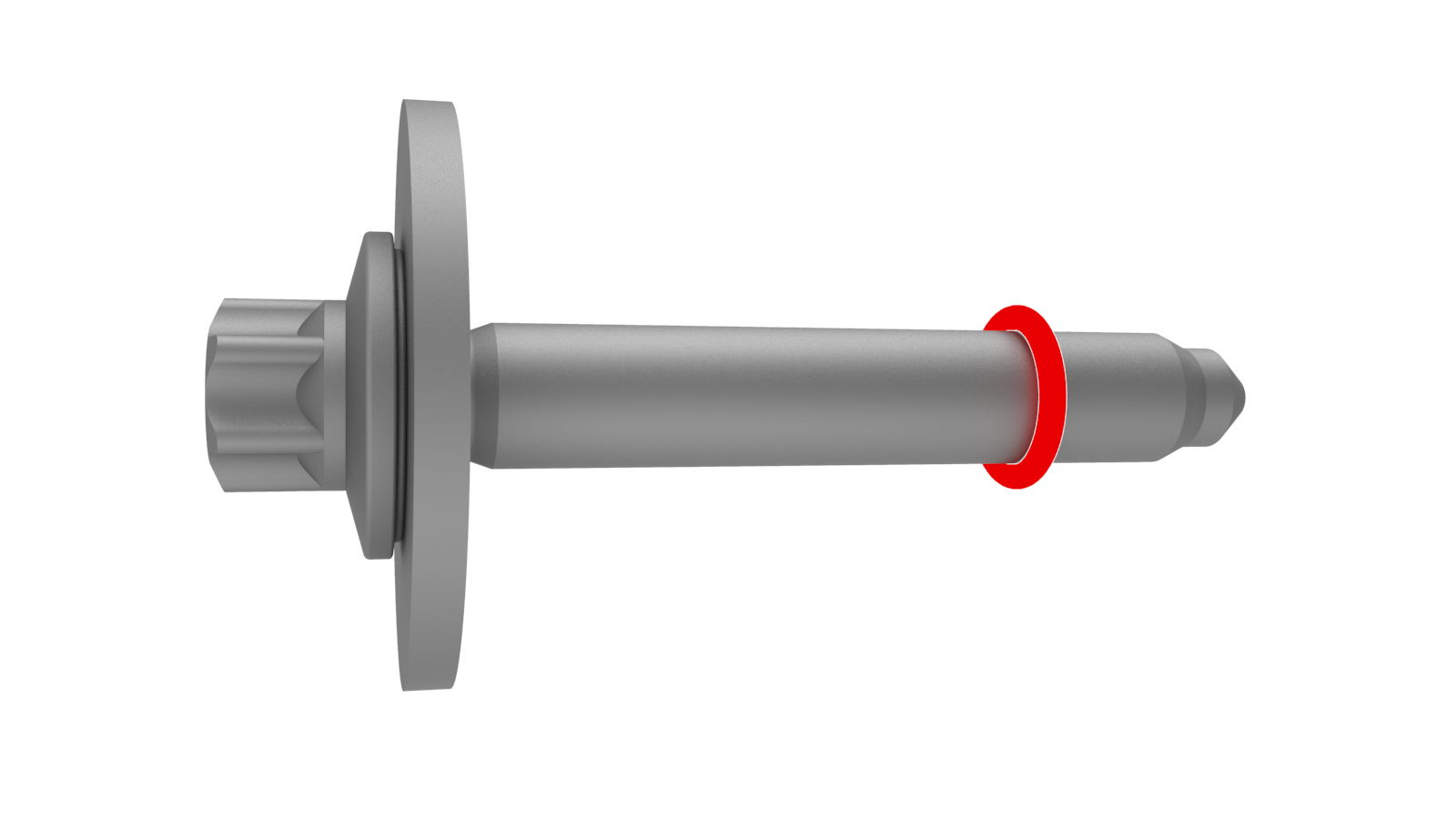

  1. Install an o-ring (part number 1473485-00-A) 5 threads from the tip of each new bolt (x3).

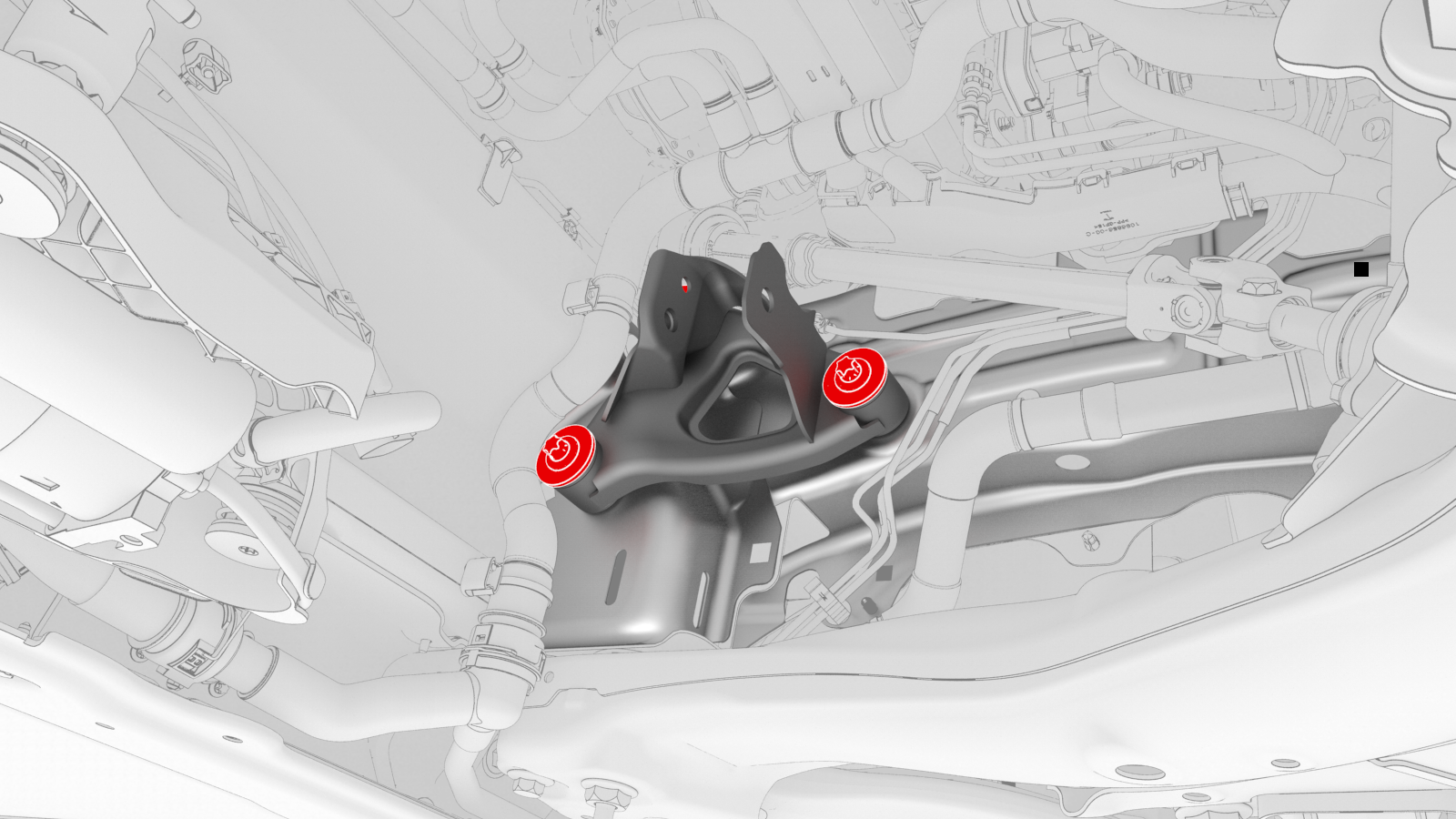

  2. Hand-tighten the new bolts that attach the LH front motor mount isolator to the body.
  3. Tighten the new bolts (x3) that attach the LH front motor mount isolator to the body.
    Torque 62 Nm
  4. Install the front subframe assembly on the vehicle. See Subframe Assembly - Front (Dual Motor) (Remove and Install).
1Install an o-ring (part number 1473485-00-A) 5 threads from the tip of each new bolt (x3).
2Hand-tighten the new bolts that attach the LH front motor mount isolator to the body.
3Tighten the new bolts (x3) that attach the LH front motor mount isolator to the body.
Torque 62 Nm
4Install the front subframe assembly on the vehicle. See Subframe Assembly - Front (Dual Motor) (Remove and Install).
