Bezel - Handle - Seat Back - 2nd Row - LH (Remove and Replace)

Correction code 1305530213055302

Remove

Release the LH 2nd row seat back and fold it slightly forward.

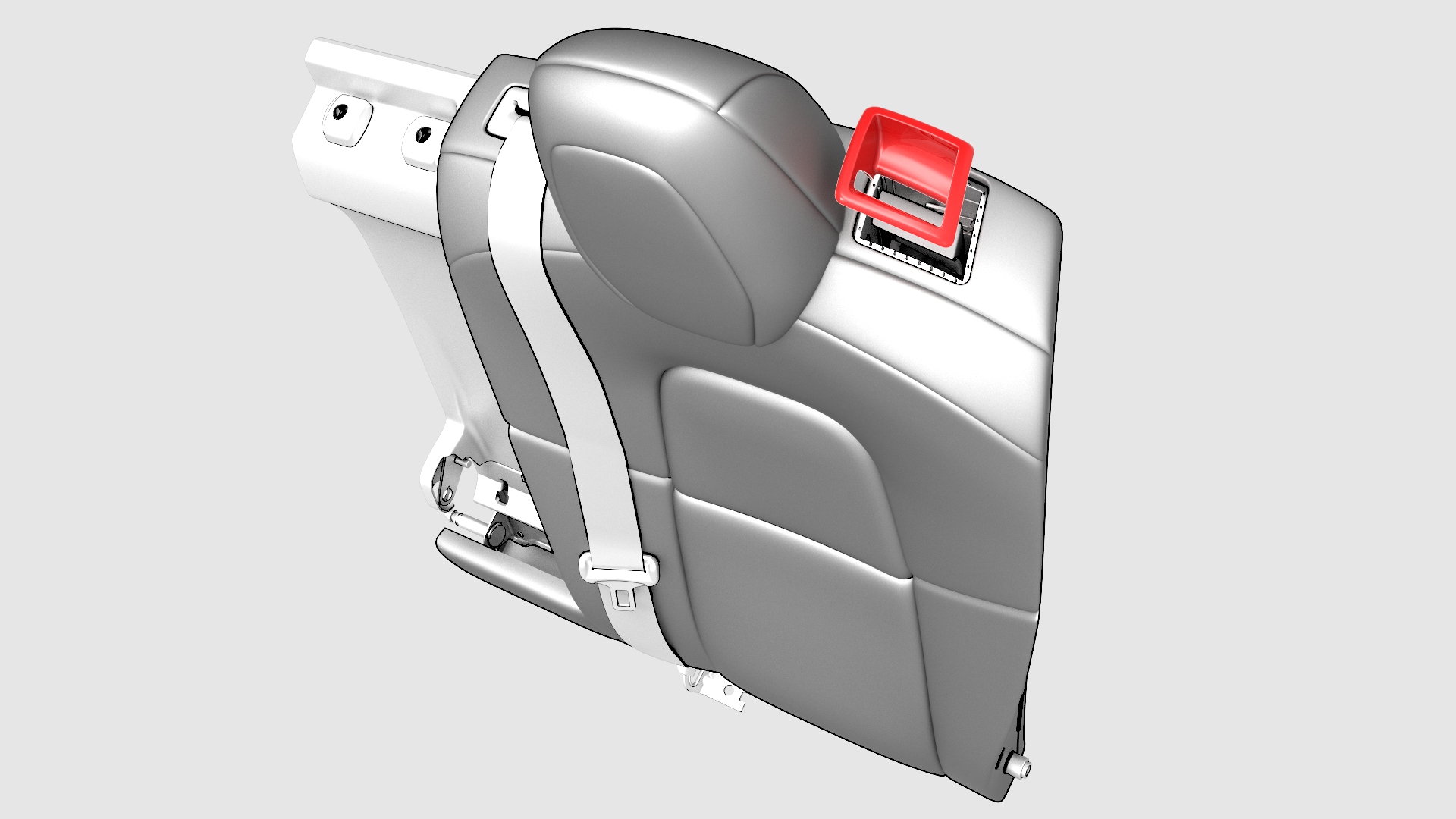

Use a pry tool to release the clips (x2) that attach the LH 2nd row seat back handle bezel to the LH 2nd row seat back handle assembly, and then remove the bezel from the handle assembly.

		1	Release the LH 2nd row seat back and fold it slightly forward.
		2	Use a pry tool to release the clips (x2) that attach the LH 2nd row seat back handle bezel to the LH 2nd row seat back handle assembly, and then remove the bezel from the handle assembly.

Install

Install the LH 2nd row seat back handle bezel into the LH 2nd row seat back handle assembly, and then fasten the clips (x2) that attach the bezel to the handle assembly.
Unfold the LH 2nd row seat back so that it is upright and secured.

		1	Install the LH 2nd row seat back handle bezel into the LH 2nd row seat back handle assembly, and then fasten the clips (x2) that attach the bezel to the handle assembly.
		2	Unfold the LH 2nd row seat back so that it is upright and secured.
