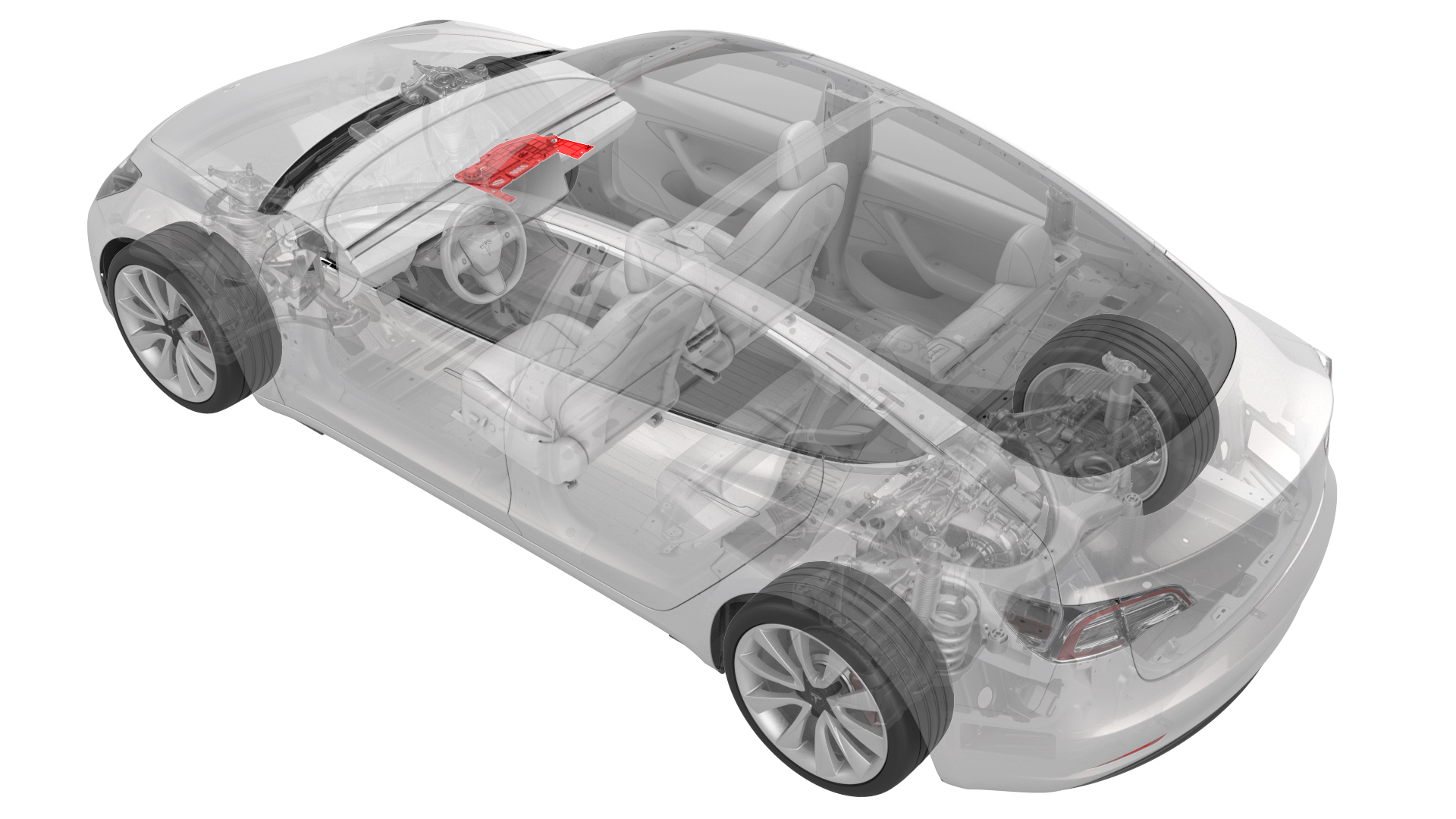

Cover - Footwell - Passenger (LHD) (Remove and Replace)

Correction code 1405540214055402

Remove

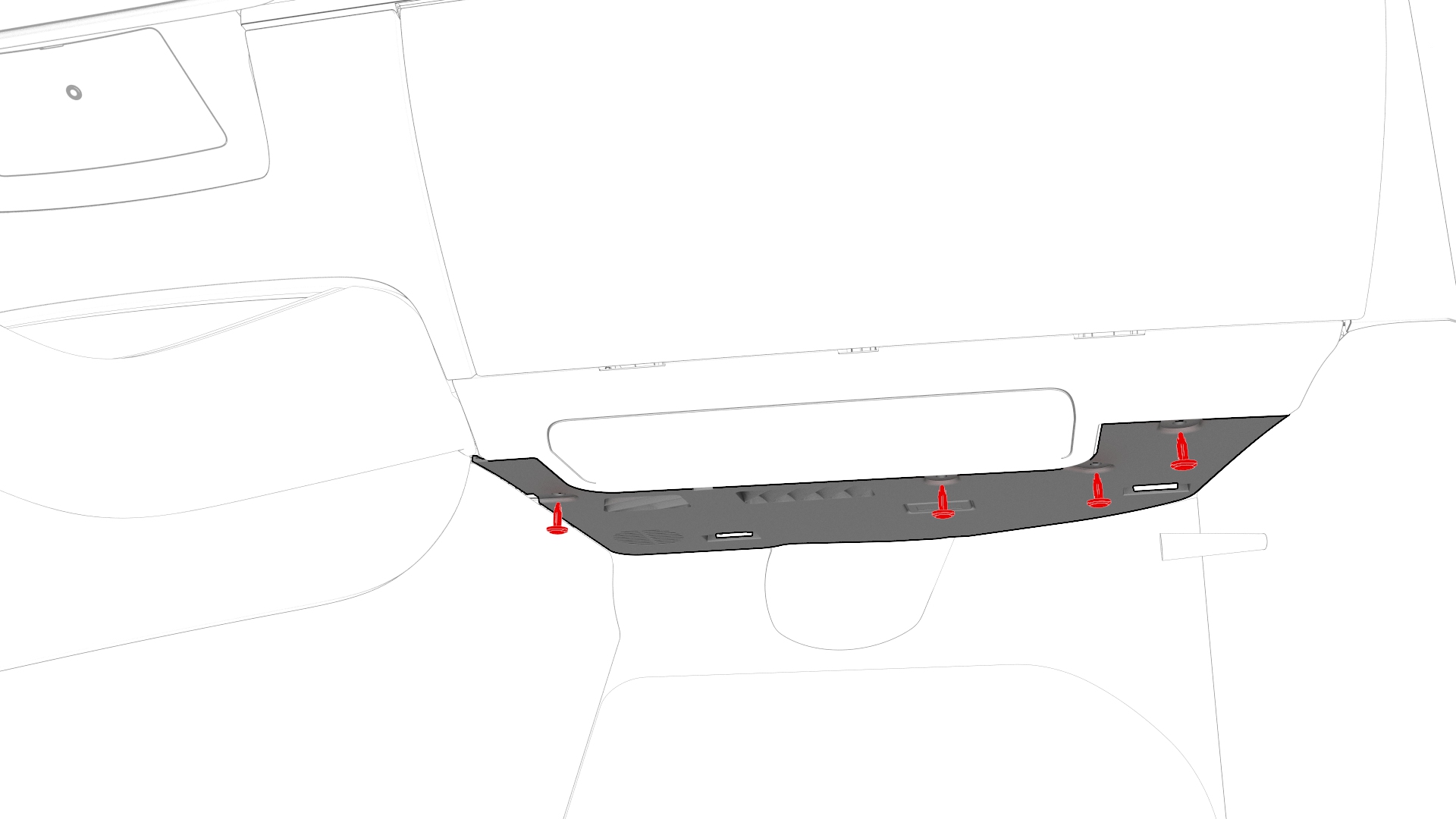

Release the clips that attach the passenger footwell cover to the vehicle.

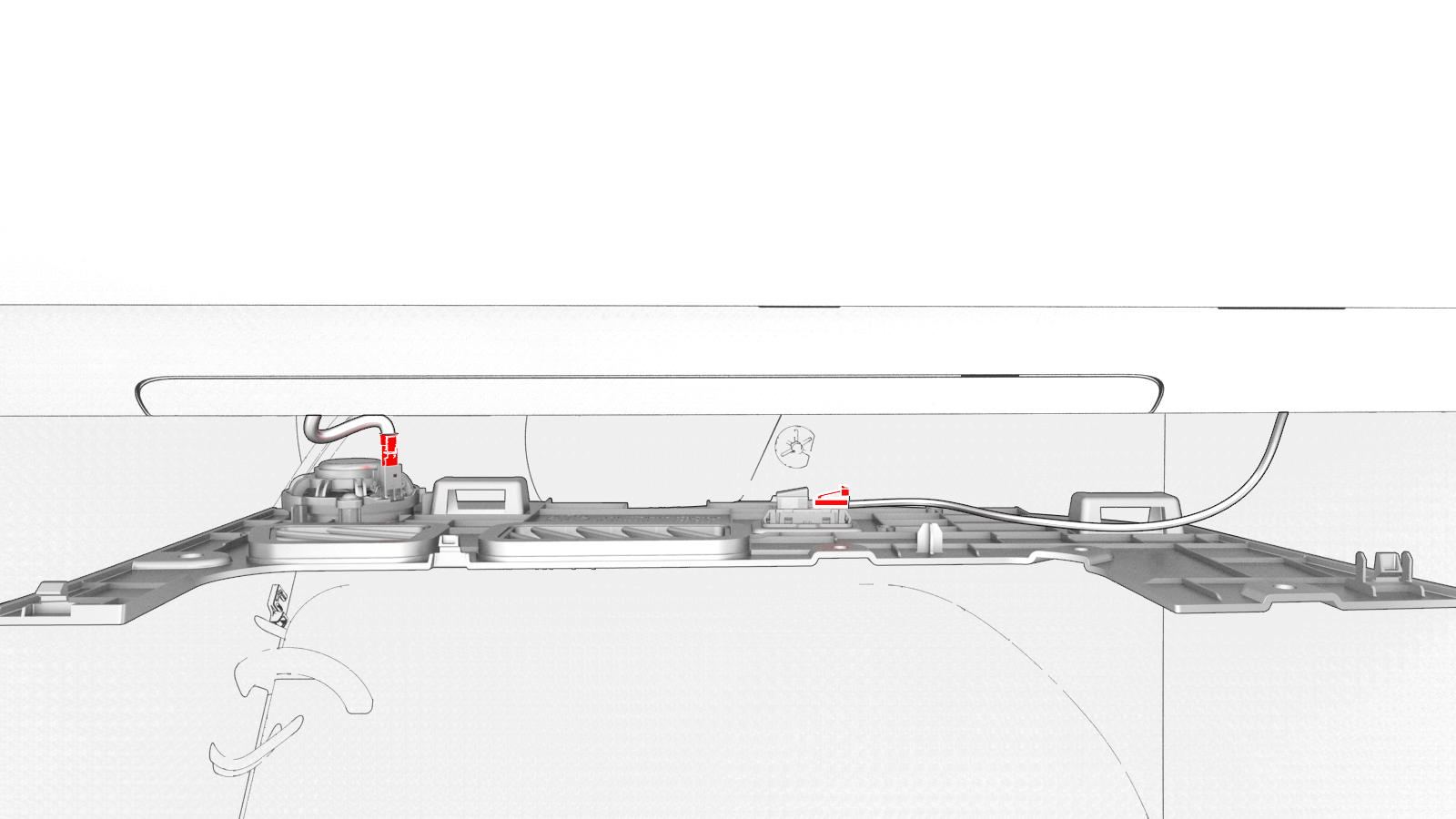

Disconnect the electrical wiring harness connectors from the puddle light and emergency speaker.

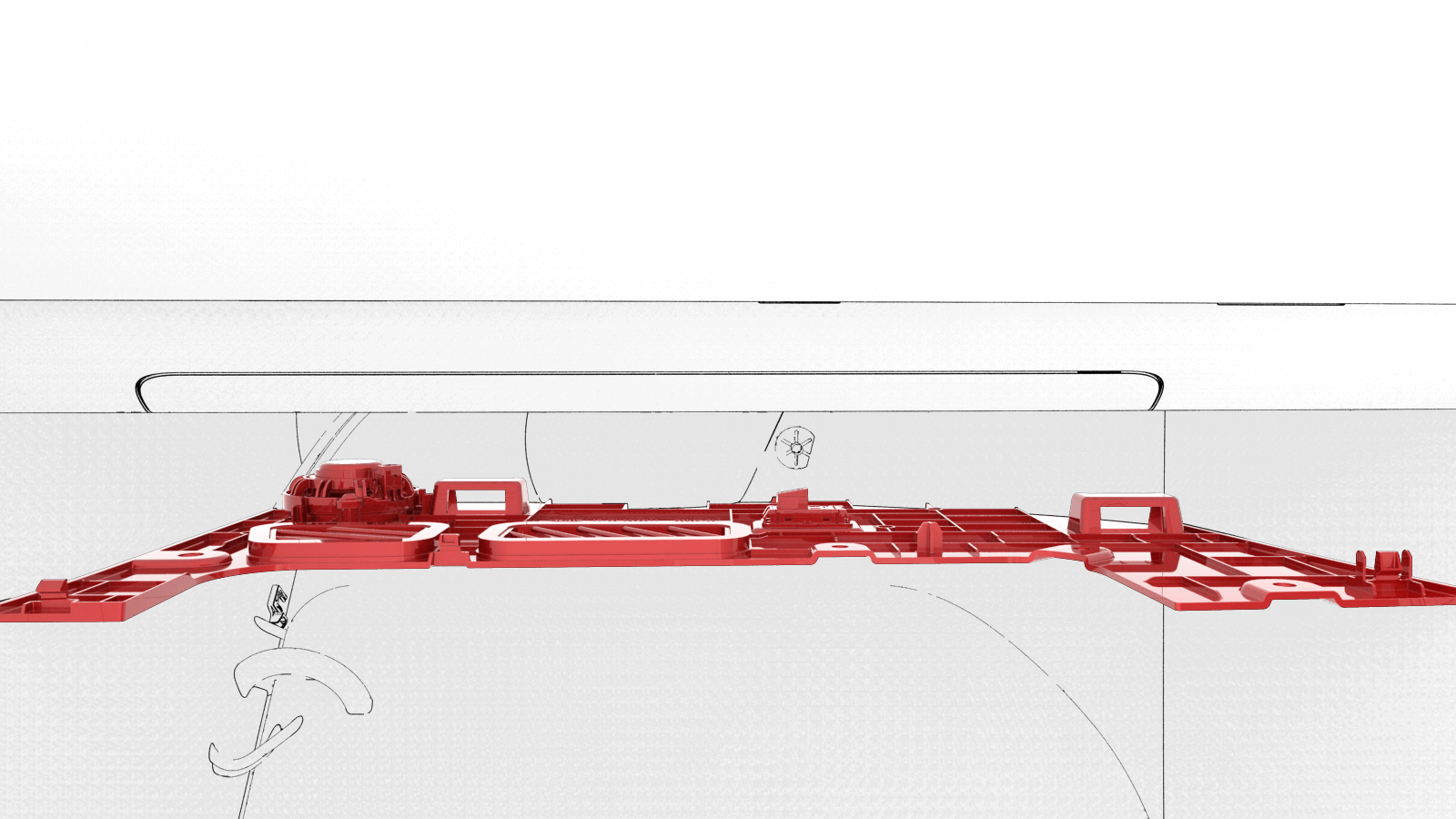

Remove the footwell cover from the vehicle.

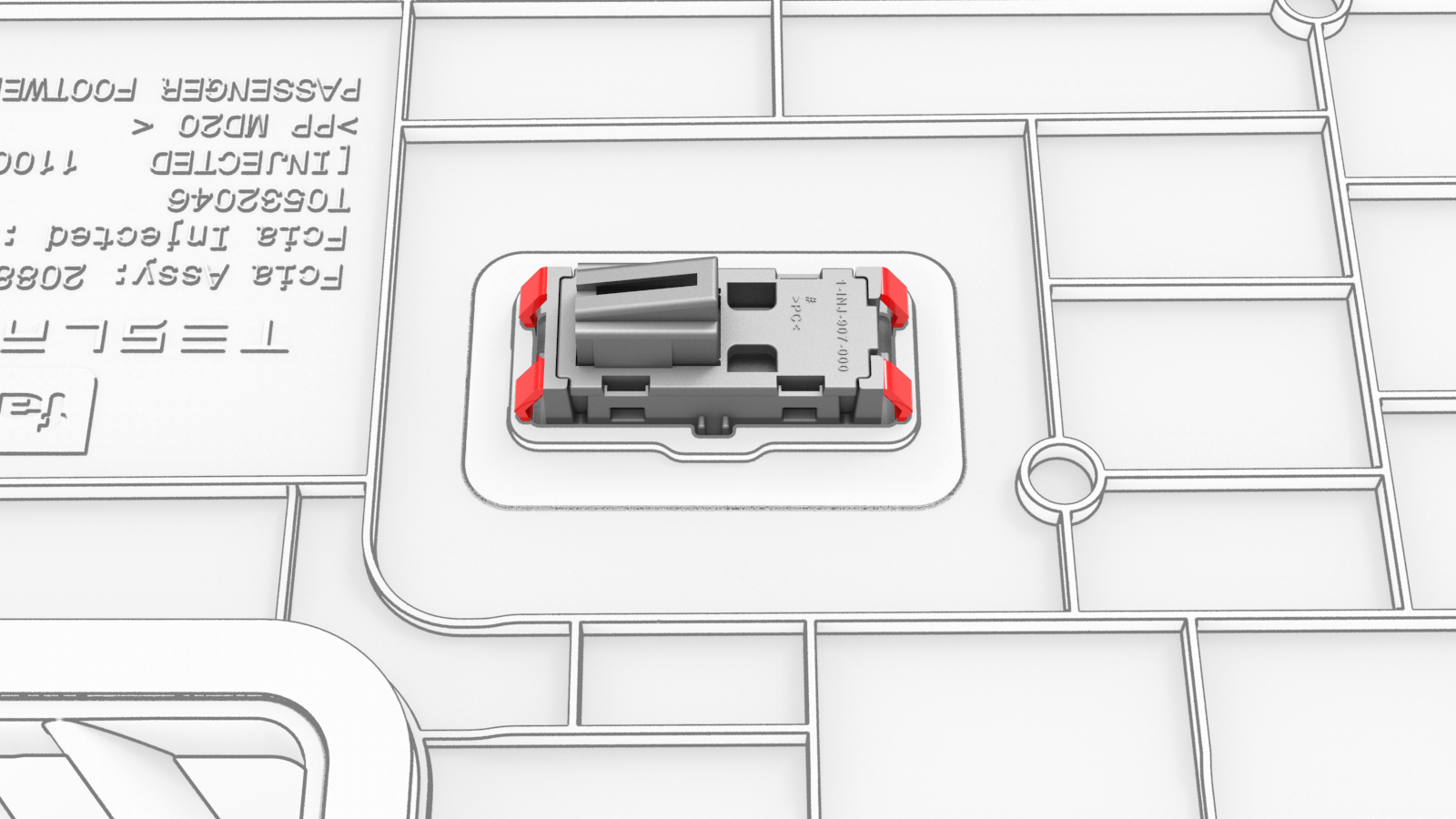

Release the clips that attach the puddle light to the passenger footwell cover, and then remove the puddle light from the footwell cover.

		1	Release the clips that attach the passenger footwell cover to the vehicle.
		2	Disconnect the electrical wiring harness connectors from the puddle light and emergency speaker.
		3	Remove the footwell cover from the vehicle.
		4	Release the clips that attach the puddle light to the passenger footwell cover, and then remove the puddle light from the footwell cover.

Install

Installation procedure is the reverse of removal.
