Trim - Sill - Trunk (Remove and Replace)

Correction code 1524480215244802

Remove

Remove the trunk floor trim. See Trim - Floor - Trunk (Remove and Replace).

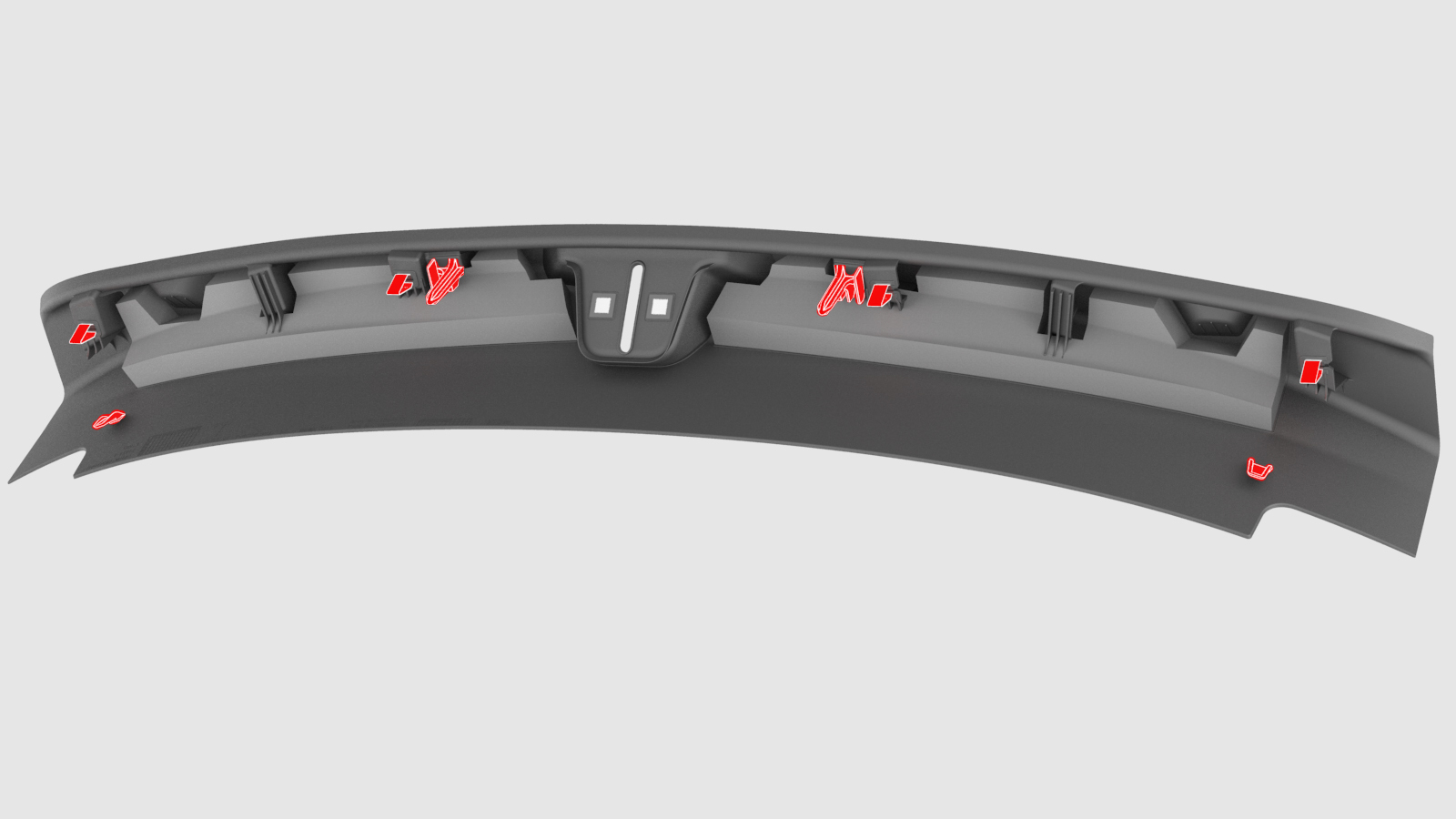

Release the clips that attach the trunk sill trim to the body.

Tip: Pull the corner of the trunk sill trim upwards to release the corner clip, and then release the remaining clips.
Remove the trunk sill trim from the vehicle.

		1	Remove the trunk floor trim. See Trim - Floor - Trunk (Remove and Replace).
		2	Release the clips that attach the trunk sill trim to the body. Tip: Pull the corner of the trunk sill trim upwards to release the corner clip, and then release the remaining clips.
		3	Remove the trunk sill trim from the vehicle.

Install

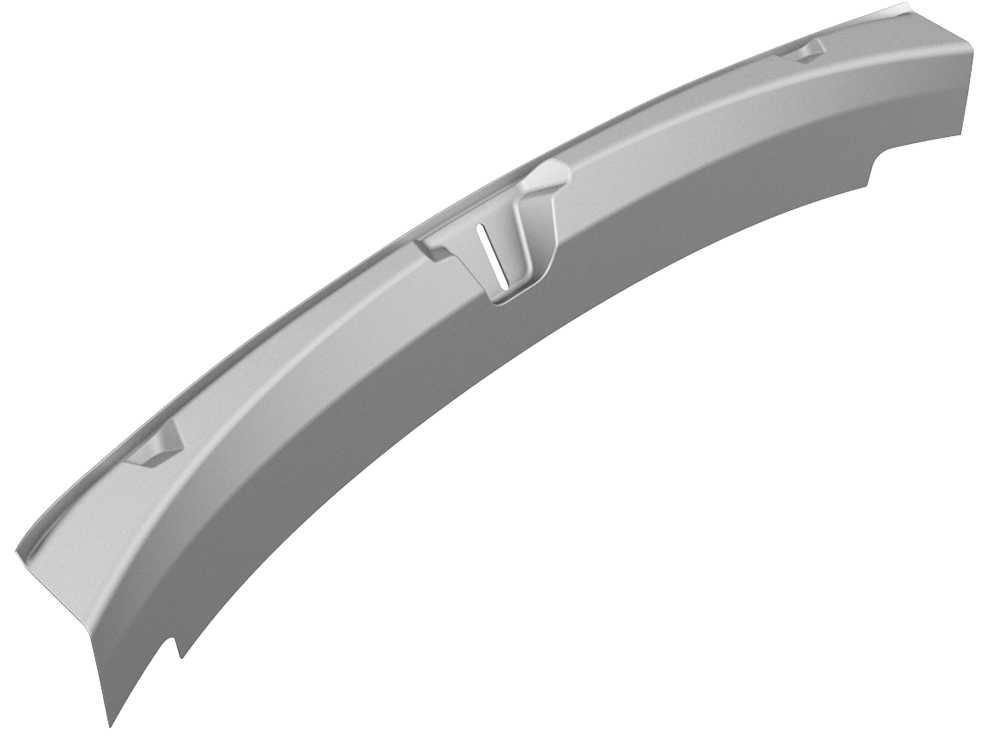

Align the trunk latch with the slot in the trunk sill trim, align the long tabs (x2) with the slots on the trunk lid, and then press down on the trim to attach all remaining clips and tabs.

Note: Make sure that the trunk seal overlaps the trunk sill trim.
Install the trunk floor trim. See Trim - Floor - Trunk (Remove and Replace).

		1	Align the trunk latch with the slot in the trunk sill trim, align the long tabs (x2) with the slots on the trunk lid, and then press down on the trim to attach all remaining clips and tabs. Note: Make sure that the trunk seal overlaps the trunk sill trim.
		2	Install the trunk floor trim. See Trim - Floor - Trunk (Remove and Replace).
