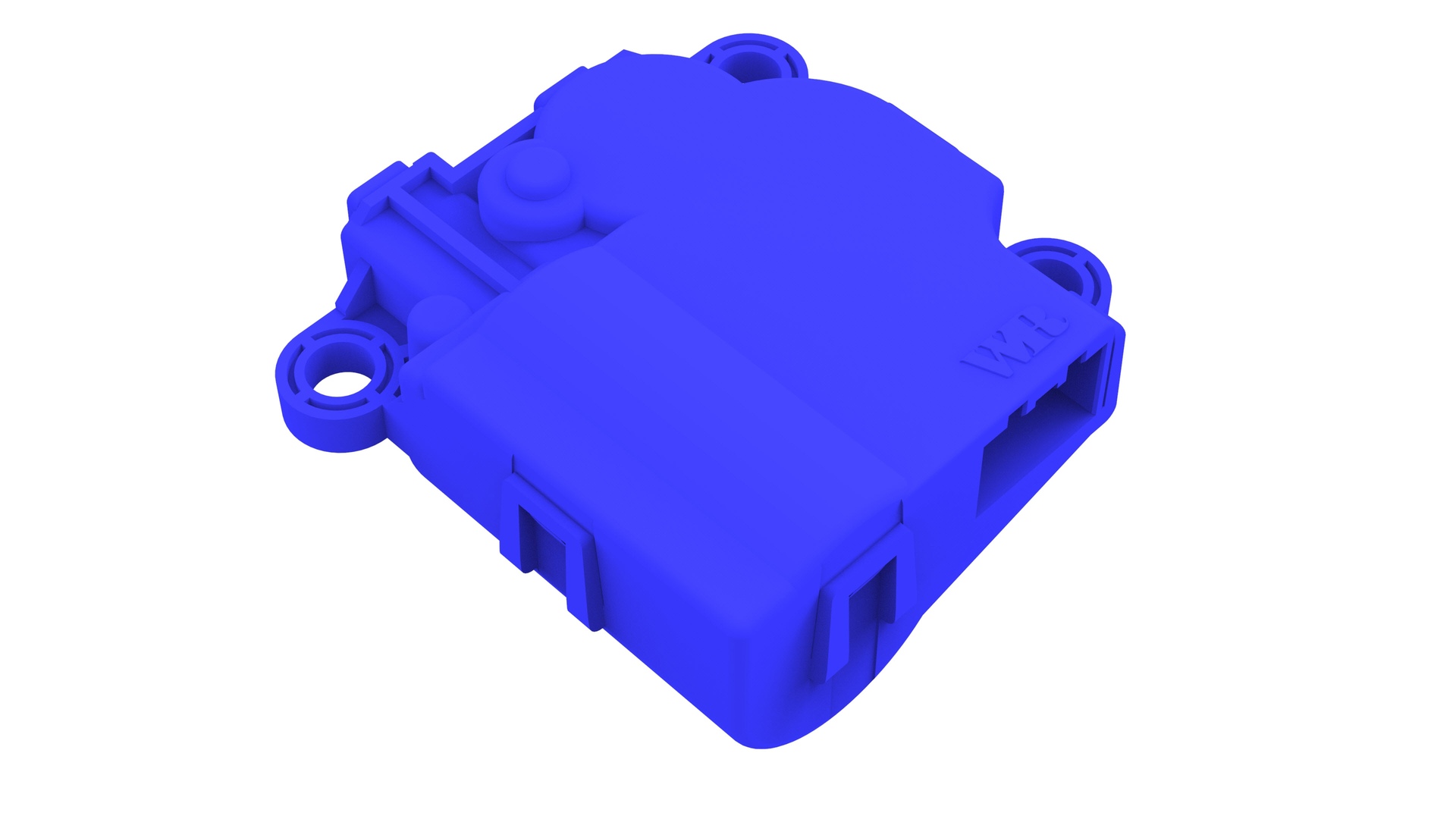

Actuator - Vent - LH (Remove and Replace)

Correction code 1810340218103402

Remove

Remove the LH front vent. See Vent - Front - LH (Remove and Replace).

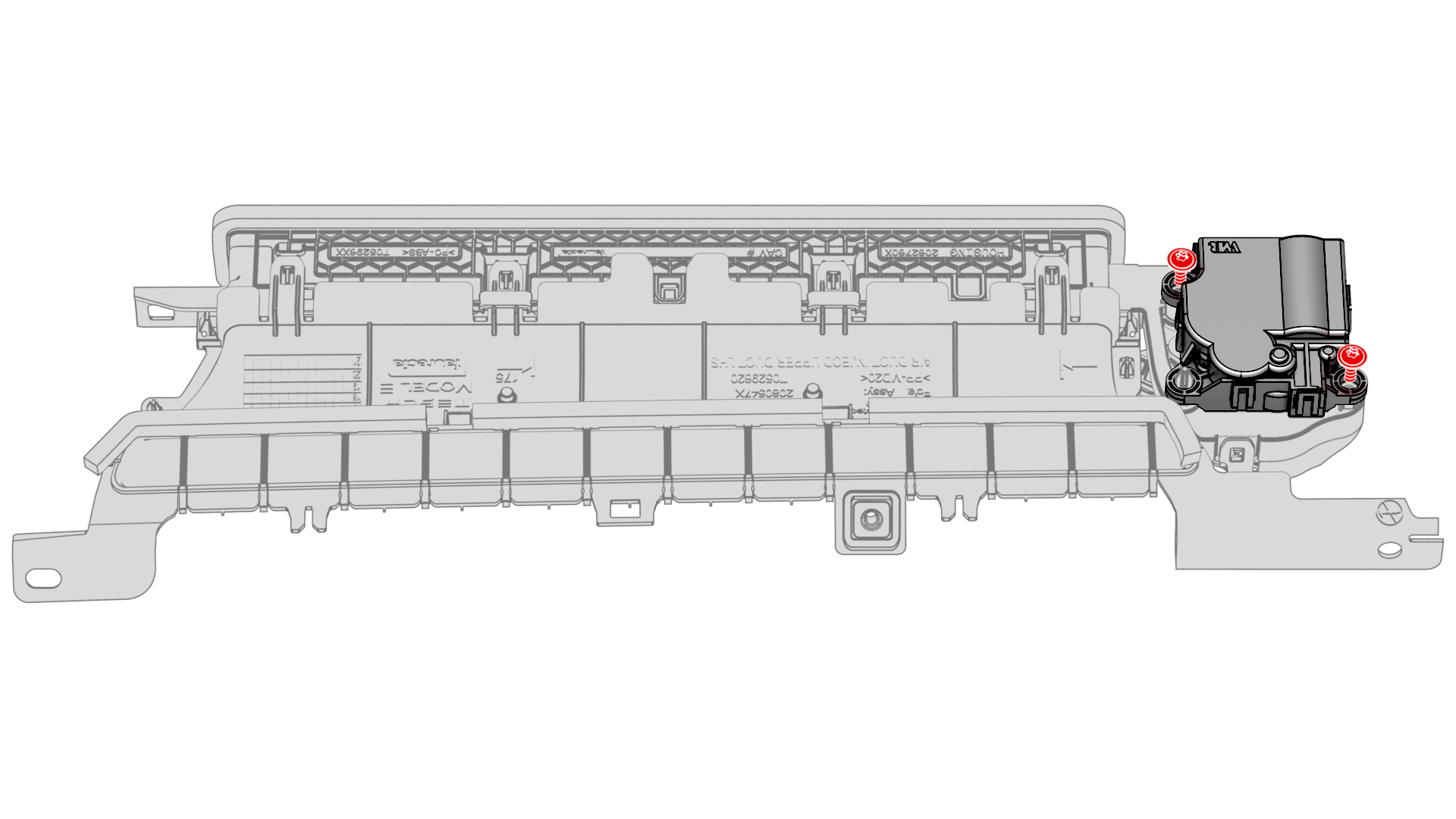

Remove the bolts that attach the LH vent actuator to the vent, and then remove the LH vent actuator.

		1	Remove the LH front vent. See Vent - Front - LH (Remove and Replace).
		2	Remove the bolts that attach the LH vent actuator to the vent, and then remove the LH vent actuator.

Install

Installation procedure is the reverse of removal.
