Wheel Arch Liner - Front - LH (Remove and Replace)

Correction code 1201090212010902

1133569-00-APliers, Clip Removal

SPECIAL TOOLS

Pliers, Clip Removal (1133569-00-A)

Remove

Remove the LH front wheel. See Wheel (Remove and Install).

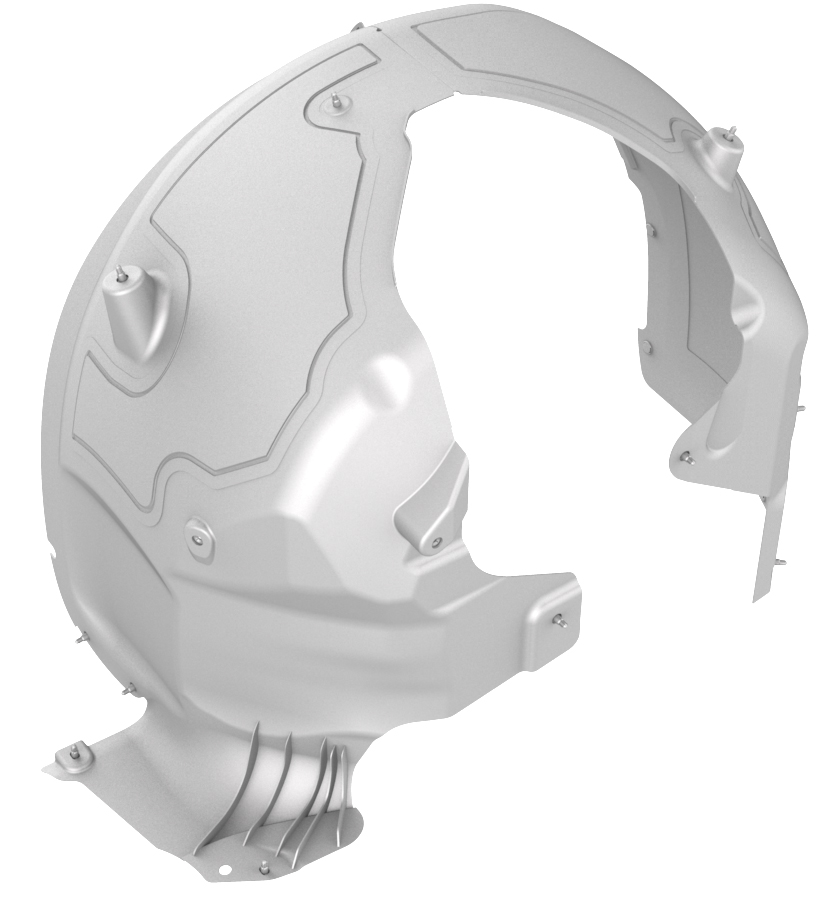

Remove the bolt and release the clips (x18) that attach the LH front wheel arch liner to the vehicle, and then remove the liner from the vehicle.
Torque 5 Nm

		1	Remove the LH front wheel. See Wheel (Remove and Install).
		2	Remove the bolt and release the clips (x18) that attach the LH front wheel arch liner to the vehicle, and then remove the liner from the vehicle. Torque 5 Nm

Install

Installation procedure is the reverse of removal.
