Duct - Footwell - RH (Remove and Replace)

Correction code 1810870218108702

DRAFT

from-cad

Warning:

This procedure was derived from pre-production computer models, and might not reflect the real-world situation. Warnings and cautions might be missing. Follow safety requirements and use extreme caution when working on or near high voltage systems and components.

Do not redistribute this content. Provide corrections and feedback to servicemanualfeedback@tesla.com.

Remove

Remove the passenger knee airbag. See Airbag - Knee - Front Passenger (Remove and Replace).

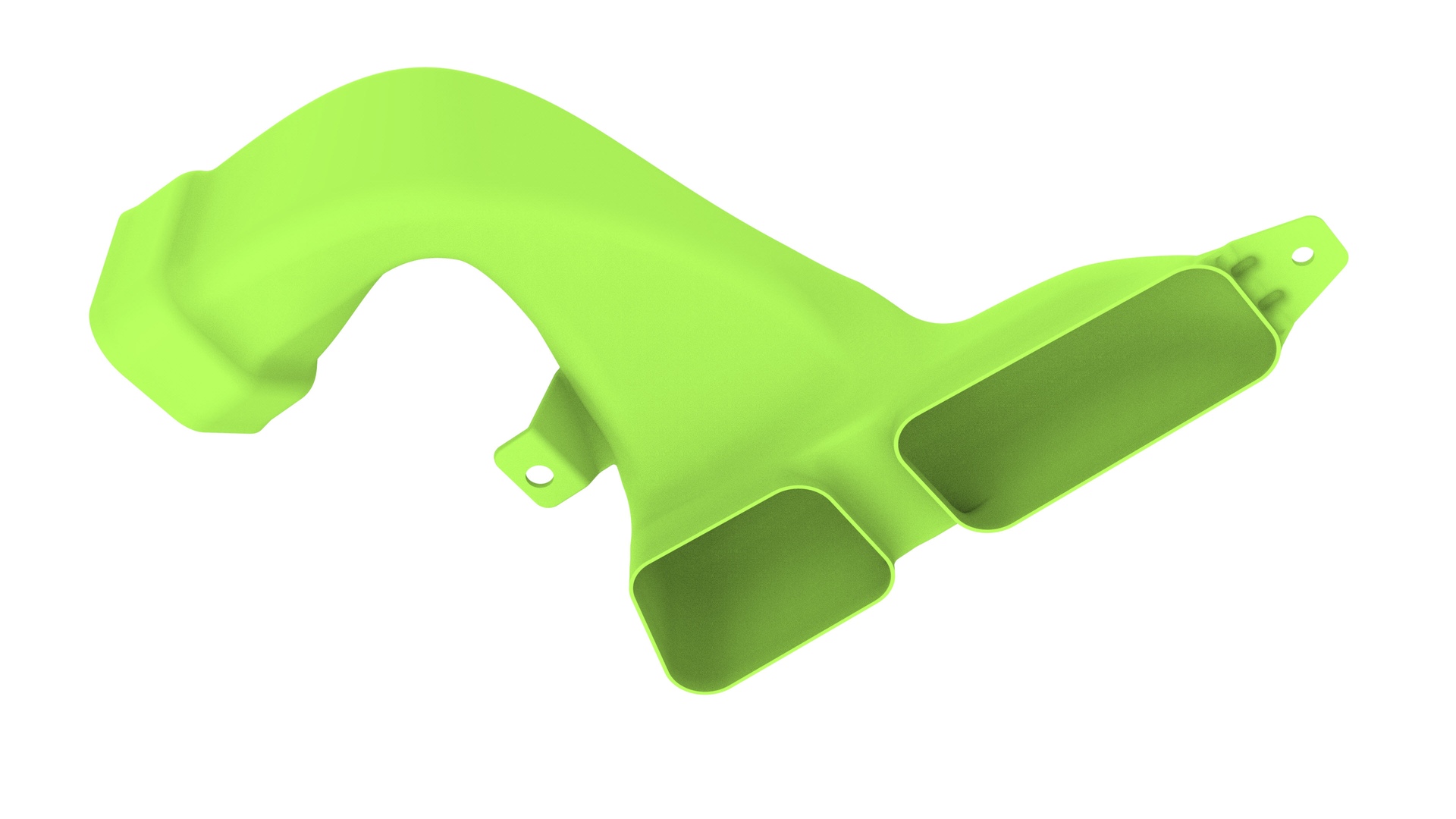

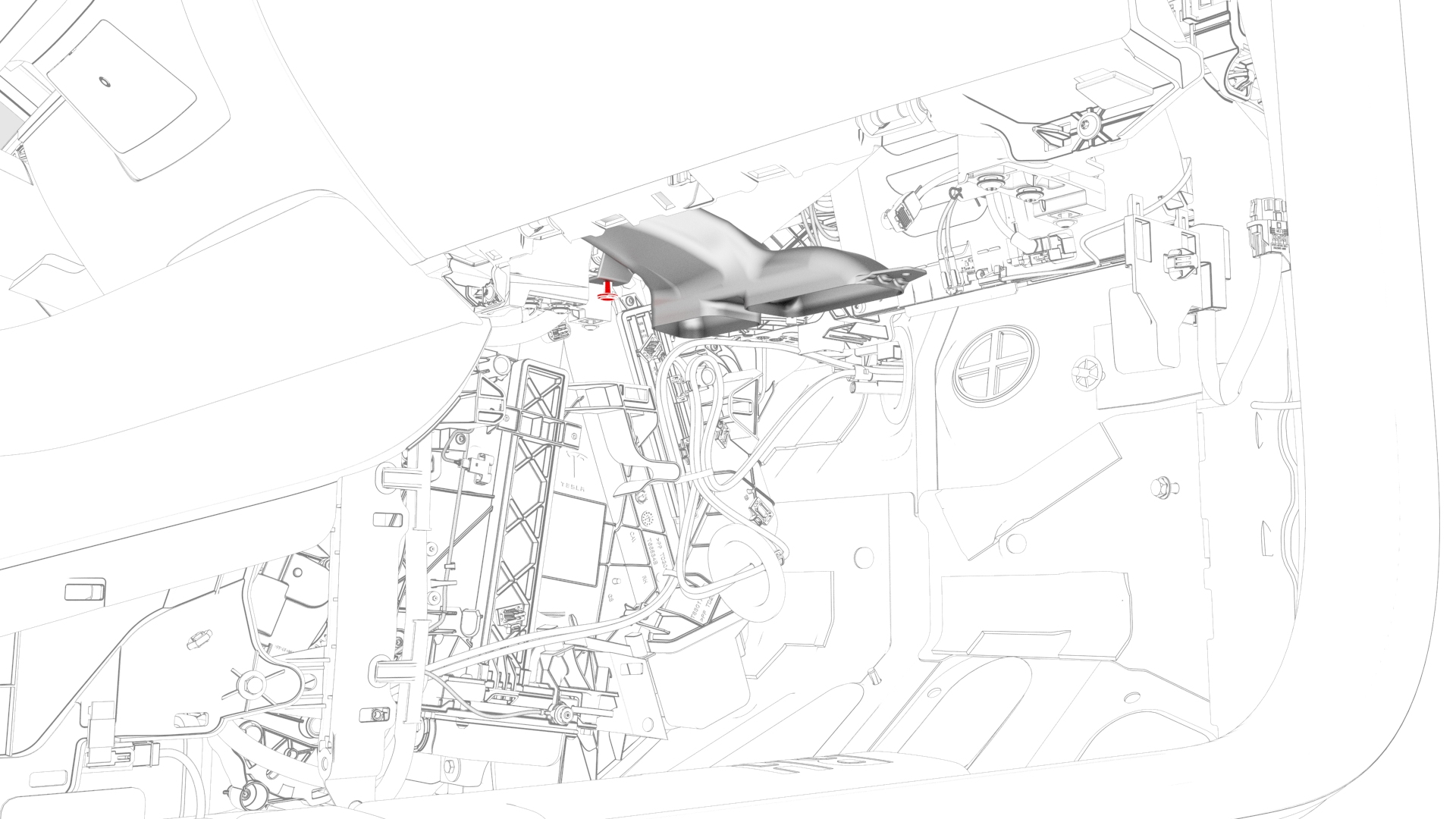

Remove the RH footwell duct from the HVAC module, and then remove the RH footwell duct from the vehicle.

		1	Remove the passenger knee airbag. See Airbag - Knee - Front Passenger (Remove and Replace).
		2	Remove the RH footwell duct from the HVAC module, and then remove the RH footwell duct from the vehicle.

Install

Installation procedure is the reverse of removal.
