Panel - Aero Shield - Mid (Remove and Replace)

Correction code 1203050212030502
Parent topic: 1203 - Undertray and Diffuser

Remove

  1. Raise and support the vehicle. See Raise Vehicle - 2 Post Lift.

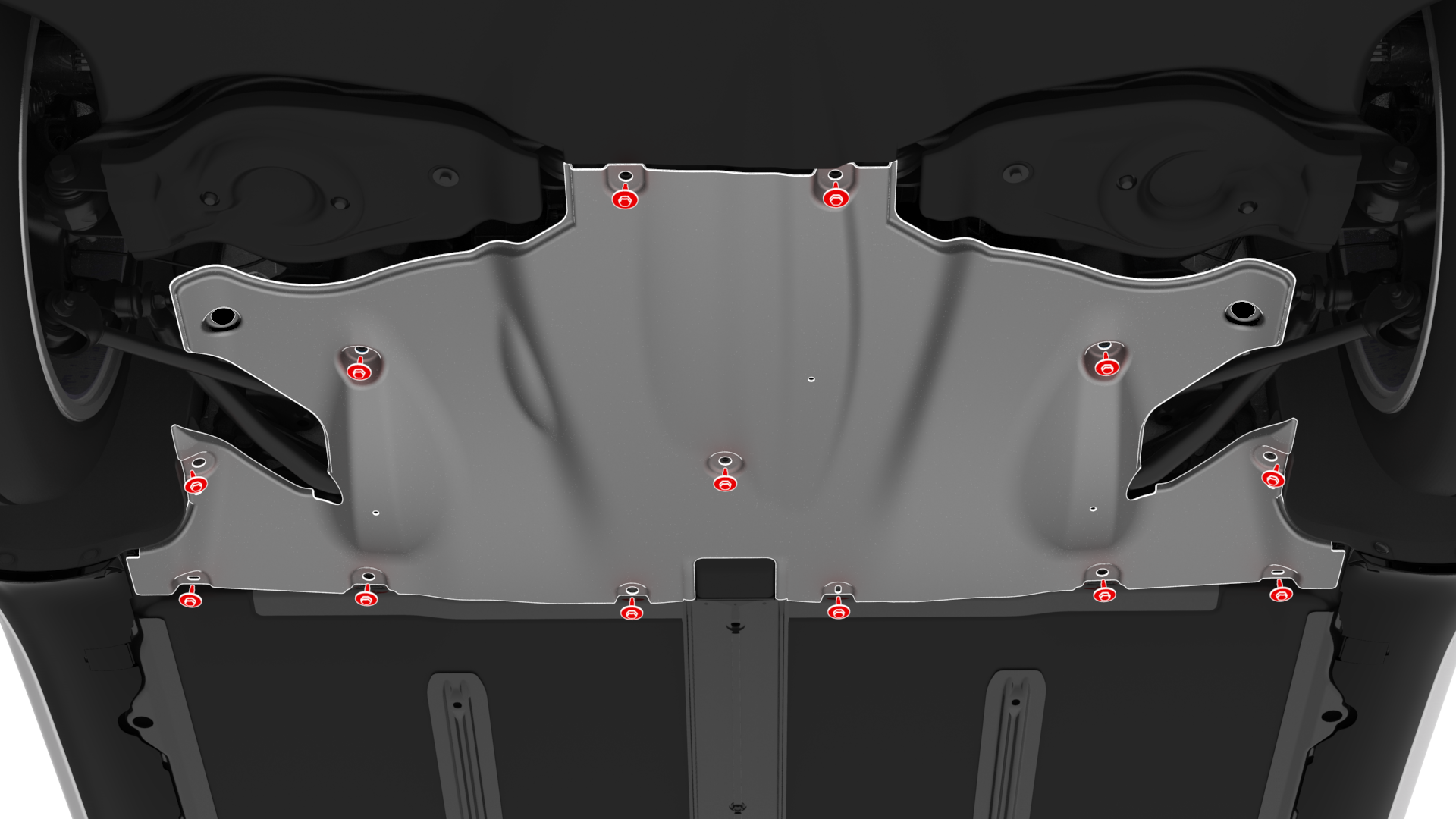

  2. Remove the bolts (x13) that attach the mid aero shield panel to the vehicle, and then remove the panel from the vehicle.
1Raise and support the vehicle. See Raise Vehicle - 2 Post Lift.
2Remove the bolts (x13) that attach the mid aero shield panel to the vehicle, and then remove the panel from the vehicle.

Install

  1. Apply a thin bead of Loctite 222 to the threads of the bolts (x13) that attach the mid aero shield panel to the vehicle.

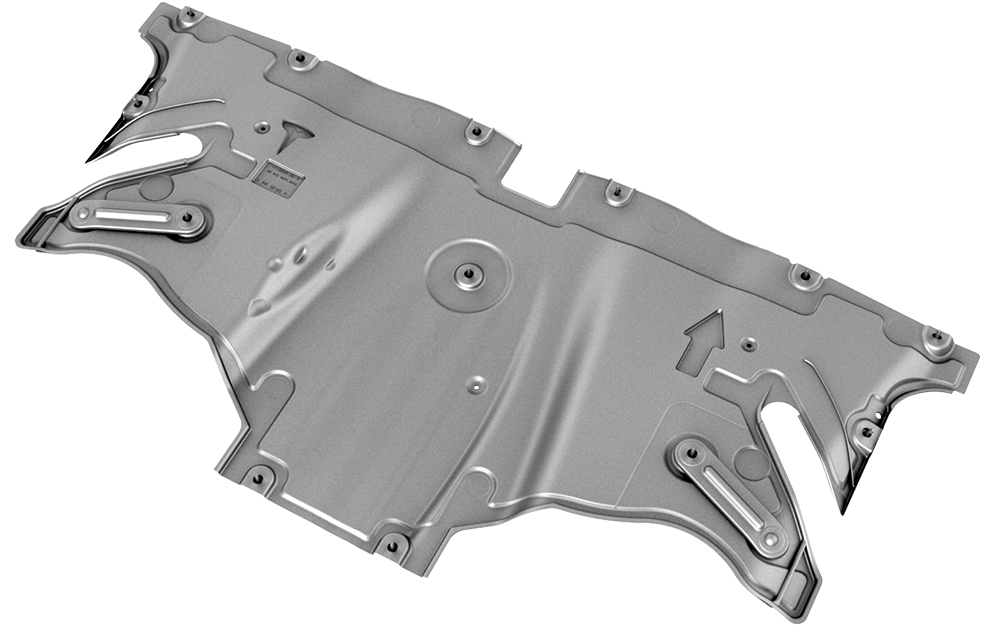

  2. Install the mid aero shield panel to the underside of the vehicle, and then install the bolts (x13) that attach the panel to the vehicle.
    Torque 5 Nm
  3. Lower the vehicle. See Raise Vehicle - 2 Post Lift.
1Apply a thin bead of Loctite 222 to the threads of the bolts (x13) that attach the mid aero shield panel to the vehicle.
2Install the mid aero shield panel to the underside of the vehicle, and then install the bolts (x13) that attach the panel to the vehicle.
Torque 5 Nm
3Lower the vehicle. See Raise Vehicle - 2 Post Lift.
