Bolster - Side - Seat - 2nd Row - LH (Remove and Replace)

Correction code 1305510213055102
Parent topic: 1305 - 2nd Row Seat Assemblies and Hardware

Remove

  1. Fold down the LH 2nd row seat.

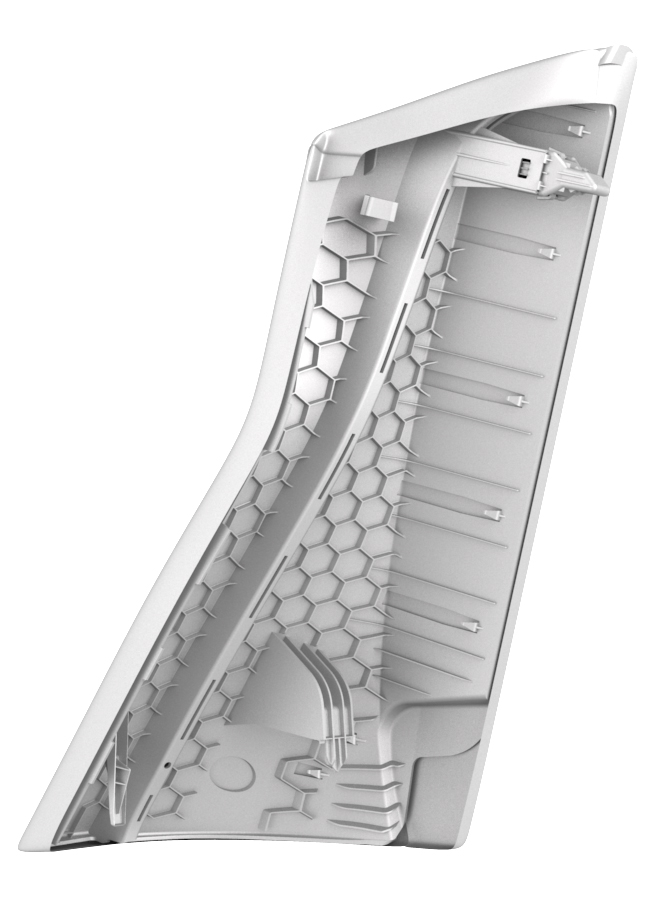

  2. Pull the 2nd row side bolster inward, and then move the bolster up to remove from the vehicle.
  3. Remove and discard the bolster plastic bracket from the vehicle.
    Note: The bracket might have come out with the bolster.
1Fold down the LH 2nd row seat.
2Pull the 2nd row side bolster inward, and then move the bolster up to remove from the vehicle.
3Remove and discard the bolster plastic bracket from the vehicle.
Note: The bracket might have come out with the bolster.

Install

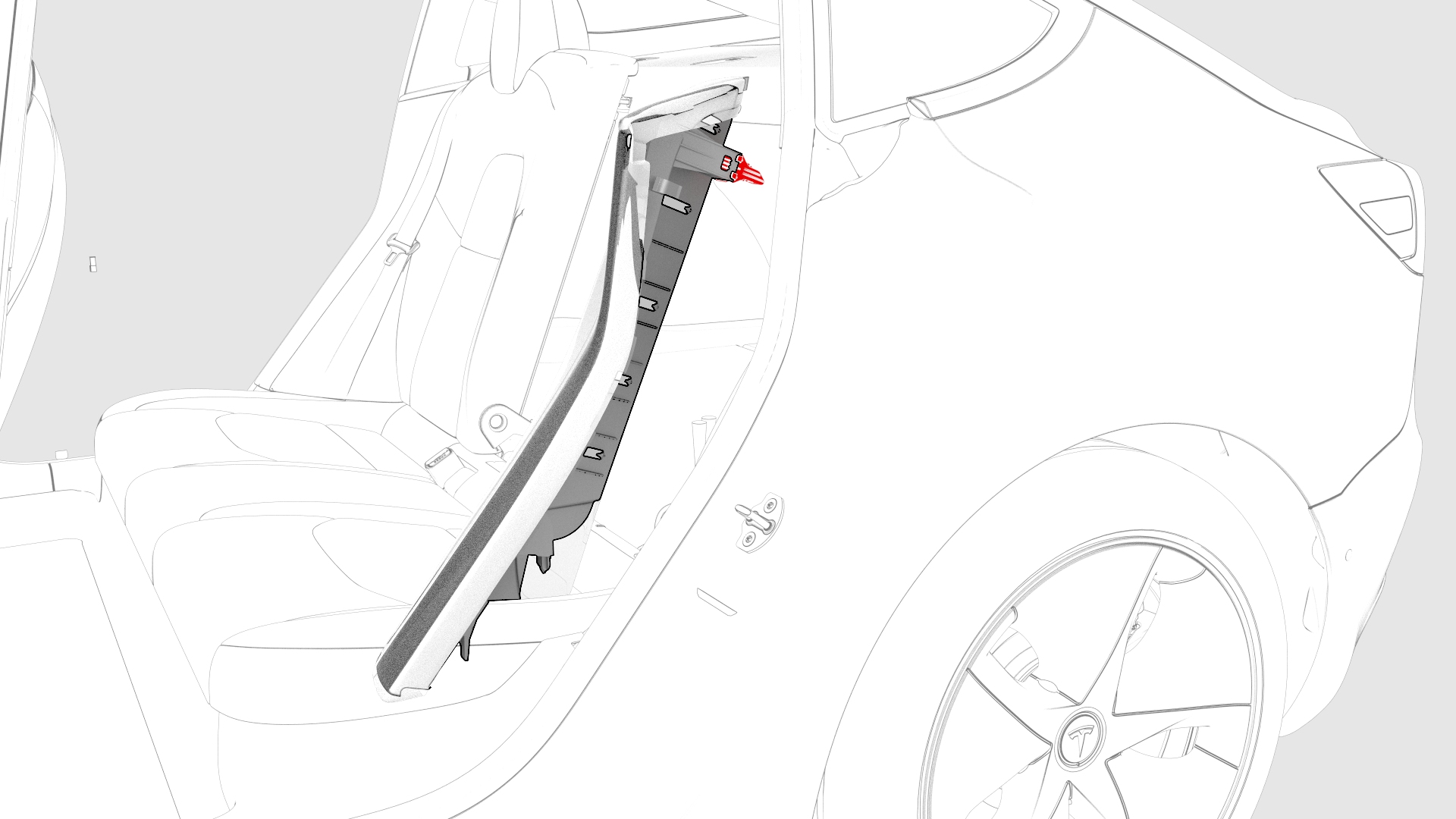

  1. Install new bolster plastic bracket to the 2nd row seat side bolster.
    Note: The bracket is one time use only.
  2. Align the bottom tab, and then push inward to install the bolster.
1Install new bolster plastic bracket to the 2nd row seat side bolster.
Note: The bracket is one time use only.
2Align the bottom tab, and then push inward to install the bolster.
