End Panel - Center Console (Remove and Replace)

Correction code 1519500215195002

Remove

Remove the center console lower rear panel. See Panel - Lower Rear - Center Console (Remove and Replace).
Remove the center console air vent panel. See Panel - Air Vent - Center Console (Remove and Replace).

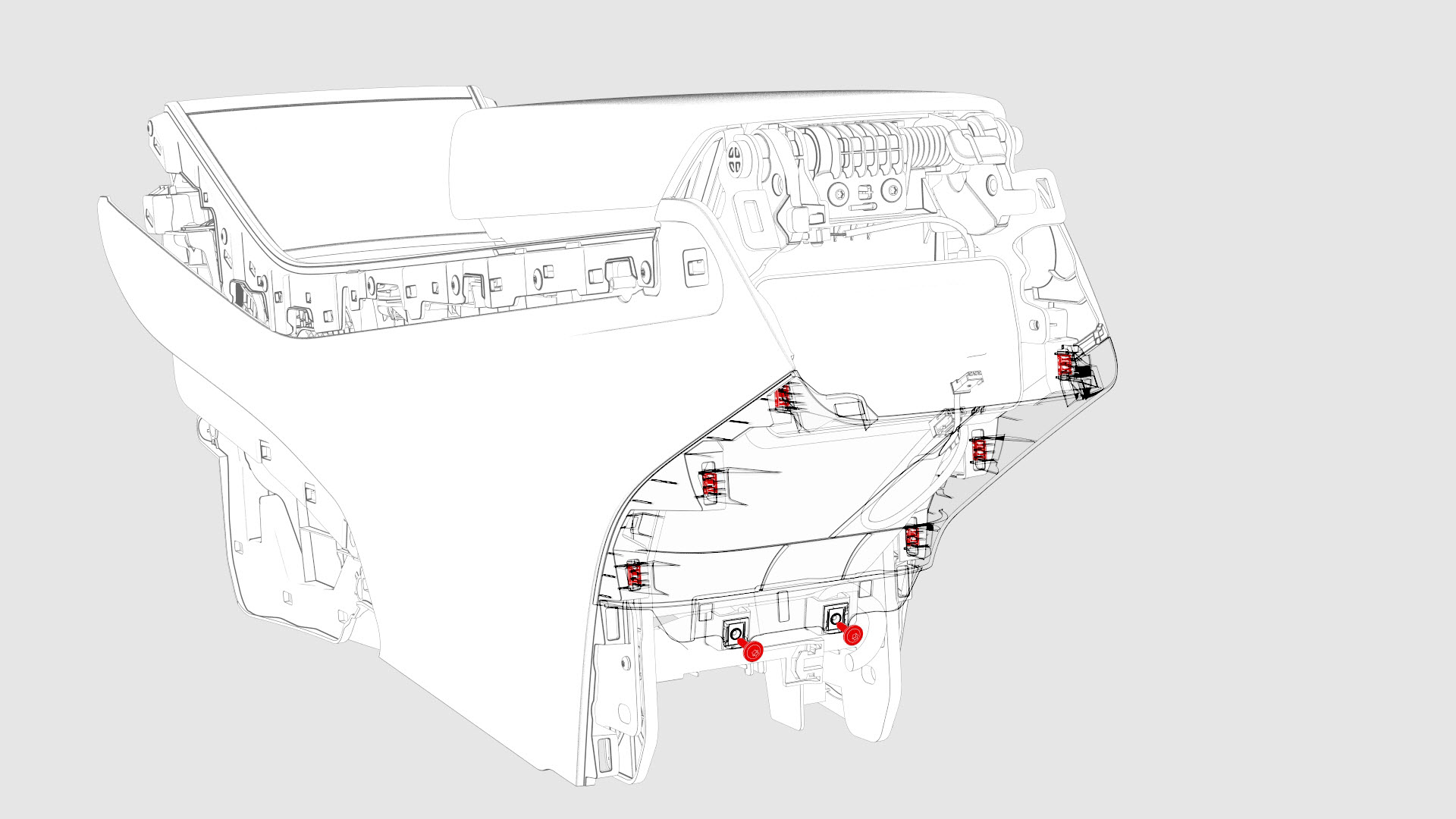

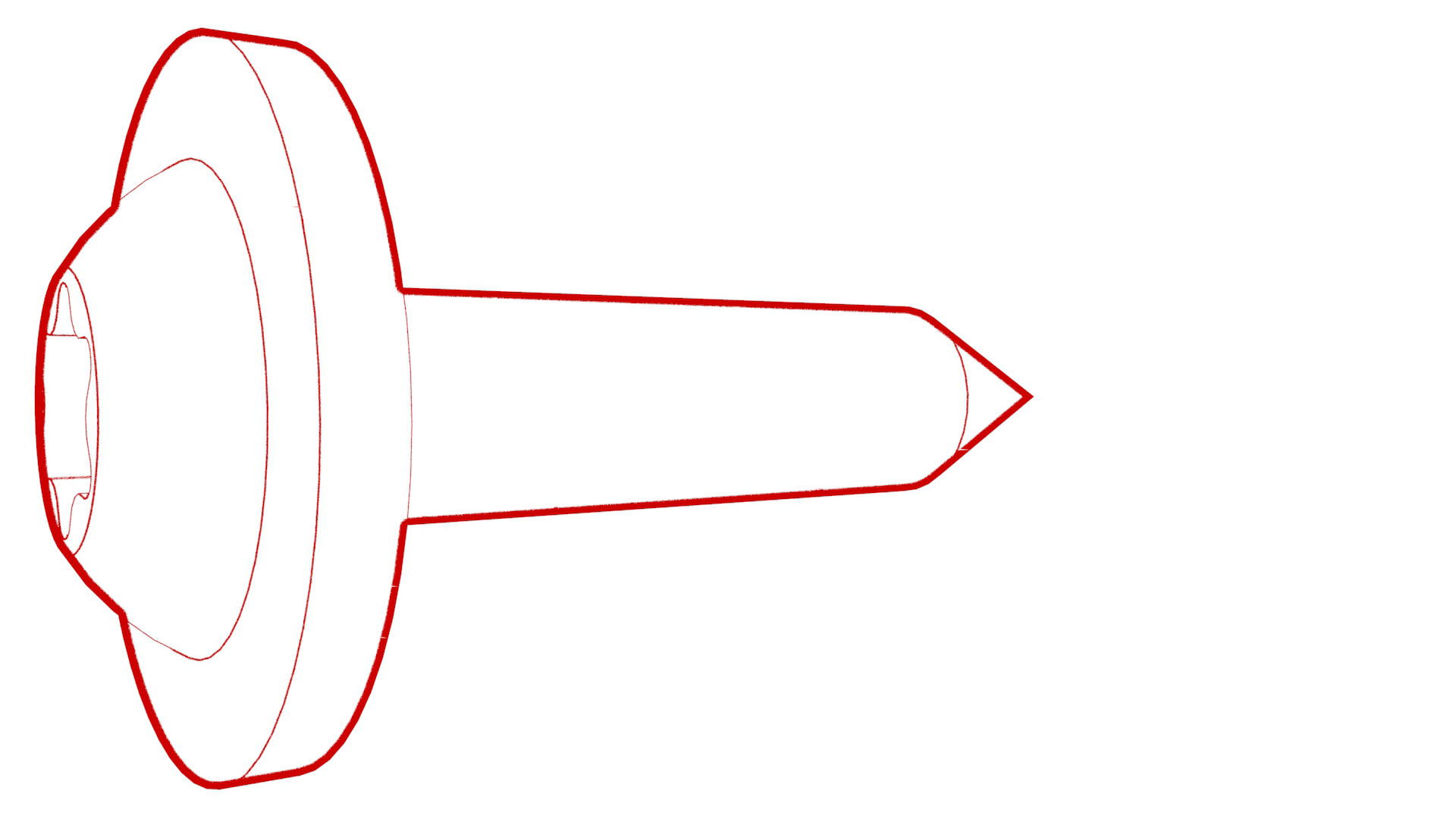

Remove the bolts (x2) and release the clips (x6) that attach the center console end panel to the center console, and then remove the end panel from the console.
Torque 1.1 Nm

		1	Remove the center console lower rear panel. See Panel - Lower Rear - Center Console (Remove and Replace).
		2	Remove the center console air vent panel. See Panel - Air Vent - Center Console (Remove and Replace).
		3	Remove the bolts (x2) and release the clips (x6) that attach the center console end panel to the center console, and then remove the end panel from the console. Torque 1.1 Nm

Install

Installation procedure is the reverse of removal.
