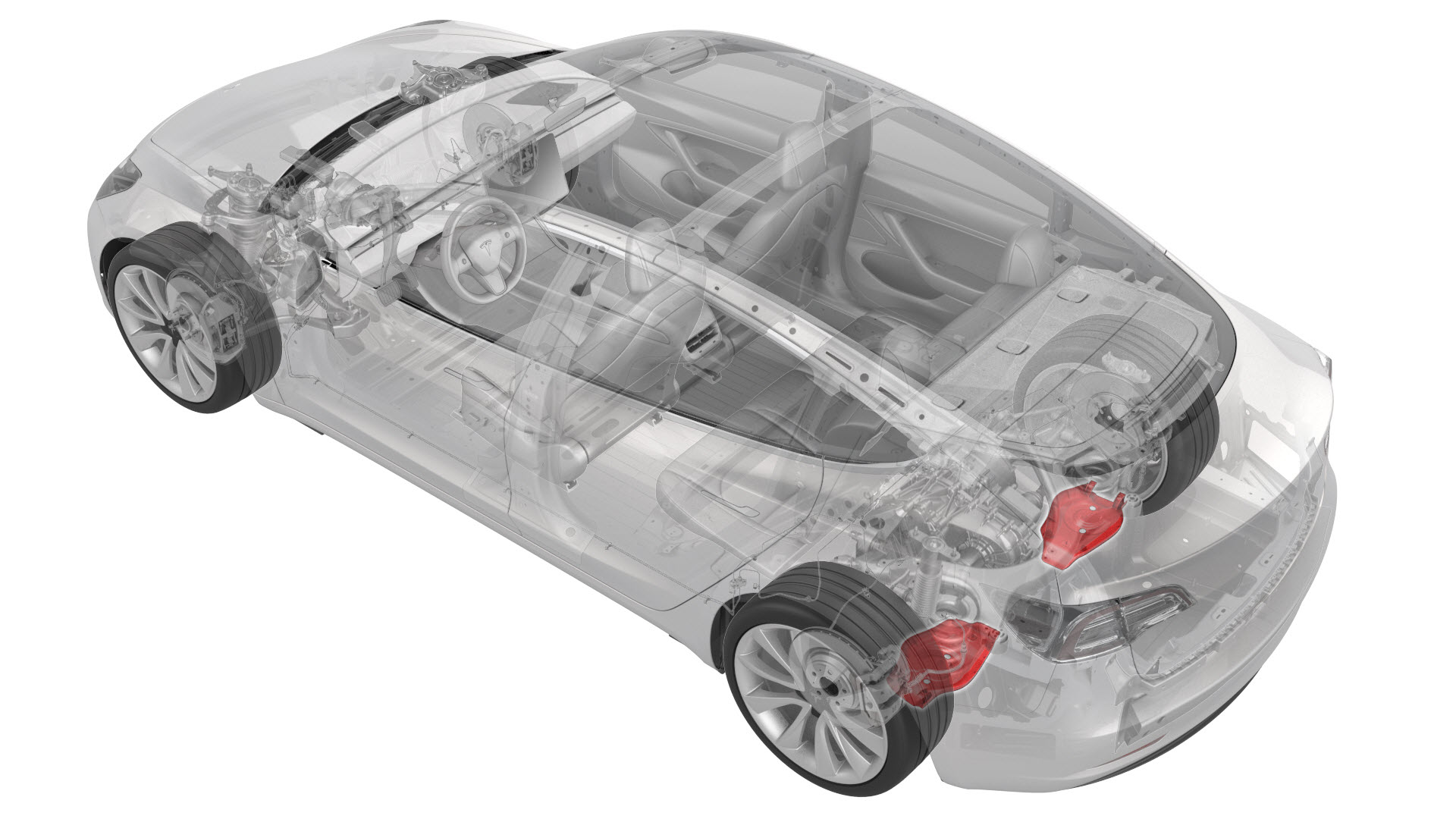

Cover - Rear Suspension - LH (Remove and Replace)

31032011

Remove

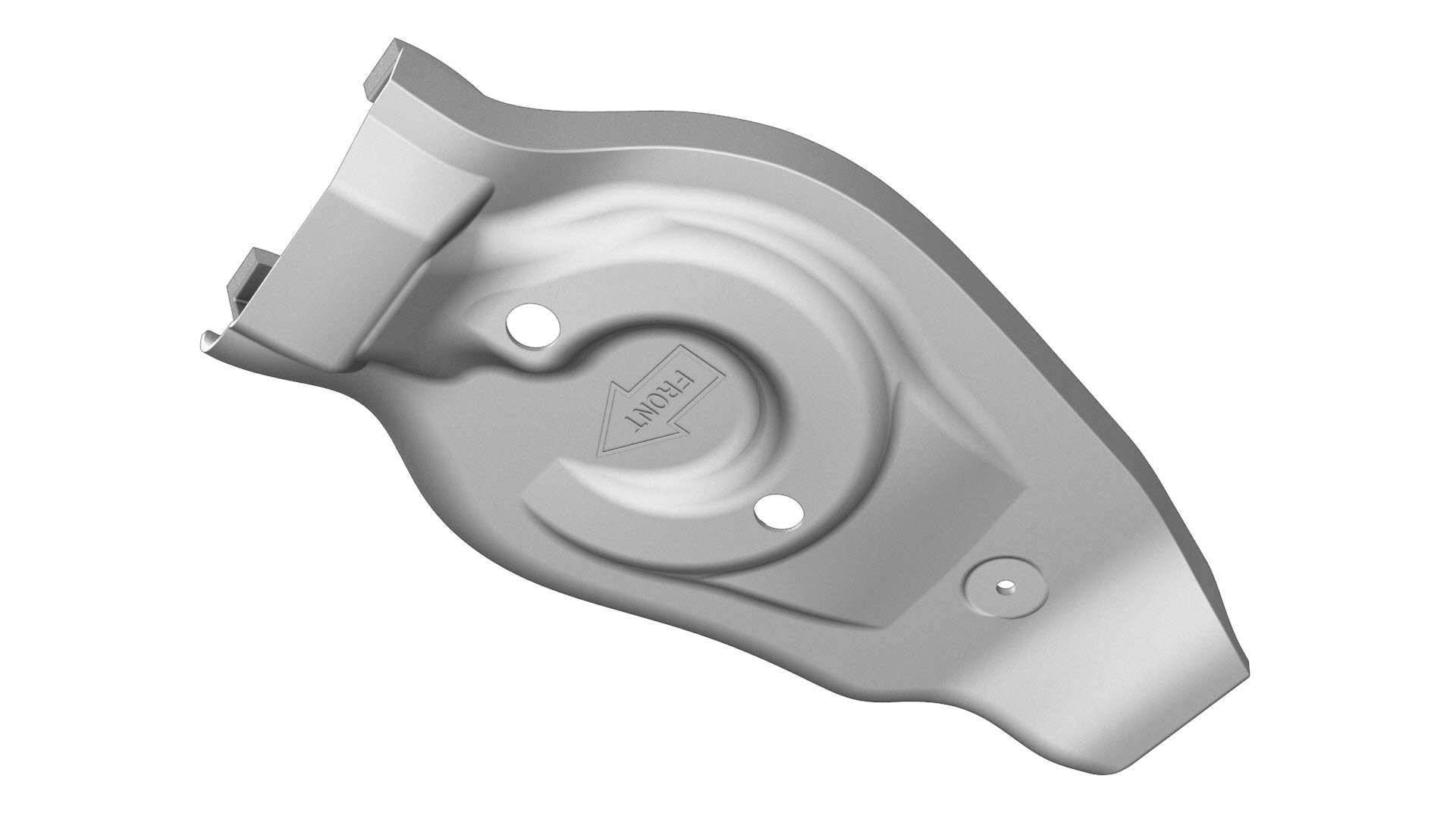

Remove the bolt that attaches the rear suspension cover to the LH lower rear control arm assembly.
Torque 6 Nm
Release the tabs (x2) that attach the rear suspension cover to the LH lower rear control arm assembly, and then remove the rear suspension cover from the vehicle.

		1	Remove the bolt that attaches the rear suspension cover to the LH lower rear control arm assembly. Torque 6 Nm
		2	Release the tabs (x2) that attach the rear suspension cover to the LH lower rear control arm assembly, and then remove the rear suspension cover from the vehicle.

Install

Installation procedure is the reverse of removal.
