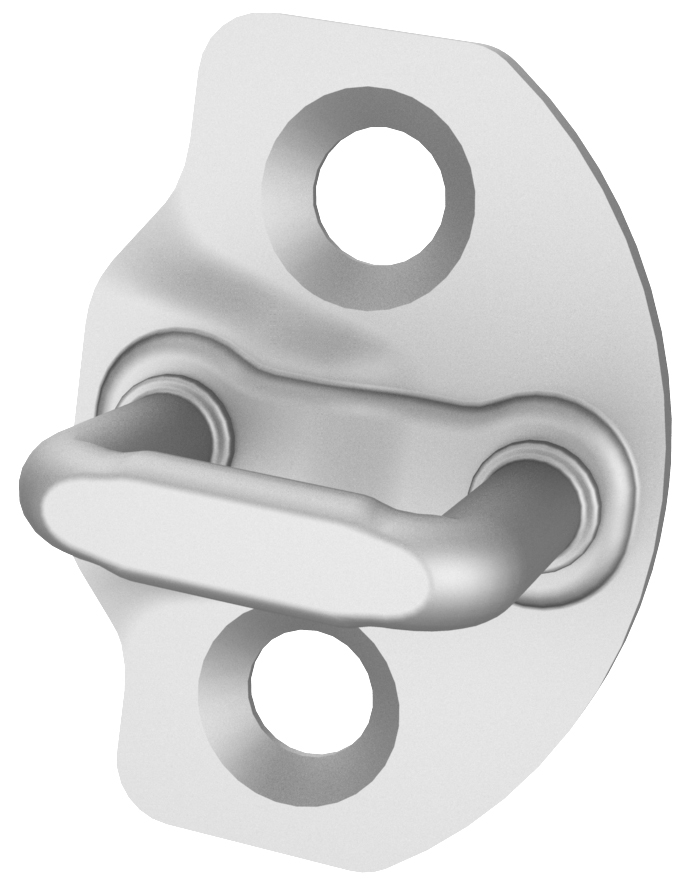

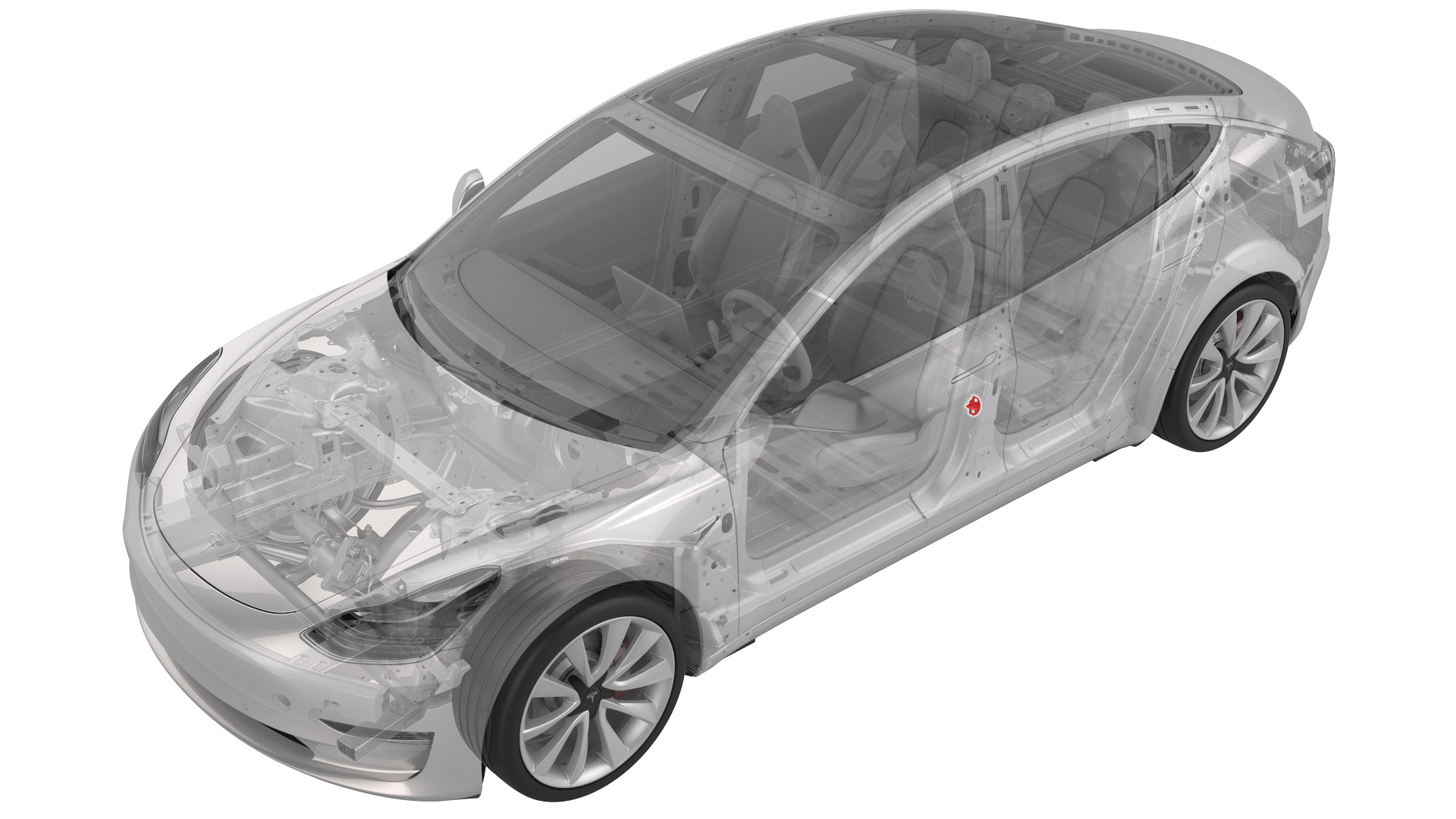

Striker - Door - Front - LH (Remove and Replace)

Correction code 1135300211353002
Parent topic: 1135 - Latches Strikers and Pinch Sensors

Remove

  1. Open the LH front door.
  2. Mark the position of the LH front door striker using masking tape.

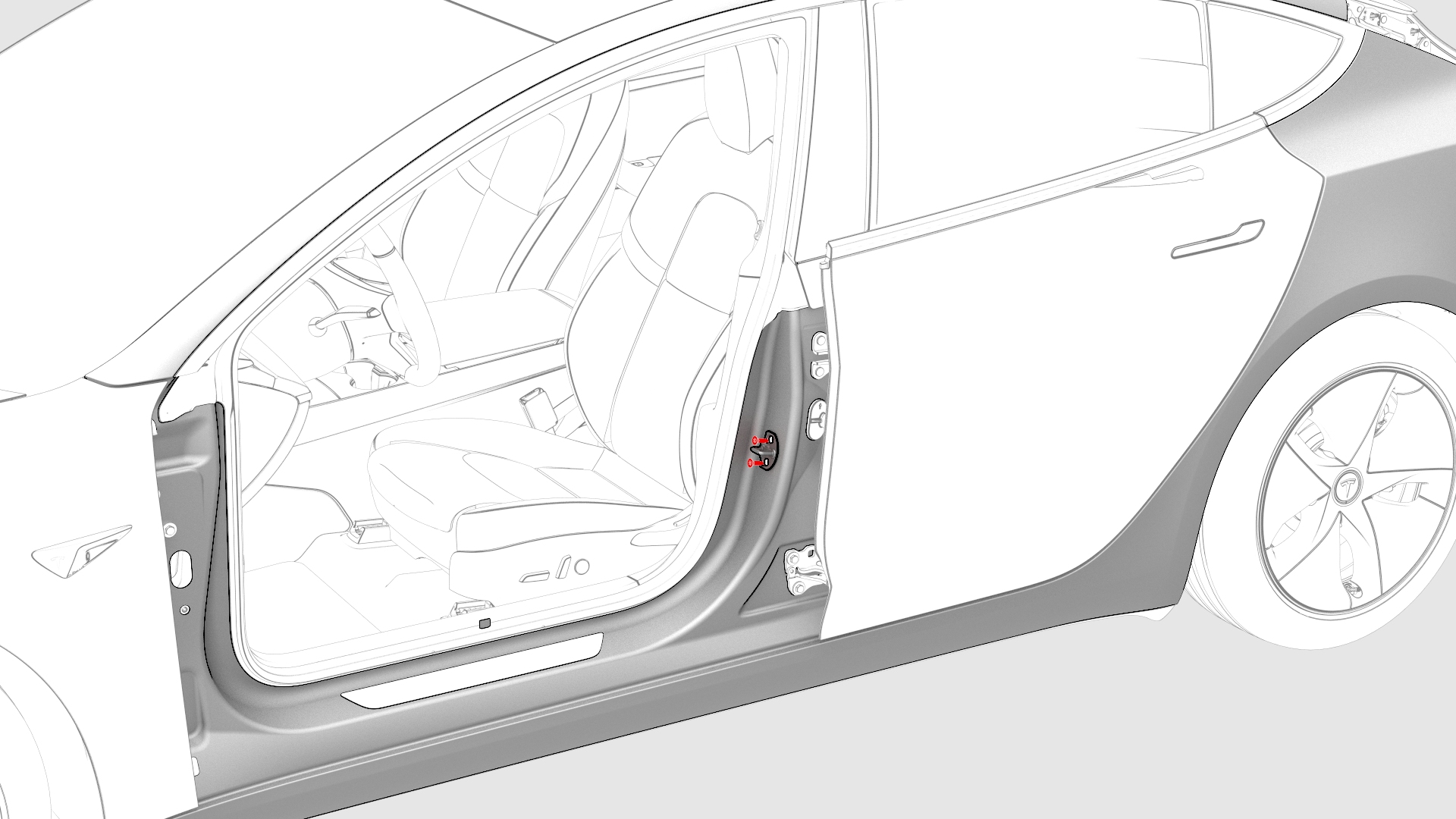

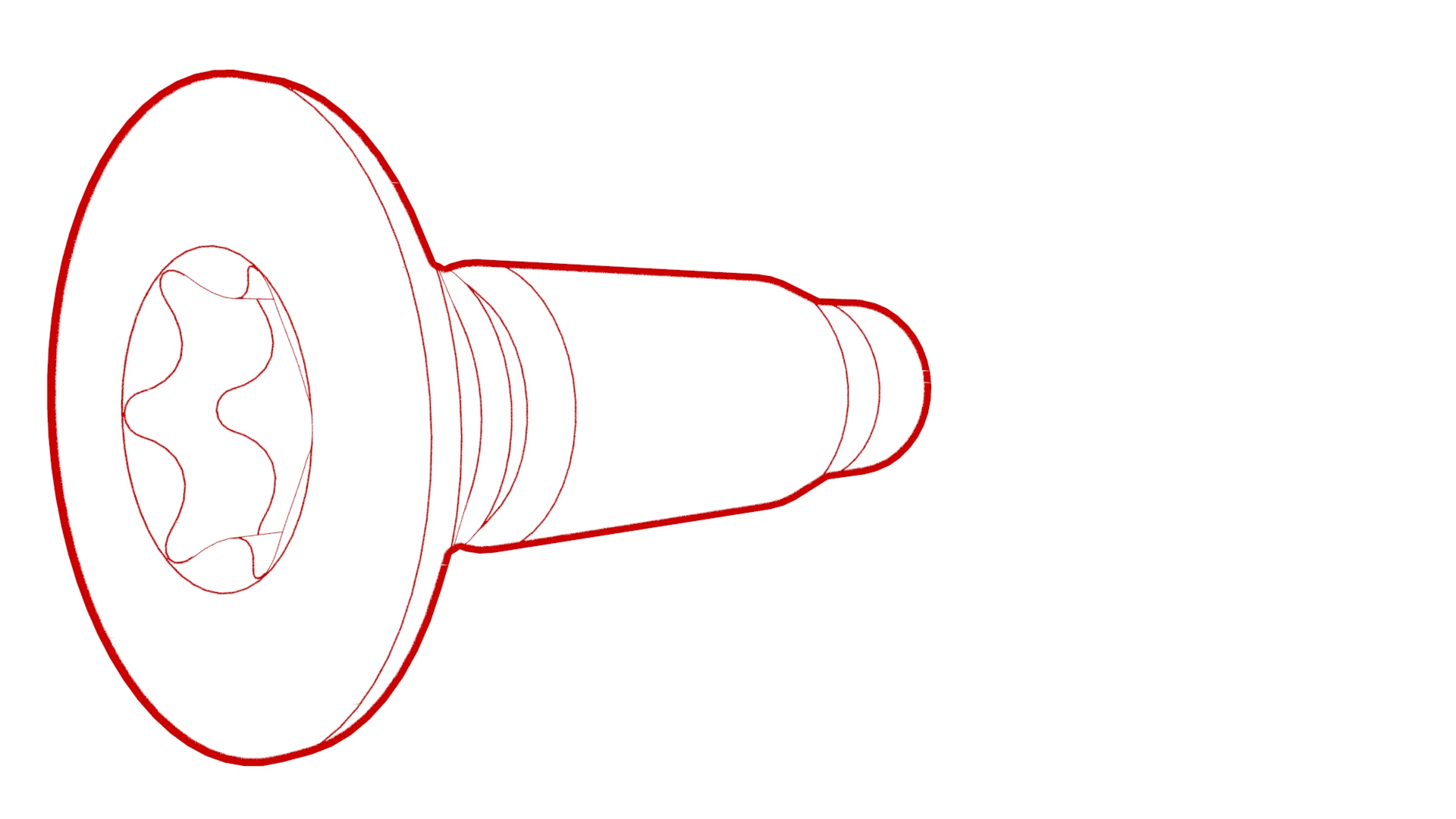

  3. Remove the bolts that attach the LH front door striker to the body, and then remove the striker from the vehicle.
1Open the LH front door.
2Mark the position of the LH front door striker using masking tape.
3Remove the bolts that attach the LH front door striker to the body, and then remove the striker from the vehicle.

Install

  1. Hand-tighten the bolts that attach the LH front door striker to the body.
  2. Close the LH front door and verify the door position; adjust the position of the striker and verify fitment, if necessary.
  3. Tighten the bolts that attach the LH front door striker to the body.
    Torque 26 Nm
  4. Remove the masking tape from the body.
  5. Close the LH front door.
1Hand-tighten the bolts that attach the LH front door striker to the body.
2Close the LH front door and verify the door position; adjust the position of the striker and verify fitment, if necessary.
3Tighten the bolts that attach the LH front door striker to the body.
Torque 26 Nm
4Remove the masking tape from the body.
5Close the LH front door.
