Damper - Glove Box (Remove and Replace)

Correction code 1405120214051202
Parent topic: 1405 - Instrument Panel

Remove

  1. Remove the glove box. See Glove Box (LHD) (Remove and Replace).

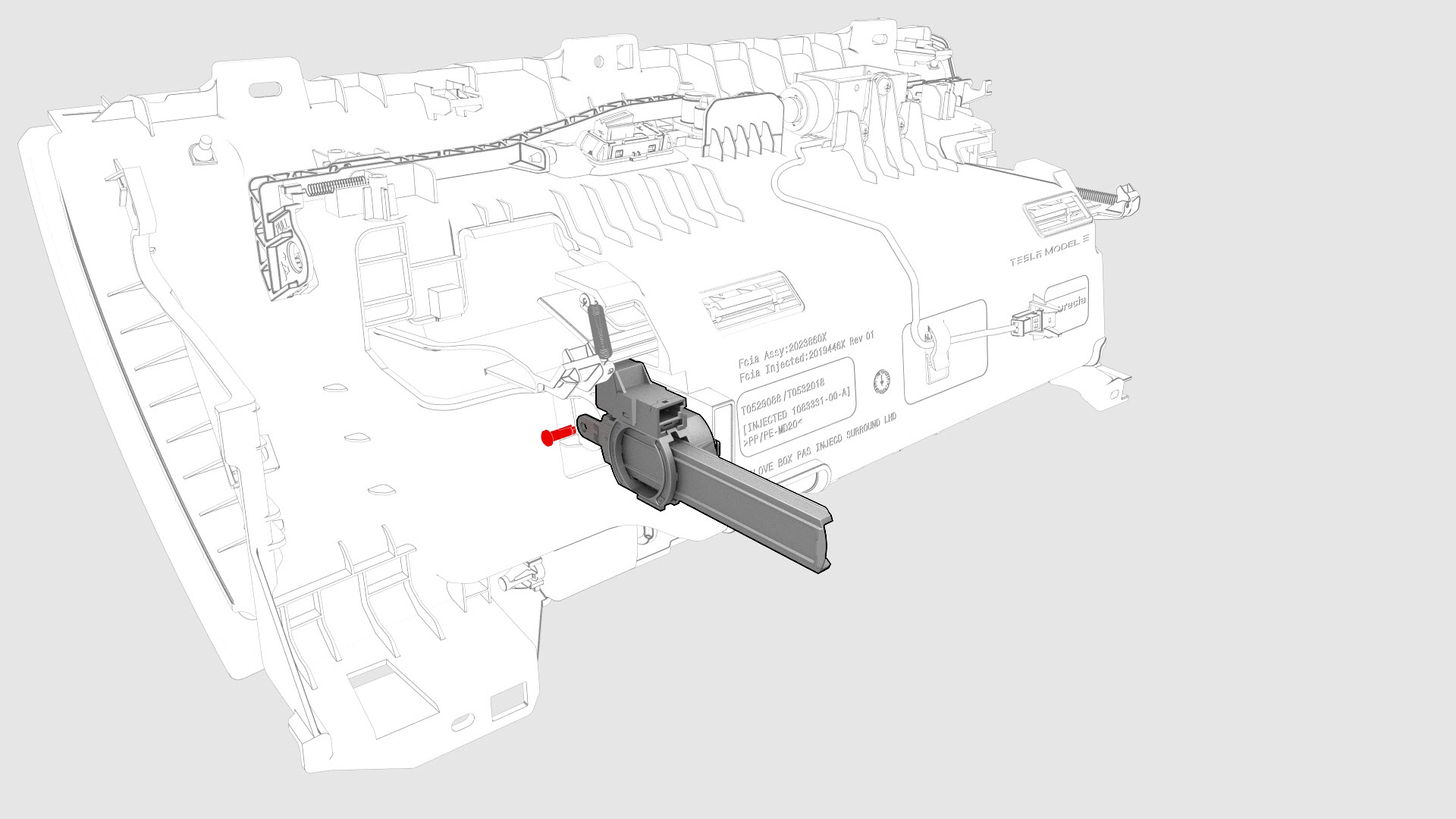

  2. Remove the pin that attach the glove box damper to the glove box using needle nose pliers.
  3. Fully open the glove box.
    Note: When the glove box is closed, the glove box damper will not clear for removal.

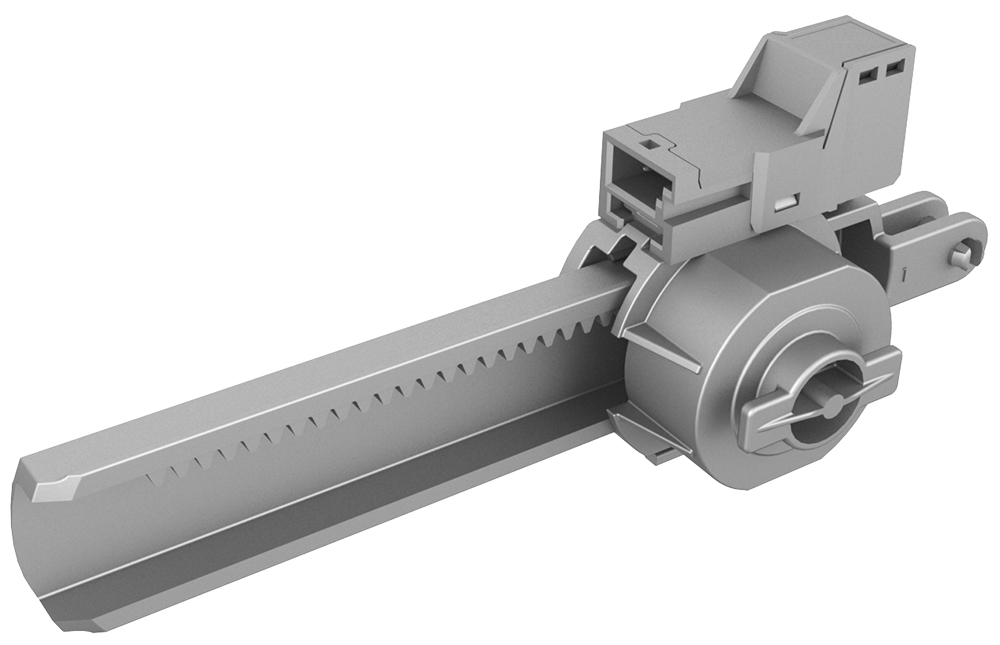

  4. Turn the glove box damper 90 degrees counterclockwise, and then remove the glove box damper from the glove box.
1Remove the glove box. See Glove Box (LHD) (Remove and Replace).
2Remove the pin that attach the glove box damper to the glove box using needle nose pliers.
3Fully open the glove box.
Note: When the glove box is closed, the glove box damper will not clear for removal.
4Turn the glove box damper 90 degrees counterclockwise, and then remove the glove box damper from the glove box.

Install

  1. Position the glove box damper onto the glove box by turning it 90 degrees clockwise.
  2. Close the glove box so that the glove box damper engages with the glove box lid.
  3. Install the pin that attaches the glove box damper to the glove box.
    Note: Make sure that the glove box damper pin is fully seated, and not to bump the glove box damper, when installing the glove box.
  4. Install the glove box. See Glove Box (LHD) (Remove and Replace).
1Position the glove box damper onto the glove box by turning it 90 degrees clockwise.
2Close the glove box so that the glove box damper engages with the glove box lid.
3Install the pin that attaches the glove box damper to the glove box.
Note: Make sure that the glove box damper pin is fully seated, and not to bump the glove box damper, when installing the glove box.
4Install the glove box. See Glove Box (LHD) (Remove and Replace).
