Bracket - License Plate - Front (NA) (Retrofit)
Correction code 1207010612070106
Retrofit
Animated demonstration
-
Remove the backing from the long horizontal tape strip on the new front license plate bracket.
-
Fold the backing of the vertical tape strips out at a 90 degree angle.
-
Hold the license plate bracket horizontally and align the locator tab at the bottom lip of the bracket with the center rib of the fascia grille.
-
Pull the tape strips out from the sides of license plate bracket, and then press the bracket against the front fascia.
-
Install the license plate onto the front license plate bracket, and then install the screws that attach the plate to the bracket.
Torque 3 Nm

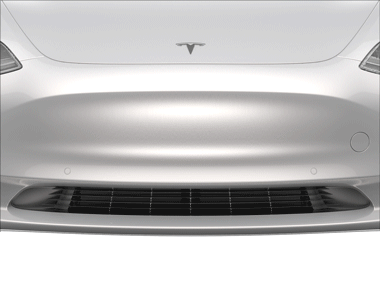

| 1 | Clean the front center surface of the front fascia. | ||
| 2 | Remove the backing from the long horizontal tape strip on the new front license plate bracket. | |
| 3 | Fold the backing of the vertical tape strips out at a 90 degree angle. | |
| 4 | Hold the license plate bracket horizontally and align the locator tab at the bottom lip of the bracket with the center rib of the fascia grille. | |
| 5 | Rotate the license plate bracket vertically and press the top edge against the front fascia. | ||
| 6 | Pull the tape strips out from the sides of license plate bracket, and then press the bracket against the front fascia. | |
| 7 | Install the license plate onto the front license plate bracket, and then install the screws that attach the plate to the bracket. Torque 3 Nm |
