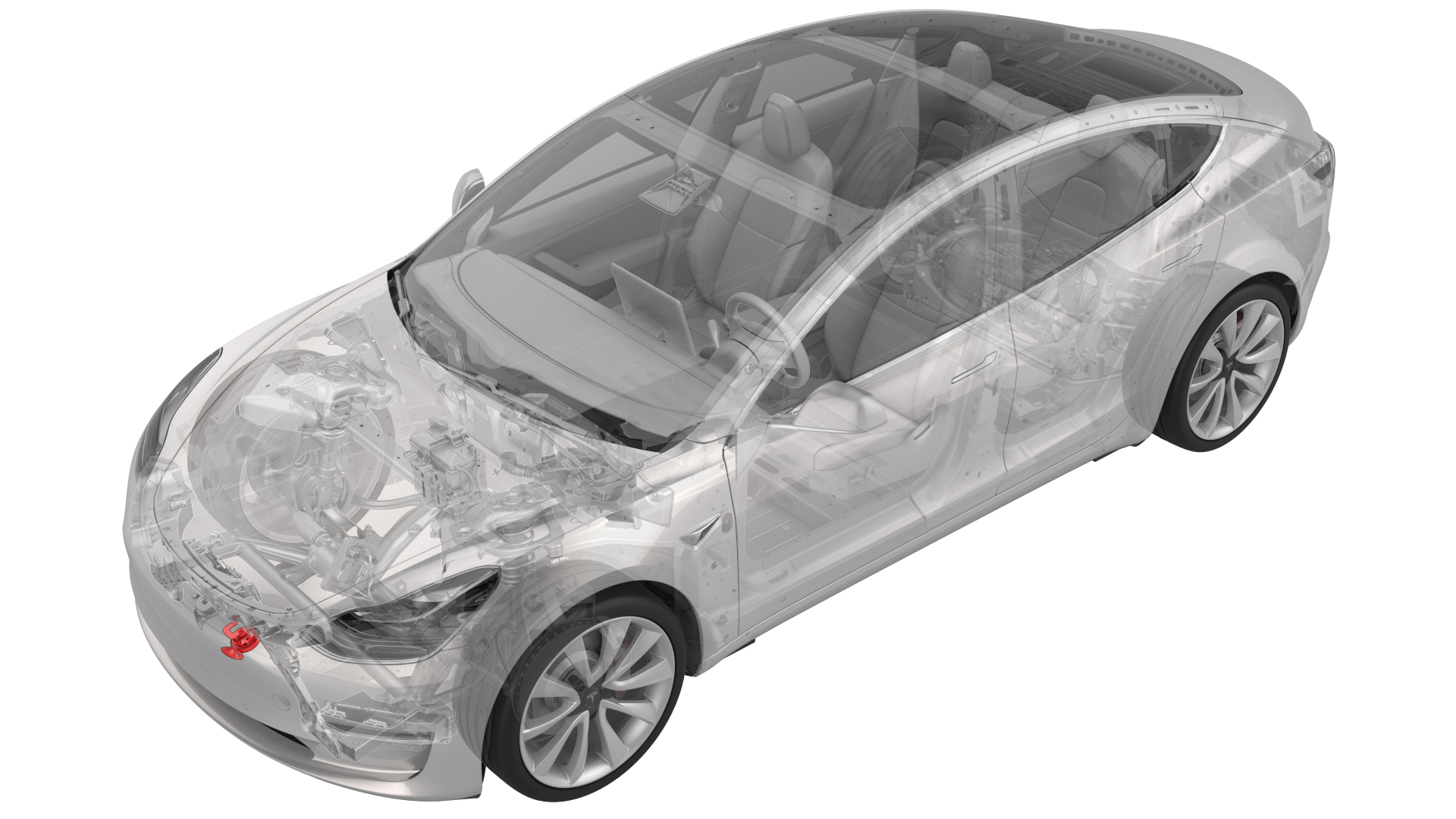

Horn - Low Tone (Remove and Replace)

Correction code 1753030217530302
Parent topic: 1753 - Horns

Remove

  1. Remove the front fascia. See Remove.
  2. Disconnect the harness from the low tone horn connector.

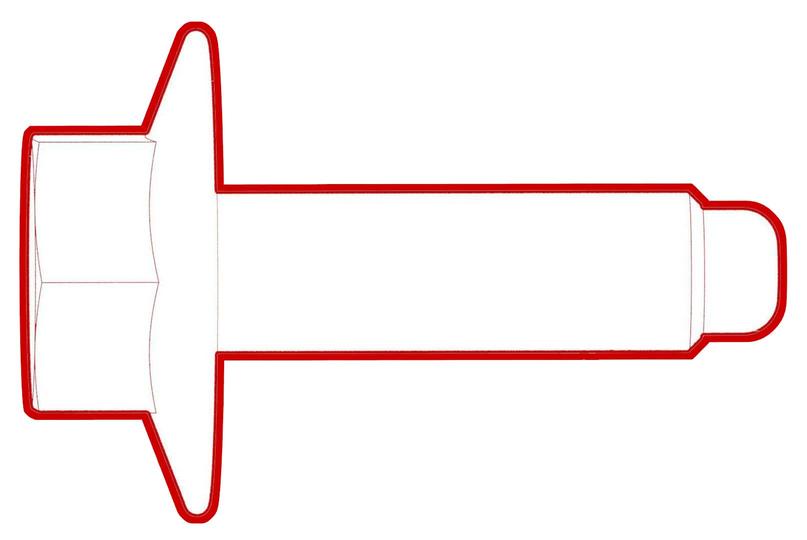

  3. Remove the bolt that attaches the horn to the carrier, and remove the horn from the vehicle.
    Torque 9 Nm

    North America

    EMEA

1Remove the front fascia. See Remove.

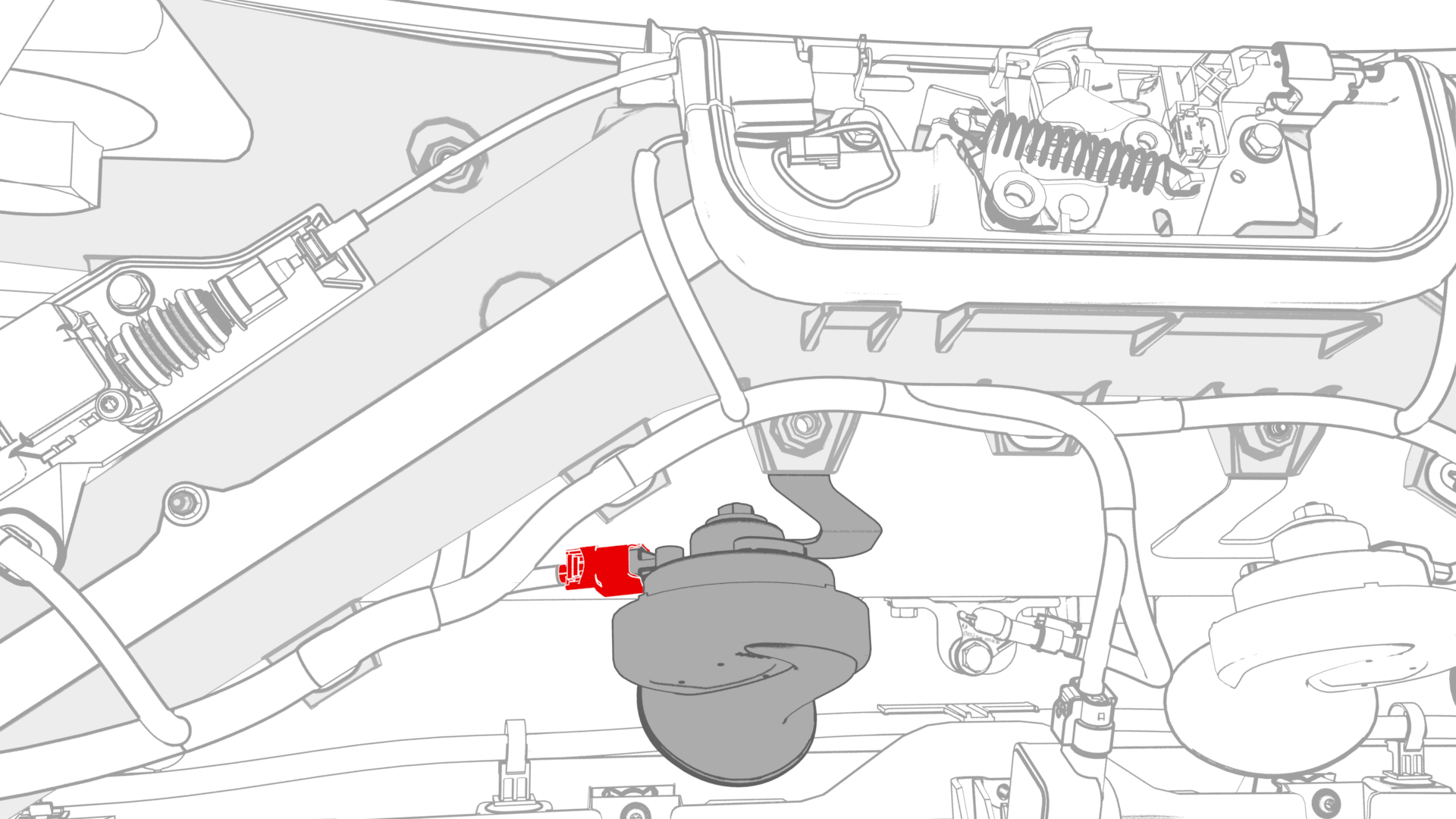

2Disconnect the harness from the low tone horn connector.

North America

EMEA

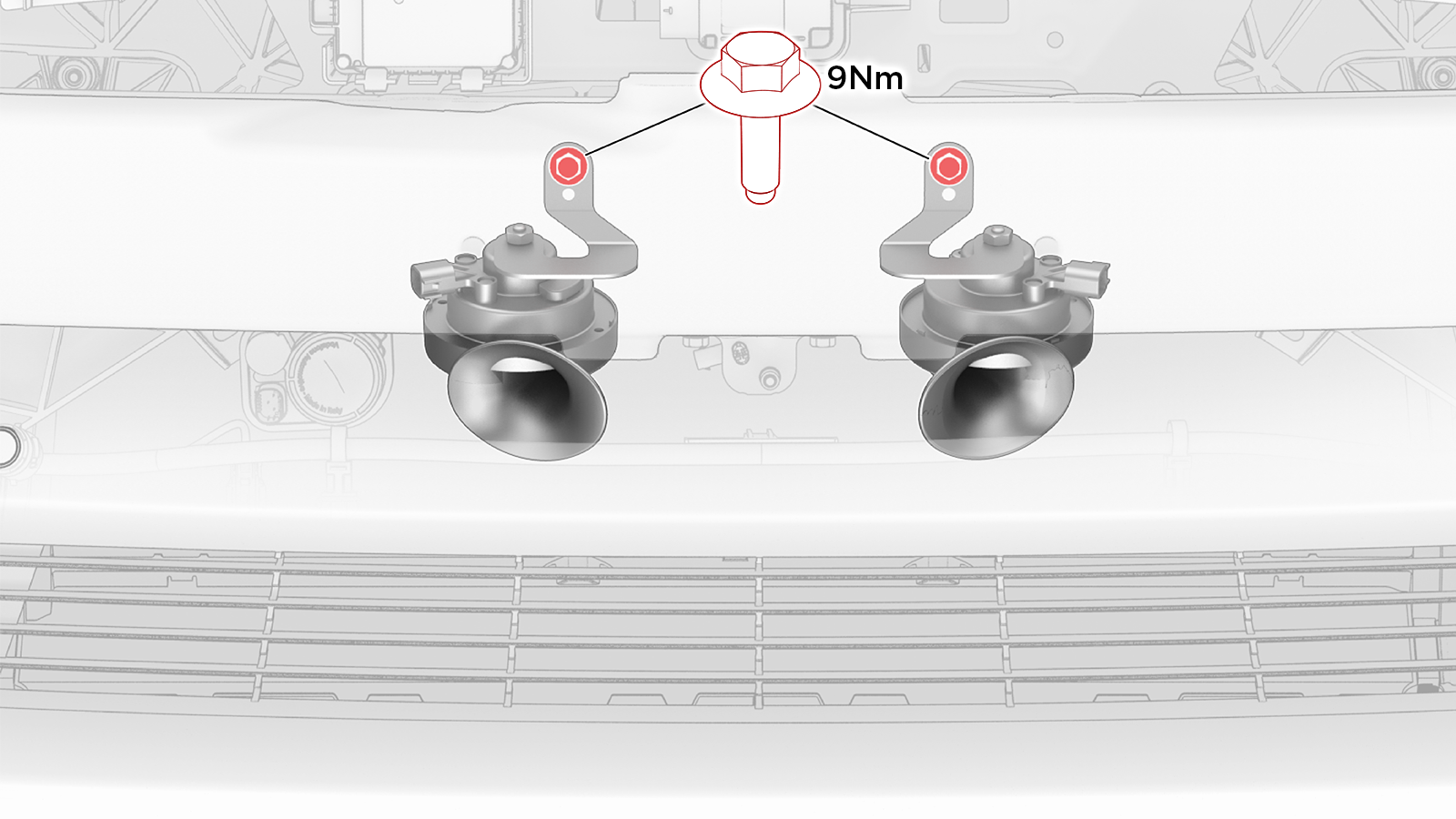

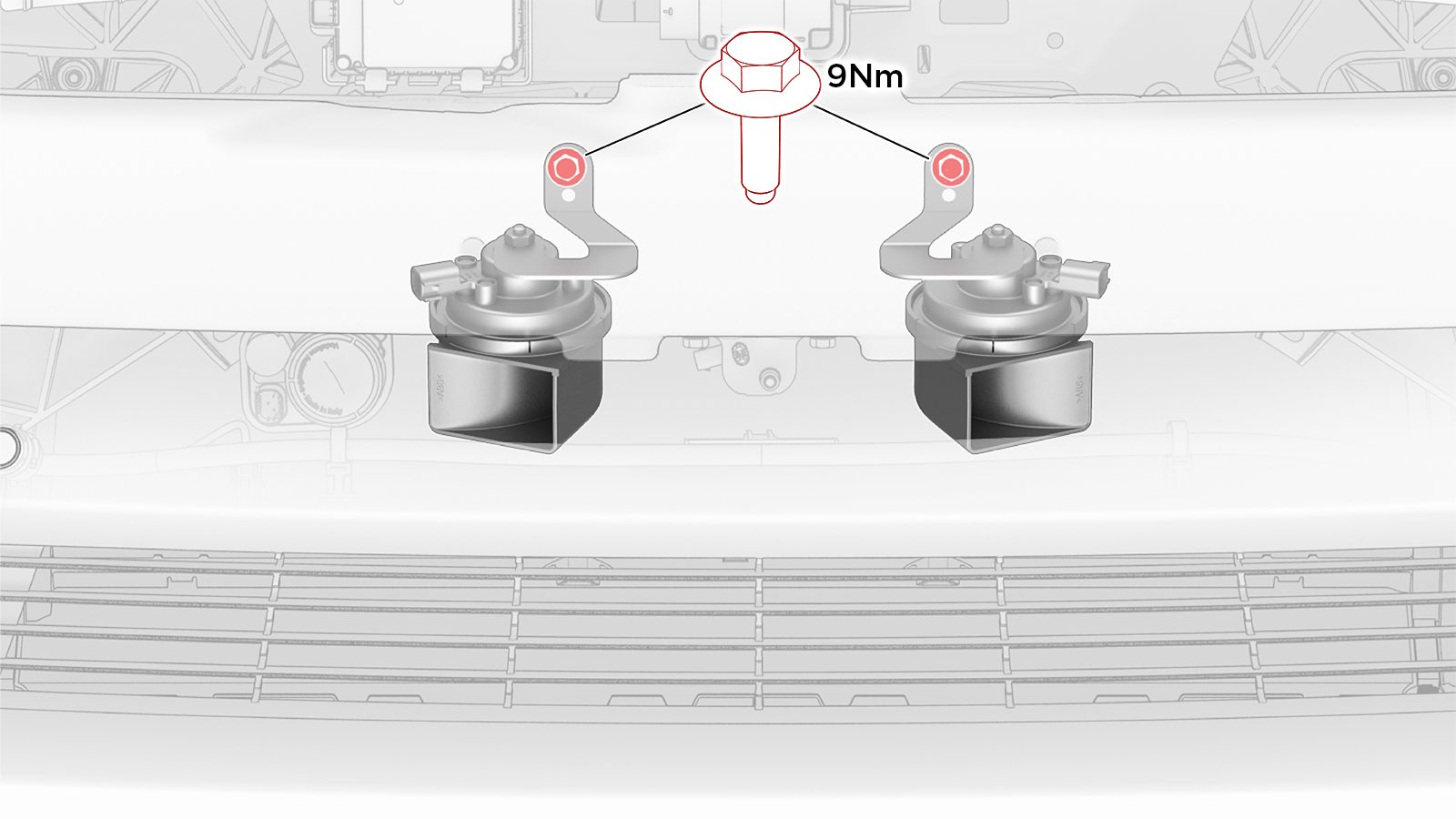

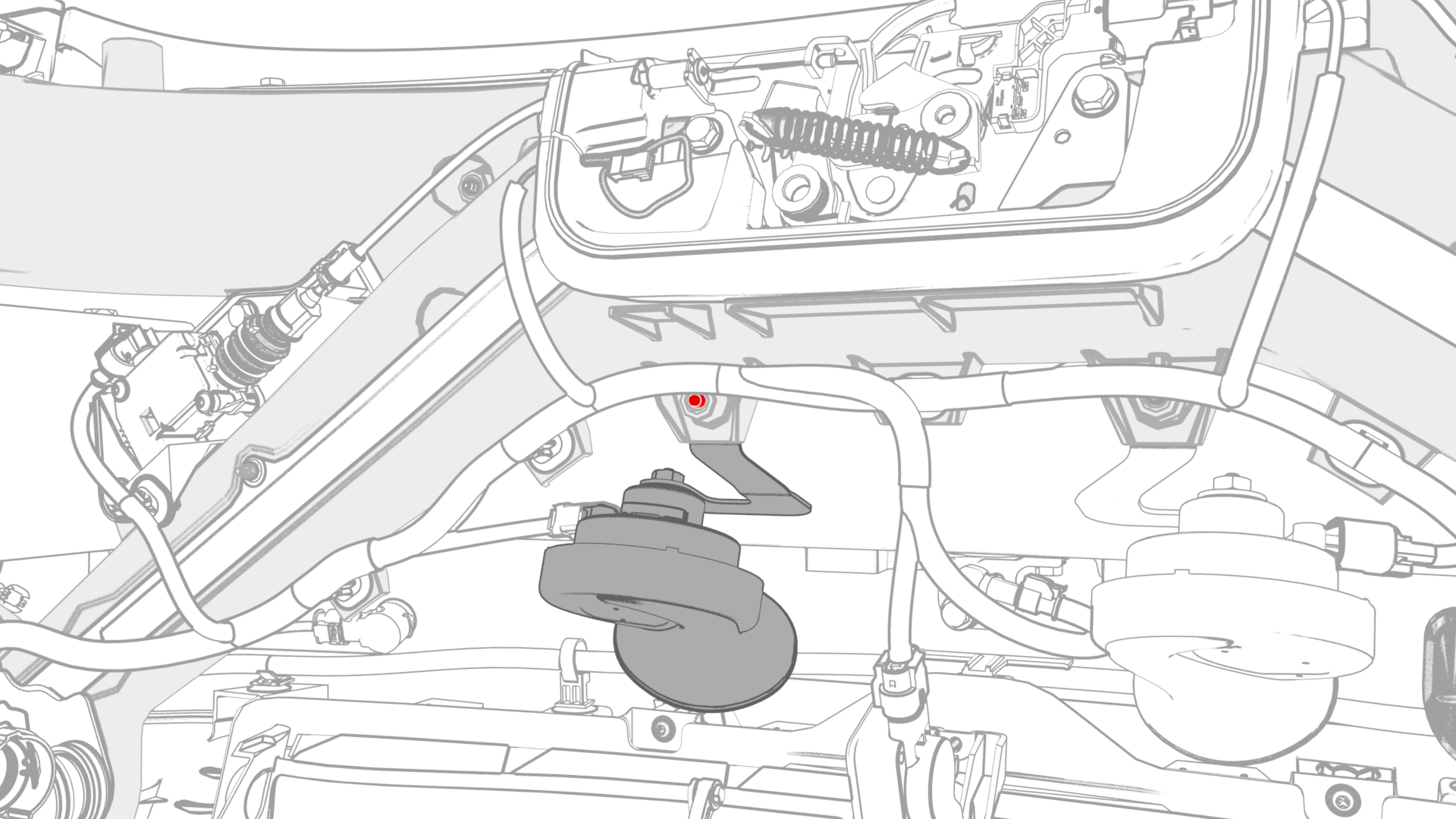

3Remove the bolt that attaches the horn to the carrier, and remove the horn from the vehicle.
Torque 9 Nm

Install

Installation procedure is the reverse of removal, except for the following:

  1. Connect a laptop with Toolbox to the vehicle.
  2. In Toolbox, ensure "Actions" is selected then type "Horn" in the search field.
  3. Click the Play button next to "TEST-SELF_VCFRONT_X_HORN", and then select Run.
