Wiper Blades (Remove and Replace)

Correction code 1750170217501702

from-rc

Note:

This procedure was formulated using a release candidate or production model. Follow safety requirements and use extreme caution when working on or near high-voltage systems and components.

Provide corrections and feedback to servicemanualfeedback@tesla.com.

Remove

Use the center display to put the wipers in "Service Mode."

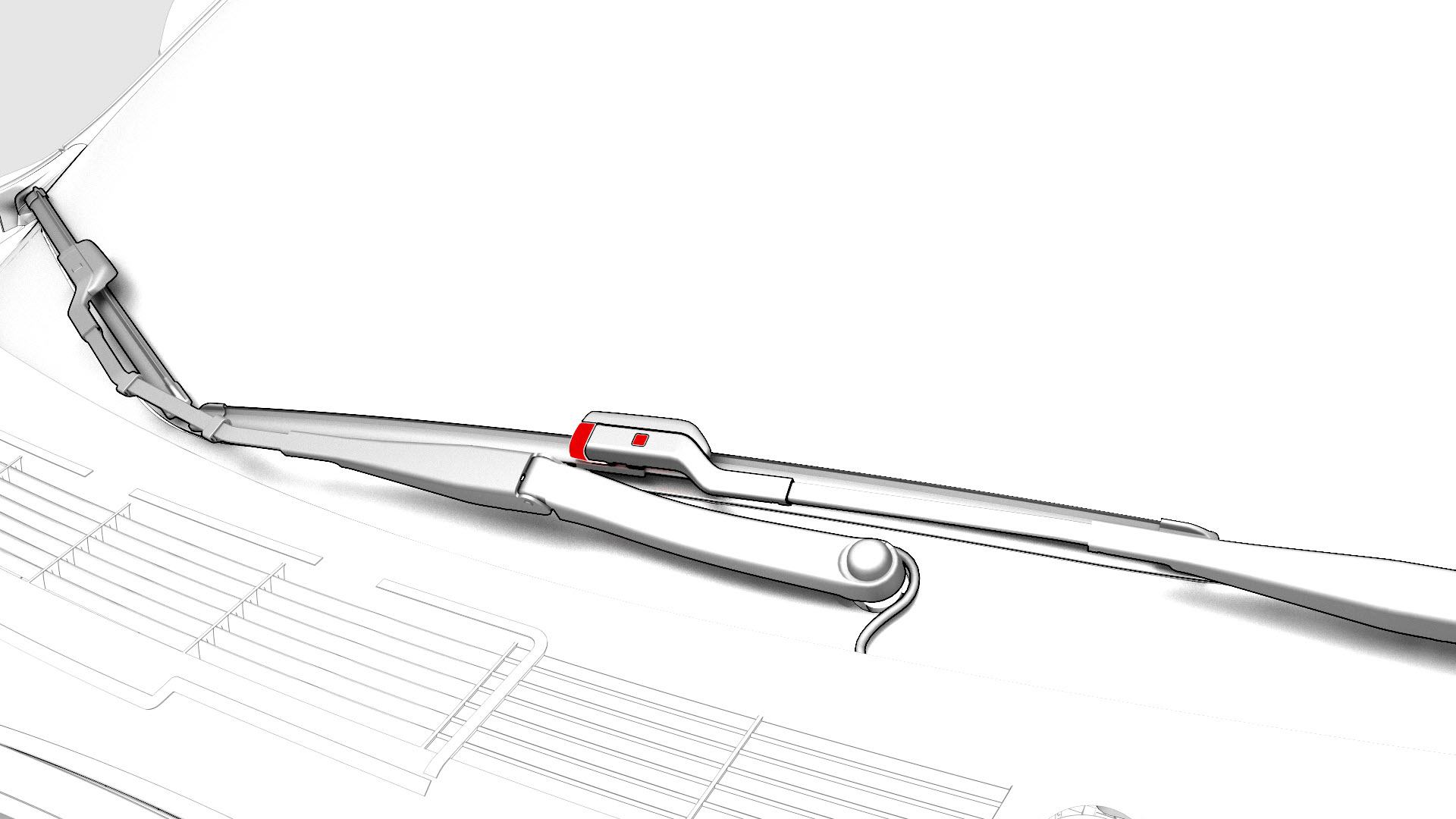

Release the tab that attaches the LH wiper blade to the LH wiper arm, and then remove the LH wiper blade from the vehicle.

Note: Place a towel or shop rag underneath the wiper arm to prevent scratches on the windshield.
Release the tab that attaches the RH wiper blade to the RH wiper arm, and then remove the RH wiper blade from the vehicle.

Note: Place a towel or shop rag underneath the wiper arm to prevent scratches on the windshield.

		1	Use the center display to put the wipers in "Service Mode."
		2	Release the tab that attaches the LH wiper blade to the LH wiper arm, and then remove the LH wiper blade from the vehicle. Note: Place a towel or shop rag underneath the wiper arm to prevent scratches on the windshield.
		3	Release the tab that attaches the RH wiper blade to the RH wiper arm, and then remove the RH wiper blade from the vehicle. Note: Place a towel or shop rag underneath the wiper arm to prevent scratches on the windshield.

Install

Installation procedure is the reverse of removal.
