Glass - Door - LH - Front (Adjust)

Correction code 1150010011500100

DRAFT

from-cad
Warning:

This procedure was derived from pre-production computer models, and might not reflect the real-world situation. Warnings and cautions might be missing. Follow safety requirements and use extreme caution when working on or near high voltage systems and components.

Do not redistribute this content. Provide corrections and feedback to servicemanualfeedback@tesla.com.

  • 1135305-00-A Tool, Window Switch, Model 3

SPECIAL TOOLS

Tool, Window Switch, Model 3 (1135305-00-A)
Parent topic: 1150 - Door Glass and Regulators

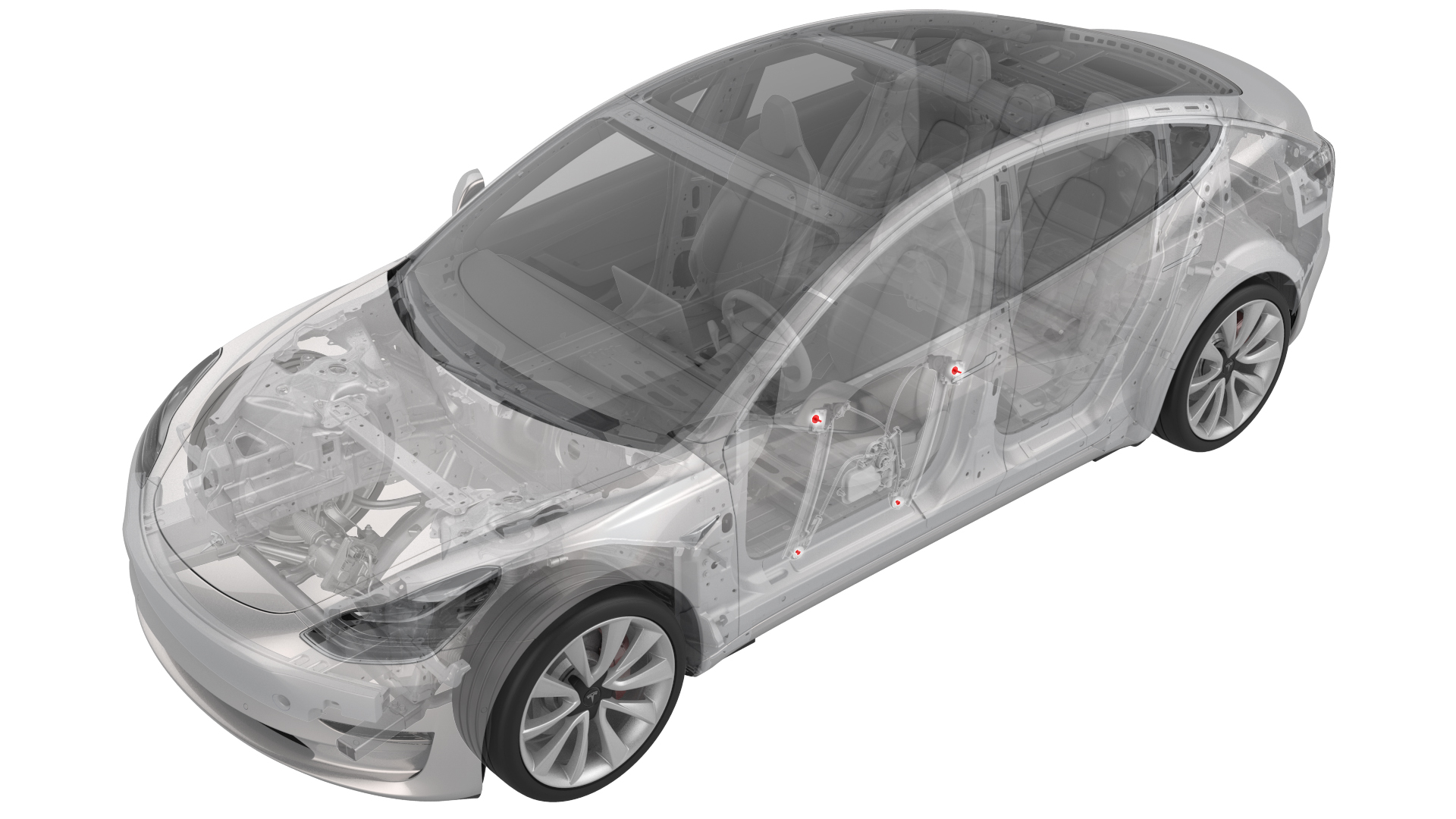

Procedure

  1. Remove the front LH door trim panel. See Panel - Door Trim - Front - LH (Remove and Install).

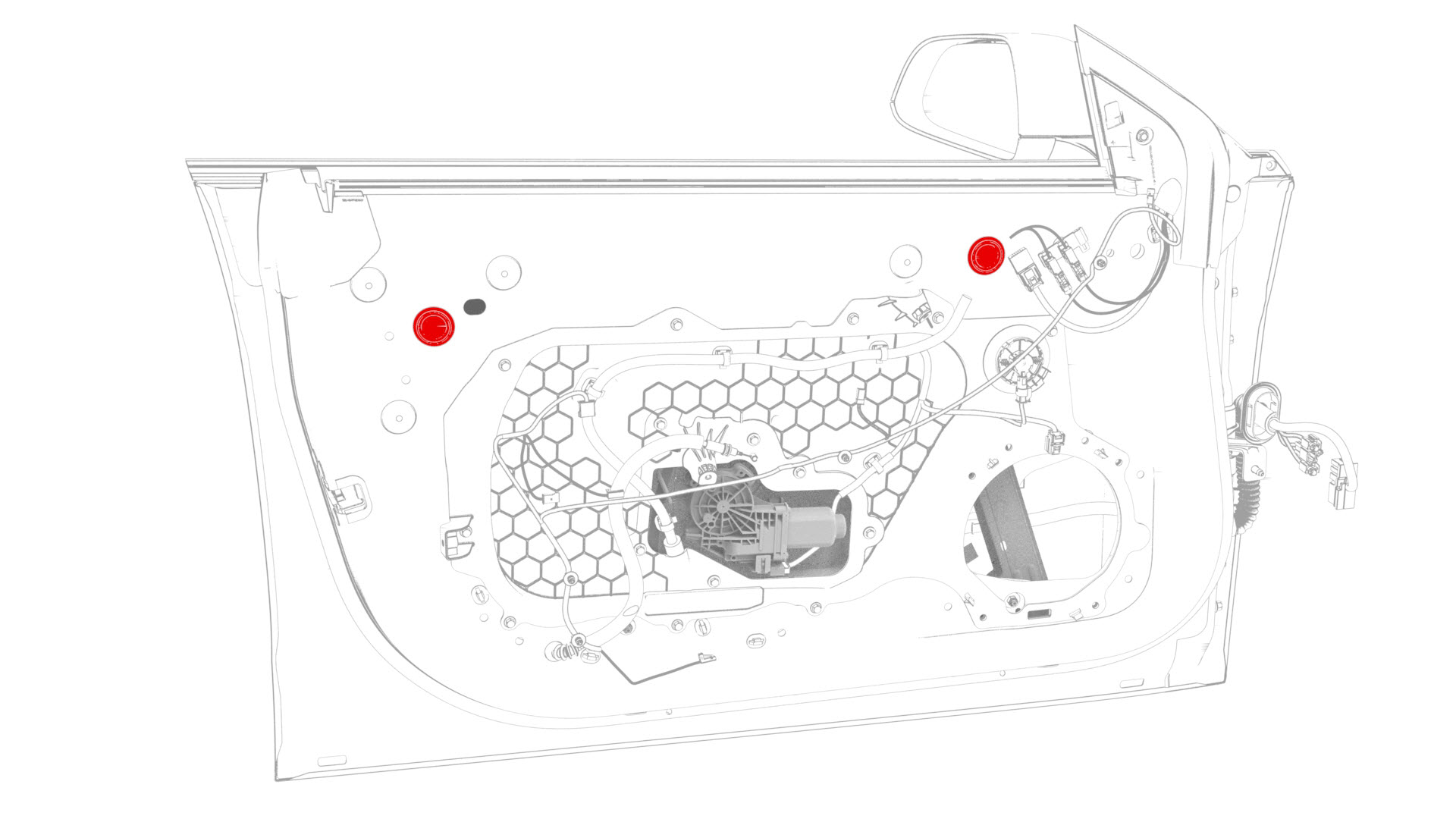

  2. Remove the plugs (x2) to access the regulator isolation clamps.
  3. Connect the window switch special tool and lower the window to access the regulator isolation clamps.

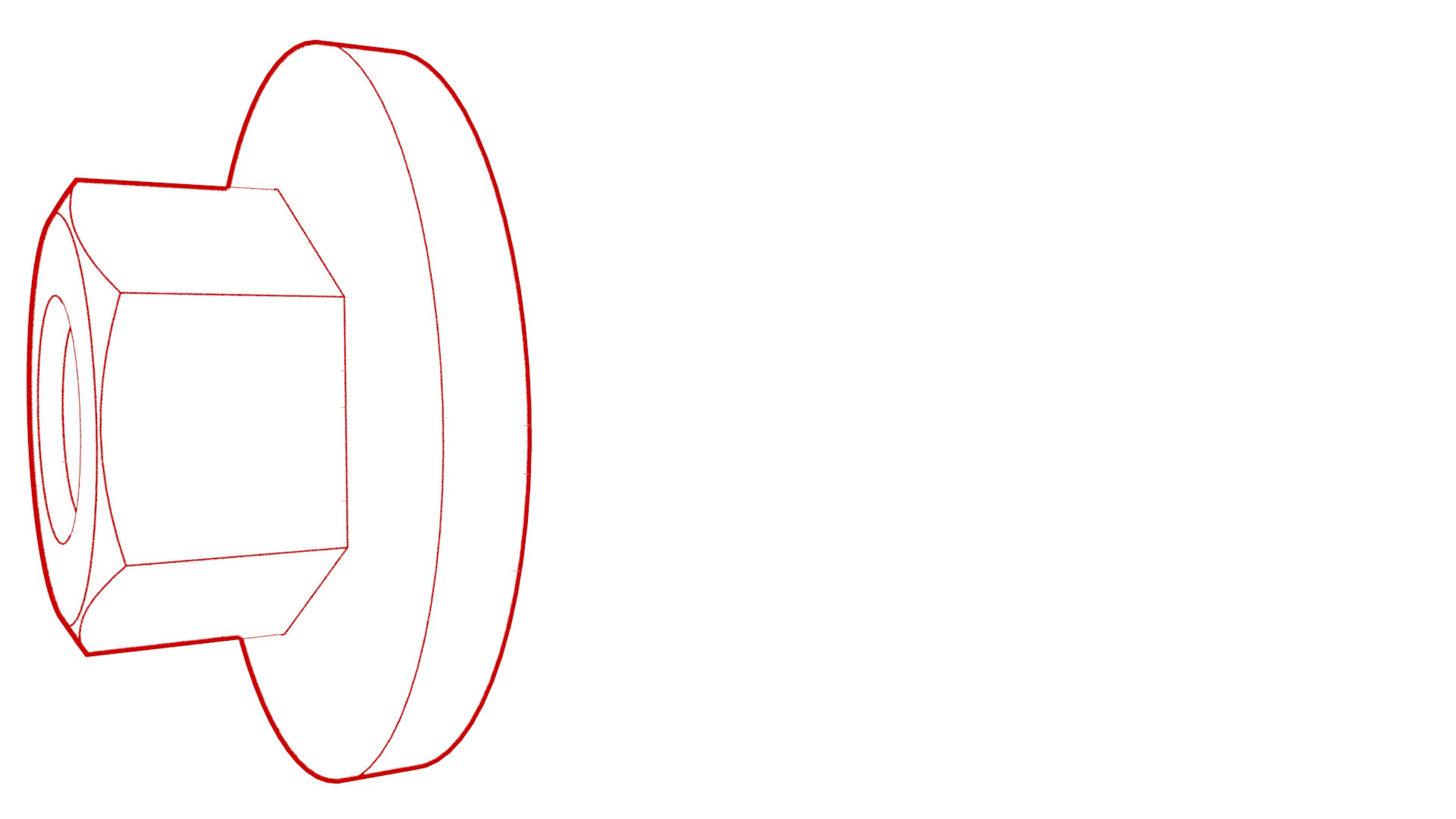

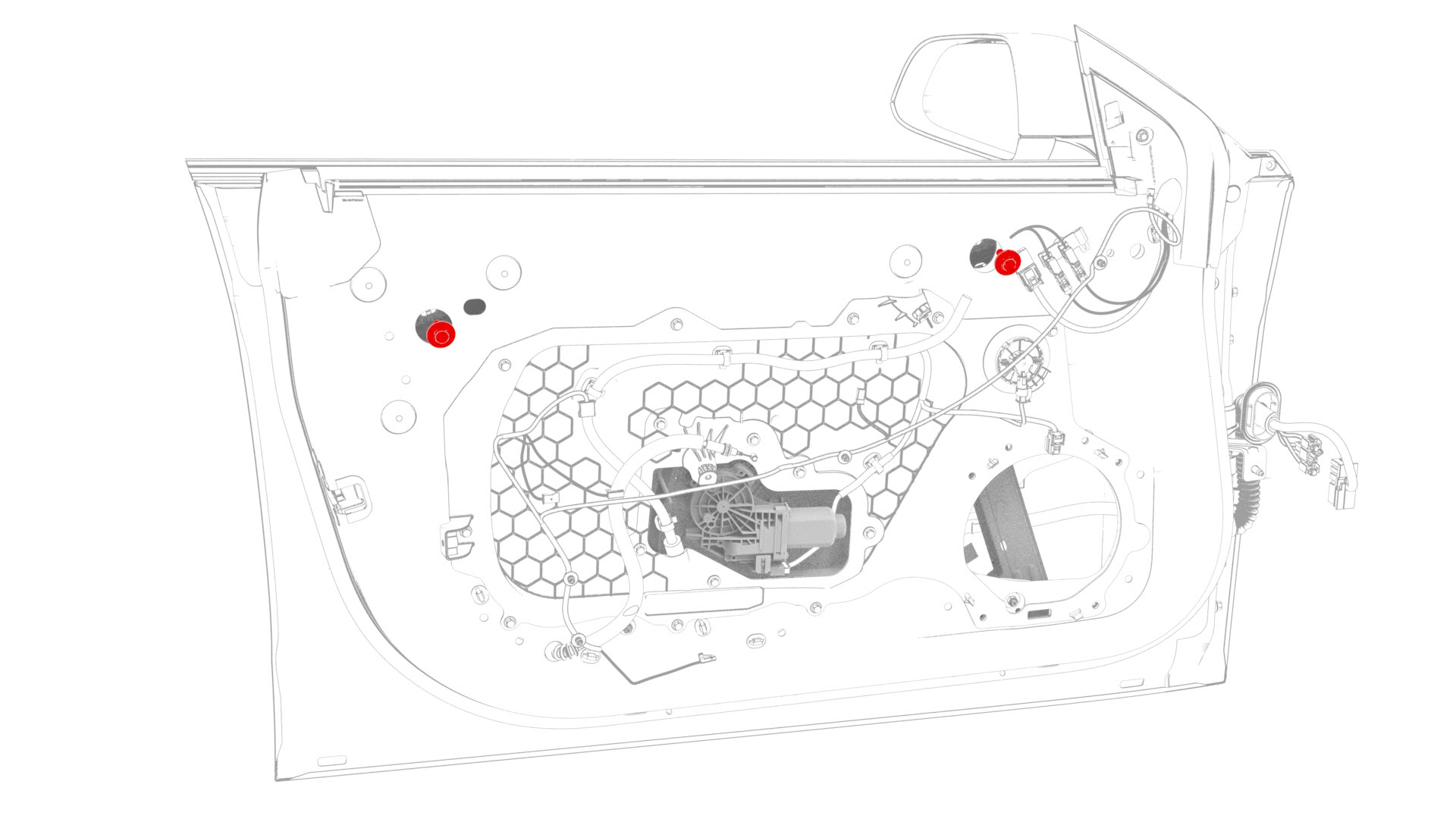

  4. Loosen the nuts that secure the window glass to the clamps, but do not remove the nuts.
  5. Adjust the window glass position and hand tighten the nuts.
  6. If the window angle needs adjustment, continue to the next step. Otherwise, skip to step 9.
  7. Remove the LH front door speaker. See Speaker - Front Door - LH (Remove and Replace).
  8. Loosen the lower regulator mounting bolts, and then adjust the regulator angle by turning the mounting stud. After the window angle adjustment is complete, hand tighten the lower regulator bolts.
  9. Fully raise the window glass.
  10. Close the front LH door and verify window fitment. Adjust the window glass, if necessary.
  11. Lower the window glass to access the regulator isolation clamps.
  12. Tighten the nuts that secure the glass to the clamps.
    Torque 10 Nm
  13. Tighten the bolts that secure the window regulator to the inner door
    Torque 10 Nm
    .
  14. Install the LH front door speaker, if removed. See Speaker - Front Door - LH (Remove and Replace).
  15. Fully raise the window.
  16. Disconnect the window switch special tool.
  17. Install the plugs that cover access to the regulator isolation clamps.
  18. Install the front LH door trim panel. See Panel - Door Trim - Front - LH (Remove and Install).
