Fascia - Rear - Lower (Remove and Replace)

Correction code 1001290210012902

DRAFT

from-cad
Warning:

This procedure was derived from pre-production computer models, and might not reflect the real-world situation. Warnings and cautions might be missing. Follow safety requirements and use extreme caution when working on or near high voltage systems and components.

Do not redistribute this content. Provide corrections and feedback to servicemanualfeedback@tesla.com.

Parent topic: 1001 - Bumper / Fascia

Remove

  1. Remove the rear fascia diffuser. See Diffuser - Rear Fascia (Remove and Replace).

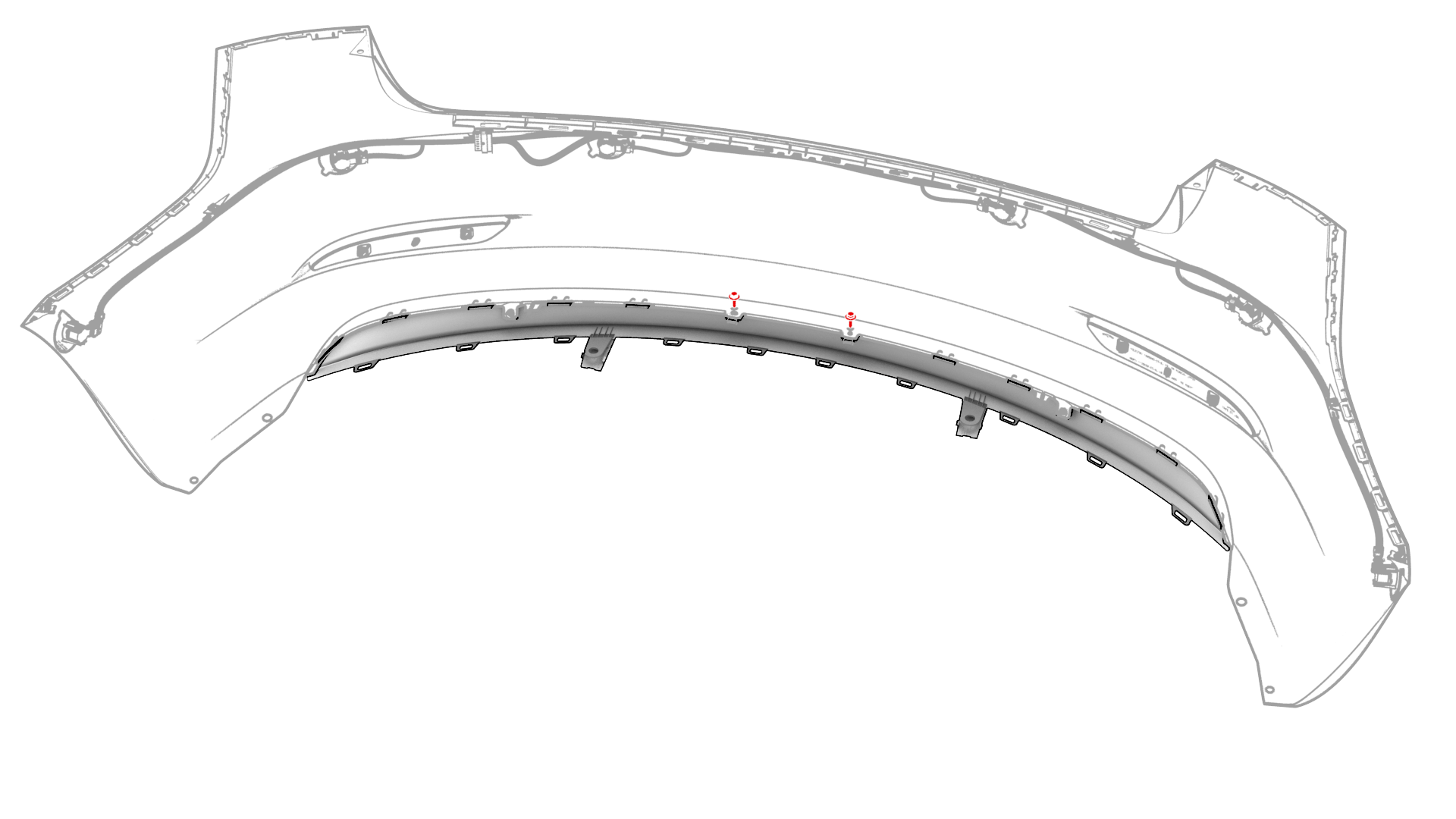

  2. Remove the bolts (x2) that attach the lower rear fascia to the upper rear fascia.
    Torque 3 Nm

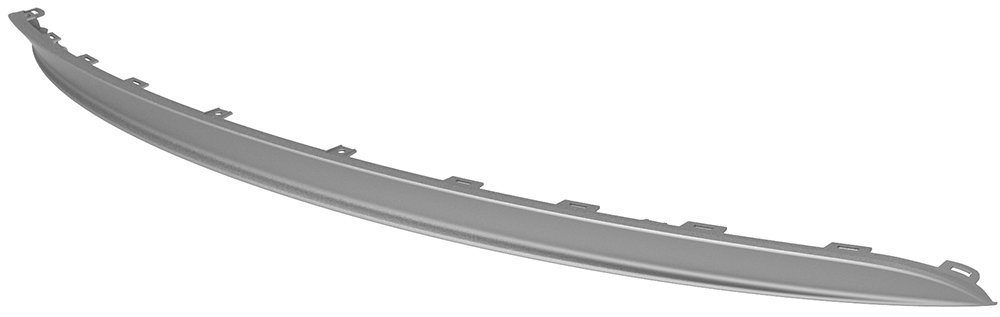

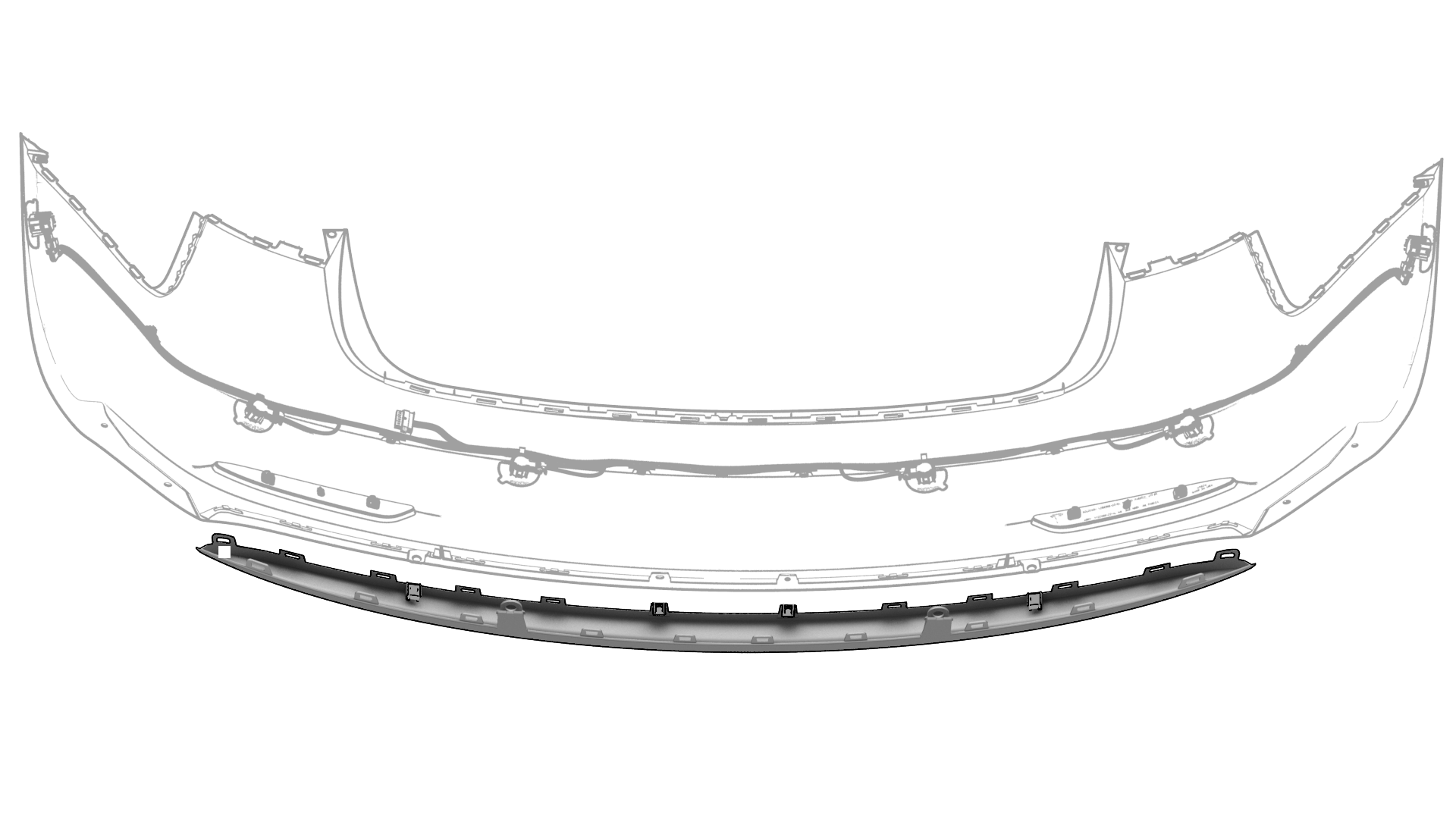

  3. Release the clips (x10) that attach the lower fascia to the upper fascia, and separate the fascias.
1Remove the rear fascia diffuser. See Diffuser - Rear Fascia (Remove and Replace).
2Remove the bolts (x2) that attach the lower rear fascia to the upper rear fascia.
Torque 3 Nm
3Release the clips (x10) that attach the lower fascia to the upper fascia, and separate the fascias.

Install

Installation procedure is the reverse of removal.
