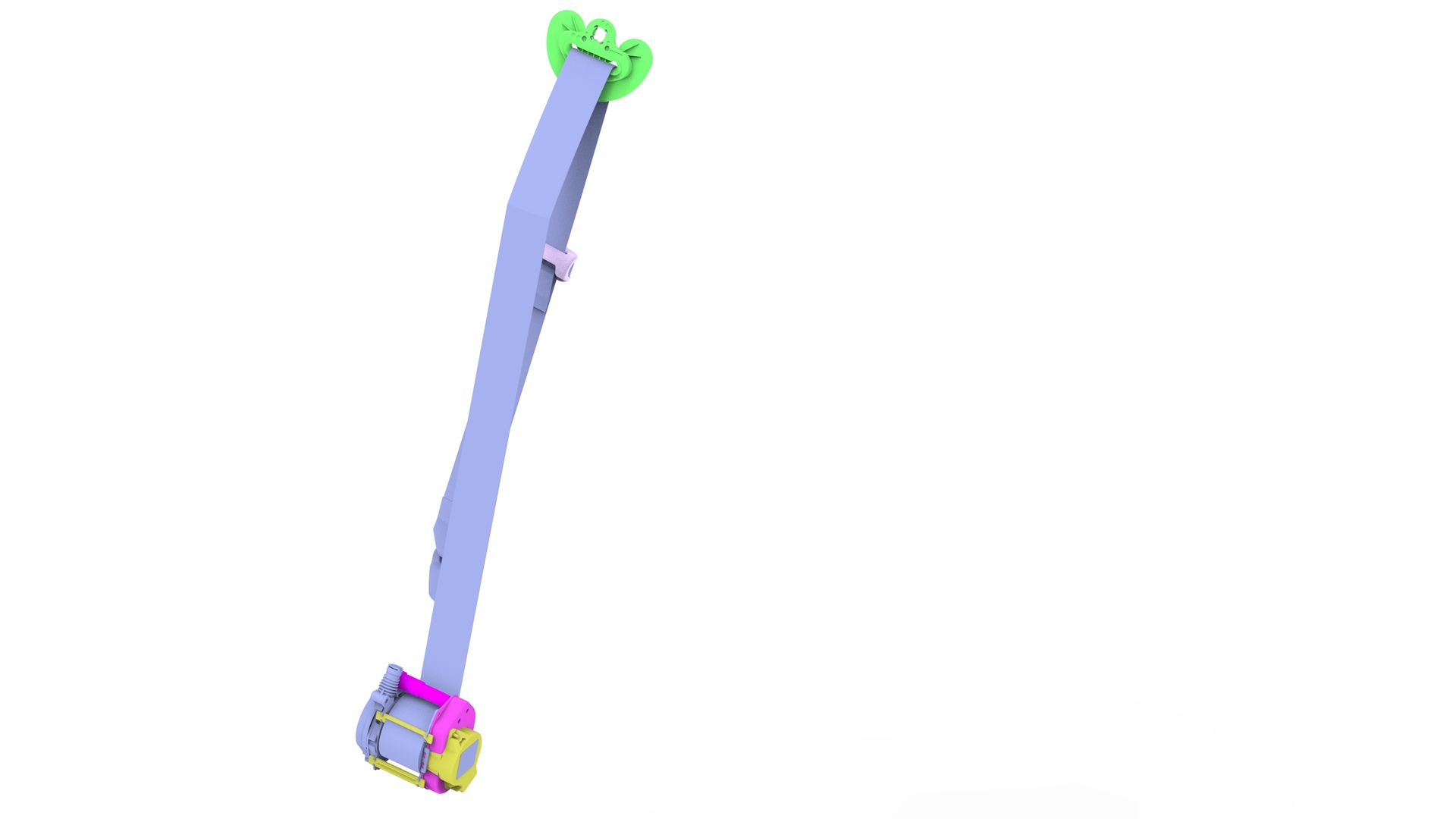

Seatbelt - 1st Row - LH (Remove and Replace)

Correction code 2005410220054102
  • 1133787-00-AKey, Seat Belt Release, Model 3

SPECIAL TOOLS

Key, Seat Belt Release, Model 3 (1133787-00-A)
Parent topic: 2005 - Seatbelts

Remove

  1. Remove the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace).
  2. Remove the LH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace).
  3. Remove the LH lower A-pillar trim. See Trim - A-Pillar - Lower - LH (Remove and Replace).
  4. Insert the seat belt release key into the bottom of the seatbelt pretensioner coupling to release the seatbelt from the pretensioner.
  5. Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
  6. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  7. Disconnect 12V power. See 12V Power (Disconnect and Connect).
  8. Remove the LH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
  9. Remove the LH rear sill panel trim. See Trim - Sill Panel - Rear - LH (Remove and Replace).
  10. Release the clips that attach the LH upper B-pillar trim to the vehicle.
    Tip: Release the clips at the bottom of the LH upper B-pillar trim first, and then release the clips at the top of the trim.
  11. Slide the seatbelt through the hole in the LH upper B-pillar trim, and then set the trim aside.
  12. Remove the LH lower B-pillar trim. SeeTrim - B-Pillar - Lower - LH (Remove and Replace).

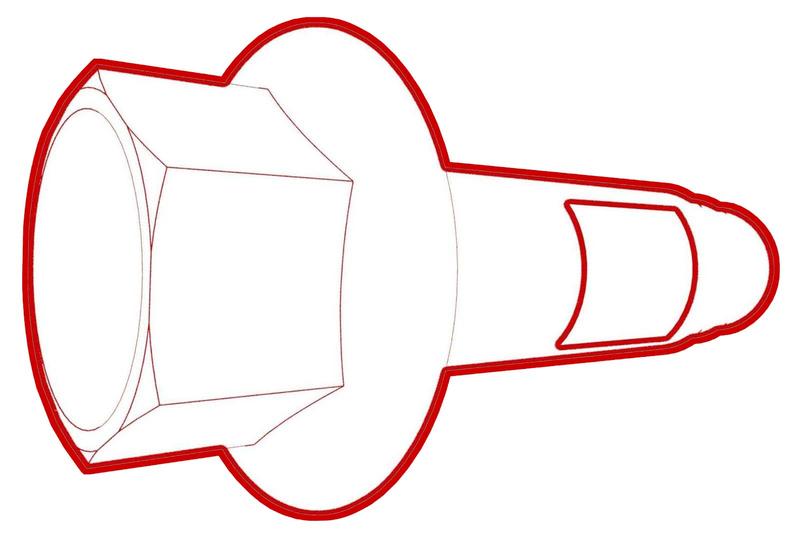

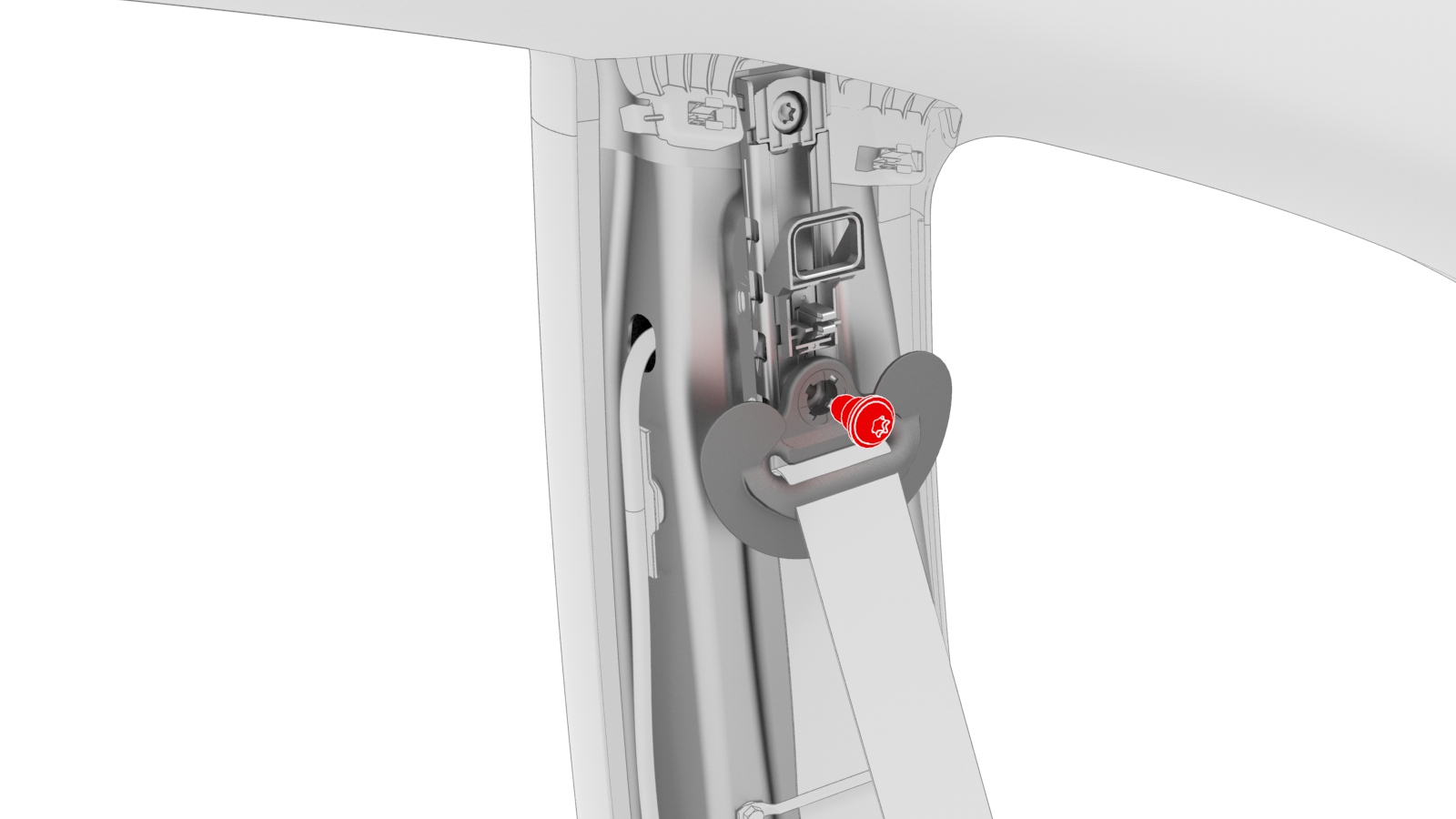

  13. Remove and discard the patchbolt that attaches the upper D-ring to the B-pillar.
    Torque 20 Nm

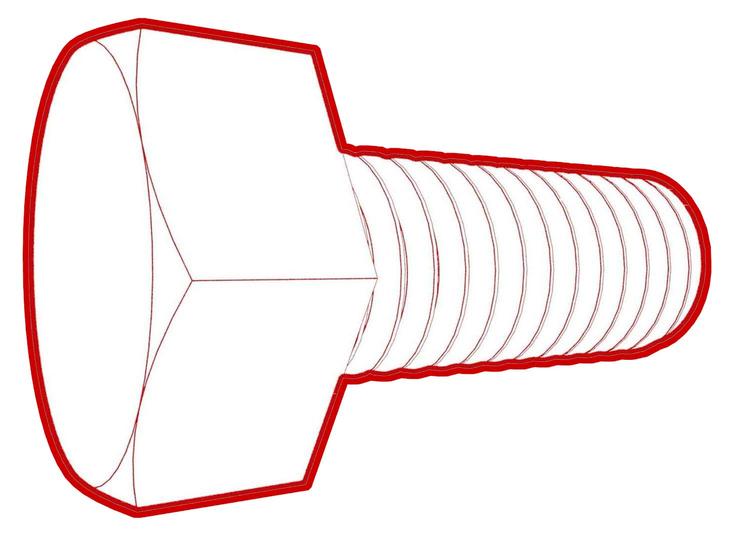

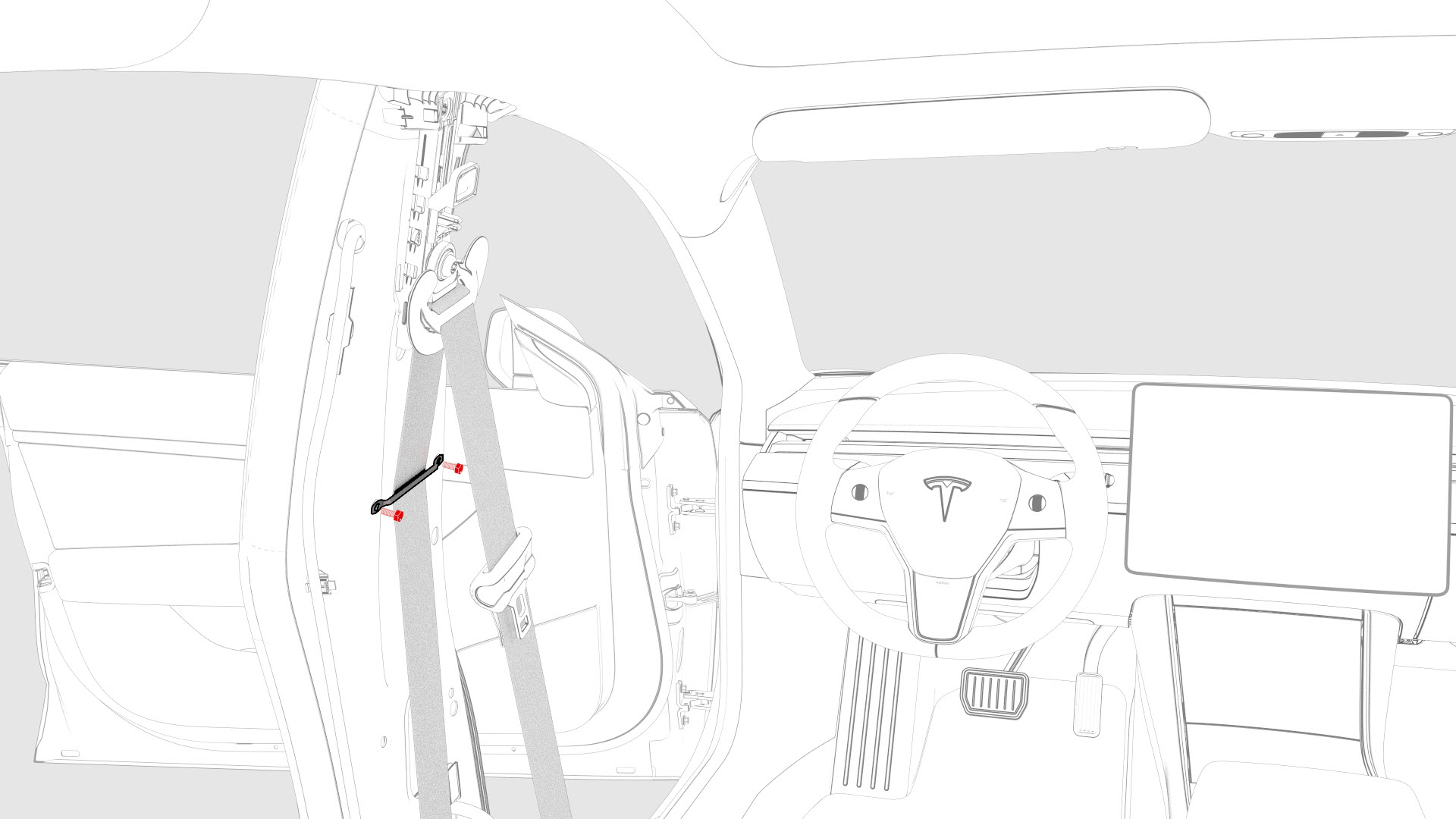

  14. Remove the bolts that attach the seat belt webbing guide to the B-pillar, and then remove the guide from the B-pillar.
    Torque 3.5 Nm

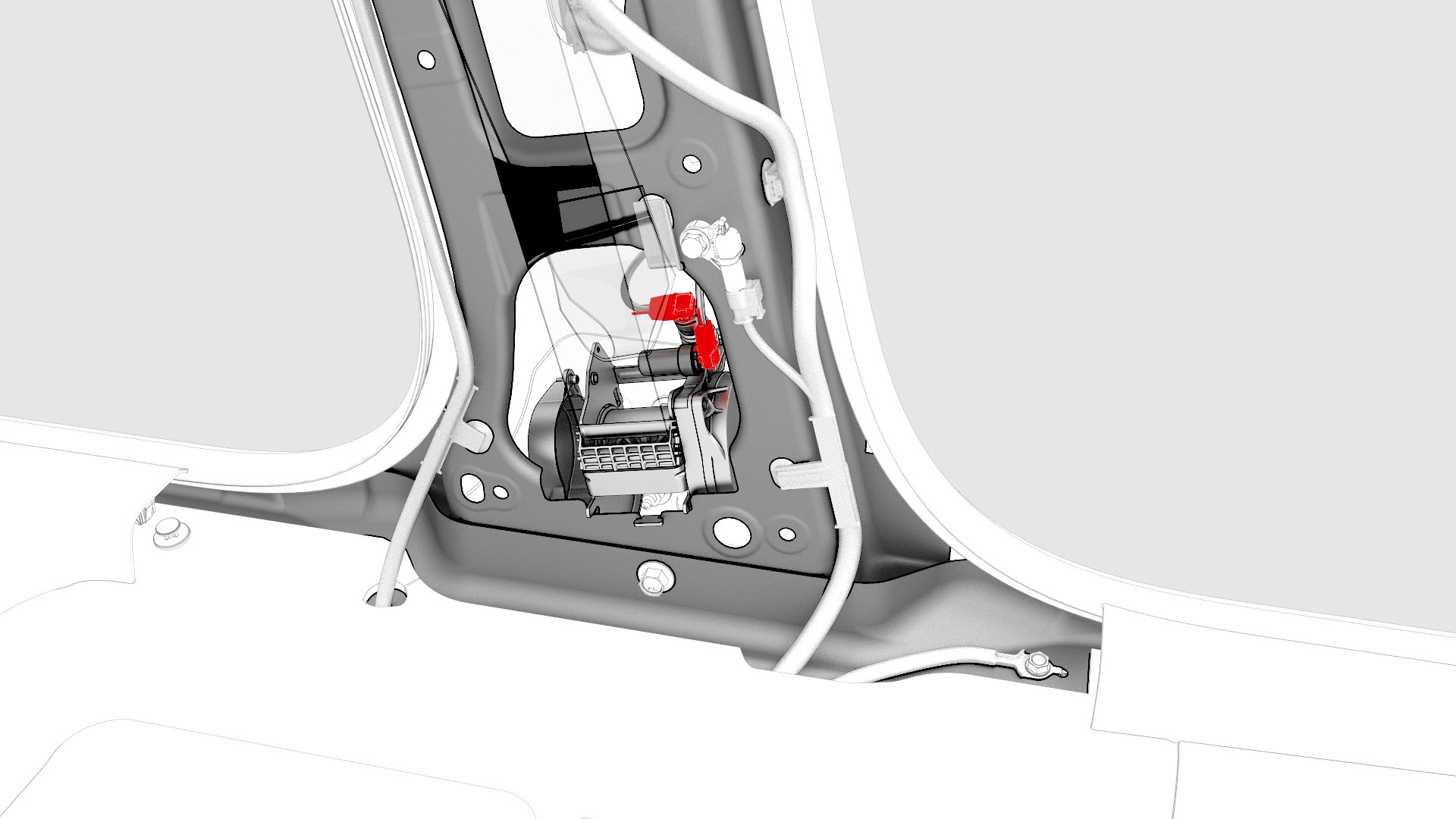

  15. Disconnect the electrical connectors (x2) from the seat belt retractor.

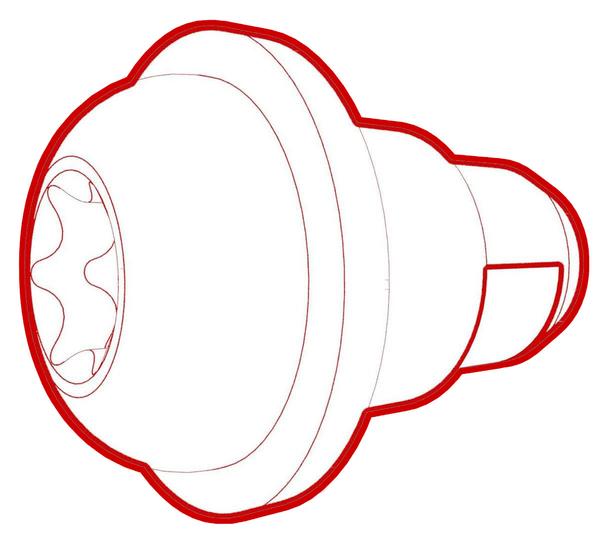

  16. Remove and discard the patchbolt that attaches the seat belt retractor to the base of the B-pillar.
    Torque 40 Nm
  17. Remove the LH front seatbelt from the vehicle.
1Remove the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace).
2Remove the LH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace).
3Remove the LH lower A-pillar trim. See Trim - A-Pillar - Lower - LH (Remove and Replace).
4Insert the seat belt release key into the bottom of the seatbelt pretensioner coupling to release the seatbelt from the pretensioner.
5Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
6Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
7Disconnect 12V power. See 12V Power (Disconnect and Connect).
8Remove the LH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
9Remove the LH rear sill panel trim. See Trim - Sill Panel - Rear - LH (Remove and Replace).
10Release the clips that attach the LH upper B-pillar trim to the vehicle.
Tip: Release the clips at the bottom of the LH upper B-pillar trim first, and then release the clips at the top of the trim.
11Slide the seatbelt through the hole in the LH upper B-pillar trim, and then set the trim aside.
12Remove the LH lower B-pillar trim. SeeTrim - B-Pillar - Lower - LH (Remove and Replace).
13Remove and discard the patchbolt that attaches the upper D-ring to the B-pillar.
Torque 20 Nm
14Remove the bolts that attach the seat belt webbing guide to the B-pillar, and then remove the guide from the B-pillar.
Torque 3.5 Nm
15Disconnect the electrical connectors (x2) from the seat belt retractor.
16Remove and discard the patchbolt that attaches the seat belt retractor to the base of the B-pillar.
Torque 40 Nm
17Remove the LH front seatbelt from the vehicle.

Install

Installation procedure is the reverse of removal, except for the following:

Caution:
Replace all patchbolts.
Note: After reinstalling the seatbelt pretensioner into the seatbelt pretensioner coupling, perform a pull test to make sure that the seatbelt and pretensioner are securely engaged.
