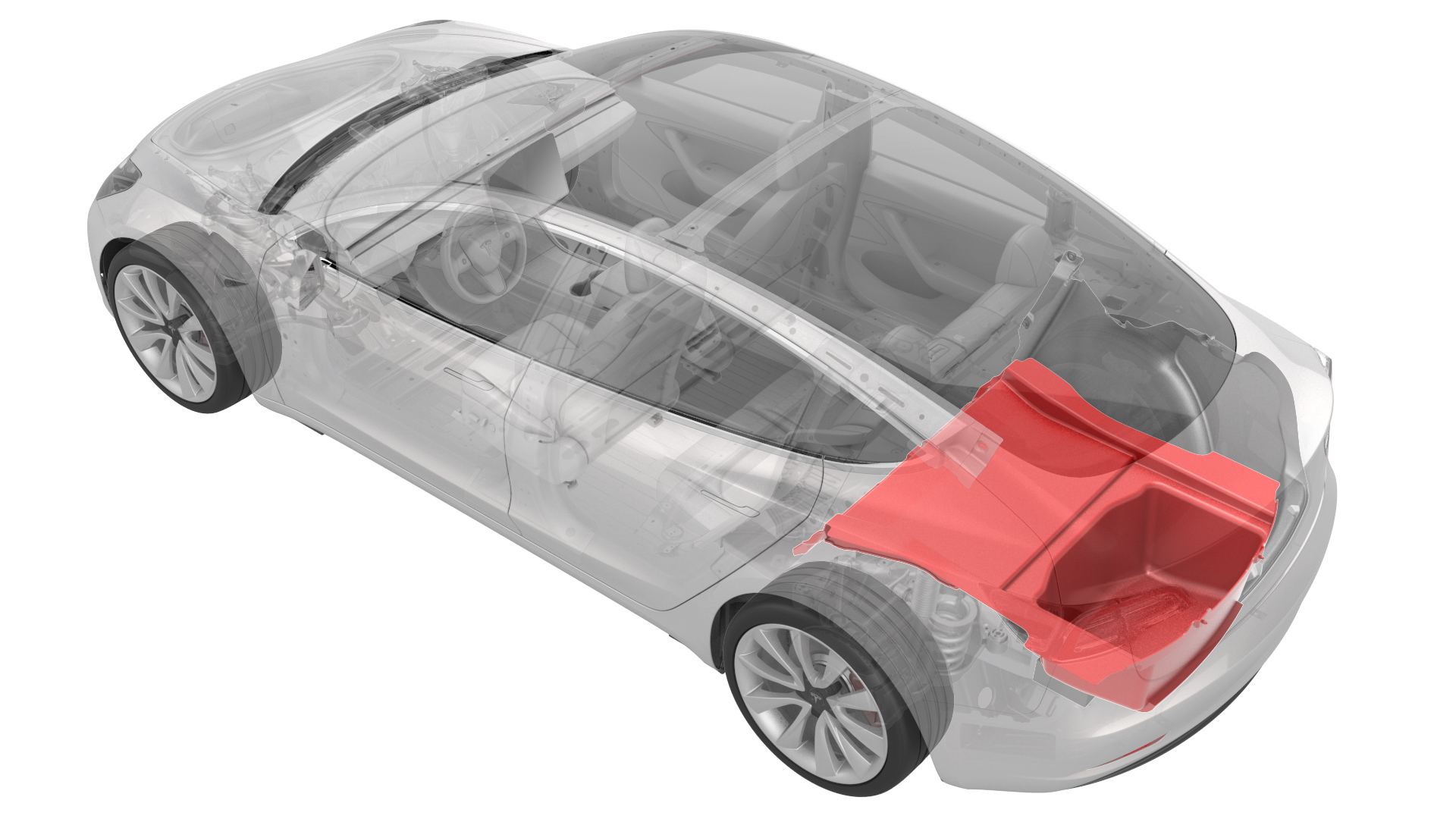

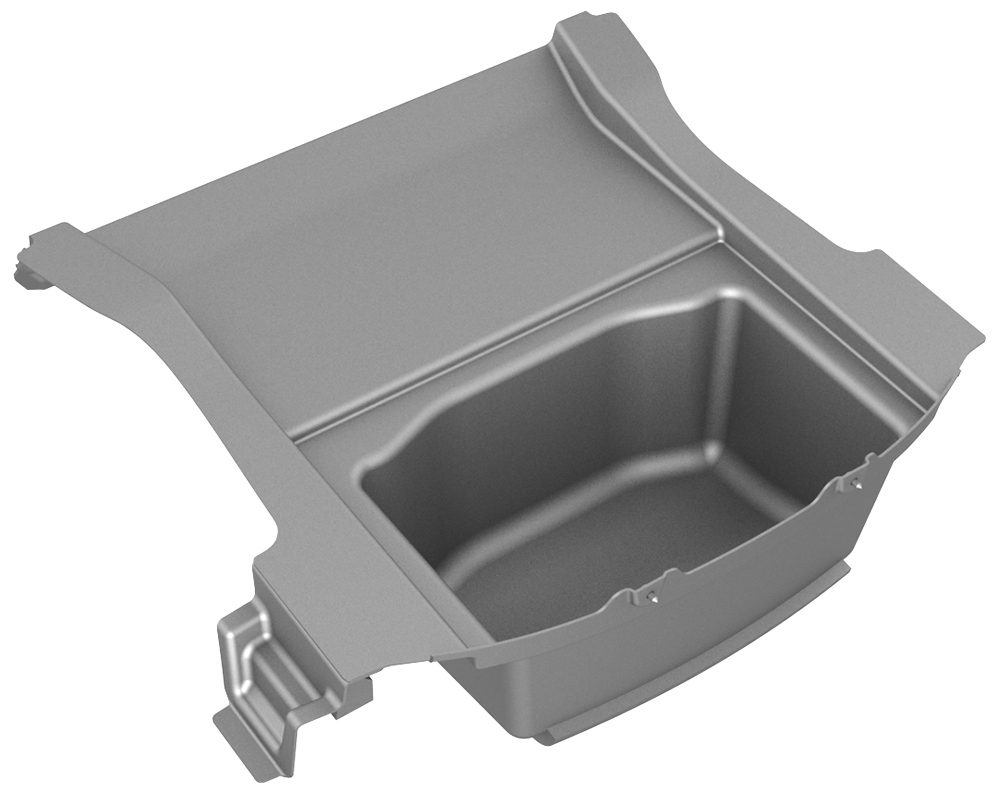

Carpet - Rear Trunk (Remove and Replace)

Correction code 1524540215245402

DRAFT

from-cad
Warning:

This procedure was derived from pre-production computer models, and might not reflect the real-world situation. Warnings and cautions might be missing. Follow safety requirements and use extreme caution when working on or near high voltage systems and components.

Do not redistribute this content. Provide corrections and feedback to servicemanualfeedback@tesla.com.

Parent topic: 1530 - Carpeting and Mats

Remove

  1. Remove the trunk sill trim. See Trim - Sill - Trunk (Remove and Replace).

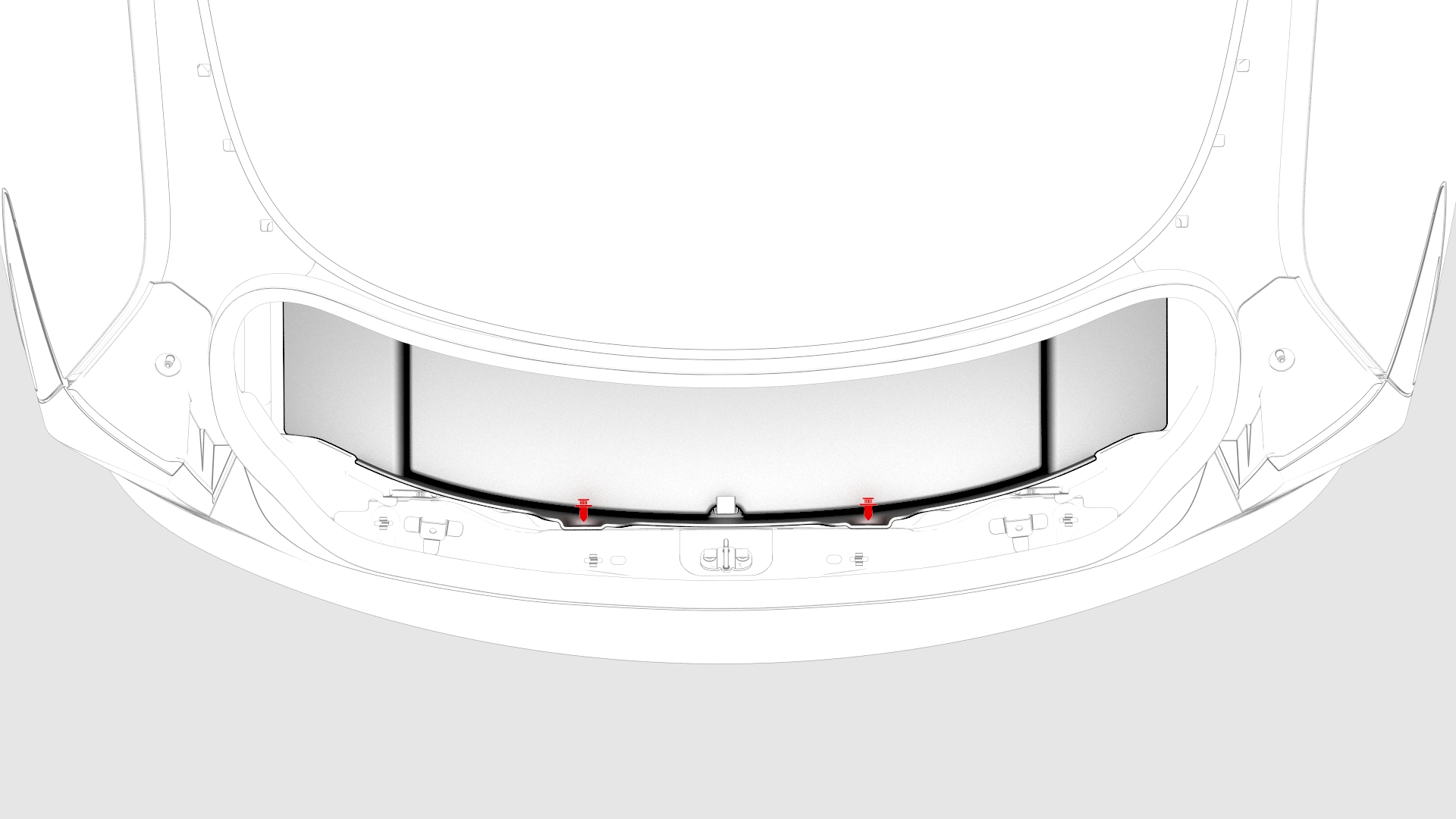

  2. Release the clips that attach the trunk carpet to the sill.
  3. Remove the LH 2nd row seat back. See Seat Back - 2nd Row - LH (Remove and Install).
  4. Remove the RH 2nd row seat back. See Seat Back - 2nd Row - RH (Remove and Install).

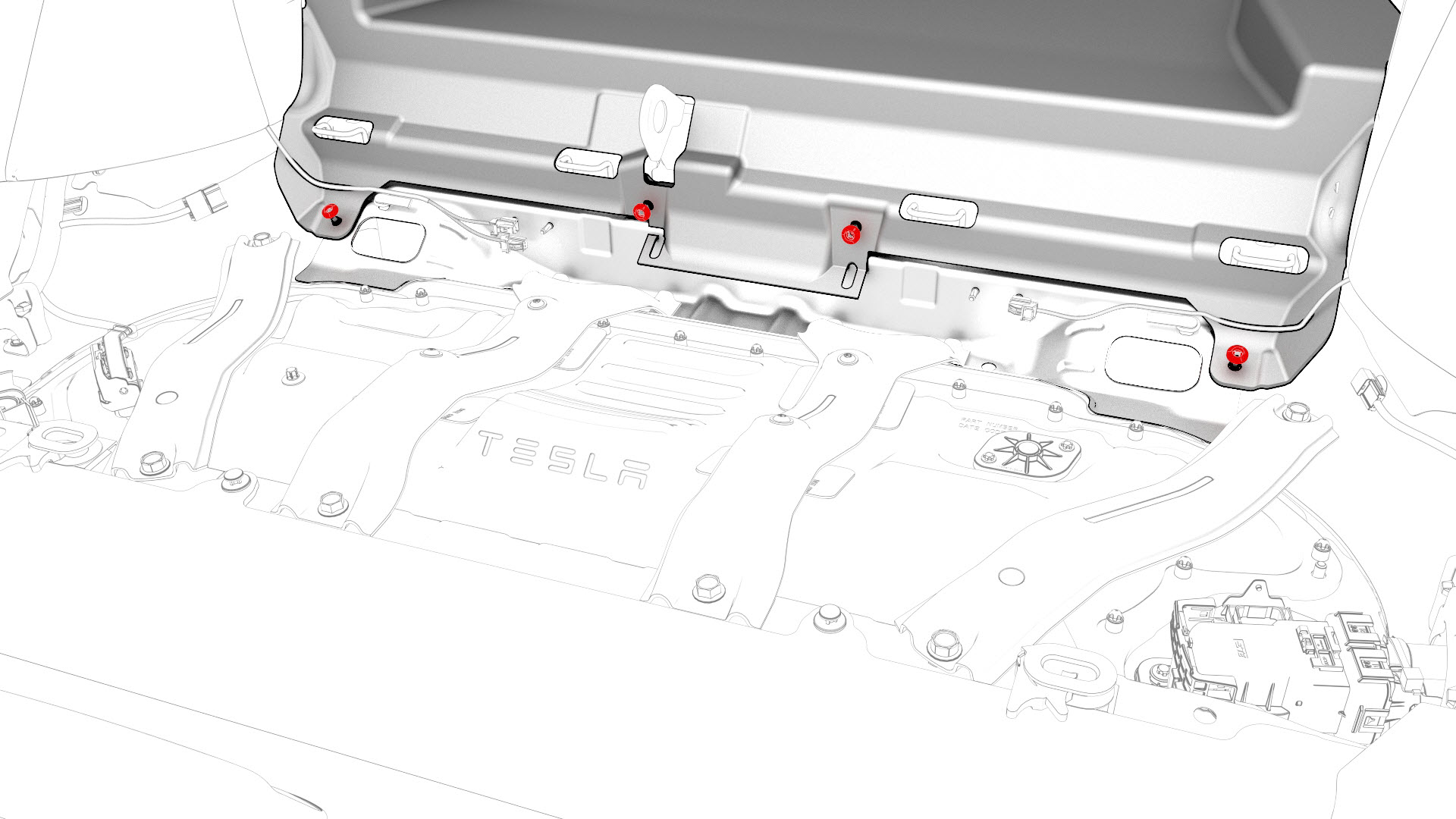

  5. Release the clips that attach the trunk carpet to the 2nd row area.
  6. Lift the trunk carpet off the ISOFIX bars.

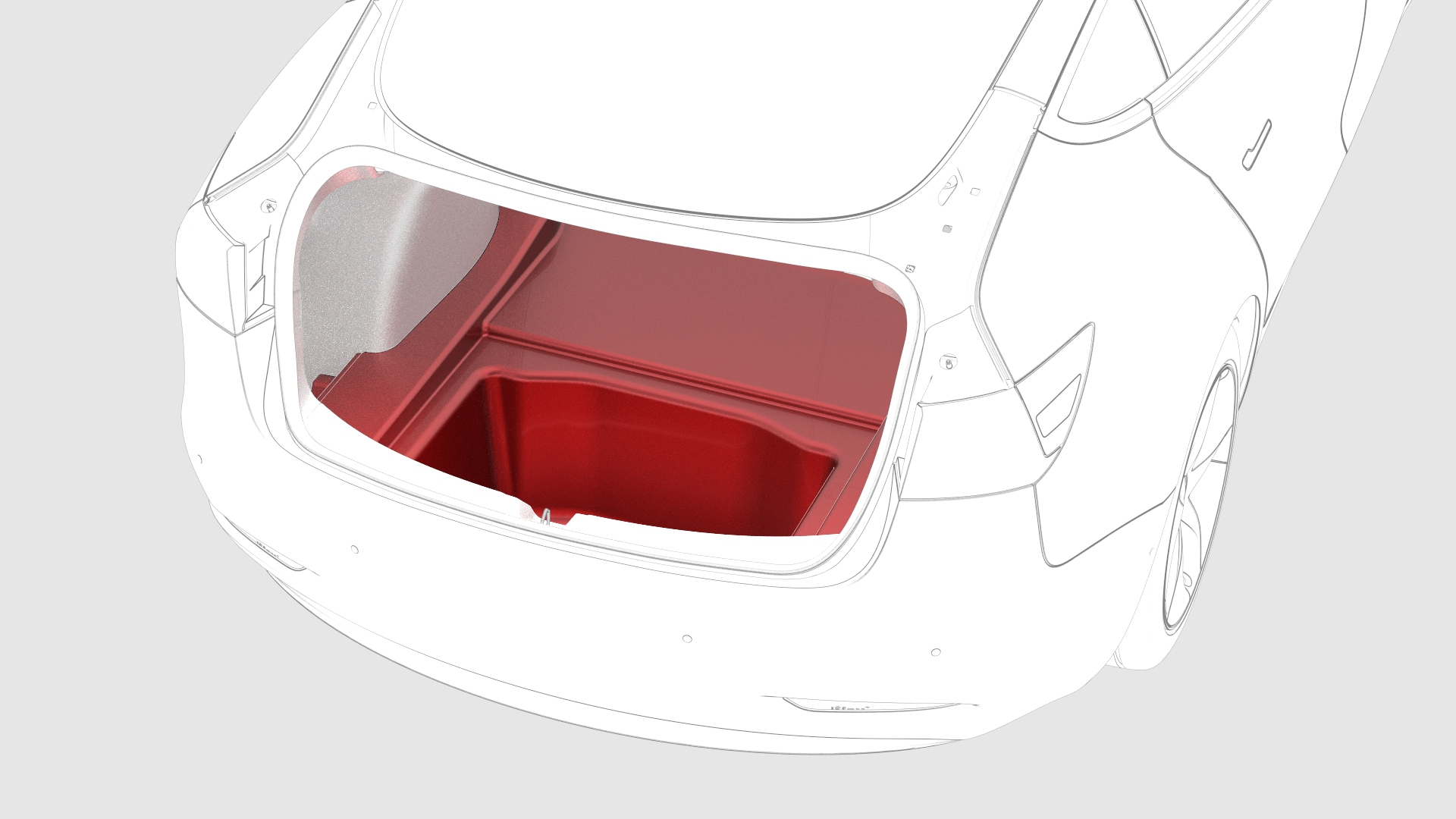

  7. Release the clips that attach the trunk carpet to the body studs, and then remove the trunk carpet from the vehicle.
1Remove the trunk sill trim. See Trim - Sill - Trunk (Remove and Replace).
2Release the clips that attach the trunk carpet to the sill.
3Remove the LH 2nd row seat back. See Seat Back - 2nd Row - LH (Remove and Install).
4Remove the RH 2nd row seat back. See Seat Back - 2nd Row - RH (Remove and Install).
5Release the clips that attach the trunk carpet to the 2nd row area.
6Lift the trunk carpet off the ISOFIX bars.
7Release the clips that attach the trunk carpet to the body studs, and then remove the trunk carpet from the vehicle.

Install

Installation procedure is the reverse of removal.
