Horn - High Tone (Remove and Replace)

Correction code 1753010217530102
Parent topic: 1753 - Horns

Remove

  1. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  2. Remove the cabin intake duct. See Duct - Cabin Intake (Remove and Replace).
  3. Remove the hood latch cover. See Cover - Hood Latch (Remove and Replace).
  4. Remove the underhood storage unit carpet. See Carpet - Underhood Storage (Remove and Install).
  5. Remove the underhood storage unit. See Underhood Storage Unit (Remove and Replace).
  6. Remove the LH and RH front wheels. See Wheel (Remove and Install).
  7. Remove the front aero shield. See Panel - Aero Shield - Front (Remove and Replace).
  8. Remove the front fascia. See Fascia - Front (Remove and Install).

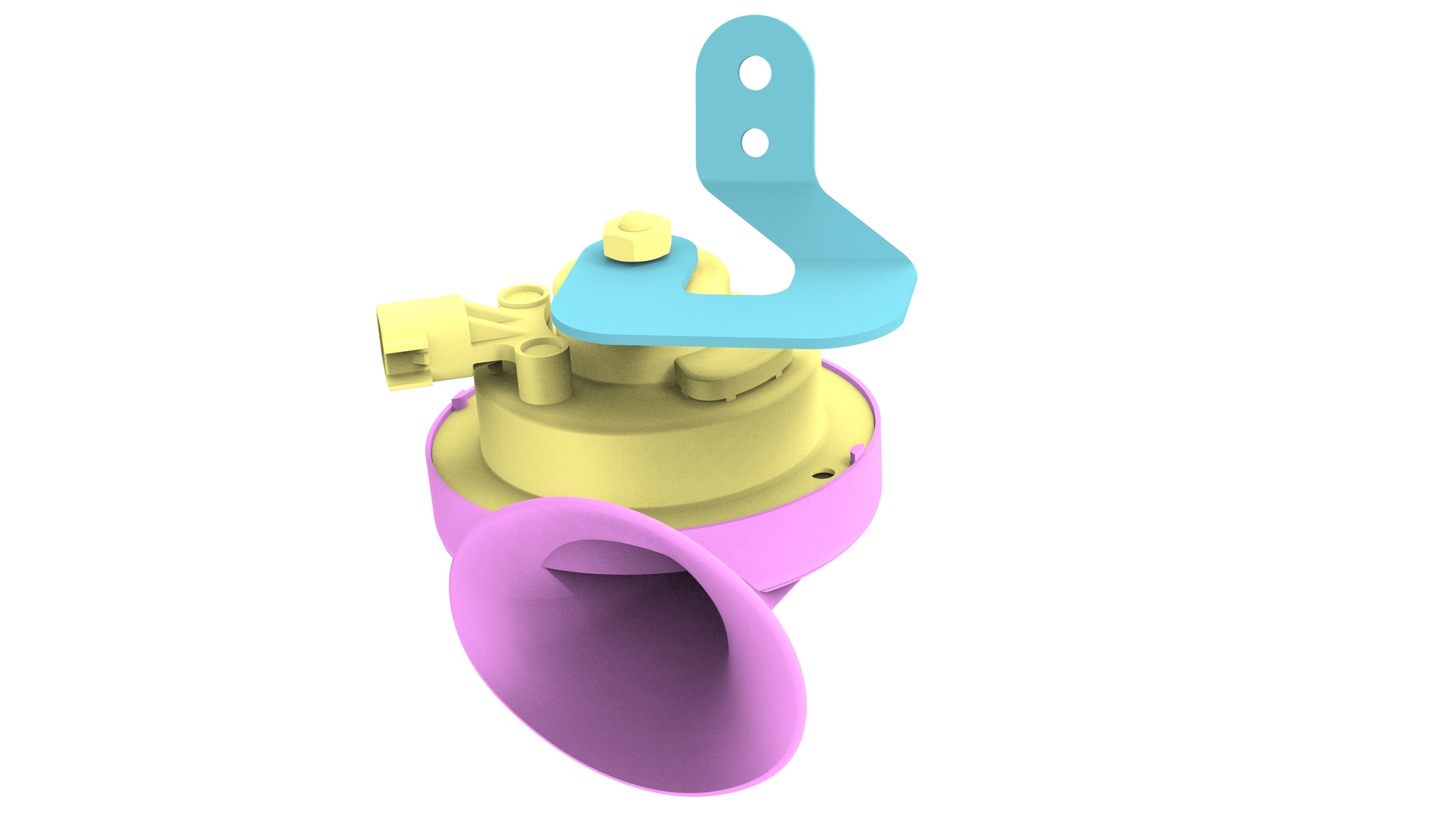

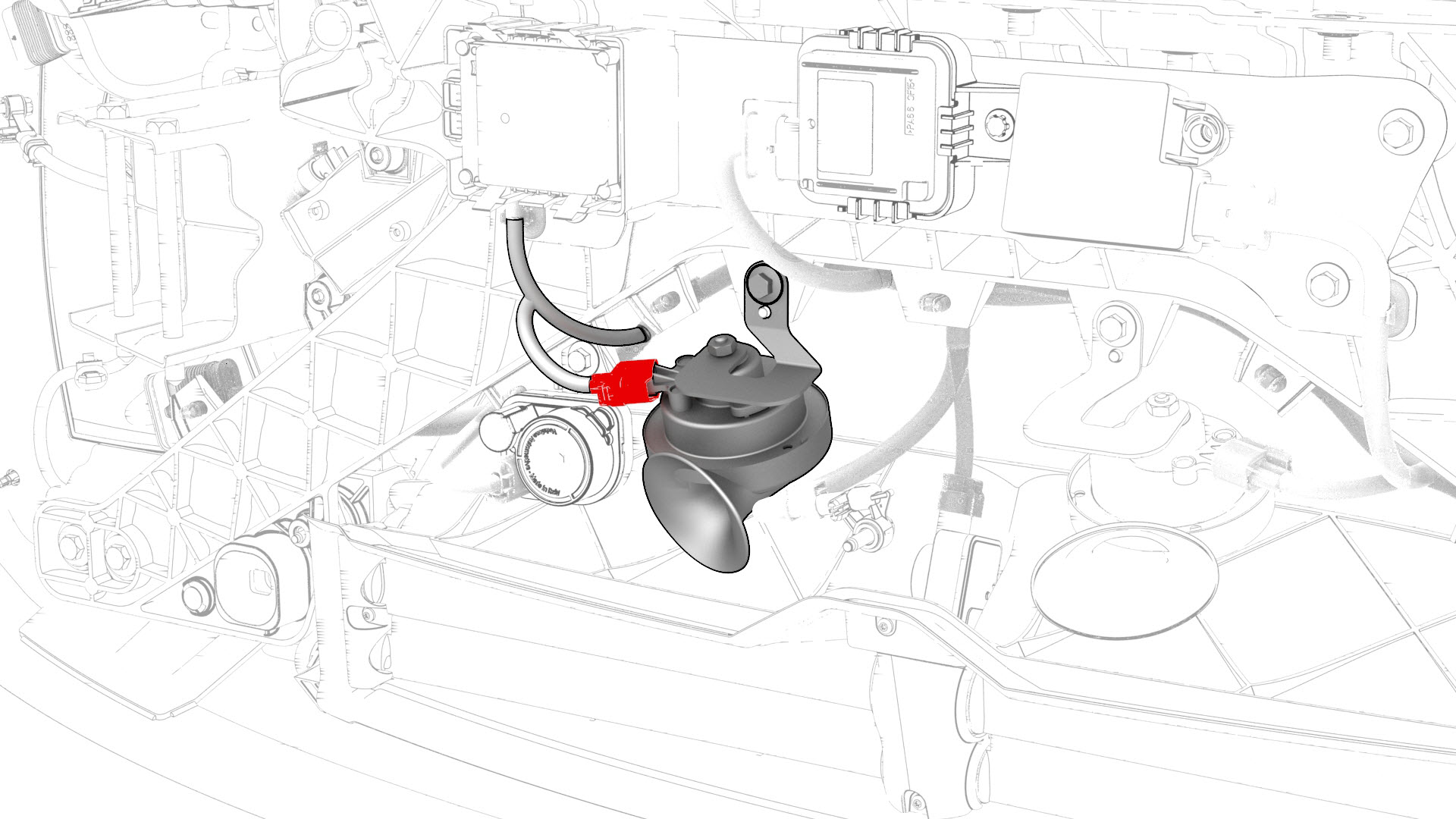

  9. Disconnect the electrical connector from the high tone horn.

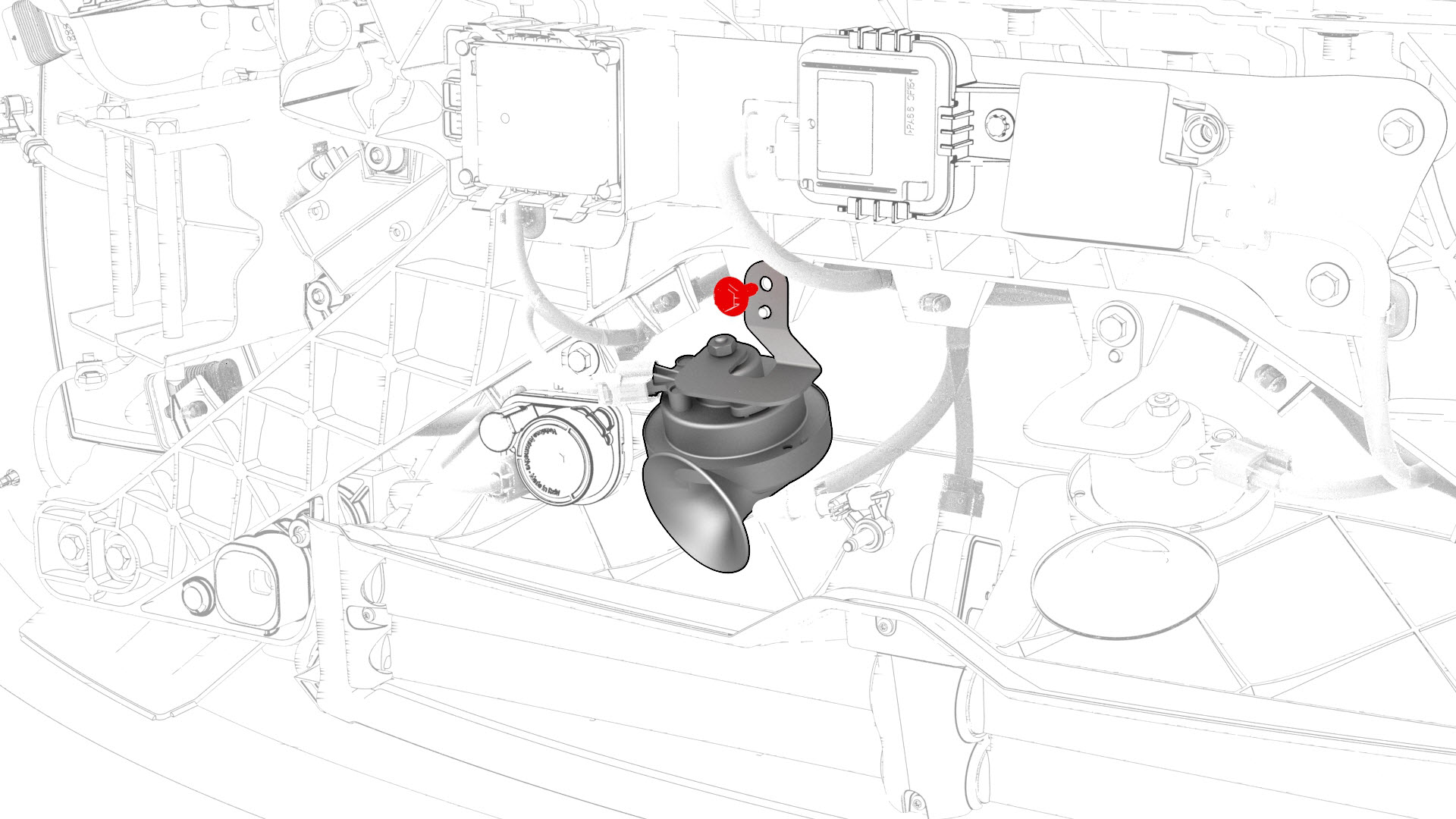

  10. Remove the bolt that attaches the high tone horn to the carrier, and then remove the horn from the vehicle.

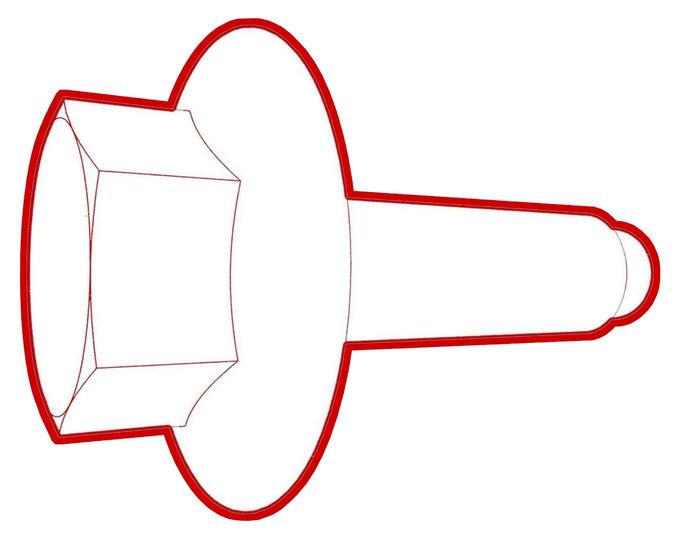

    Torque 9 Nm

    North America

    EMEA

1Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
2Remove the cabin intake duct. See Duct - Cabin Intake (Remove and Replace).
3Remove the hood latch cover. See Cover - Hood Latch (Remove and Replace).
4Remove the underhood storage unit carpet. See Carpet - Underhood Storage (Remove and Install).
5Remove the underhood storage unit. See Underhood Storage Unit (Remove and Replace).
6Remove the LH and RH front wheels. See Wheel (Remove and Install).
7Remove the front aero shield. See Panel - Aero Shield - Front (Remove and Replace).
8Remove the front fascia. See Fascia - Front (Remove and Install).
9Disconnect the electrical connector from the high tone horn.

North America

EMEA

10Remove the bolt that attaches the high tone horn to the carrier, and then remove the horn from the vehicle.
Torque 9 Nm

Install

Installation procedure is the reverse of removal.
