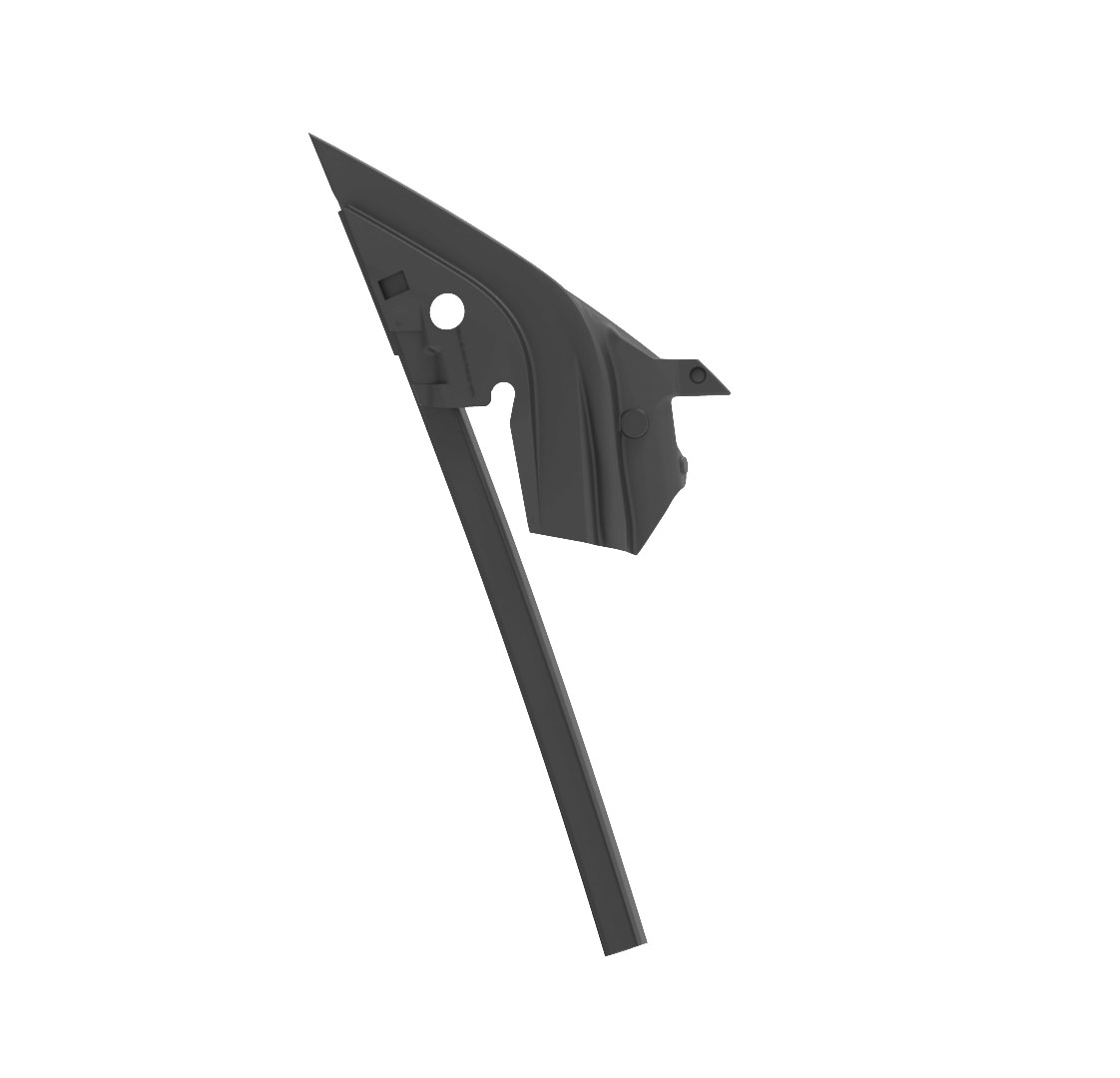

Seal - Glass Run - Front Door - LH (Remove and Replace)

Correction code 1170111211701112
Parent topic: 1170 - Seals Body Closures

Remove

  1. Remove the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Install).
  2. Remove the LH front door inner belt seal from the door. See Seal - Inner Belt - Front Door - LH (Remove and Replace).
  3. Disconnect the mirror electrical harness from the connectors.
  4. Release the clips that attach the LH front door glass run seal to the LH front door.
  5. Remove the bolts that attach the LH door mirror to the LH front door.
    Caution:
    Use only hand tools to remove or install the fasteners. Do not use impact or power tools.
  6. Release the clip that attaches the LH door mirror electrical harness to the LH front door, and then remove the mirror from the door.

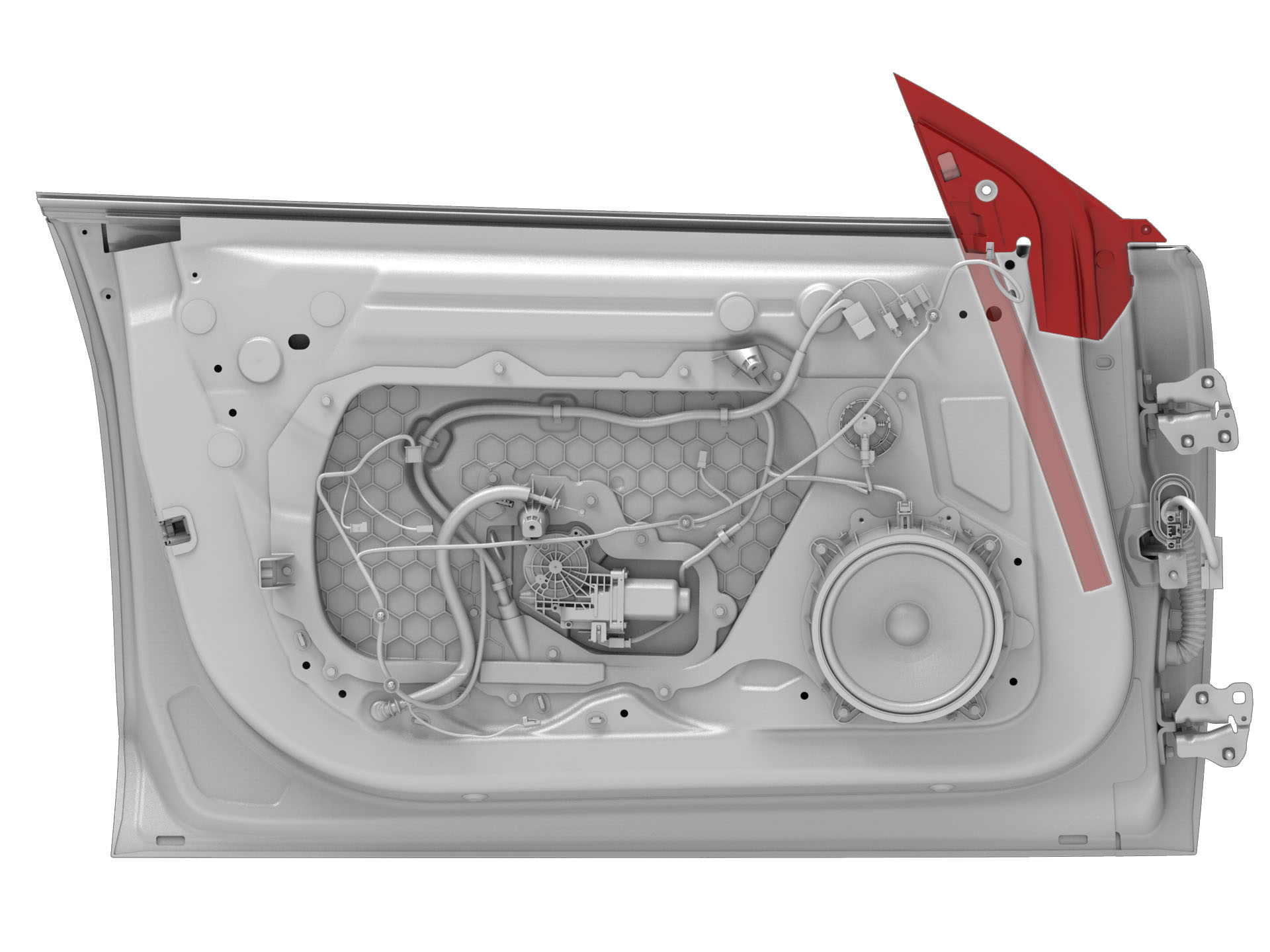

  7. Pull upwards to remove the LH front door glass run seal from the LH front door.
1Remove the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Install).
2Remove the LH front door inner belt seal from the door. See Seal - Inner Belt - Front Door - LH (Remove and Replace).
3Disconnect the mirror electrical harness from the connectors.
4Release the clips that attach the LH front door glass run seal to the LH front door.
5Remove the bolts that attach the LH door mirror to the LH front door.
Caution:
Use only hand tools to remove or install the fasteners. Do not use impact or power tools.
6Release the clip that attaches the LH door mirror electrical harness to the LH front door, and then remove the mirror from the door.
7Pull upwards to remove the LH front door glass run seal from the LH front door.

Install

  1. Position the new LH front door glass run seal on the LH front door.
    Tip: If necessary, apply a small amount of P80 lubricant on the length of the seal to aid installation.
  2. Position the LH door mirror on the LH front door, and then install the clip that attaches the mirror electrical harness to the door.
  3. Install the bolts that attach the LH door mirror to the LH front door.
    Torque 15 Nm
    Caution:
    Use only hand tools to remove or install the fasteners. Do not use impact or power tools.
  4. Install the clips that attach the LH front door glass run seal to the LH front door.
  5. Connect the mirror electrical harness to the connectors on the LH front door.
  6. Install the LH front door inner belt seal. See Seal - Inner Belt - Front Door - LH (Remove and Replace).
  7. Install the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Install).
1Position the new LH front door glass run seal on the LH front door.
Tip: If necessary, apply a small amount of P80 lubricant on the length of the seal to aid installation.
2Position the LH door mirror on the LH front door, and then install the clip that attaches the mirror electrical harness to the door.
3Install the bolts that attach the LH door mirror to the LH front door.
Torque 15 Nm
Caution:
Use only hand tools to remove or install the fasteners. Do not use impact or power tools.
4Install the clips that attach the LH front door glass run seal to the LH front door.
5Connect the mirror electrical harness to the connectors on the LH front door.
6Install the LH front door inner belt seal. See Seal - Inner Belt - Front Door - LH (Remove and Replace).
7Install the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Install).
