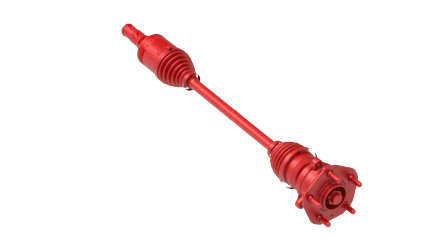

Halfshaft - Front Drive Unit - LH (Remove and Replace)

Correction code 3930200239302002
  • 1133386-00-A Tool, Axle Extraction, Model 3
  • 1096075-00-A Tool, Hub Puller, Hydraulic

SPECIAL TOOLS

Tool, Axle Extraction, Model 3 (1133386-00-A)
Tool, Hub Puller, Hydraulic (1096075-00-A)
Parent topic: 3930 - Front Gearbox and Halfshafts

Remove

  1. Remove the LH wheel center cap. See Cap - Wheel (Remove and Replace).
  2. Loosen the LH wheel lug nuts.
    Caution:
    Use only hand tools to remove or install the fasteners. Do not use impact or power tools.

    Caution:
    Use a 6 point socket. Do not use a 12 point socket or a specialty socket.

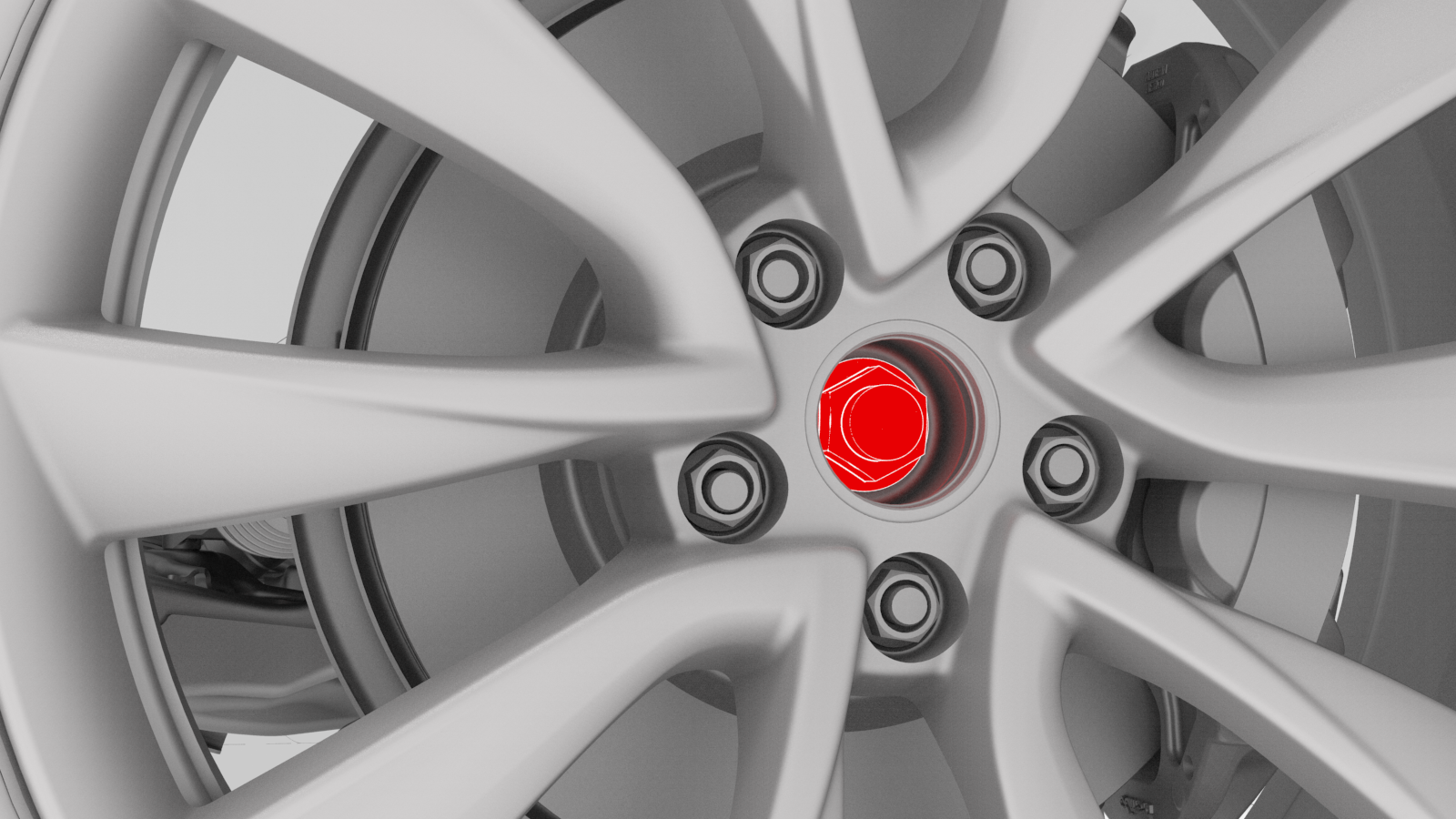

  3. Loosen the LH front drive unit halfshaft nut.
  4. Raise and support the vehicle. See Raise Vehicle - 2 Post Lift.
  5. Remove the LH front wheel. See Wheel (Remove and Install).

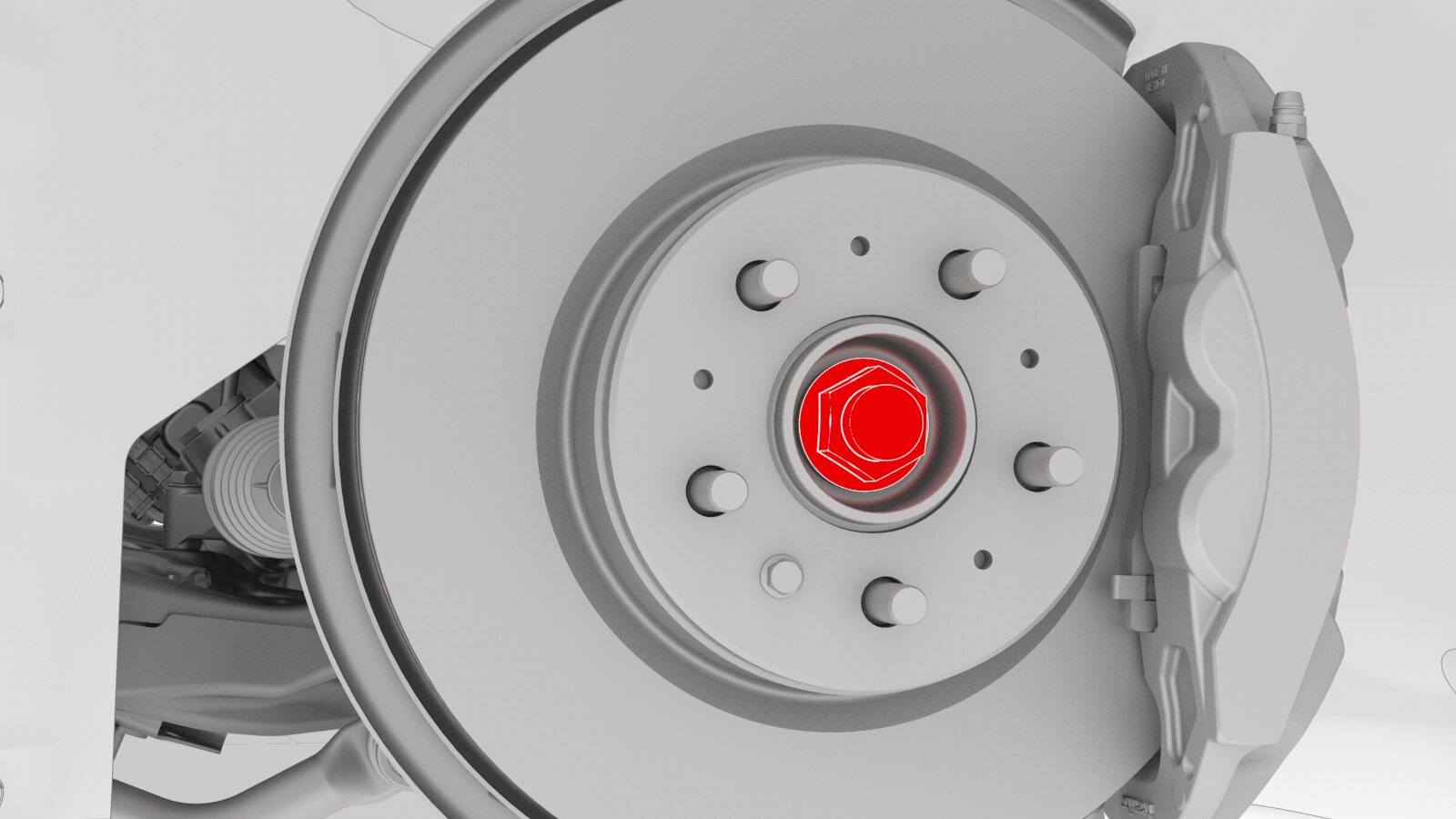

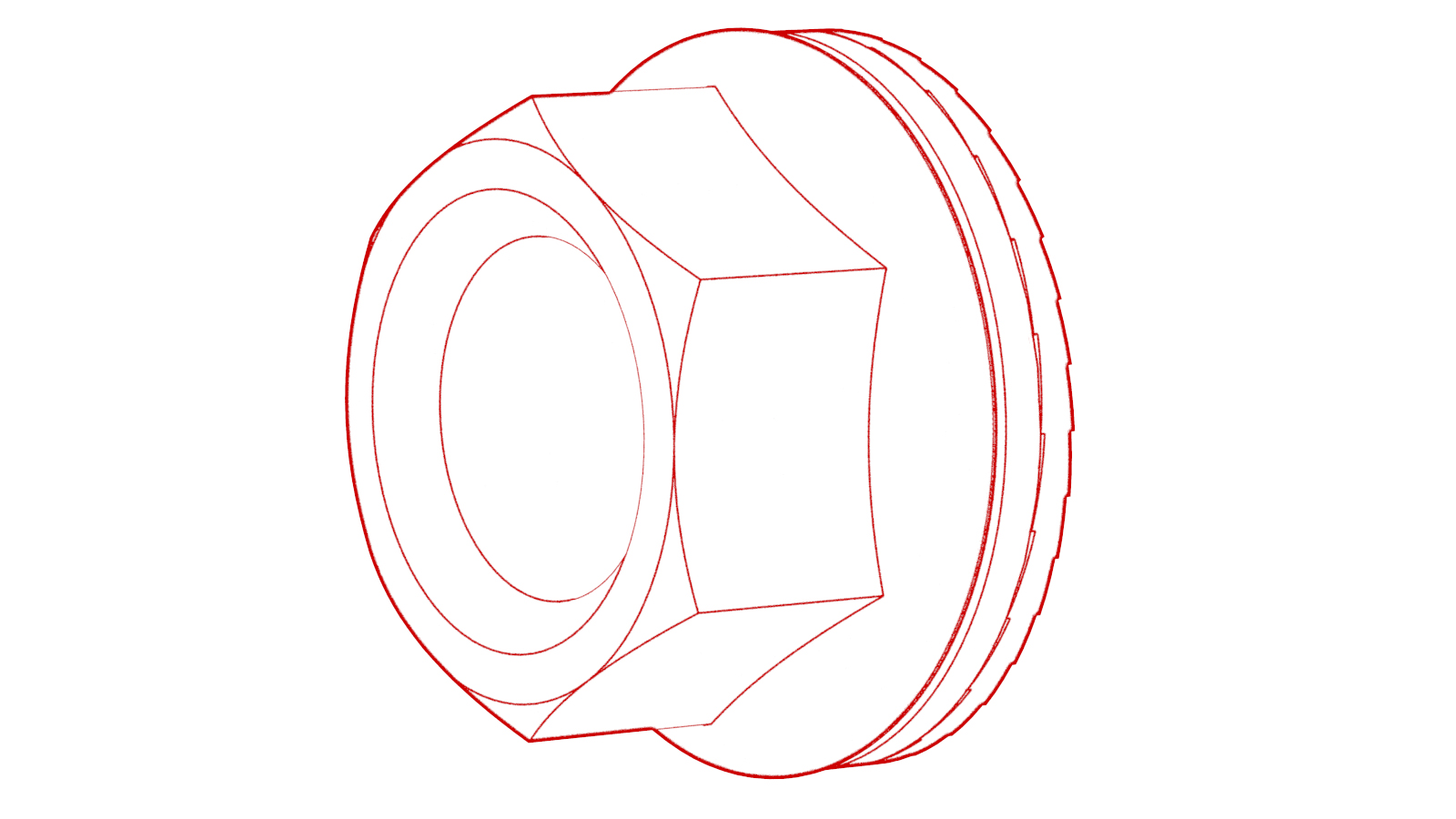

  6. Remove and discard the LH front drive unit halfshaft nut and washers.
    Note: The washers are attached to the nut.

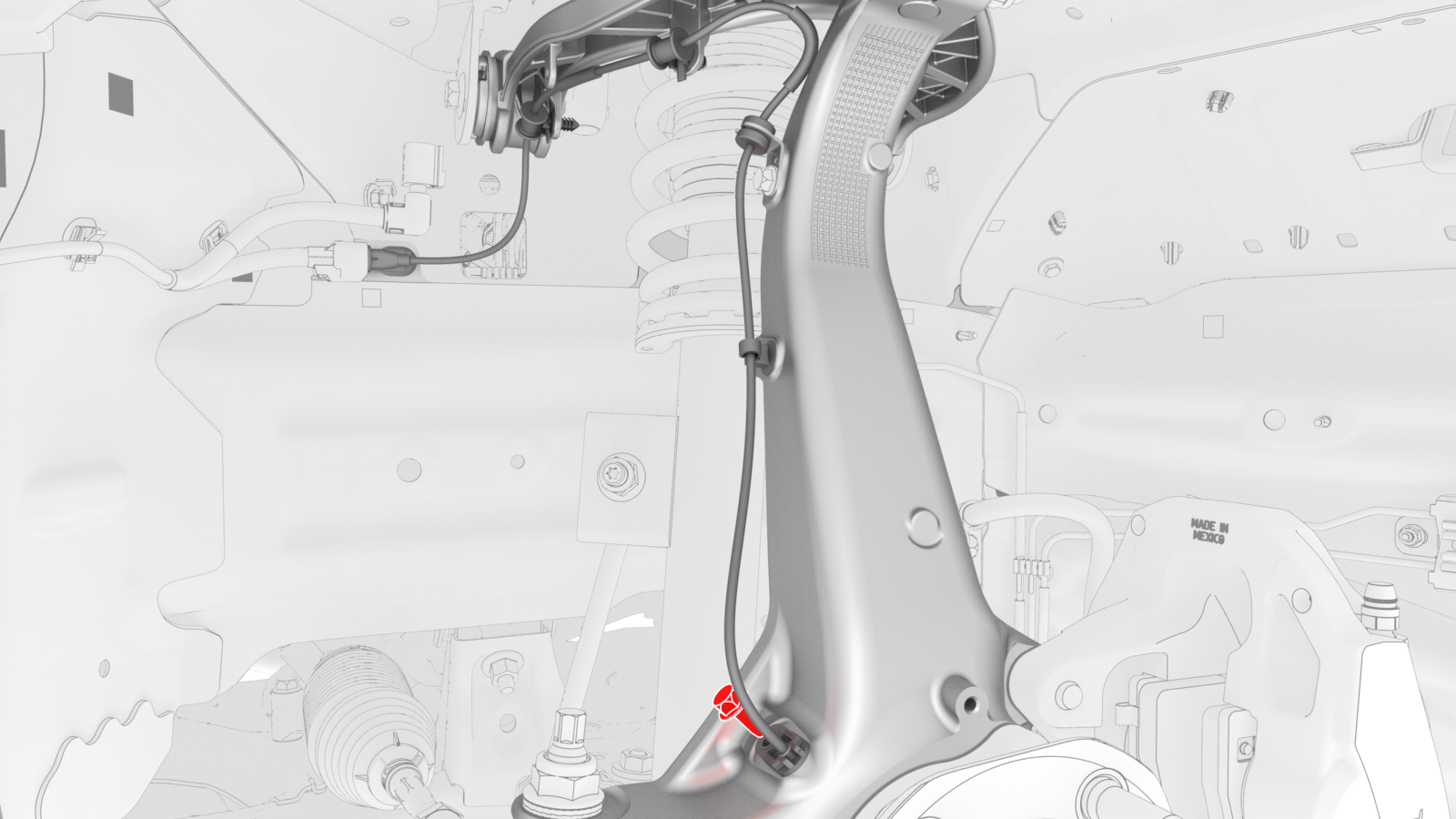

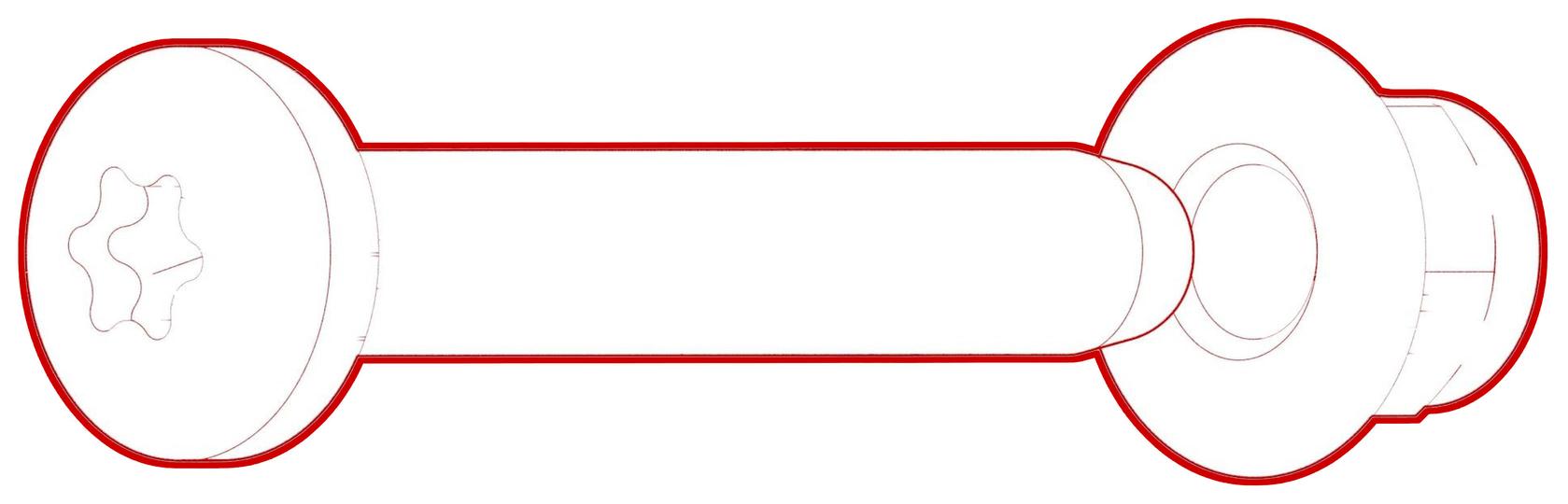

  7. Remove and discard the bolt that attaches the LH front ABS wheel speed sensor to the LH front knuckle.

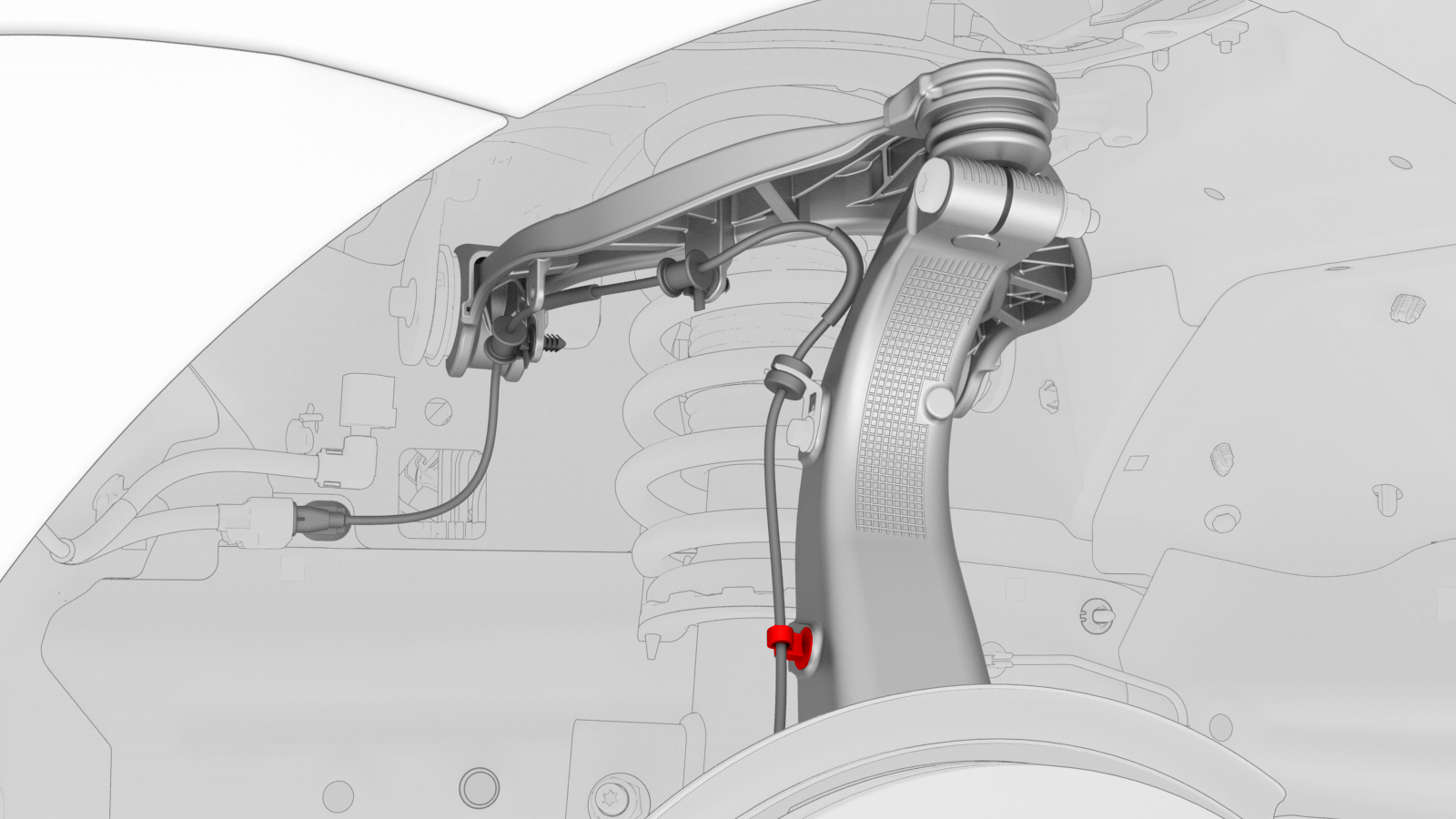

  8. Release the clip that attaches the LH front ABS wheel speed sensor to the LH front knuckle, and then set the sensor aside.

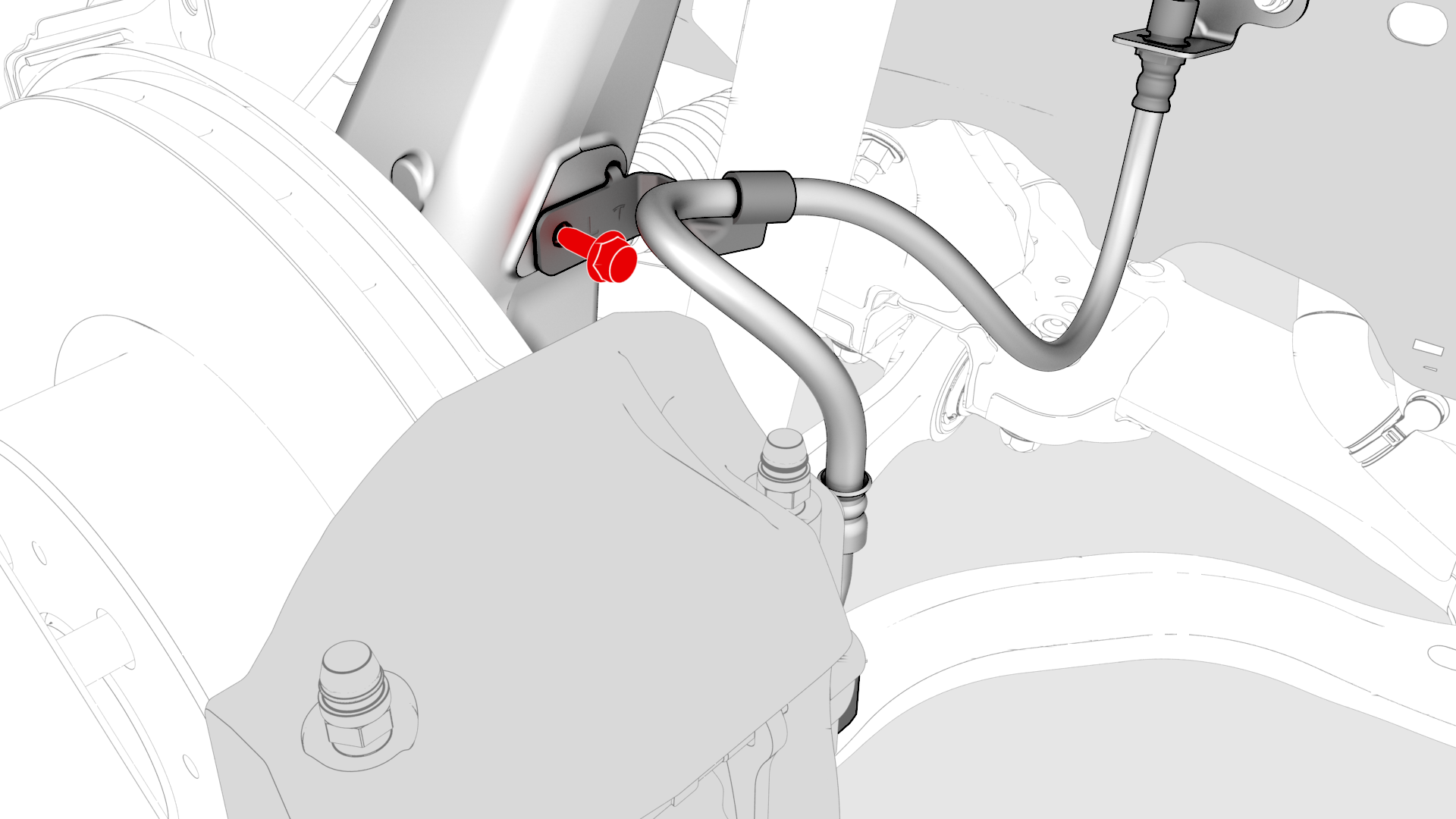

  9. Remove the bolt that attaches the LH front brake hose bracket to the LH front knuckle.

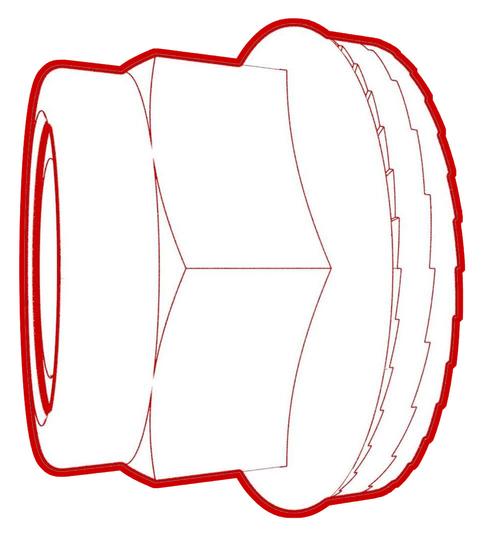

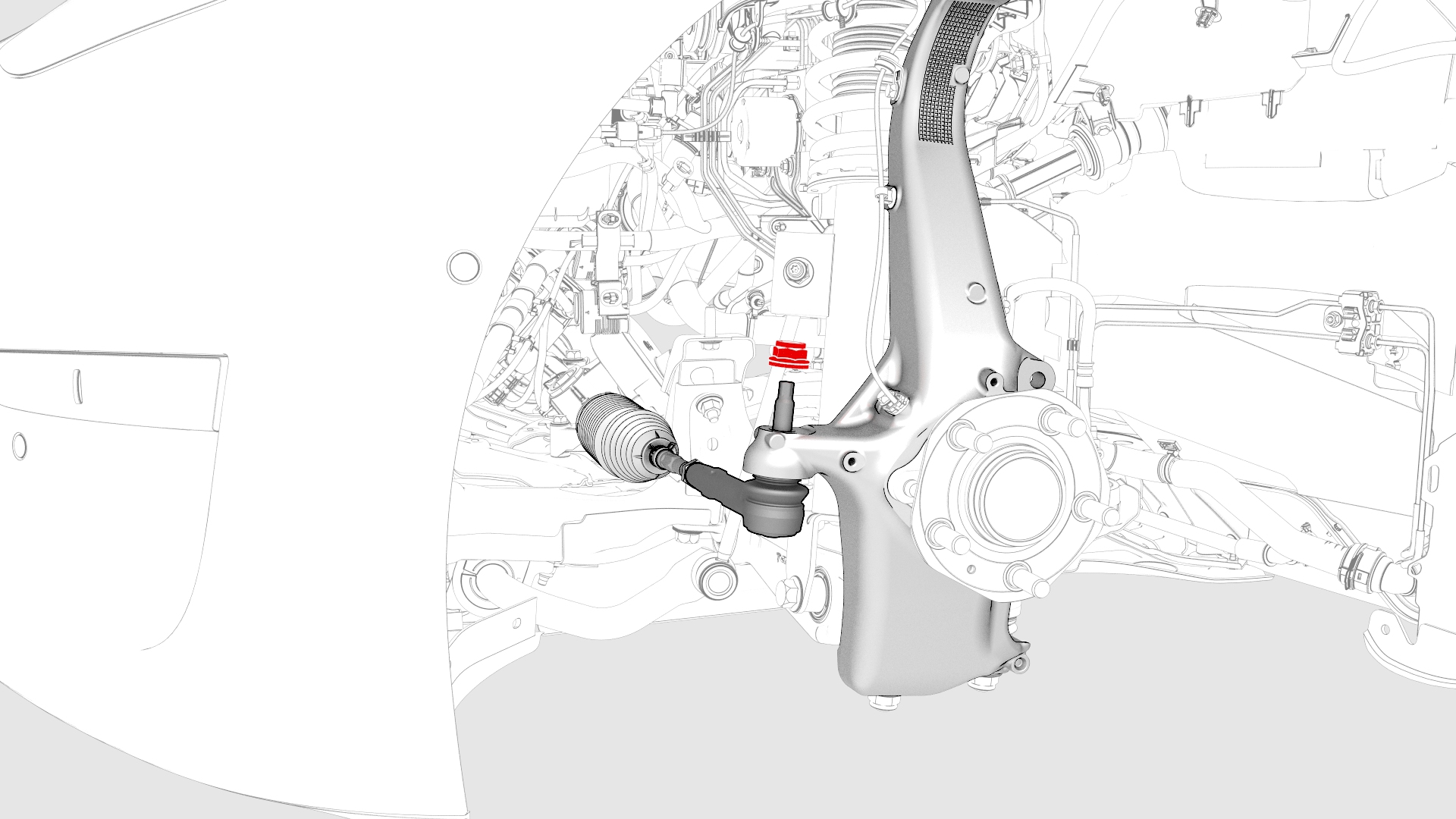

  10. Remove and discard the nyloc nut that attaches the LH tie rod end to the LH front knuckle, and then remove the tie rod end from the knuckle.

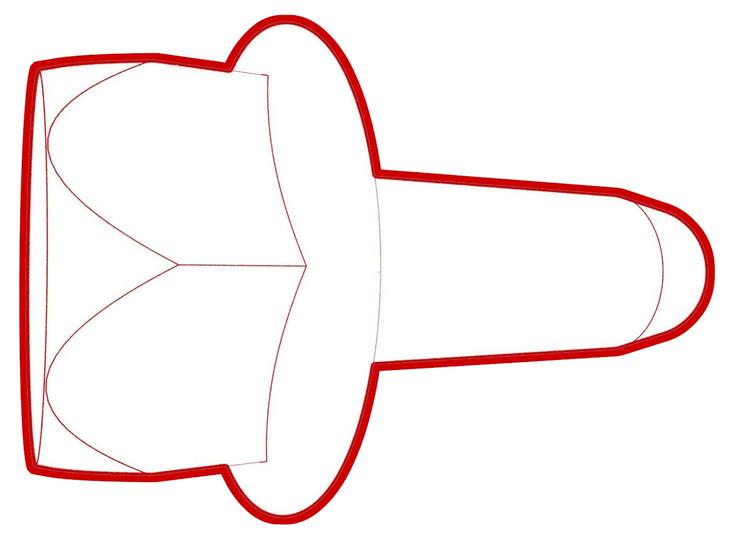

  11. Remove the bolt and nut that attach the LH front upper control arm to the LH front knuckle.

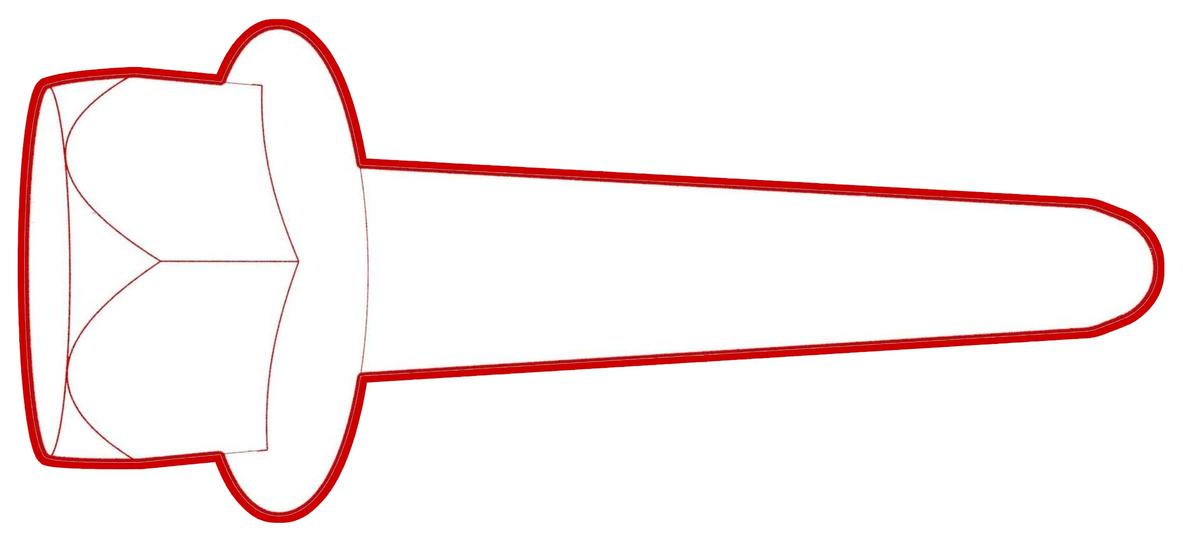

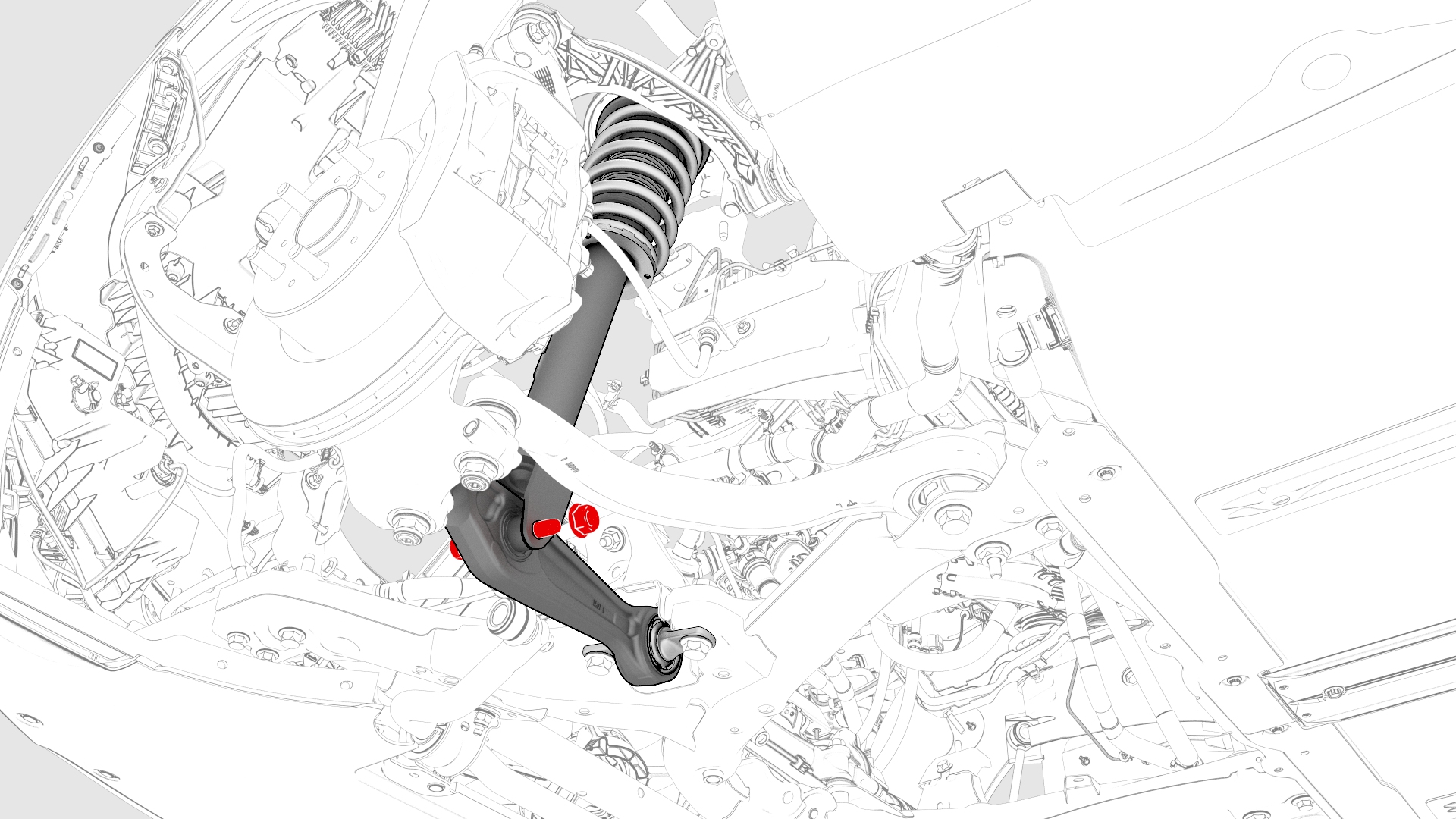

  12. Remove the bolt and nut that attach the LH strut to the LH front lower lateral link.
  13. Position the hydraulic hub puller tool on the LH front wheel studs, and then hand-tighten the wheel lug nuts (x5).
  14. Remove the LH front drive unit halfshaft from the LH front hub assembly, and then set the halfshaft aside.
    Note: While holding the hub in position, turn the hydraulic hub puller tool handle clockwise to separate the LH front drive unit halfshaft from the hub assembly.
  15. Remove the hydraulic hub puller tool from the LH front wheel studs.
  16. Install the axle extraction tool between the front drive unit and the inner joint of the LH front drive unit halfshaft, and then strike the handle of the extraction tool with a dead blow hammer to unseat the halfshaft.
  17. With assistance, remove the LH front drive unit halfshaft from the vehicle, and then install a halfshaft plug into the opening of the gearbox.
    Note: Move the LH front knuckle assembly aside to provide enough clearance to safely remove the LH front drive unit halfshaft.
1Remove the LH wheel center cap. See Cap - Wheel (Remove and Replace).
2Loosen the LH wheel lug nuts.
Caution:
Use only hand tools to remove or install the fasteners. Do not use impact or power tools.

Caution:
Use a 6 point socket. Do not use a 12 point socket or a specialty socket.
3Loosen the LH front drive unit halfshaft nut.
4Raise and support the vehicle. See Raise Vehicle - 2 Post Lift.
5Remove the LH front wheel. See Wheel (Remove and Install).
6Remove and discard the LH front drive unit halfshaft nut and washers.
Note: The washers are attached to the nut.
7Remove and discard the bolt that attaches the LH front ABS wheel speed sensor to the LH front knuckle.
8Release the clip that attaches the LH front ABS wheel speed sensor to the LH front knuckle, and then set the sensor aside.
9Remove the bolt that attaches the LH front brake hose bracket to the LH front knuckle.
10Remove and discard the nyloc nut that attaches the LH tie rod end to the LH front knuckle, and then remove the tie rod end from the knuckle.
11Remove the bolt and nut that attach the LH front upper control arm to the LH front knuckle.
12Remove the bolt and nut that attach the LH strut to the LH front lower lateral link.
13Position the hydraulic hub puller tool on the LH front wheel studs, and then hand-tighten the wheel lug nuts (x5).
14Remove the LH front drive unit halfshaft from the LH front hub assembly, and then set the halfshaft aside.
Note: While holding the hub in position, turn the hydraulic hub puller tool handle clockwise to separate the LH front drive unit halfshaft from the hub assembly.
15Remove the hydraulic hub puller tool from the LH front wheel studs.
16Install the axle extraction tool between the front drive unit and the inner joint of the LH front drive unit halfshaft, and then strike the handle of the extraction tool with a dead blow hammer to unseat the halfshaft.
17With assistance, remove the LH front drive unit halfshaft from the vehicle, and then install a halfshaft plug into the opening of the gearbox.
Note: Move the LH front knuckle assembly aside to provide enough clearance to safely remove the LH front drive unit halfshaft.

Install

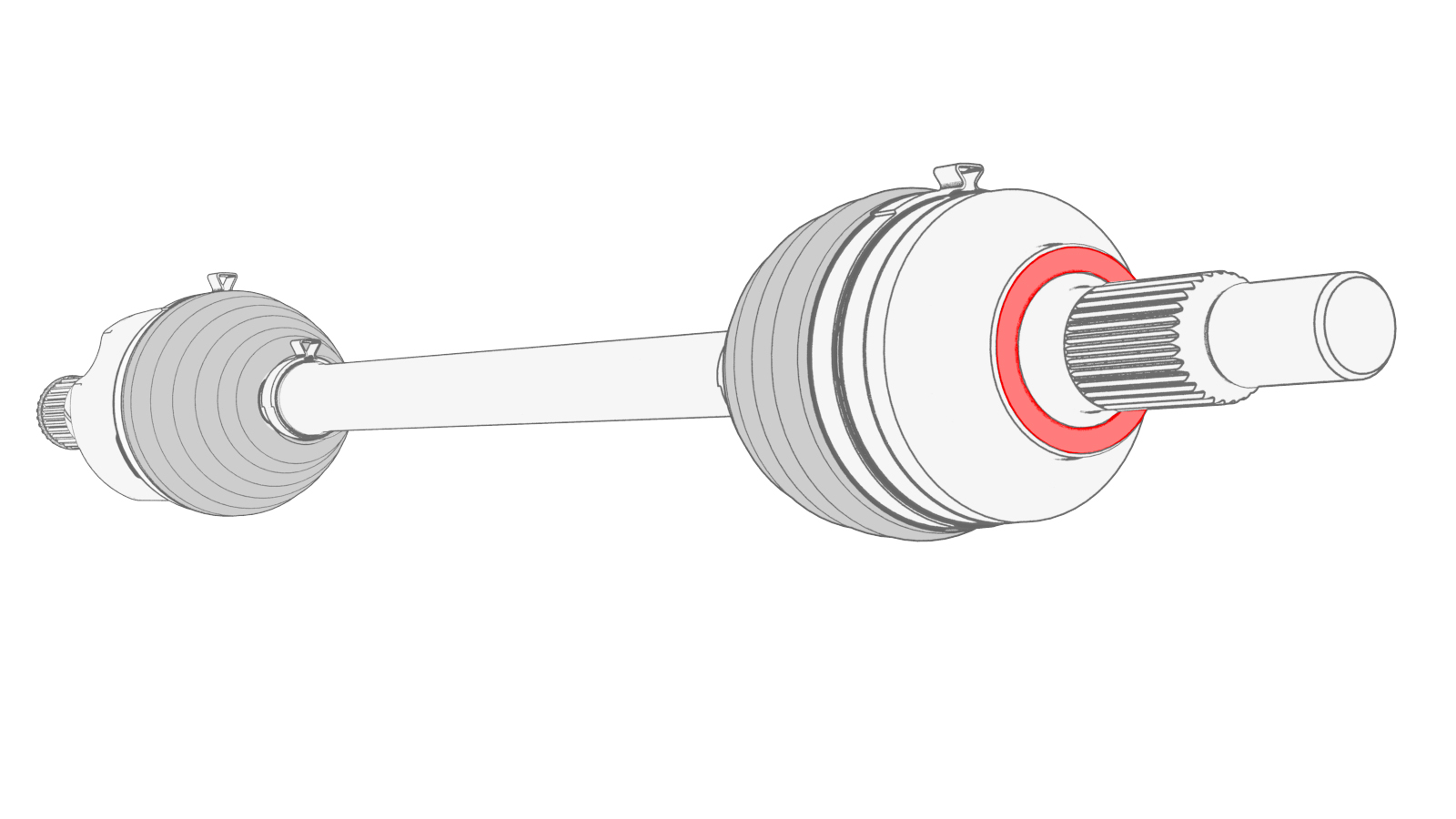

  1. Apply approximately 1 gram of Molykote M-77 Lubricant Paste only to the hub mating face on the outboard side of the LH front drive unit halfshaft.
    Caution:
    Do not apply any lubricant to the halfshaft splines. If lubricant is mistakenly applied, wipe the splines clean with a shop towel.
  2. Remove the halfshaft plug from the gearbox, and then with assistance, install the LH front drive unit halfshaft into the front drive unit.
    Note: Move the LH front knuckle assembly aside to provide enough clearance to safely install the LH front drive unit halfshaft.
  3. Install the LH front drive unit halfshaft into the LH front hub assembly, and then hand-tighten a new front drive unit halfshaft nut and washers to prevent the halfshaft from falling out of the hub.
    Note: The washers are attached to the nut.
  4. Hand-tighten the bolt and nut that attach the LH strut to the LH front lower lateral link.
  5. Install the bolt and nut that attach the LH front upper control arm to the LH front knuckle.
    Torque 56 Nm

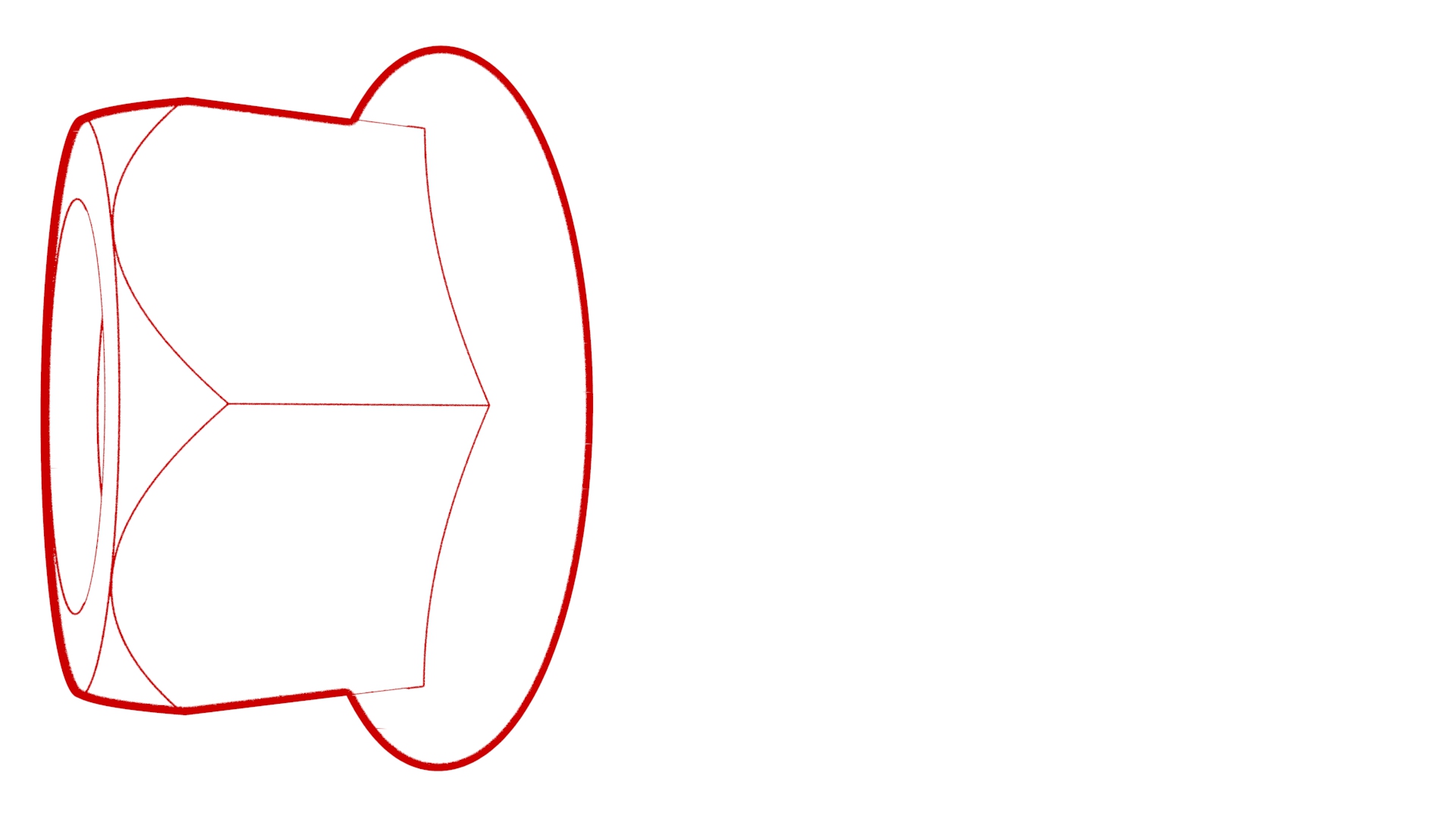

  6. Install the new nyloc nut that attaches the LH tie rod end to the LH front knuckle.
    Torque 180 Nm
  7. Install the bolt that attaches the LH front brake hose bracket to the LH front knuckle.
    Torque 5 Nm
  8. Install the clip that attaches the LH front ABS wheel speed sensor to the LH front knuckle.
  9. Install the new bolt that attaches the LH front ABS wheel speed sensor to the LH front knuckle.
    Torque 5 Nm
  10. Install the LH front wheel and hand-tighten the wheel lug nuts.
  11. Lower the vehicle until the tires are touching the ground. See Raise Vehicle - 2 Post Lift.
  12. Fully tighten the wheel lug nuts. See Wheel (Remove and Install).
  13. Fully tighten the new LH front drive unit halfshaft nut and washers.
    Torque 245 Nm
    Note: The washers are attached to the nut.
  14. Install the wheel center cap. See Cap - Wheel (Remove and Replace).
  15. Remove the vehicle from the lift and drive the vehicle onto an alignment rack.
  16. Fully tighten the bolt and nut that attach the LH strut to the LH front lower lateral link, and then mark the bolt and nut with a paint pen.
    Torque 106 Nm
    Torque 106 Nm
