Sensor - Wheel Speed - ABS - Front - LH (Remove and Replace)

Correction code 3310050233100502
Parent topic: 3310 - ABS Traction and Stability Control

Remove

  1. Remove the front LH wheel. See Wheel (Remove and Install).
  2. Remove the front LH wheel arch liner. See Wheel Arch Liner - Front - LH (Remove and Replace).

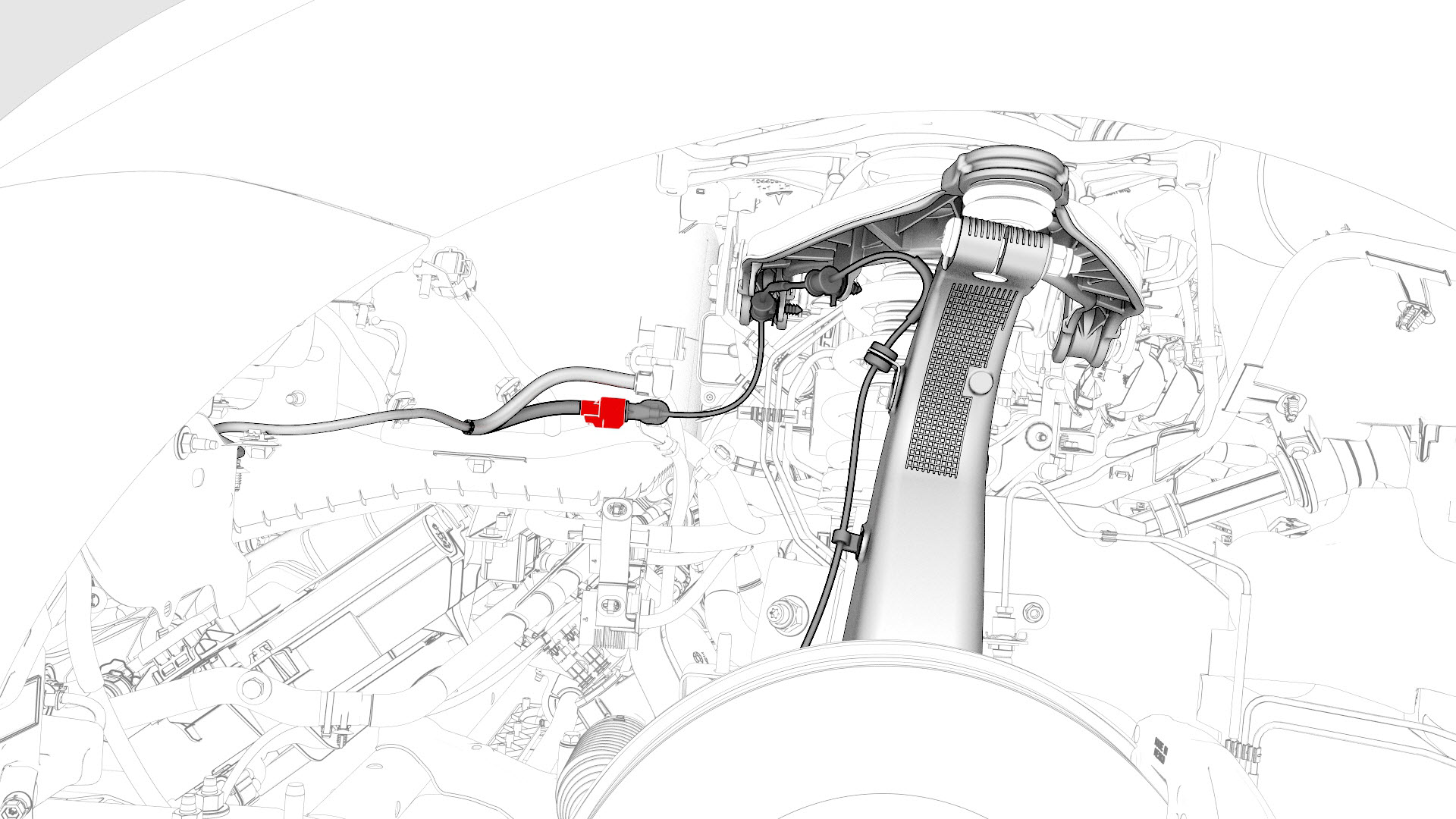

  3. Disconnect the electrical harness from the front LH ABS wheel speed sensor connector.

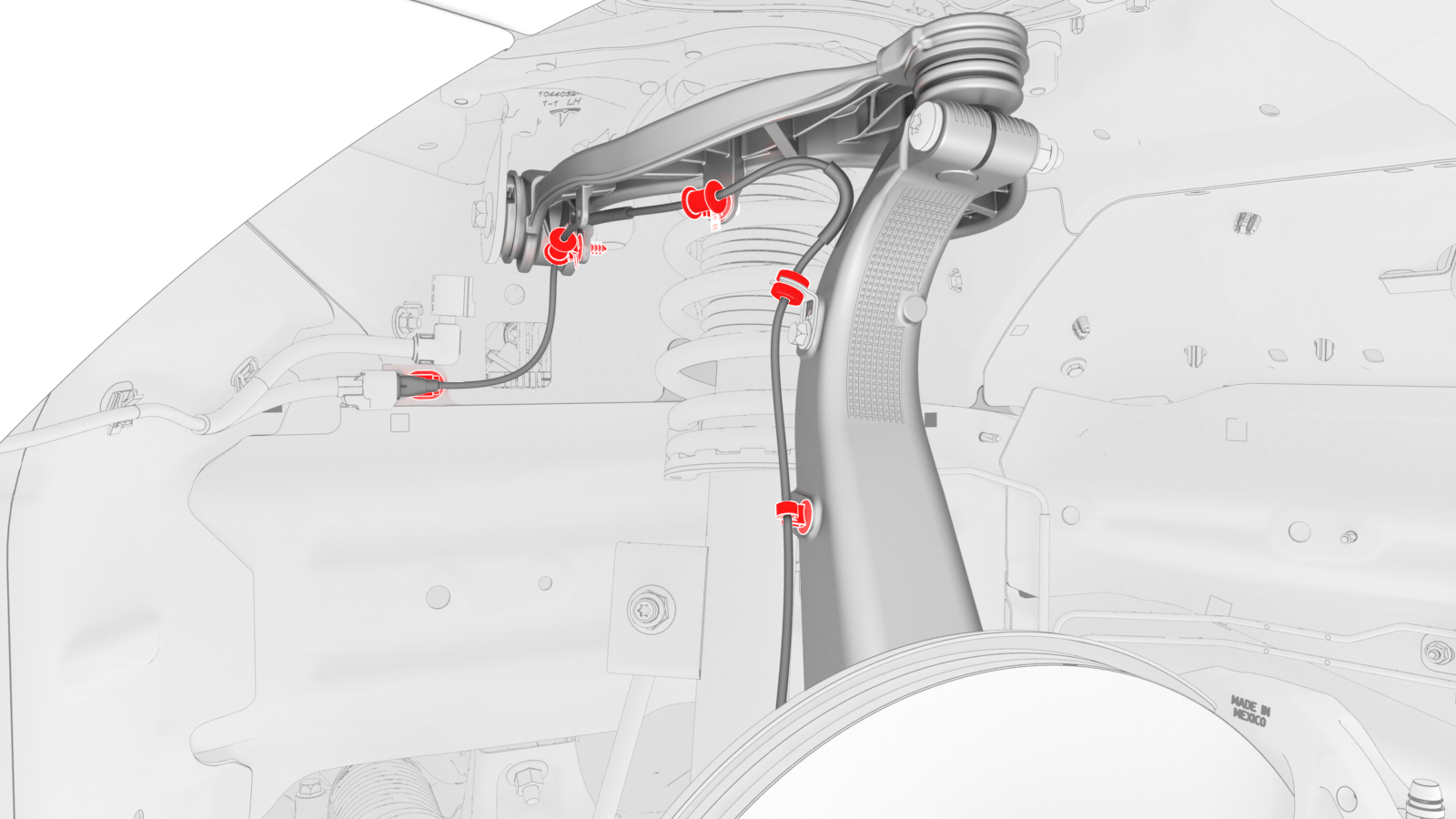

  4. Release the clips and remove the grommet that attach the front LH ABS wheel speed sensor to the body and front LH suspension.

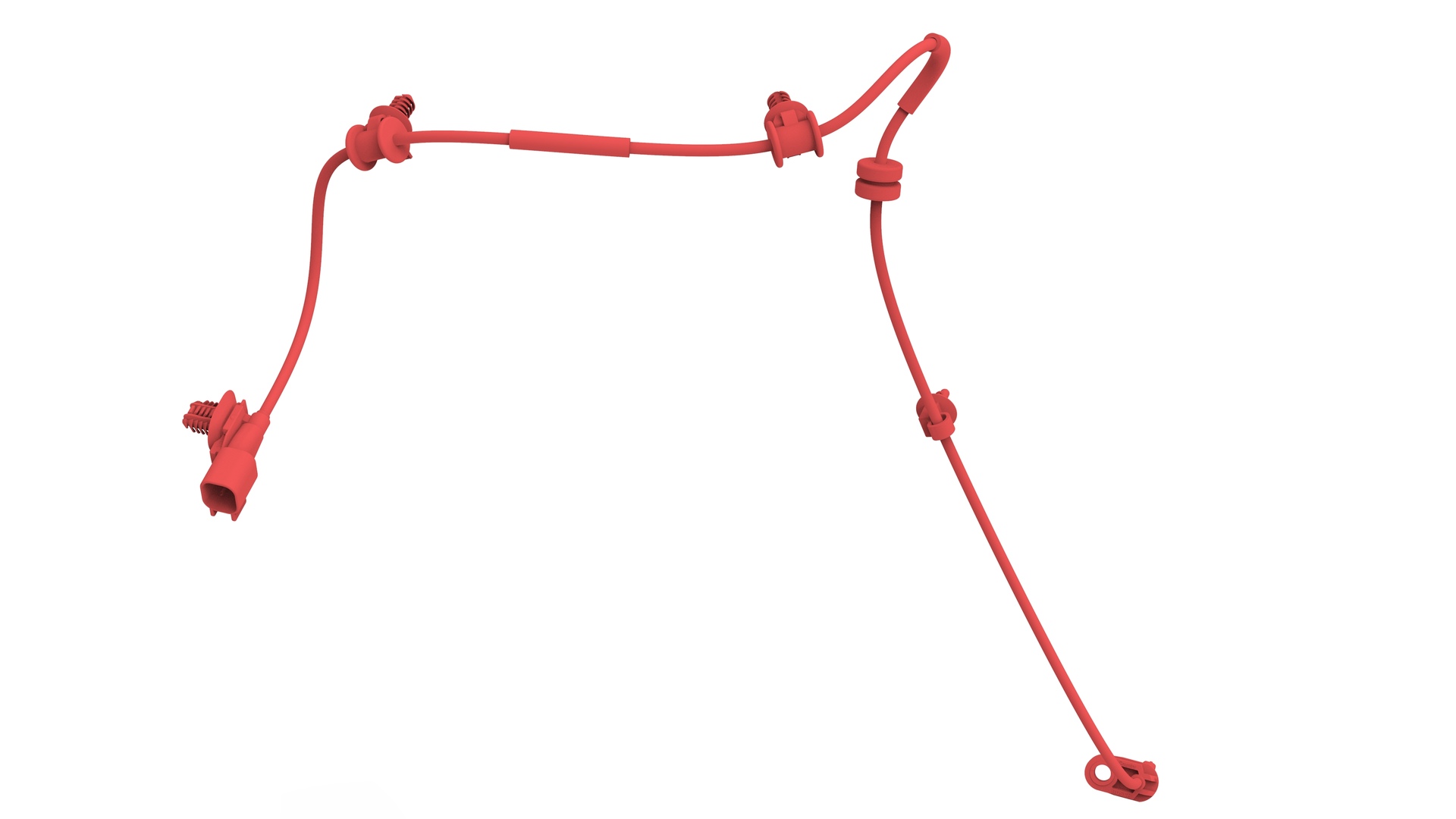

  5. Remove and discard the bolt that attaches the front LH ABS wheel speed sensor to the knuckle, and then remove the sensor from the vehicle.
1Remove the front LH wheel. See Wheel (Remove and Install).
2Remove the front LH wheel arch liner. See Wheel Arch Liner - Front - LH (Remove and Replace).
3Disconnect the electrical harness from the front LH ABS wheel speed sensor connector.
4Release the clips and remove the grommet that attach the front LH ABS wheel speed sensor to the body and front LH suspension.
5Remove and discard the bolt that attaches the front LH ABS wheel speed sensor to the knuckle, and then remove the sensor from the vehicle.

Install

  1. Install the front LH ABS wheel speed sensor to the knuckle, and then install a new bolt to attach the sensor to the knuckle.
    Torque 5 Nm
  2. Fasten the clips (x4) and install the grommet that attach the front LH ABS wheel speed sensor cable to the body and front LH suspension.
    Caution:
    Perform a push-pull check on each clip and the grommet to make sure they are fully attached to the body, to the upper control arm, and to the knuckle.
  3. Connect the electrical harness to the front LH ABS wheel speed sensor connector.
  4. Install the front LH wheel arch liner. See Wheel Arch Liner - Front - LH (Remove and Replace).
  5. Install the front LH wheel. See Wheel (Remove and Install).
1Install the front LH ABS wheel speed sensor to the knuckle, and then install a new bolt to attach the sensor to the knuckle.
Torque 5 Nm
2Fasten the clips (x4) and install the grommet that attach the front LH ABS wheel speed sensor cable to the body and front LH suspension.
Caution:
Perform a push-pull check on each clip and the grommet to make sure they are fully attached to the body, to the upper control arm, and to the knuckle.
3Connect the electrical harness to the front LH ABS wheel speed sensor connector.
4Install the front LH wheel arch liner. See Wheel Arch Liner - Front - LH (Remove and Replace).
5Install the front LH wheel. See Wheel (Remove and Install).
