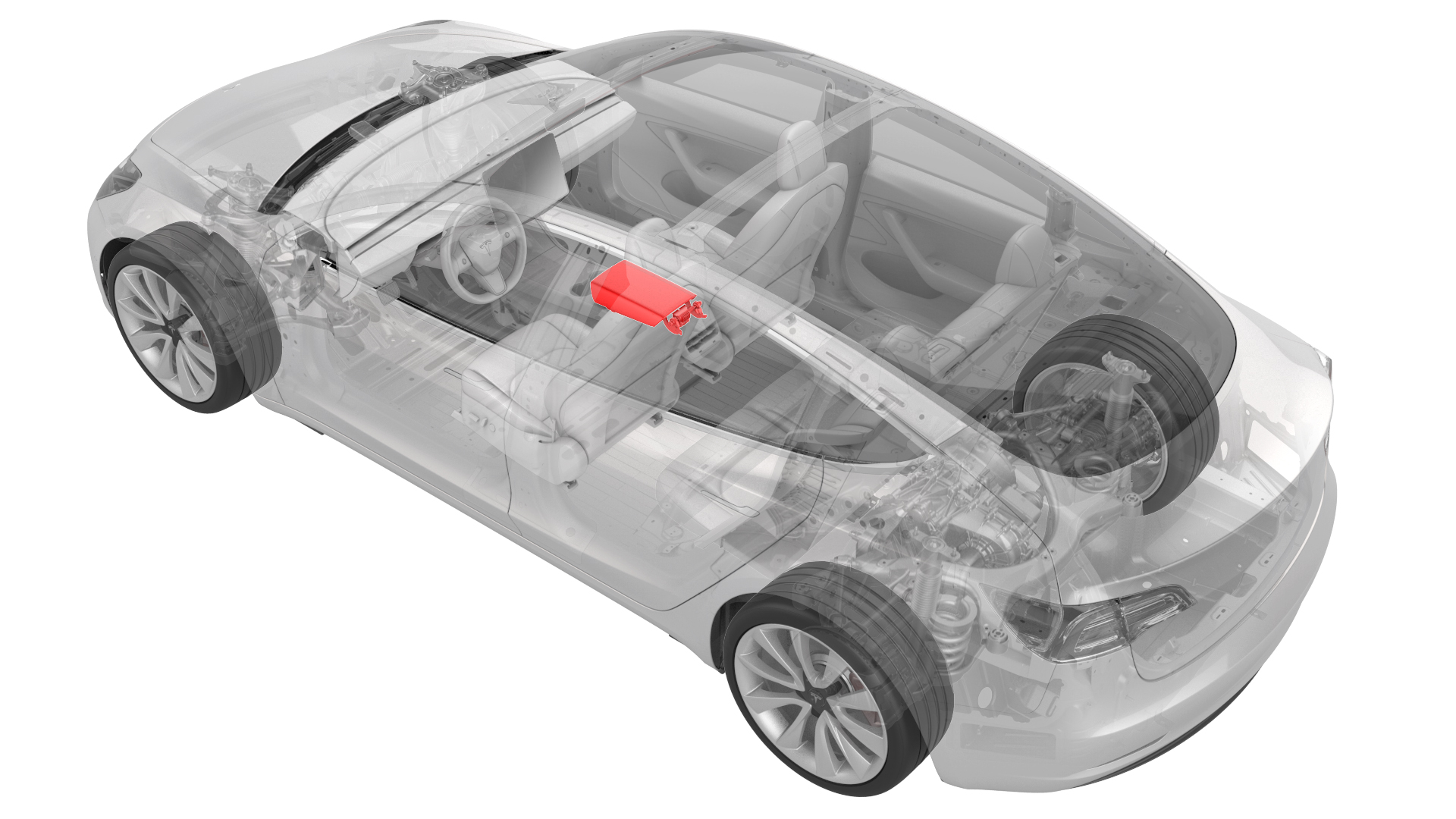

Armrest - Center Console (Remove and Replace)
Correction code 1519250215192502
Remove
-

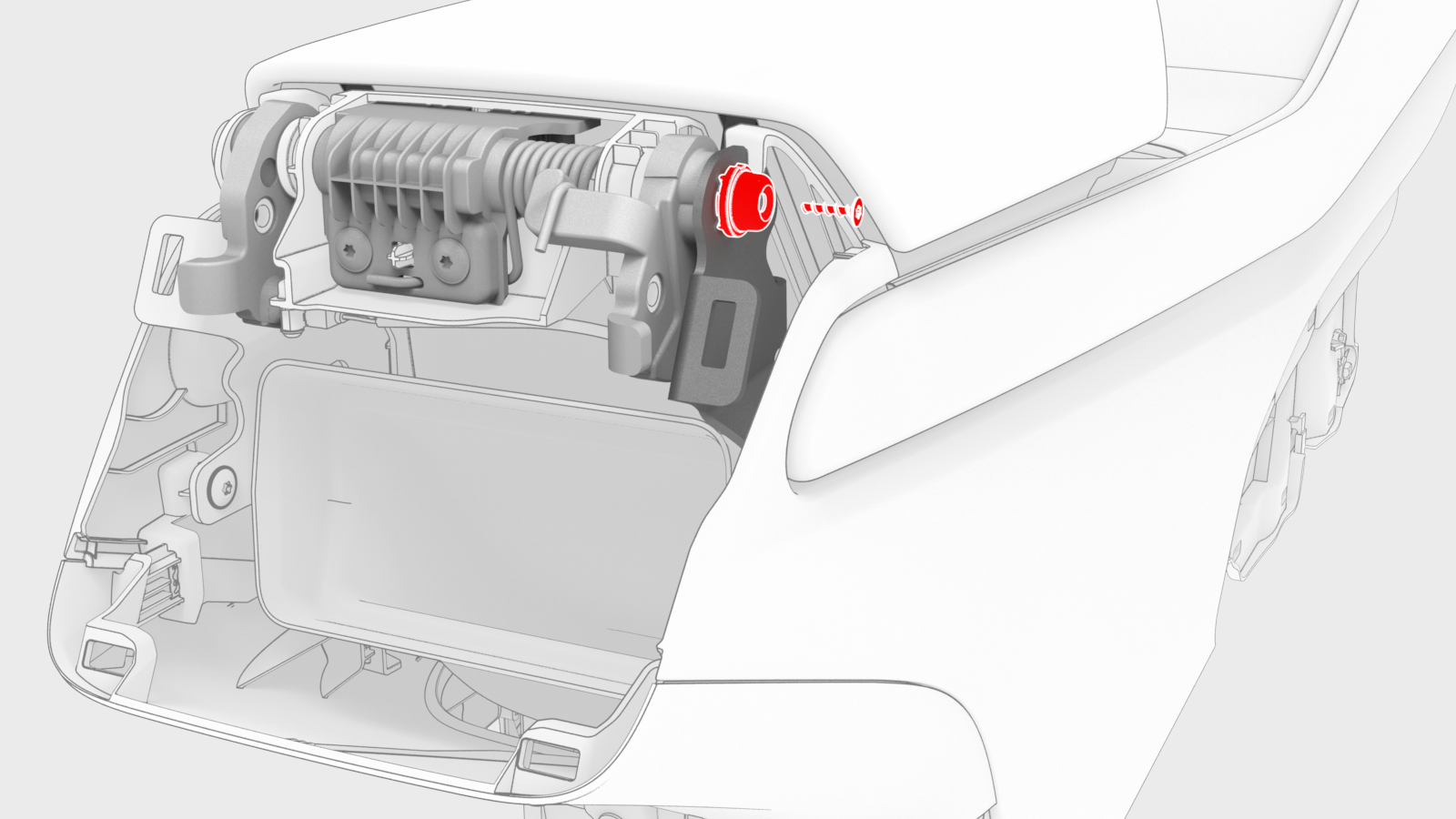

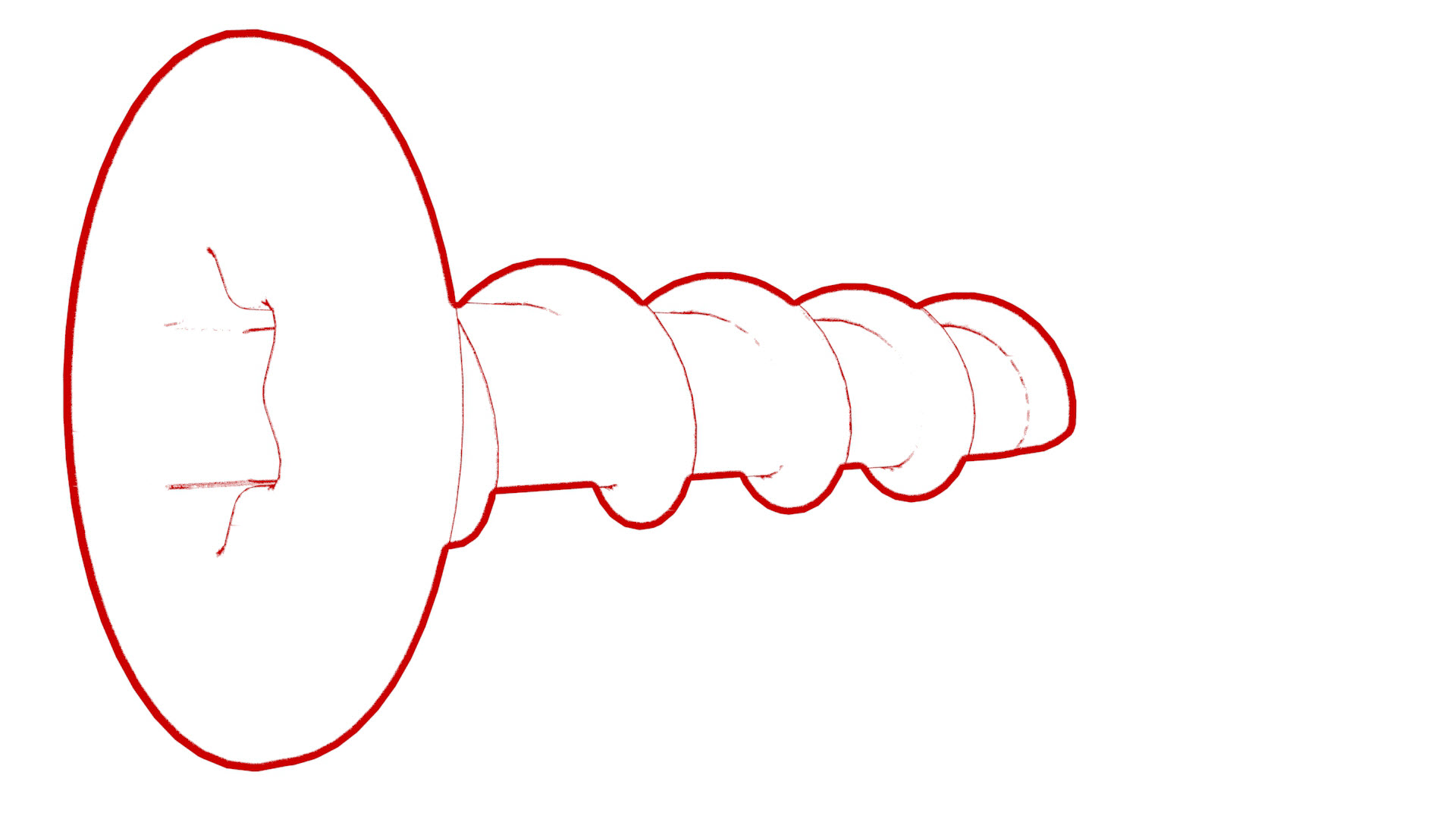

Remove the screw that attaches the cap of the armrest hinge pin to the center console, and then remove the cap.
Torque 1.6 Nm
-
Open the armrest, and then use a flat screwdriver to release the spring from the hook.
-

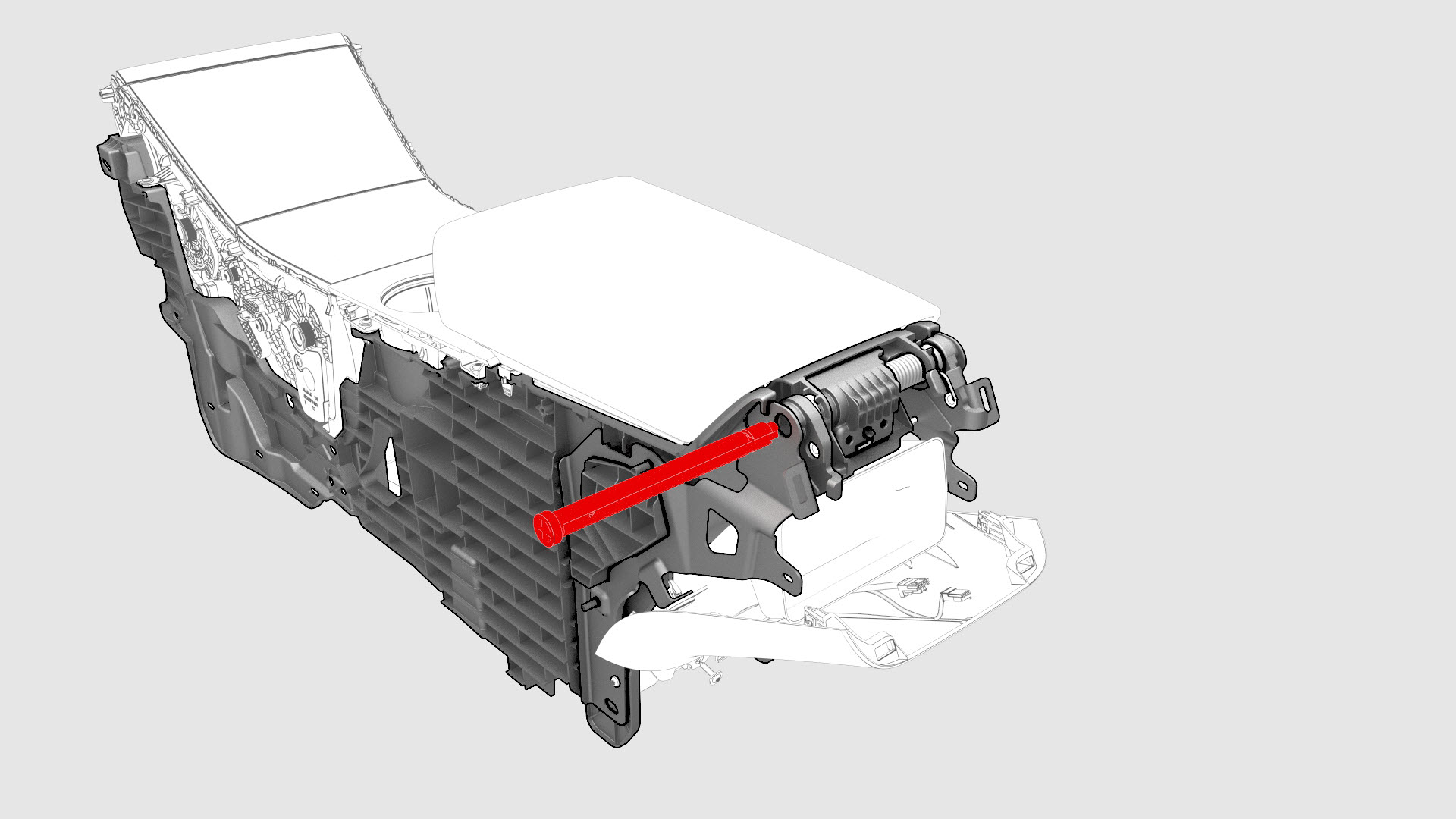

Close the armrest, and then tap towards the LH side with a hammer and pin to remove the armrest hinge pin from the center console.
Note: The armrest must be closed before proceeding.
-

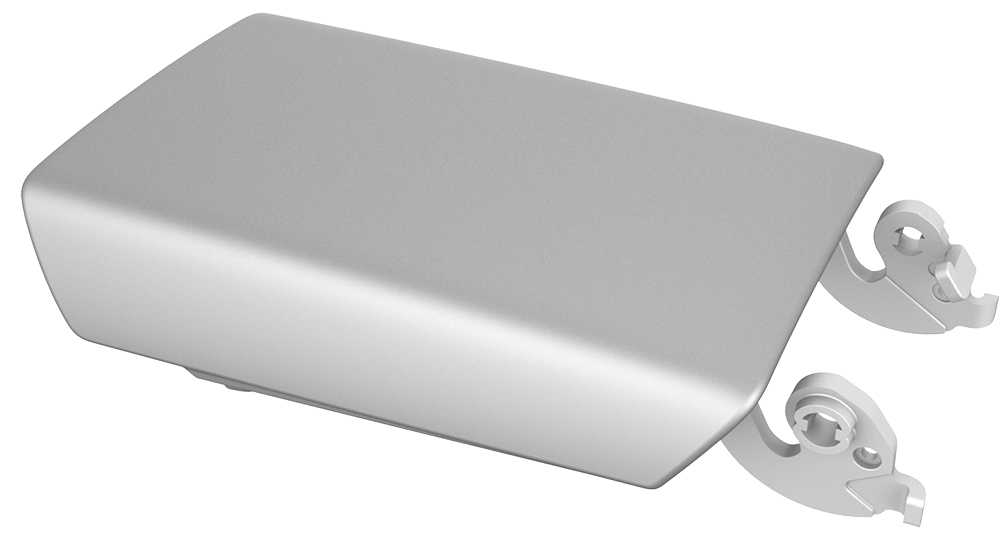

Raise the armrest and remove it from the center console.
| 1 | Remove and attach the customer's belongings from the armrest, if needed. | ||
| 2 | Lower all the windows, and then move the LH and RH front seats forward. | ||
| 3 | Remove the center console lower rear panel. See Panel - Lower Rear - Center Console (Remove and Replace). | ||
| 4 | Remove the center console air vent panel. See Panel - Air Vent - Center Console (Remove and Replace). | ||
| 5 | Remove the center console end panel. See End Panel - Center Console (Remove and Replace). | ||
| 6 | Remove the screw that attaches the cap of the armrest hinge pin to the center console, and then remove the cap. Torque 1.6 Nm | |
| 7 | Open the armrest, and then use a flat screwdriver to release the spring from the hook. | |
| 8 | Close the armrest, and then tap towards the LH side with a hammer and pin to remove the armrest hinge pin from the center console. Note: The armrest must be closed before proceeding.
| |
| 9 | Raise the armrest and remove it from the center console. |
Install
Installation procedure is the reverse of removal, except for the following:
- Before installing the armrest, make sure it is in the open position as it is fastened.
- Align the slot of the armrest hinge pin with the tab in the armrest pivot hole.
