Fascia - Rear - Upper (Remove and Replace)

Correction code 1001280210012802
Parent topic: 1001 - Bumper / Fascia

Remove

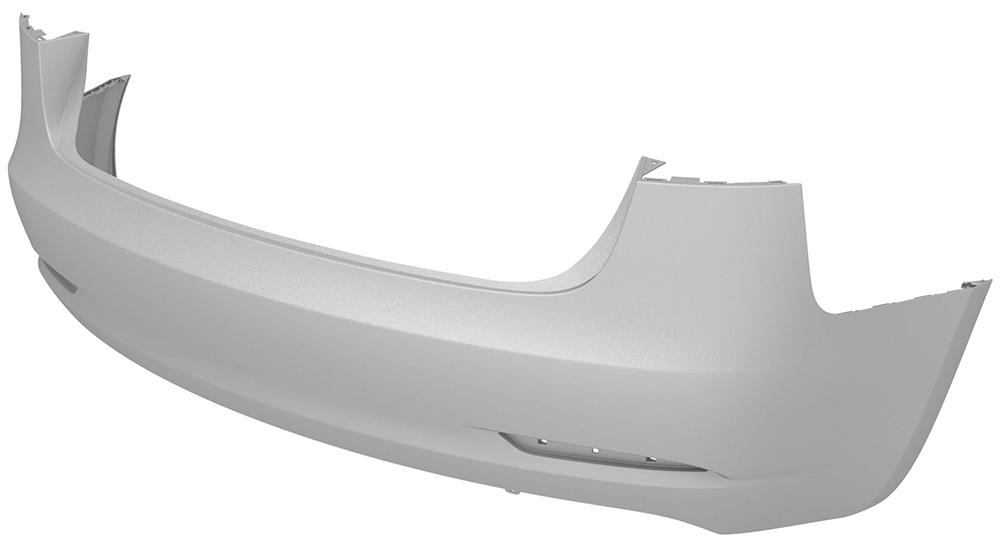

  1. Remove the rear fascia. See Fascia - Rear (Remove and Install)

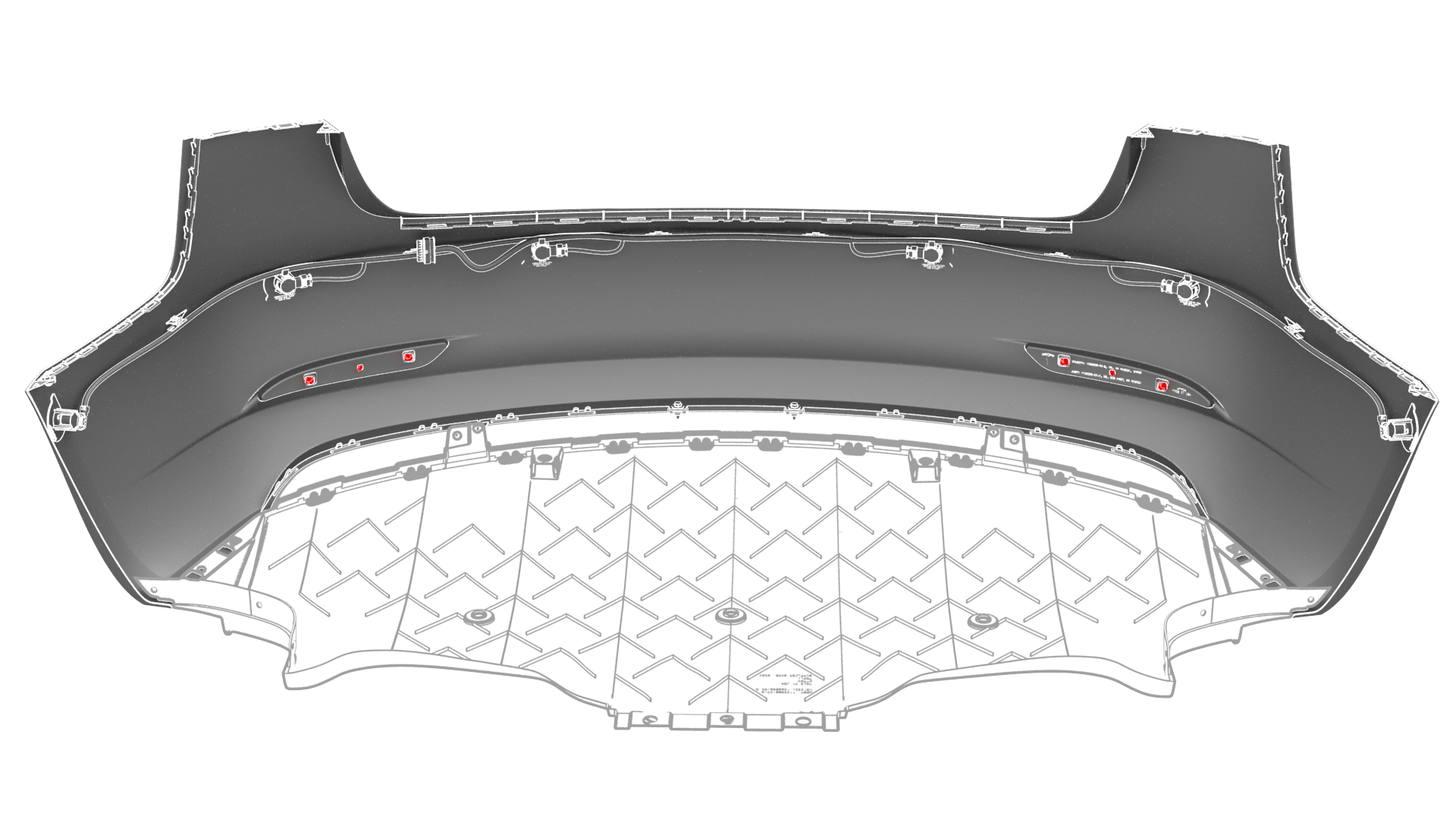

  2. Remove all of the rear parking distance sensors. See Sensor - Parking Distance - Rear - Each (Remove and Replace).
  3. Release the tabs that attach the LH and RH rear reflectors to the rear fascia, and then remove the reflectors from the fascia.
  4. Remove the bolts that attach the rear diffuser to the inner rear fascia.
    Torque 3 Nm
    Inside
    Outside

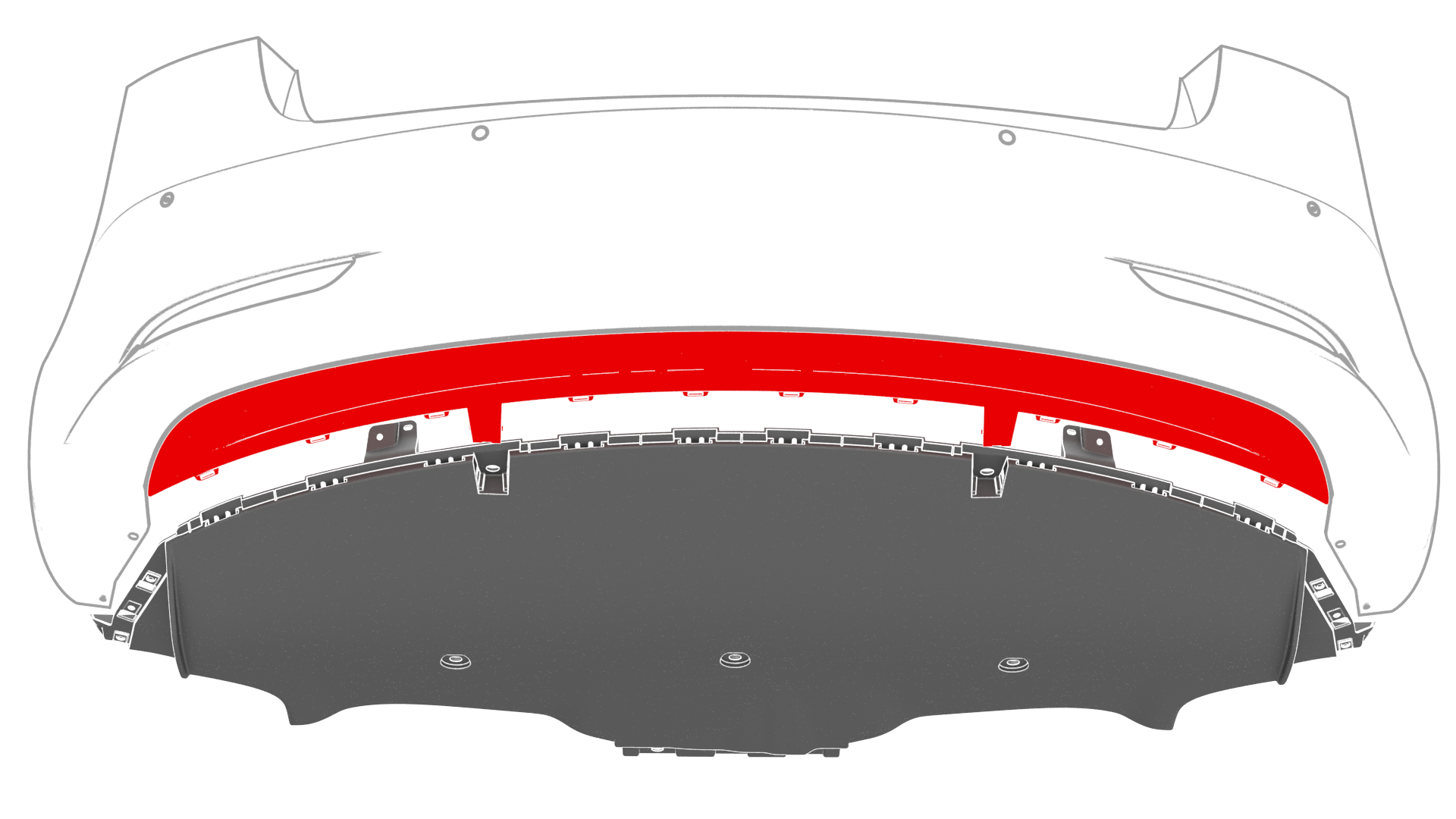

  5. Starting from either side, release the clips (x10) that attach the diffuser to the rear fascia, and then remove the diffuser from the rear fascia.

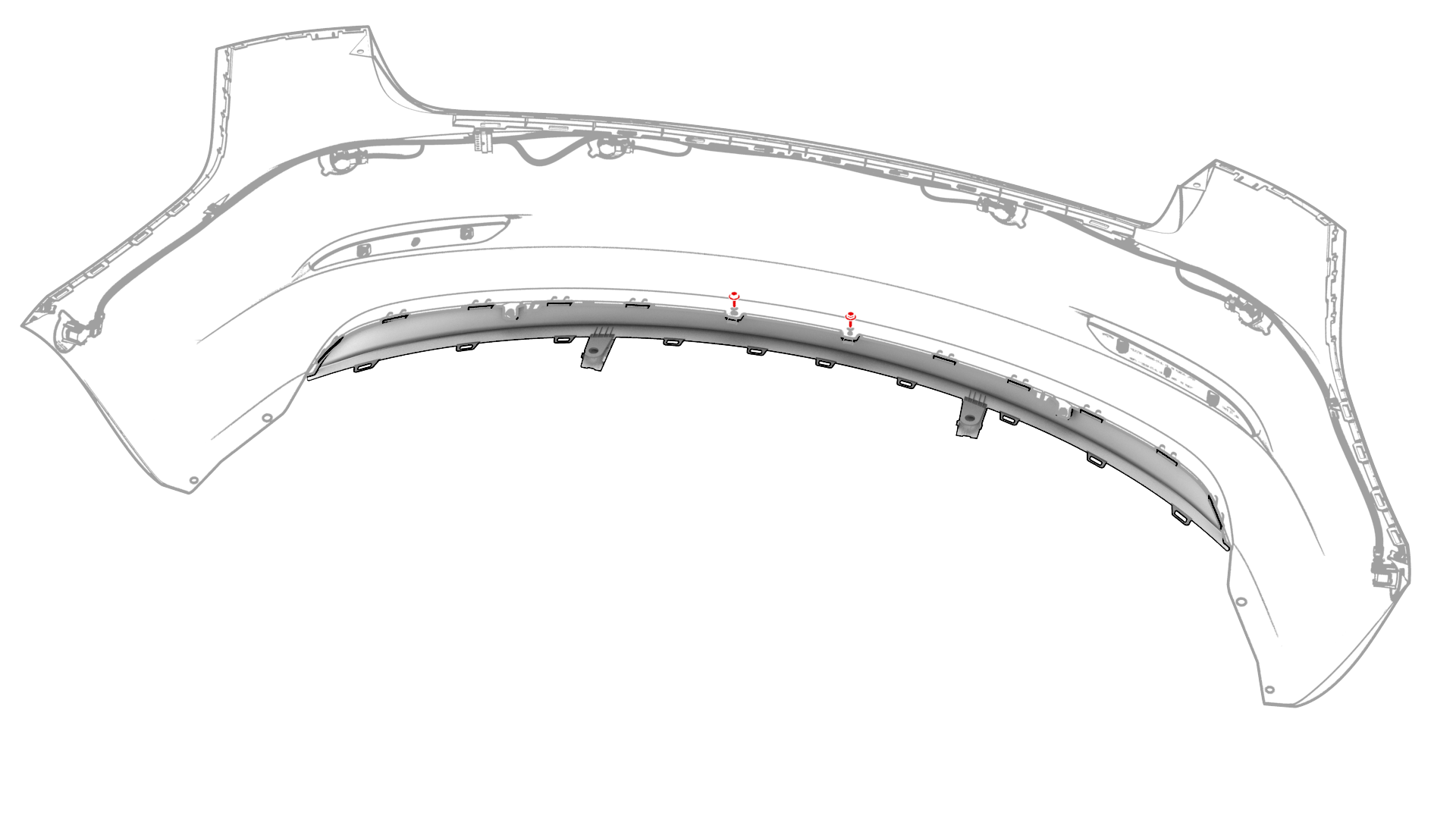

  6. Remove the bolts that attach the lower rear fascia to the upper rear fascia.
    Torque 3 Nm

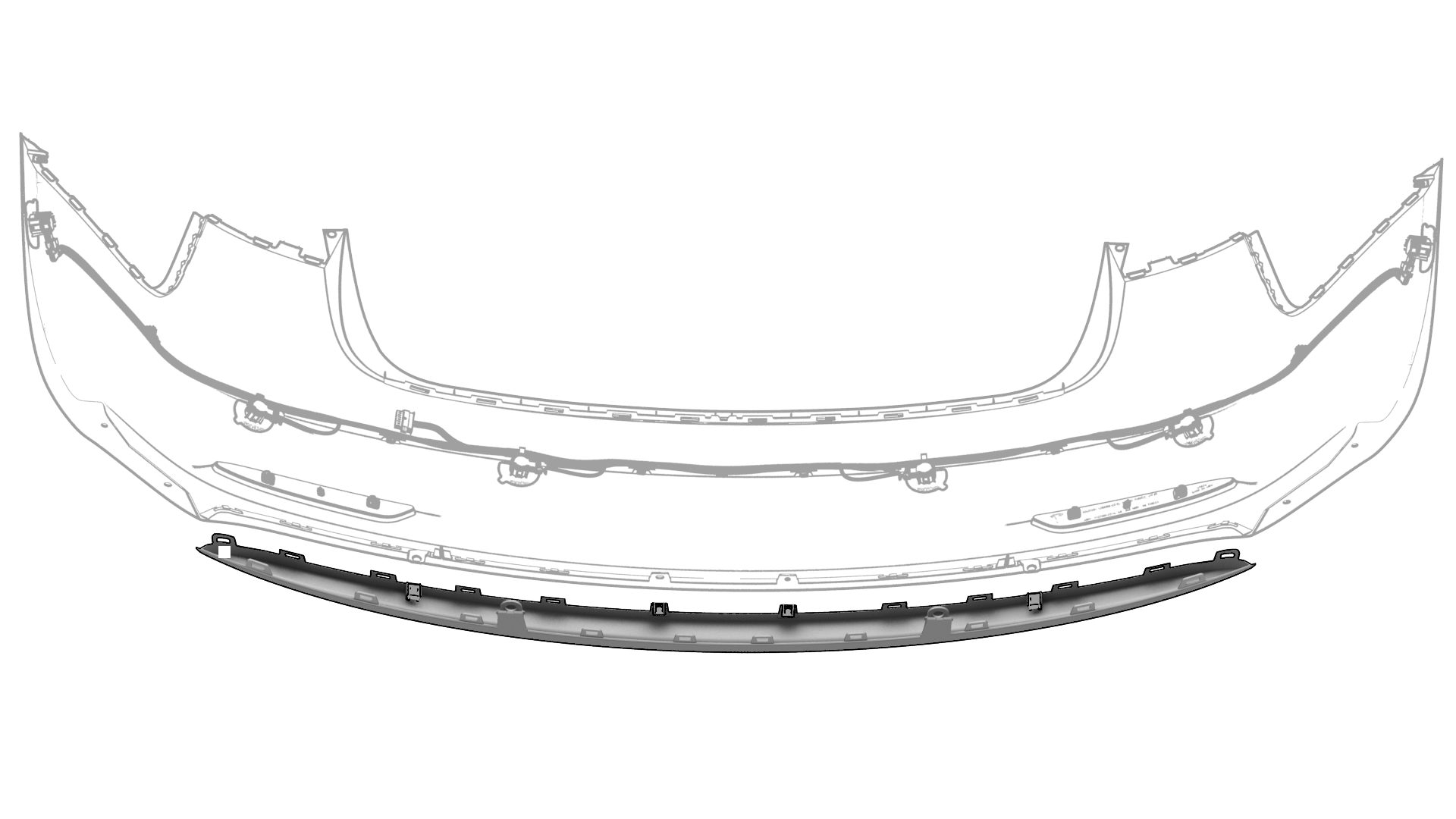

  7. Starting from either side, release the clips that attach the upper rear fascia to the lower rear fascia, and then separate the upper rear fascia from the lower rear fascia.
1Remove the rear fascia. See Fascia - Rear (Remove and Install)
2Remove all of the rear parking distance sensors. See Sensor - Parking Distance - Rear - Each (Remove and Replace).
3Release the tabs that attach the LH and RH rear reflectors to the rear fascia, and then remove the reflectors from the fascia.
Inside
Outside
4Remove the bolts that attach the rear diffuser to the inner rear fascia.
Torque 3 Nm
5Starting from either side, release the clips (x10) that attach the diffuser to the rear fascia, and then remove the diffuser from the rear fascia.
6Remove the bolts that attach the lower rear fascia to the upper rear fascia.
Torque 3 Nm
7Starting from either side, release the clips that attach the upper rear fascia to the lower rear fascia, and then separate the upper rear fascia from the lower rear fascia.

Install

Installation procedure is the reverse of removal.
