Seal - Trunk (Remove and Replace)

Correction code 1170200211702002
Parent topic: 1170 - Seals Body Closures

Remove

  1. Open the trunk.
  2. Lift up the rear trunk floor, and then remove it from the vehicle.
  3. Remove the trunk sill trim. See Trim - Sill - Trunk (Remove and Replace).

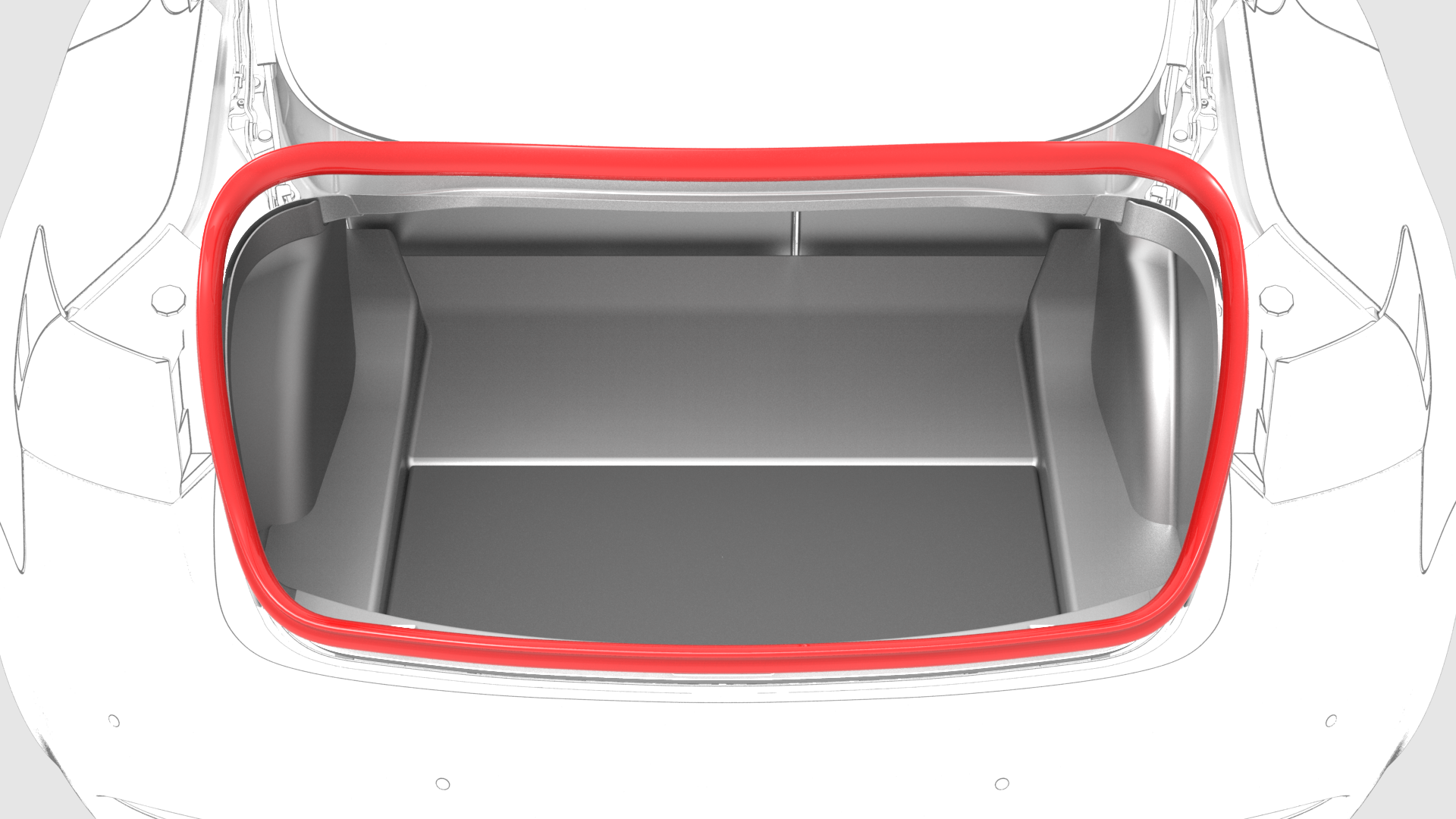

  4. Release the trunk seal from the trunk perimeter, and then remove the seal from the body.
1Open the trunk.
2Lift up the rear trunk floor, and then remove it from the vehicle.
3Remove the trunk sill trim. See Trim - Sill - Trunk (Remove and Replace).
4Release the trunk seal from the trunk perimeter, and then remove the seal from the body.

Install

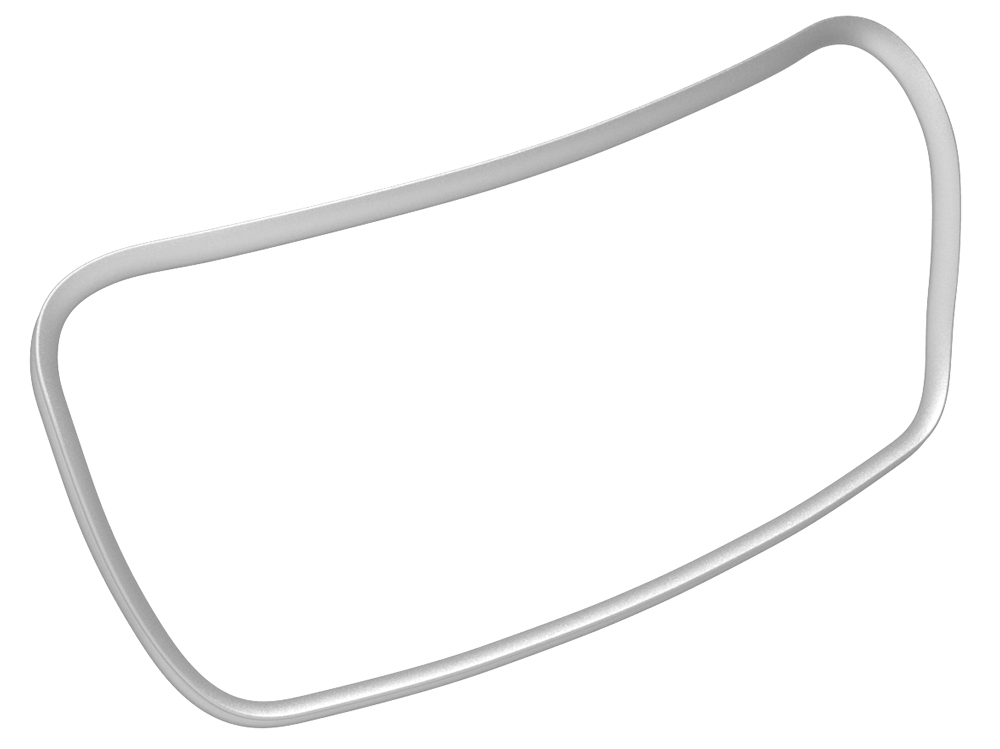

  1. Install the trunk seal to the perimeter of the trunk.
    Note: Line up the striker to the line on the trunk seal, and then install the trunk seal around the perimeter of the trunk.
    Tip: Tap the trunk seal with a rubber hammer to fully install the trunk seal to the body.
  2. Install the trunk sill trim. See Trim - Sill - Trunk (Remove and Replace).

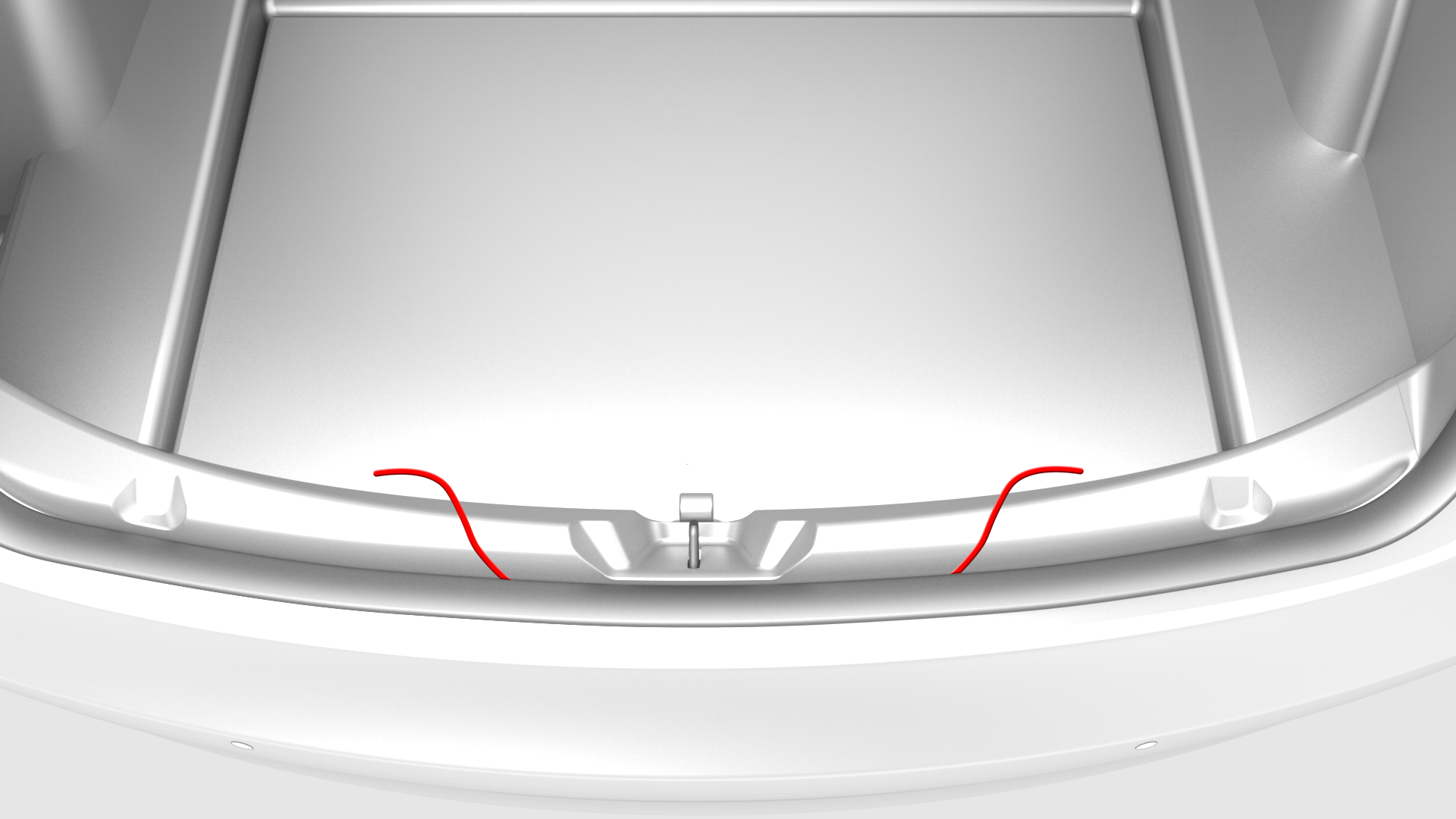

  3. Pull the strings on the trunk seal to seat it flush across the interior.
  4. Install the rear trunk floor.
1Install the trunk seal to the perimeter of the trunk.
Note: Line up the striker to the line on the trunk seal, and then install the trunk seal around the perimeter of the trunk.
Tip: Tap the trunk seal with a rubber hammer to fully install the trunk seal to the body.
2Install the trunk sill trim. See Trim - Sill - Trunk (Remove and Replace).
3Pull the strings on the trunk seal to seat it flush across the interior.
4Install the rear trunk floor.
