Solenoid - Glove Box (Remove and Replace)

Correction code 1405110214051102
Parent topic: 1405 - Instrument Panel

Remove

  1. Remove the glove box. See Glove Box (LHD) (Remove and Replace).
  2. Remove and discard the NVH pad from the glove box.
    Note: The NVH pad is one time use only.
  3. Release the clips that attach the glove box solenoid electrical harness to the glove box.

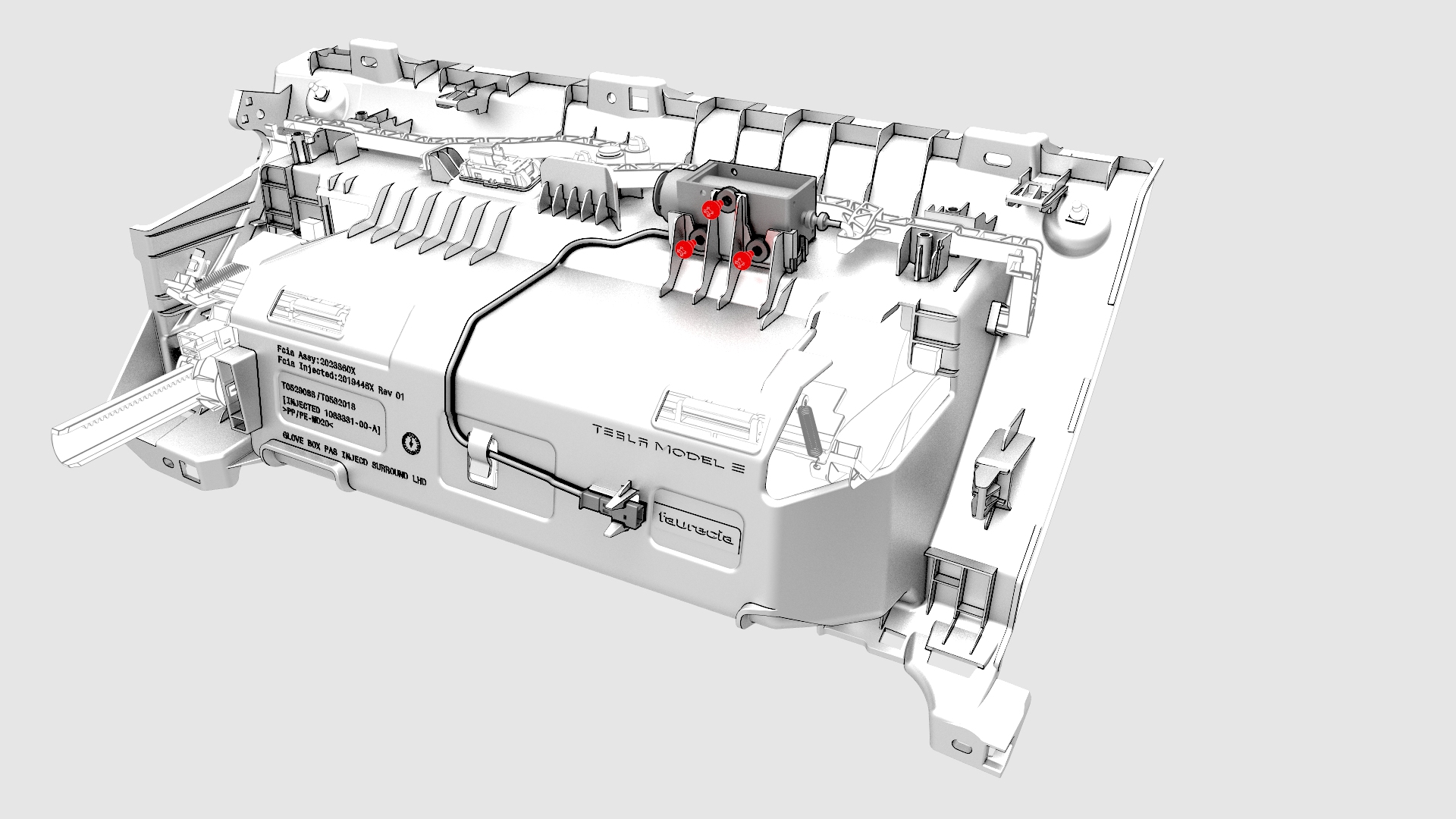

  4. Remove the bolts that attach the glove box solenoid to the glove box, and then remove the solenoid from the glove box.

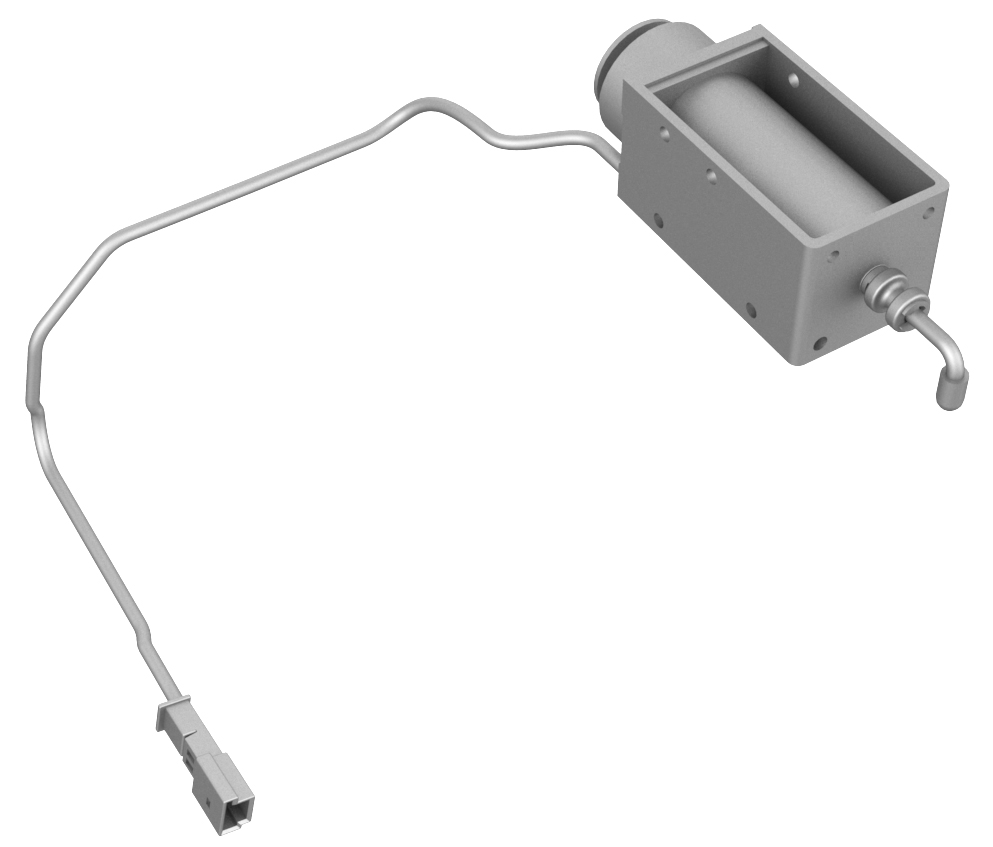

    Note: The solenoid plunger has a right angle bend into the link rod.
1Remove the glove box. See Glove Box (LHD) (Remove and Replace).
2Remove and discard the NVH pad from the glove box.
Note: The NVH pad is one time use only.
3Release the clips that attach the glove box solenoid electrical harness to the glove box.
4Remove the bolts that attach the glove box solenoid to the glove box, and then remove the solenoid from the glove box.
Note: The solenoid plunger has a right angle bend into the link rod.

Install

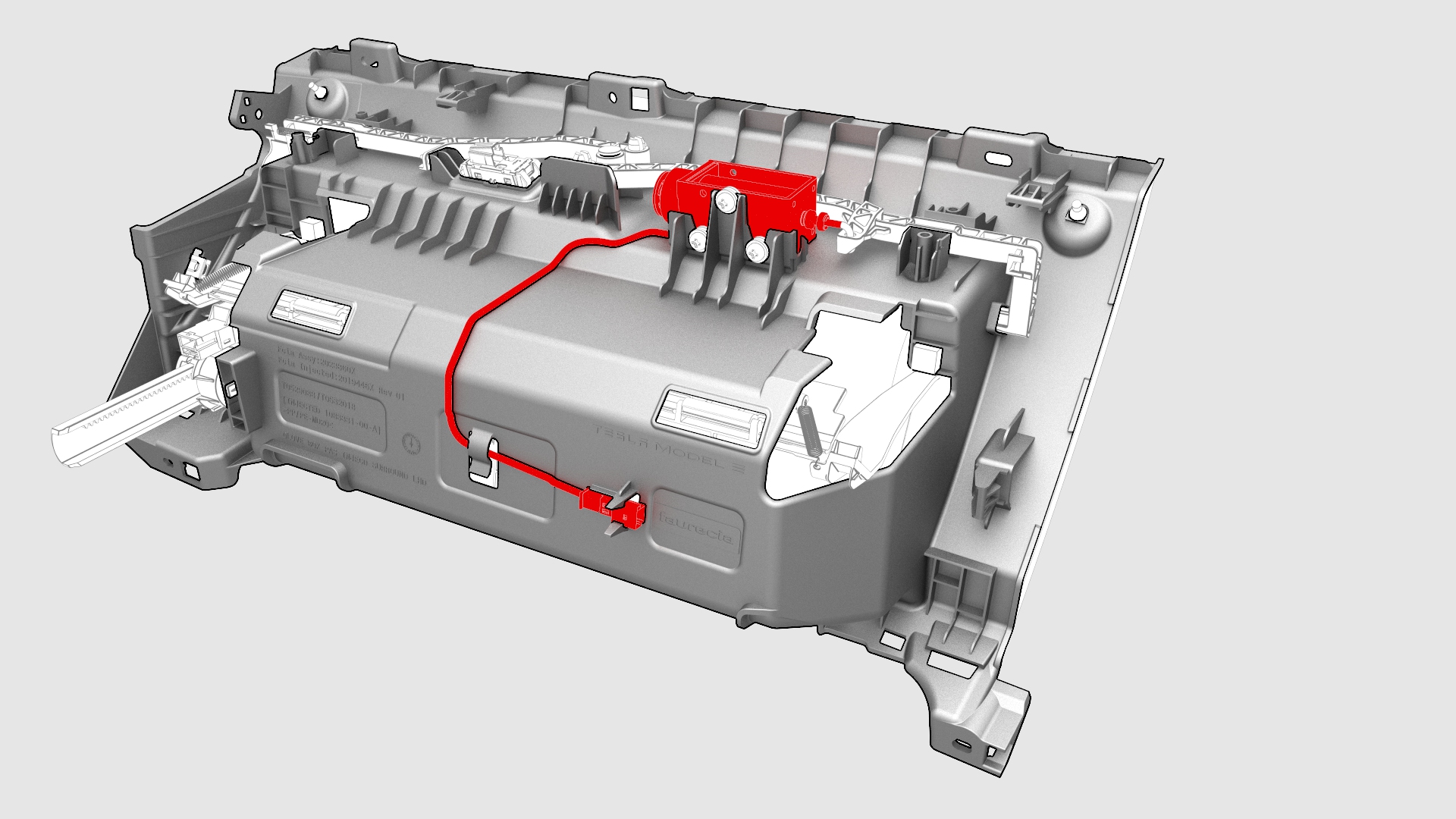

  1. Install the glove box solenoid to the glove box.
    Note: Align the glove box solenoid with the link rod, and then push down to install.

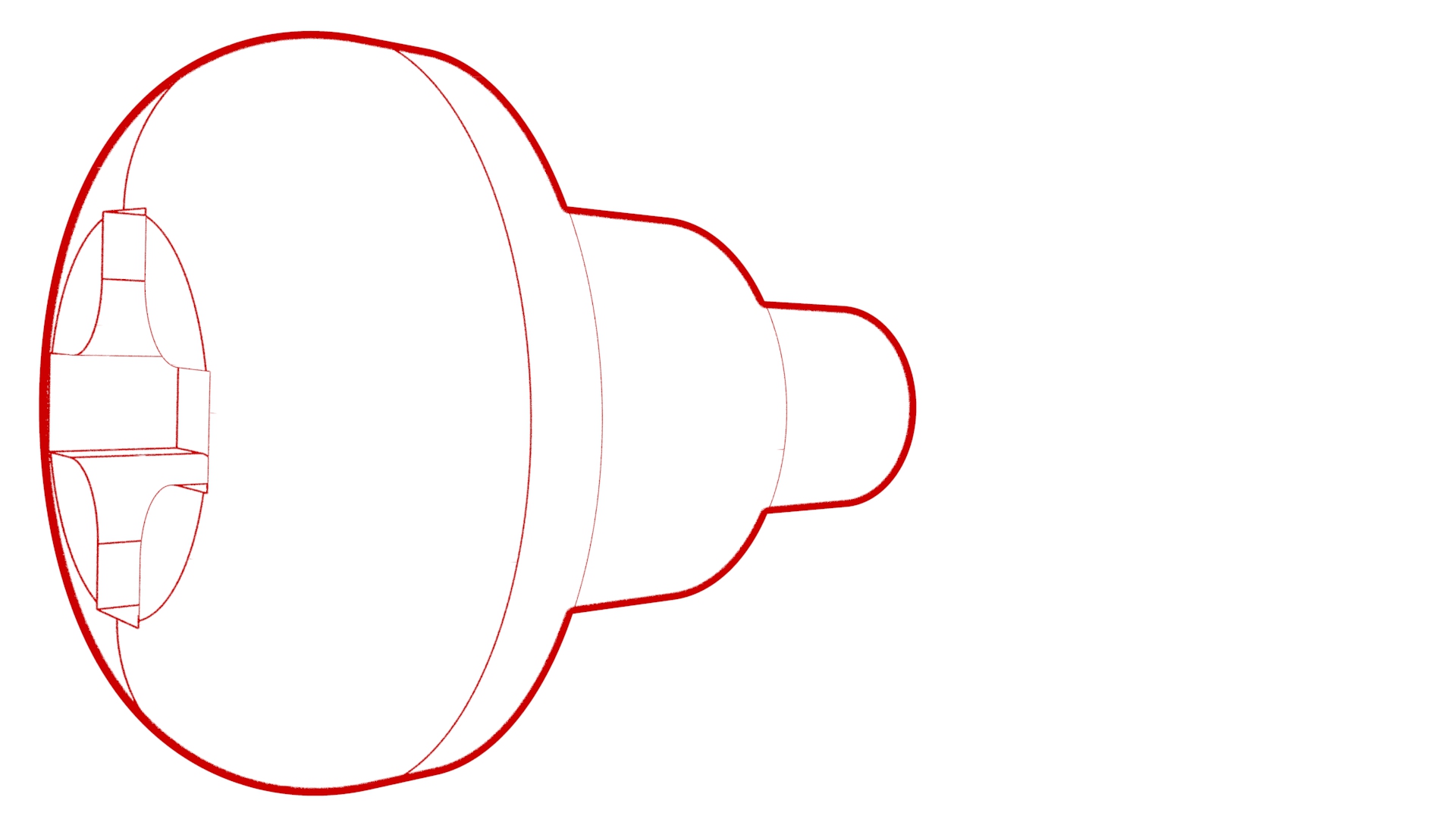

  2. Install the screws that attach the glove box solenoid to the glove box.
    Torque 0.8 Nm
  3. Install the clips that attach the glove box solenoid electrical harness to the glove box.
  4. Install a new NVH pad onto the glove box.
  5. Install the glove box. See Glove Box (LHD) (Remove and Replace).
1Install the glove box solenoid to the glove box.
Note: Align the glove box solenoid with the link rod, and then push down to install.
2Install the screws that attach the glove box solenoid to the glove box.
Torque 0.8 Nm
3Install the clips that attach the glove box solenoid electrical harness to the glove box.
4Install a new NVH pad onto the glove box.
5Install the glove box. See Glove Box (LHD) (Remove and Replace).
