Active Grille Shutter (Remove and Replace)

Correction code 1850060218500602

Remove

Remove the cooling fan module. See Module - Cooling Fan (Remove and Install).
Release the side clips that attach the active grille shutter to the condenser fan module.
Release the lower clips that attach the active grille shutter to the bottom of the condenser fan module.

Note: Make sure that the active grille shutter assembly is push up and away from the cooling fan module.

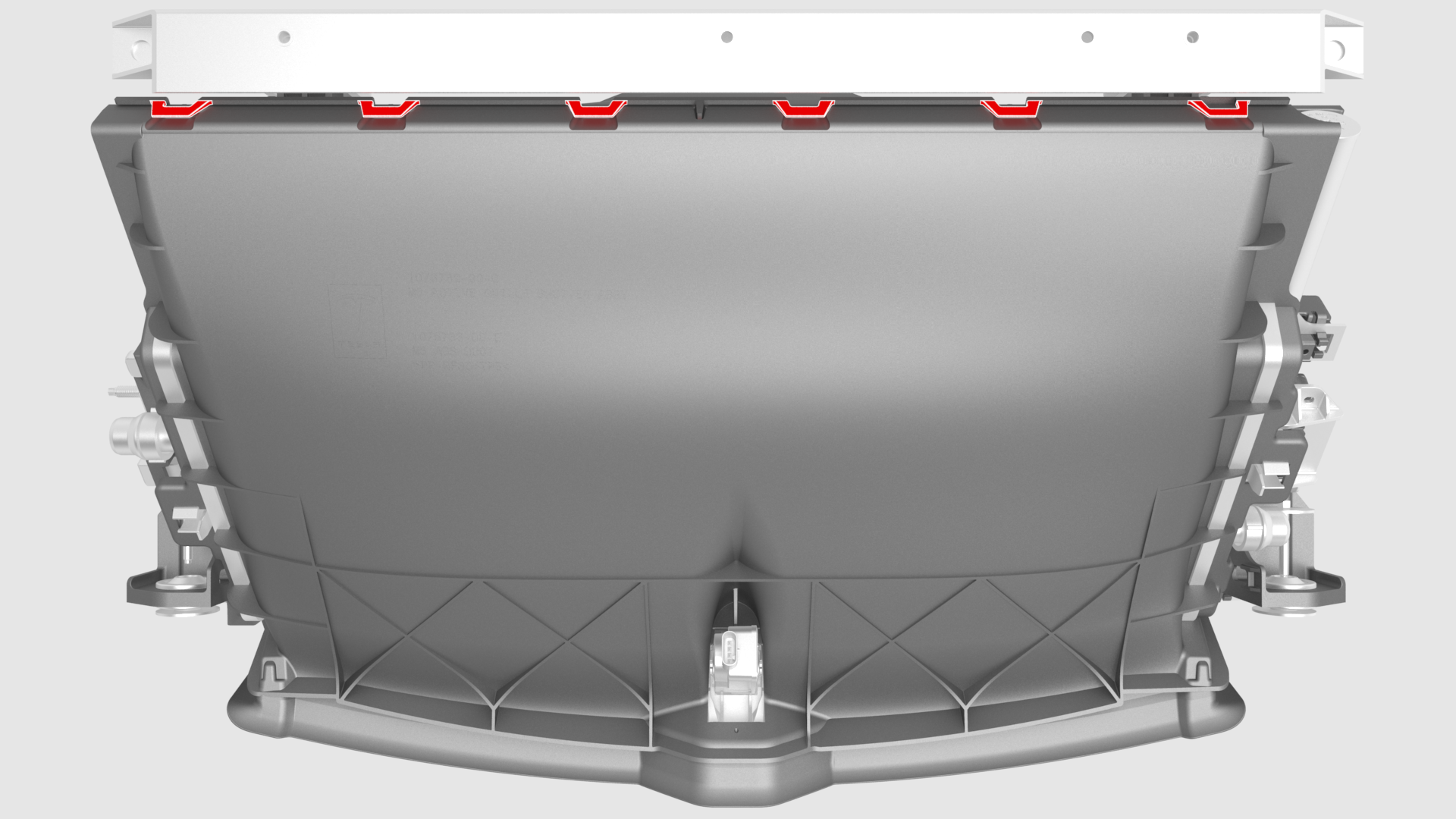

Release the upper clips that attach the active grille shutter to the top of the condenser fan module.
Lift the active grille shutter up, and then remove the active grille shutter from the condenser fan module.

		1	Remove the cooling fan module. See Module - Cooling Fan (Remove and Install).
		2	Release the side clips that attach the active grille shutter to the condenser fan module.
		3	Release the lower clips that attach the active grille shutter to the bottom of the condenser fan module. Note: Make sure that the active grille shutter assembly is push up and away from the cooling fan module.
		4	Release the upper clips that attach the active grille shutter to the top of the condenser fan module.
		5	Lift the active grille shutter up, and then remove the active grille shutter from the condenser fan module.

Install

Position the active grille shutter onto the cooling fan module.

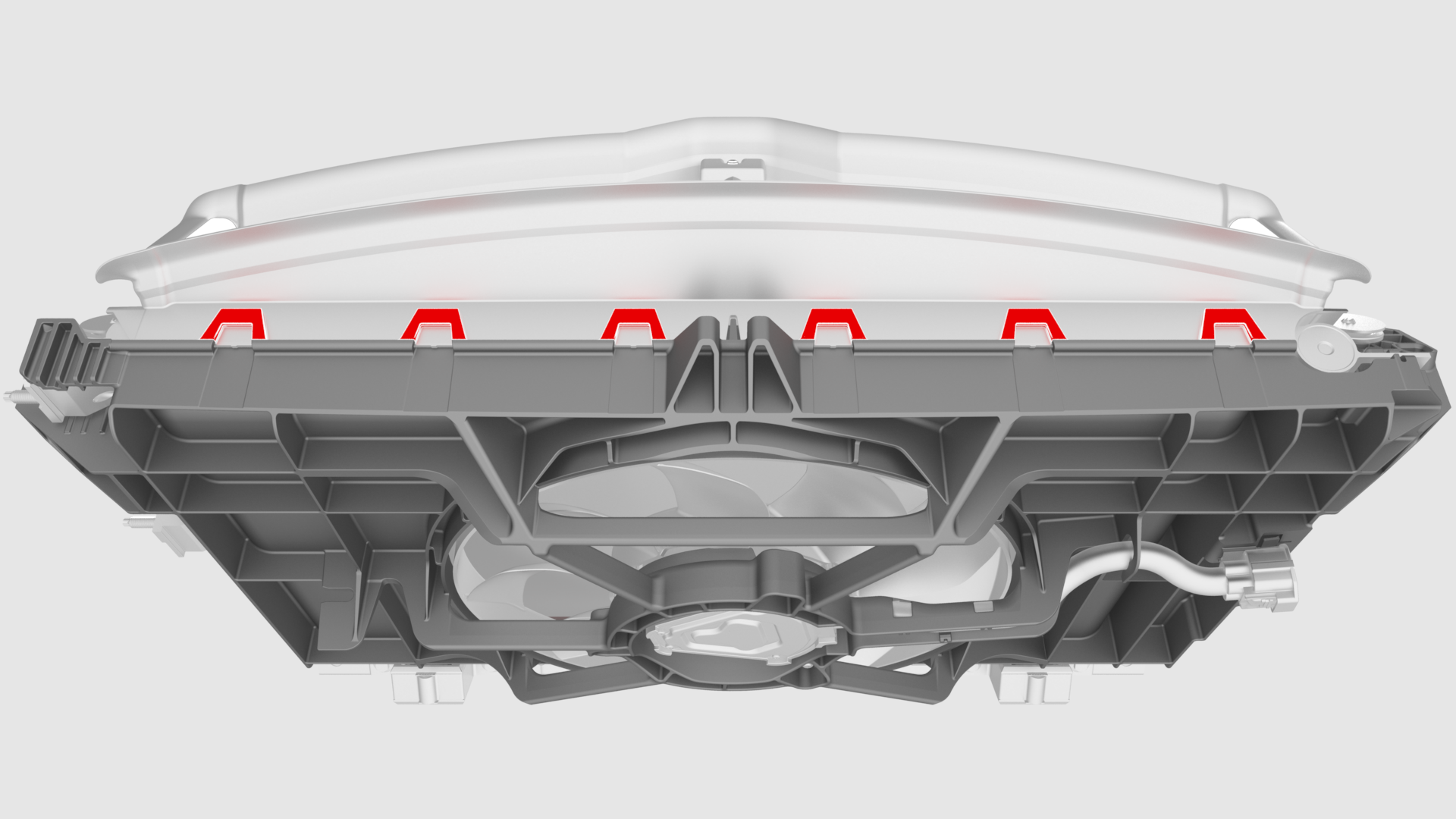

Secure the lower clips (x6) that attach the active grille shutter to the cooling fan module.
Secure the side clips that attach the active grille shutter to the cooling fan module.
Secure the upper clips (x6) that attach the active grille shutter to the condenser fan module.
Install the cooling fan module. See Module - Cooling Fan (Remove and Install).

		1	Position the active grille shutter onto the cooling fan module.
		2	Secure the lower clips (x6) that attach the active grille shutter to the cooling fan module.
		3	Secure the side clips that attach the active grille shutter to the cooling fan module.
		4	Secure the upper clips (x6) that attach the active grille shutter to the condenser fan module.
		5	Install the cooling fan module. See Module - Cooling Fan (Remove and Install).
