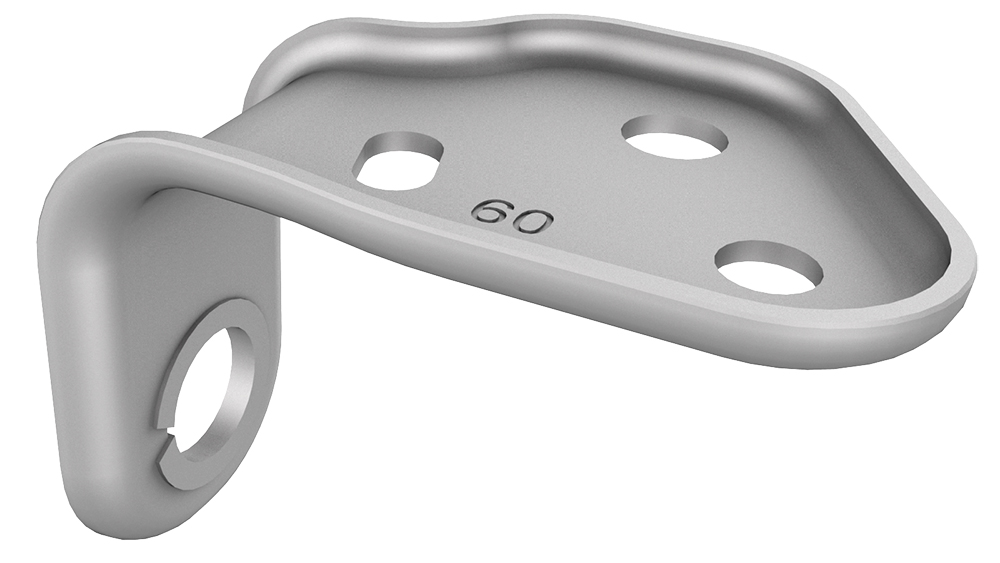

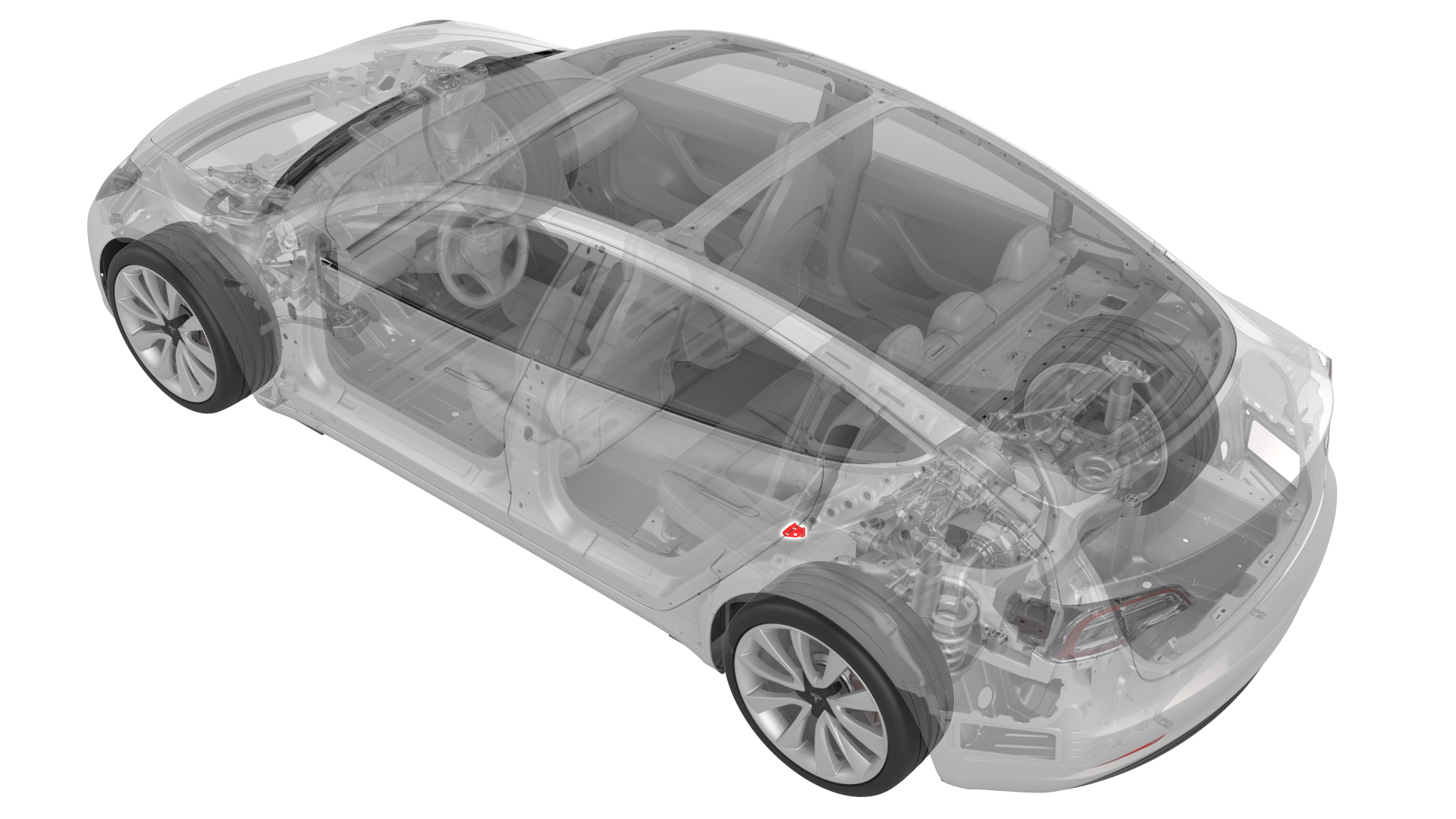

Bracket - Hinge - Seat Back - 2nd Row - LH (Remove and Replace)

Correction code 1305740213057402
Parent topic: 1305 - 2nd Row Seat Assemblies and Hardware

Remove

  1. Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
  2. Remove the LH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
  3. Remove the LH 2nd row seat back. See Seat Back - 2nd Row - LH (Remove and Install).

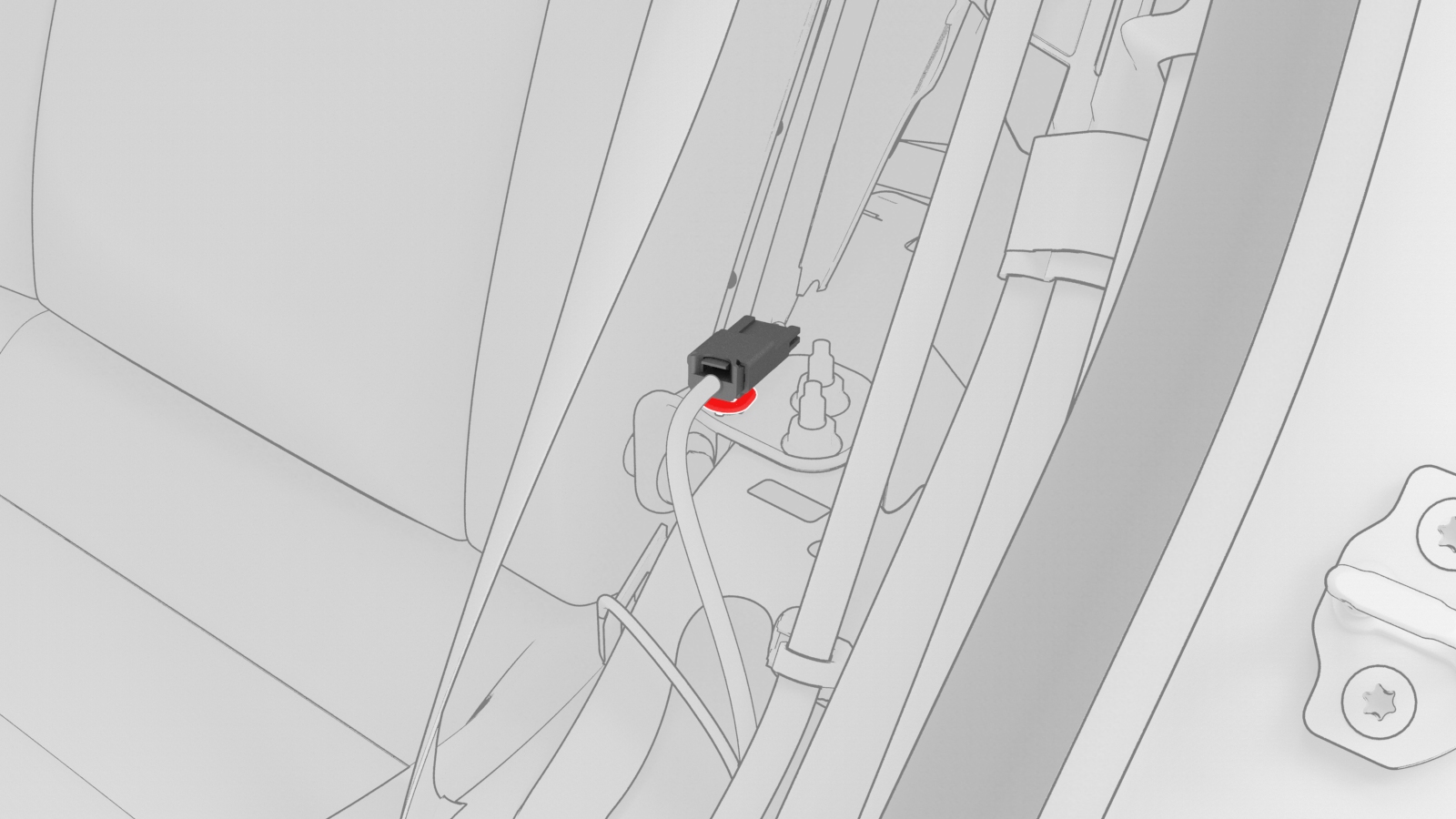

  4. Release the clip that attaches the electrical connector to the hinge bracket.

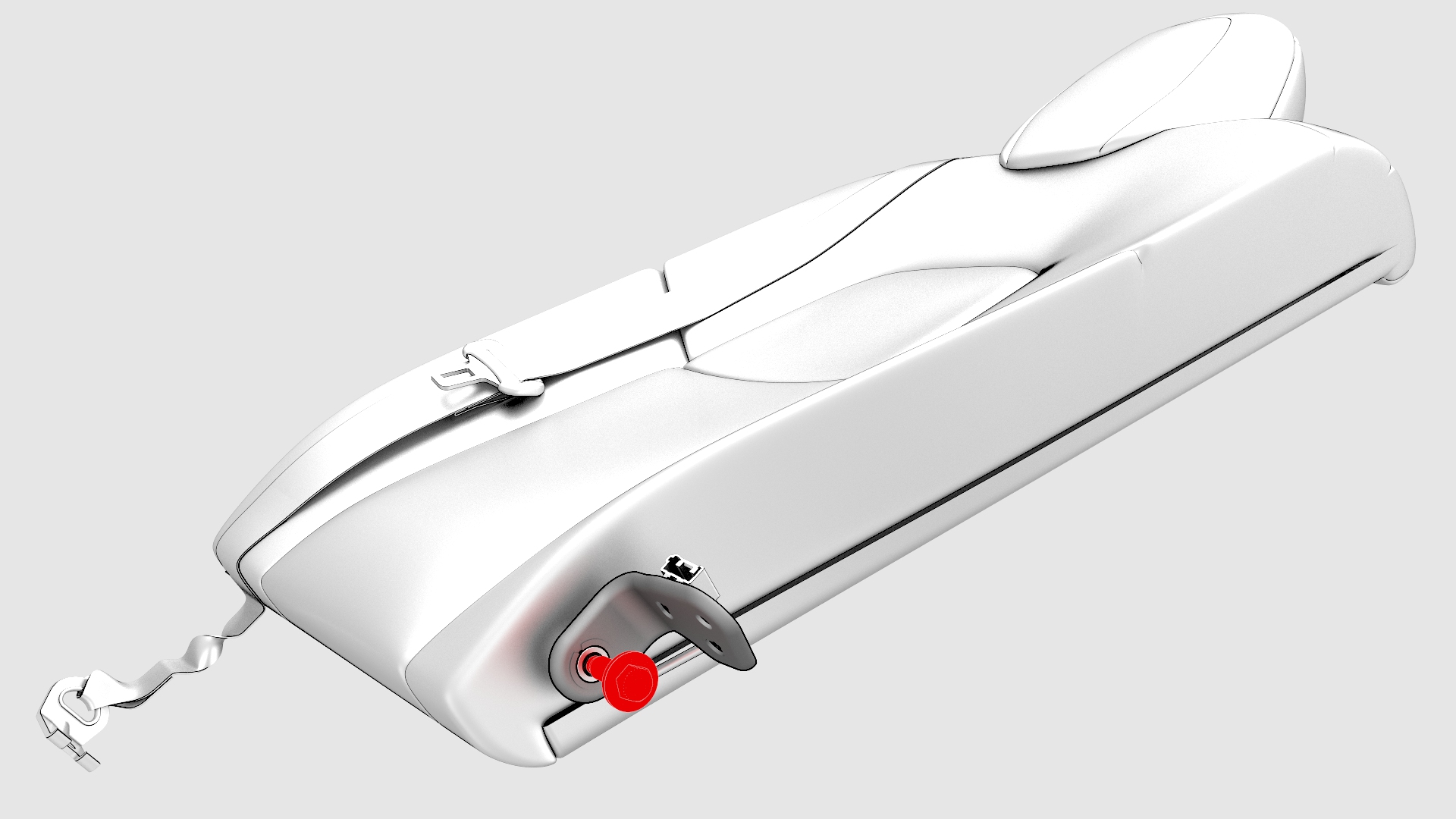

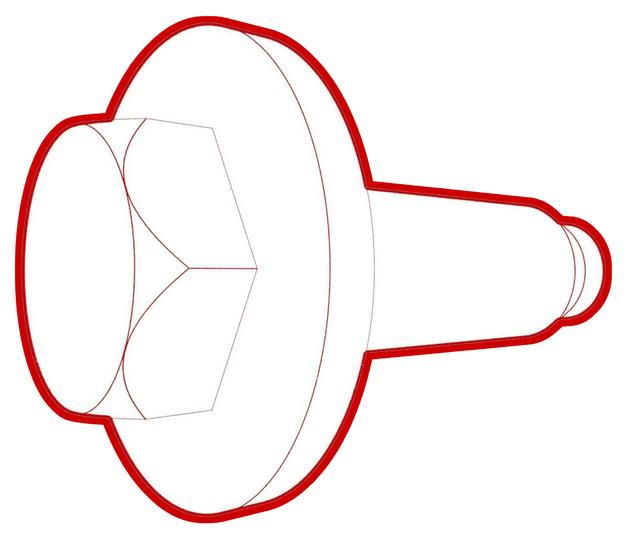

  5. Remove the bolt that attaches the LH 2nd row seat back hinge bracket to the seat back, and then remove the bracket from the seat back.
    Torque 45 Nm
1Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
2Remove the LH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
3Remove the LH 2nd row seat back. See Seat Back - 2nd Row - LH (Remove and Install).
4Release the clip that attaches the electrical connector to the hinge bracket.
5Remove the bolt that attaches the LH 2nd row seat back hinge bracket to the seat back, and then remove the bracket from the seat back.
Torque 45 Nm

Install

Installation procedure is the reverse of removal.
