Cover - Front - Seat Track - 1st Row Seat (Remove and Replace)

Correction code 1301181213011812

Remove

Move the seat fully rearward.

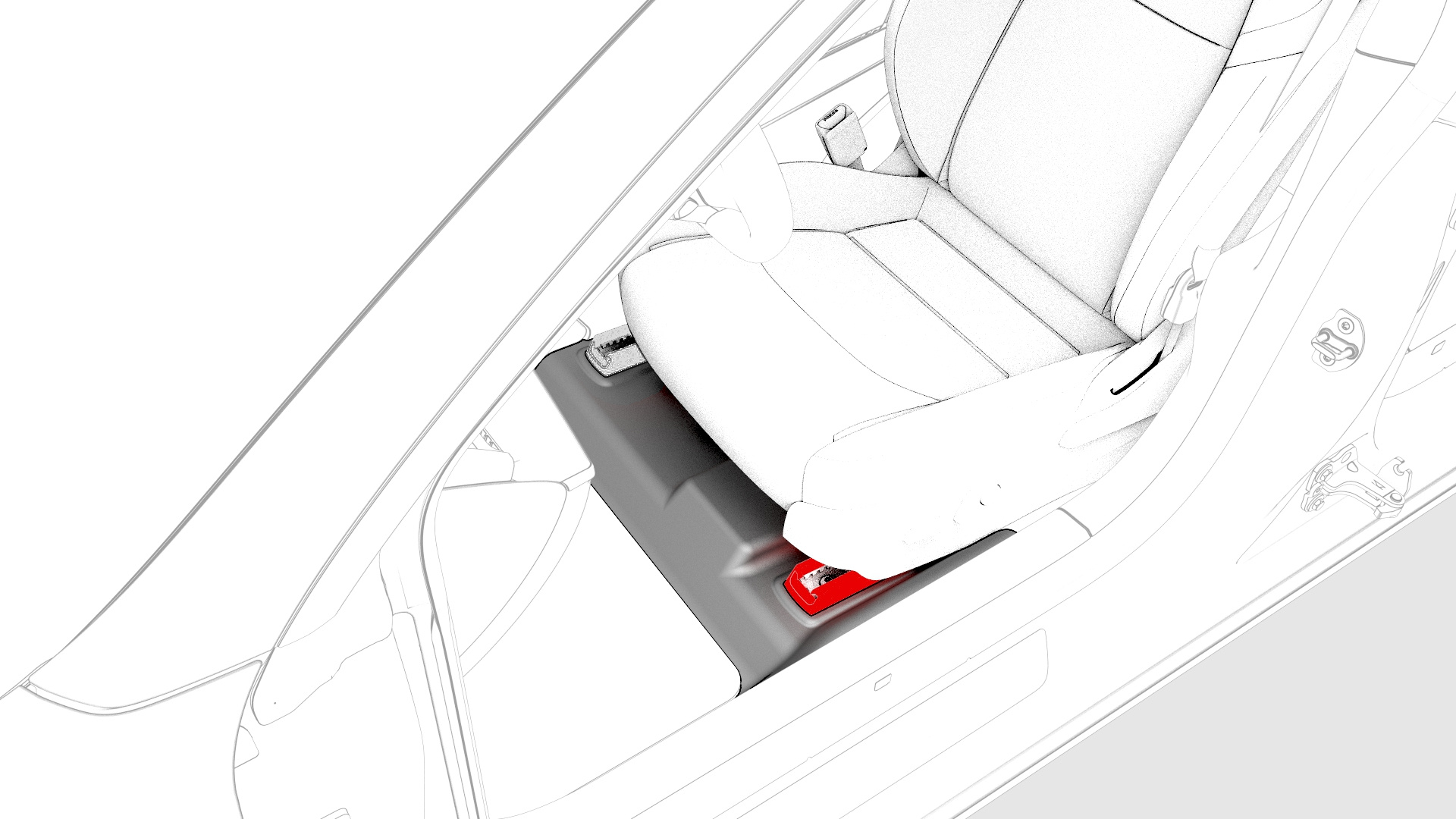

Release the clips at the rear of the seat track front cover that attach the cover to the seat track, and then slide the cover forward off the track.

		1	Move the seat fully rearward.
		2	Release the clips at the rear of the seat track front cover that attach the cover to the seat track, and then slide the cover forward off the track.

Install

Slide the seat track front cover rearward over the seat track, and then fasten the clips that attach the cover to the seat track.
Return the seat to the original position.

		1	Slide the seat track front cover rearward over the seat track, and then fasten the clips that attach the cover to the seat track.
		2	Return the seat to the original position.
