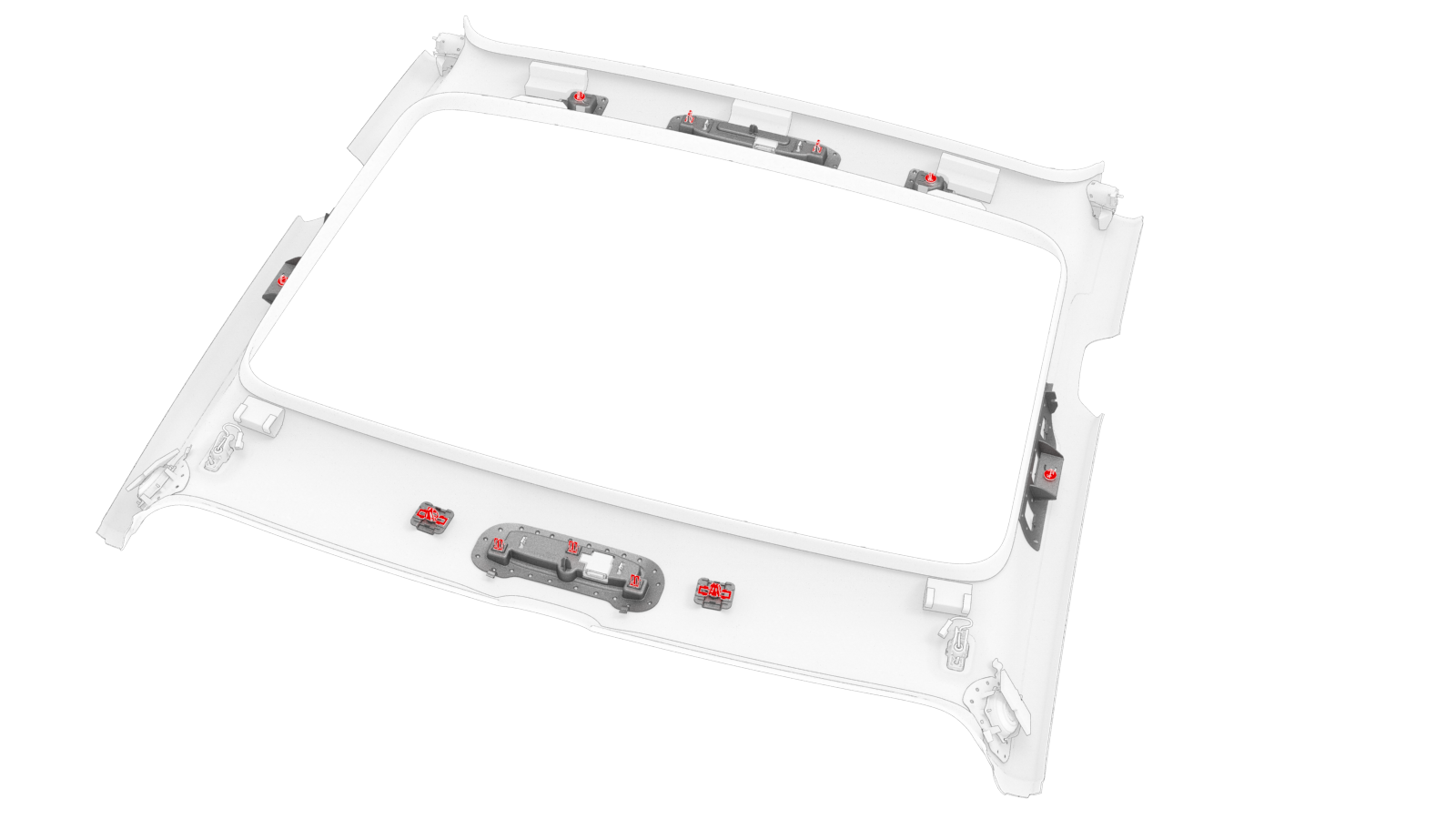

Headliner (Remove and Install)

Correction code 1520100115201001
Parent topic: 1520 - Headliner

Remove

  1. Remove the RH side rail trim. See Trim - Side Rail - LH (Remove and Replace).

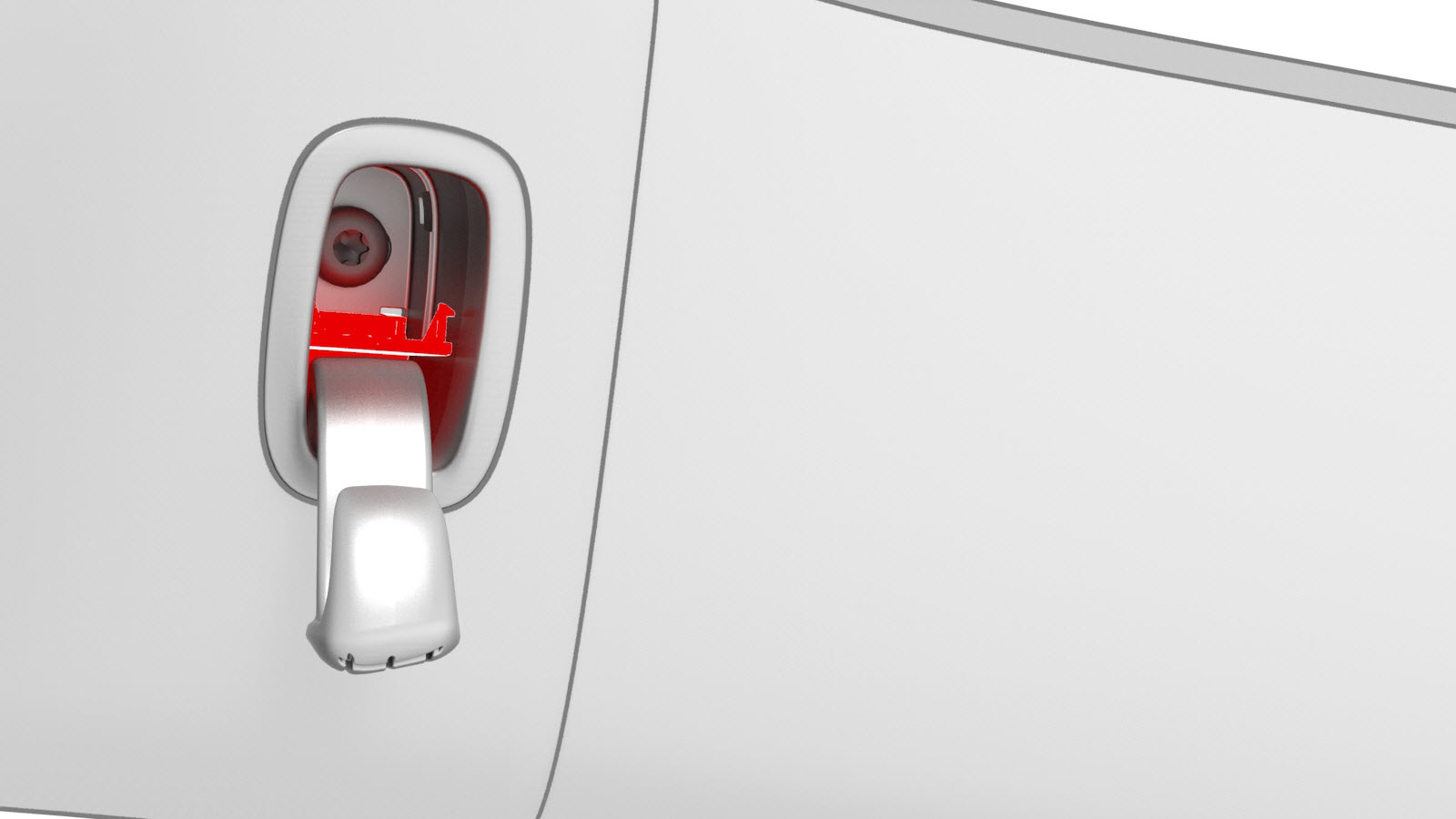

  2. Push to open the RH rear coat hook.
  3. Pry open the RH rear coat hook screw cover with a small flat head screwdriver.
  4. Remove the screw that attaches the RH rear coat hook to the body.
    Torque 2.5 Nm
    LH shown, RH similar
  5. Release the clips that attach the RH upper B-pillar trim to the vehicle, and then move the upper B-pillar trim aside.
    Note: It is not necessary to completely remove the upper B-pillar trim from the vehicle; only remove the trim with the seat belt still going though the upper B-pillar trim and set it aside.
  6. Repeat step 1 through step 5 on the LH side of the vehicle.
  7. Remove the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace).
  8. Remove the LH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace).
  9. Remove the LH lower A-pillar trim. See Trim - A-Pillar - Lower - LH (Remove and Replace).
  10. Remove the LH upper A-pillar trim. See Trim - A-Pillar - Upper - LH (Remove and Replace).
  11. Remove the driver sun visor. See Sun Visor - Driver (Remove and Replace).
  12. Remove the driver sun visor check base. See Check Base - Sun Visor - Driver (Remove and Replace).
  13. Remove the lower quad camera cover. See Quad Camera Cover - Lower (Remove and Replace).
  14. Remove the rear view mirror. See Mirror - Rear View (Remove and Replace).
  15. Repeat step 7 through step #GUID-87FD8D3D-05FF-471F-B2AC-EC4D65ED3E08/GUID-D41B944C-6C94-474F-8DCF-74D98C578CB8 on the RH side of the vehicle.

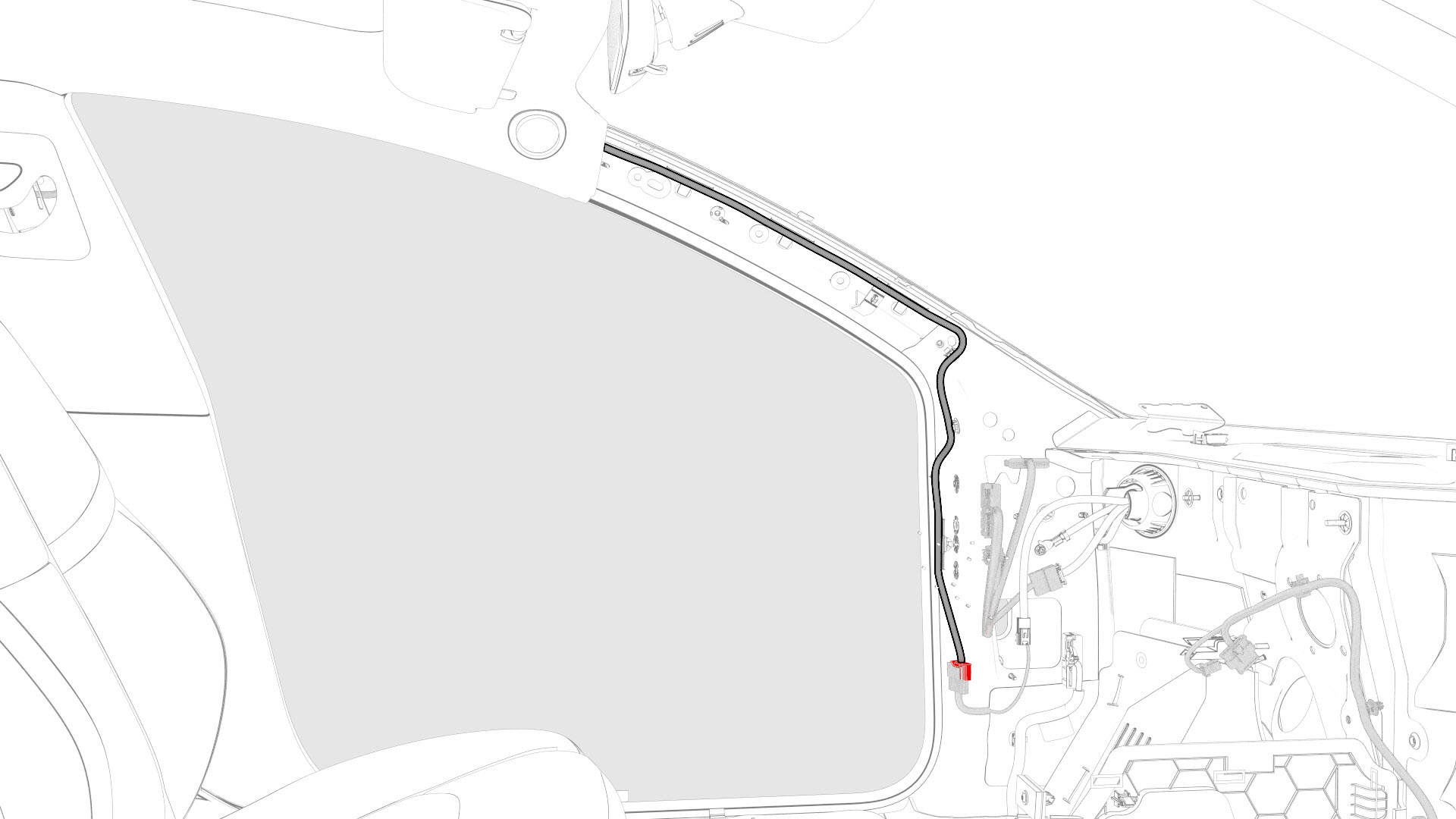

  16. Release the clips that attach the headliner electrical harness to the LH A-pillar area.
  17. Disconnect the headliner electrical harness.
  18. Release the clips that attach the headliner to the body.
  19. With an assistant, remove the headliner from the vehicle.
    Note: Remove the headliner through the front passenger door.
1Remove the RH side rail trim. See Trim - Side Rail - LH (Remove and Replace).
2Push to open the RH rear coat hook.
3Pry open the RH rear coat hook screw cover with a small flat head screwdriver.
LH shown, RH similar
4Remove the screw that attaches the RH rear coat hook to the body.
Torque 2.5 Nm
5Release the clips that attach the RH upper B-pillar trim to the vehicle, and then move the upper B-pillar trim aside.
Note: It is not necessary to completely remove the upper B-pillar trim from the vehicle; only remove the trim with the seat belt still going though the upper B-pillar trim and set it aside.
6Repeat step 1 through step 5 on the LH side of the vehicle.
7Remove the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace).
8Remove the LH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace).
9Remove the LH lower A-pillar trim. See Trim - A-Pillar - Lower - LH (Remove and Replace).
10Remove the LH upper A-pillar trim. See Trim - A-Pillar - Upper - LH (Remove and Replace).
11Remove the driver sun visor. See Sun Visor - Driver (Remove and Replace).
12Remove the driver sun visor check base. See Check Base - Sun Visor - Driver (Remove and Replace).
13Remove the lower quad camera cover. See Quad Camera Cover - Lower (Remove and Replace).
14Remove the rear view mirror. See Mirror - Rear View (Remove and Replace).
15Repeat step 7 through step #GUID-87FD8D3D-05FF-471F-B2AC-EC4D65ED3E08/GUID-D41B944C-6C94-474F-8DCF-74D98C578CB8 on the RH side of the vehicle.
16Release the clips that attach the headliner electrical harness to the LH A-pillar area.
17Disconnect the headliner electrical harness.
18Release the clips that attach the headliner to the body.
19With an assistant, remove the headliner from the vehicle.
Note: Remove the headliner through the front passenger door.

Install

Installation procedure is the reverse of removal.
