Insulators - HV Battery (Install)

Correction code 1630200116302001
Warning:

Only technicians who have been trained in High Voltage Awareness are permitted to perform this procedure. Proper personal protective equipment (PPE) and insulating HV gloves with a minimum rating of class 0 (1000V) must be worn at all times a high voltage cable, busbar, or fitting is handled. Refer to Tech Note TN-15-92-003, "High Voltage Awareness Care Points" for additional safety information.

Parent topic: 1630 - HV Battery Electrical Components

Install

Note: This procedure supplements removing the penthouse cover for when HV insulators are missing. After completing this procedure, continue to the procedure that required the penthouse cover to be removed.

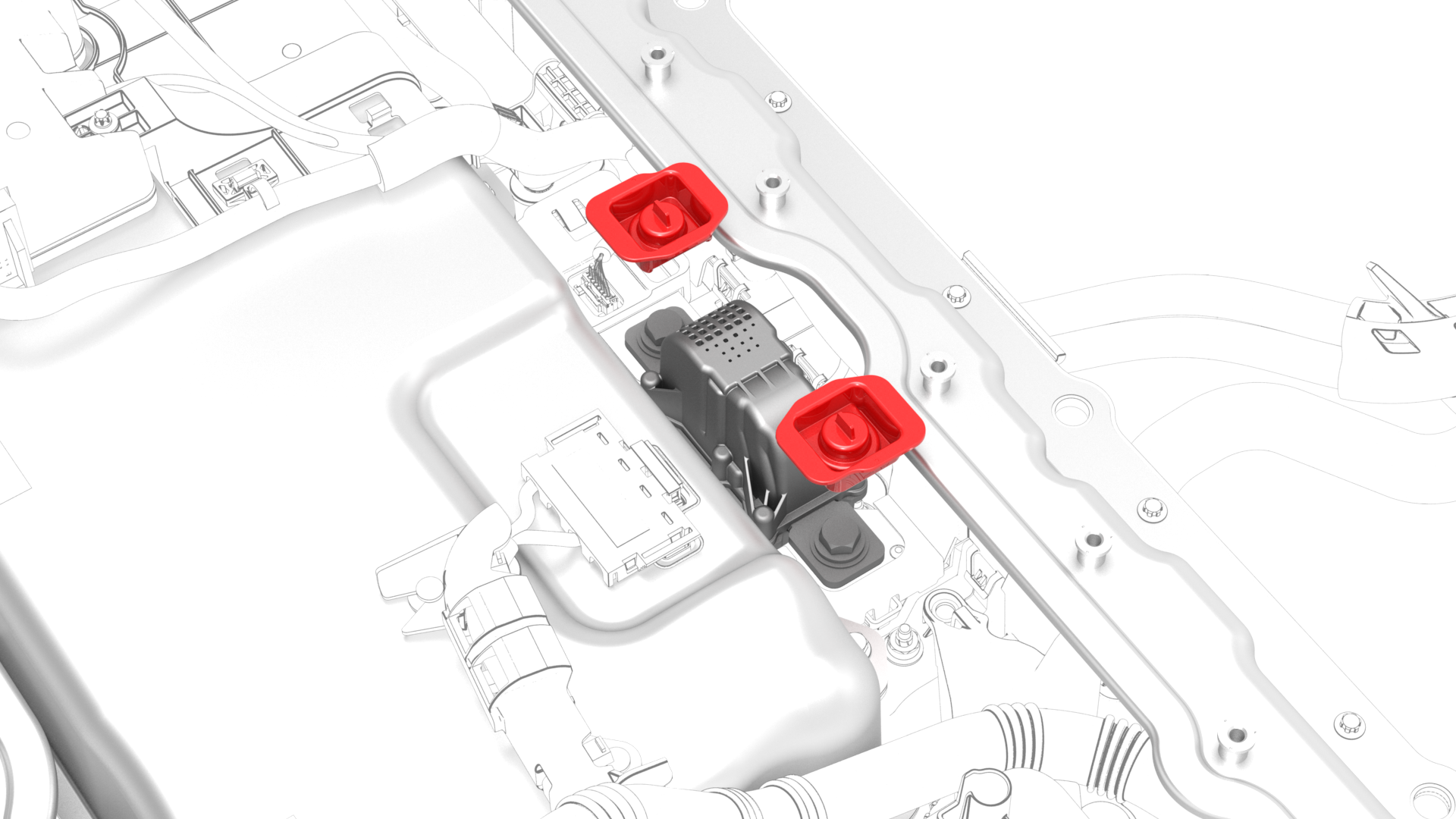

  1. Install the squarish insulator caps onto the pyrotechnic battery disconnect busbar bolt heads.

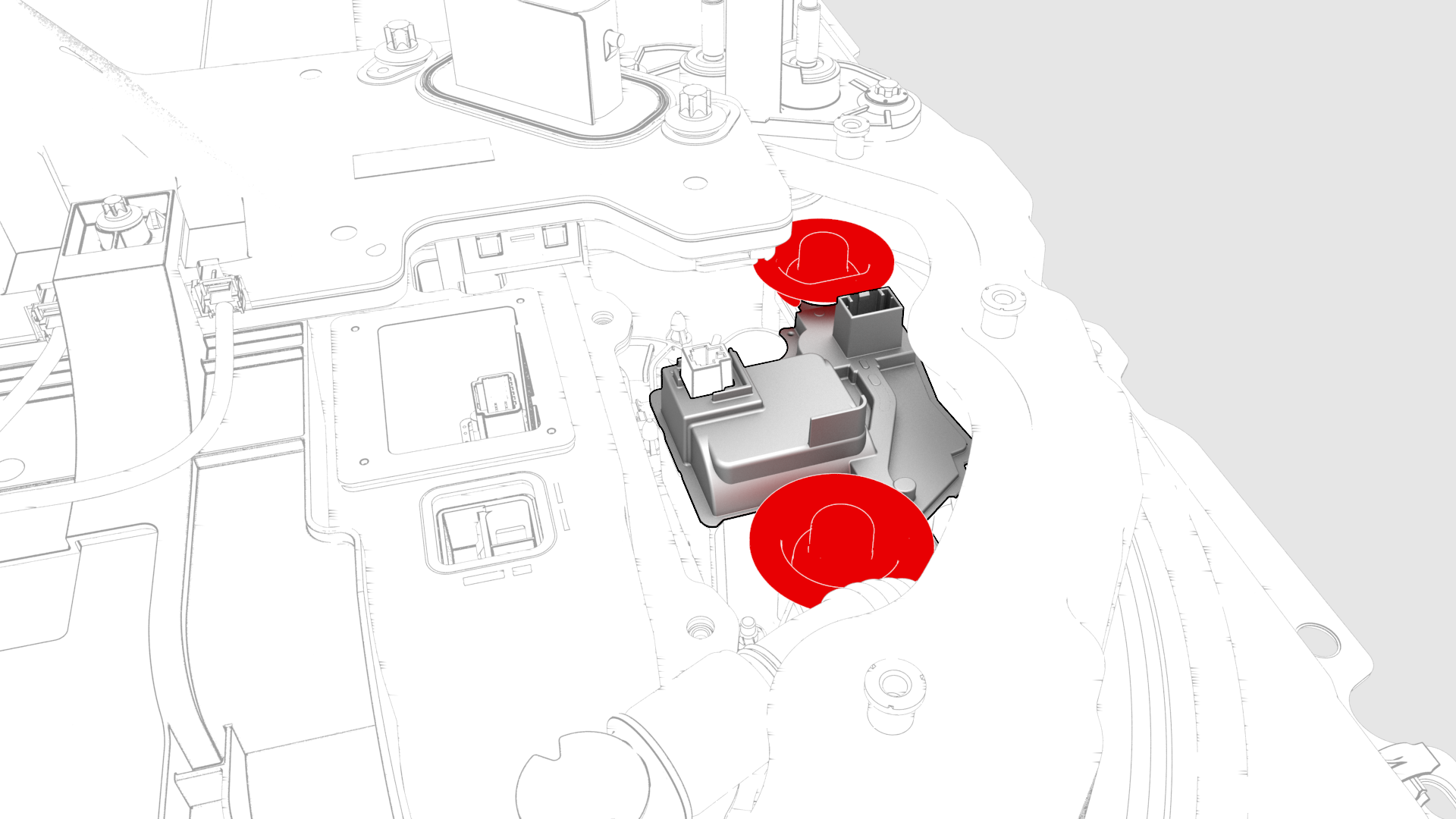

  2. Install the round insulator caps onto the HV battery positive contactor busbar bolt heads.

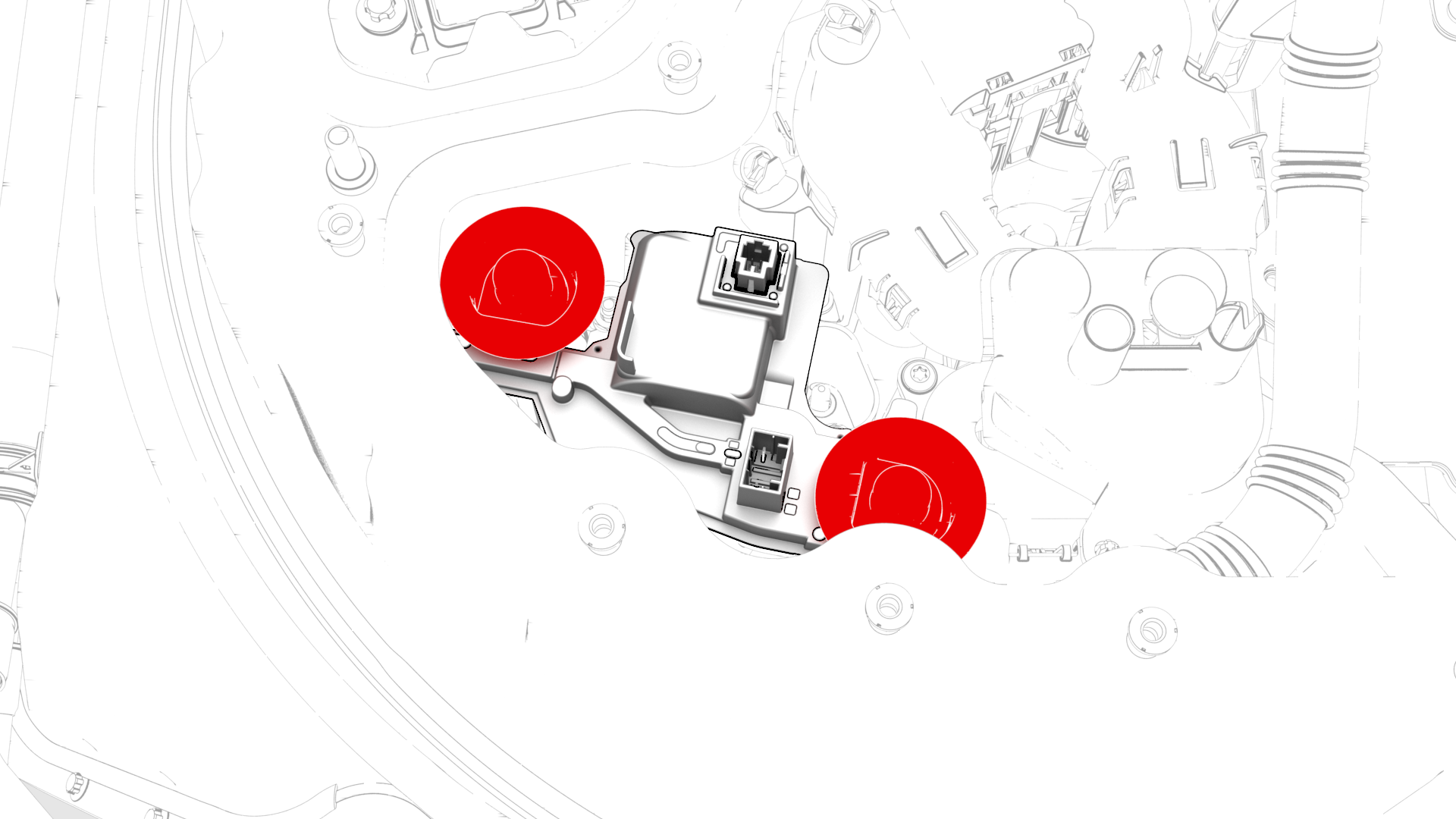

  3. Install the round insulator caps onto the HV battery negative contactor busbar bolt heads.
  4. Raise the high voltage controller, install the fuse access insulator onto the RH penthouse bus cover, fasten the clips that attach the insulator to the cover, and lower the high voltage controller.

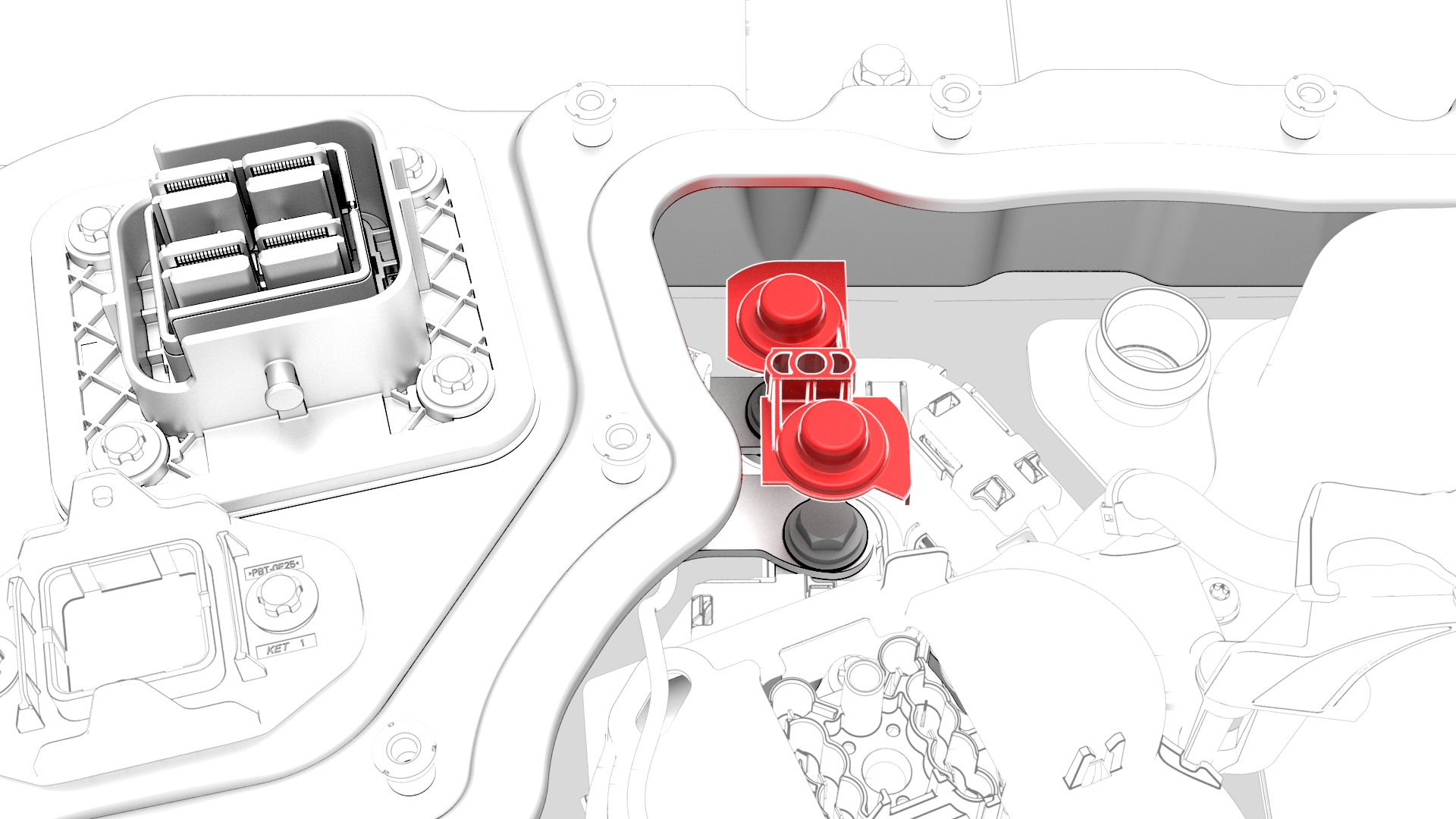

  5. Install the special insulator onto the DC input assembly busbar bolt heads.

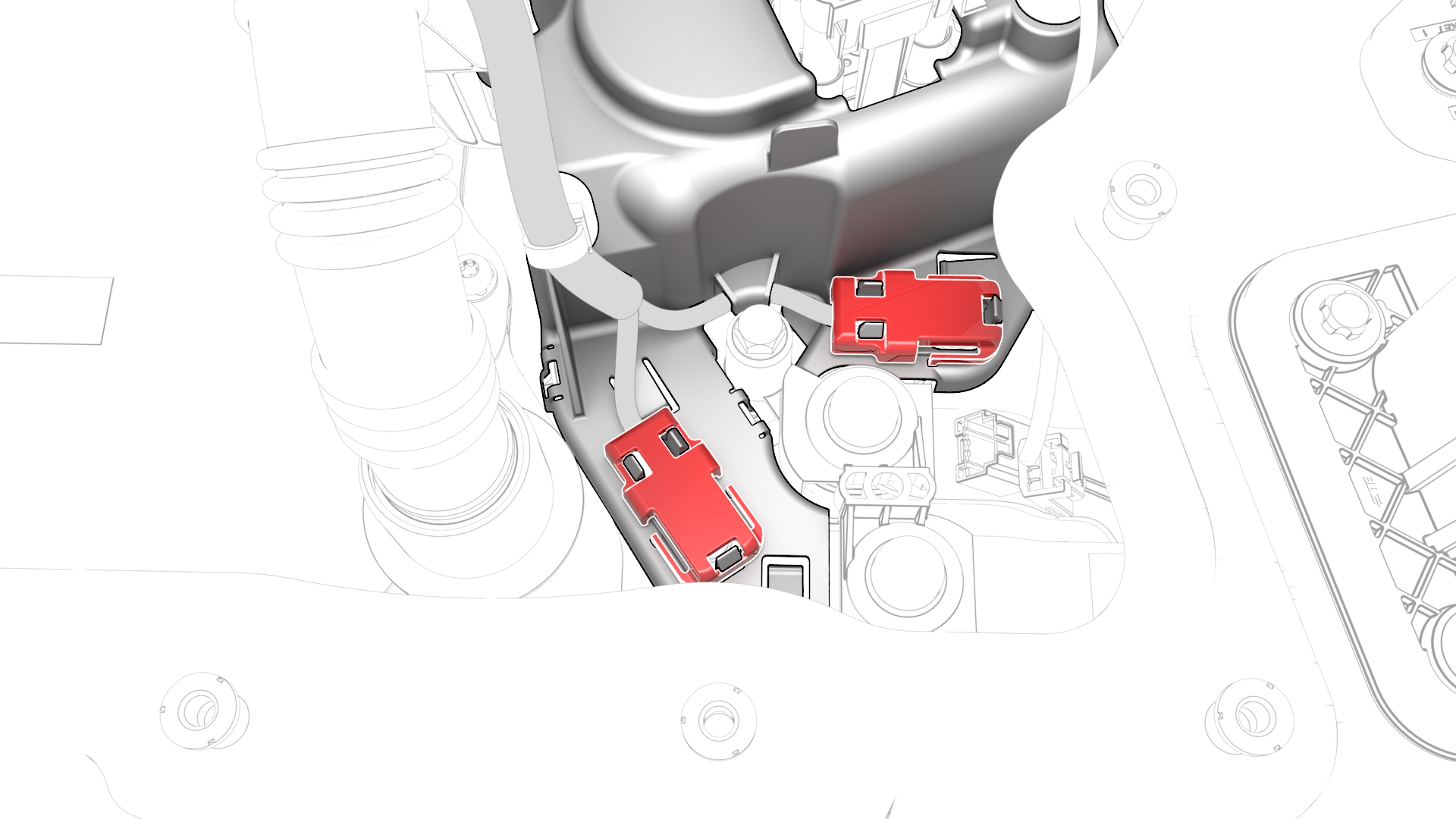

  6. Install the AC inlet terminal covers over the positive and negative ring terminal bolts, and fasten the clips that attach the AC inlet terminal covers to the HV battery fast charge contactor cover.
  7. Continue to the procedure that required the penthouse cover to be removed.
1Install the squarish insulator caps onto the pyrotechnic battery disconnect busbar bolt heads.
2Install the round insulator caps onto the HV battery positive contactor busbar bolt heads.
3Install the round insulator caps onto the HV battery negative contactor busbar bolt heads.
4Raise the high voltage controller, install the fuse access insulator onto the RH penthouse bus cover, fasten the clips that attach the insulator to the cover, and lower the high voltage controller.
5Install the special insulator onto the DC input assembly busbar bolt heads.
6Install the AC inlet terminal covers over the positive and negative ring terminal bolts, and fasten the clips that attach the AC inlet terminal covers to the HV battery fast charge contactor cover.
7Continue to the procedure that required the penthouse cover to be removed.
