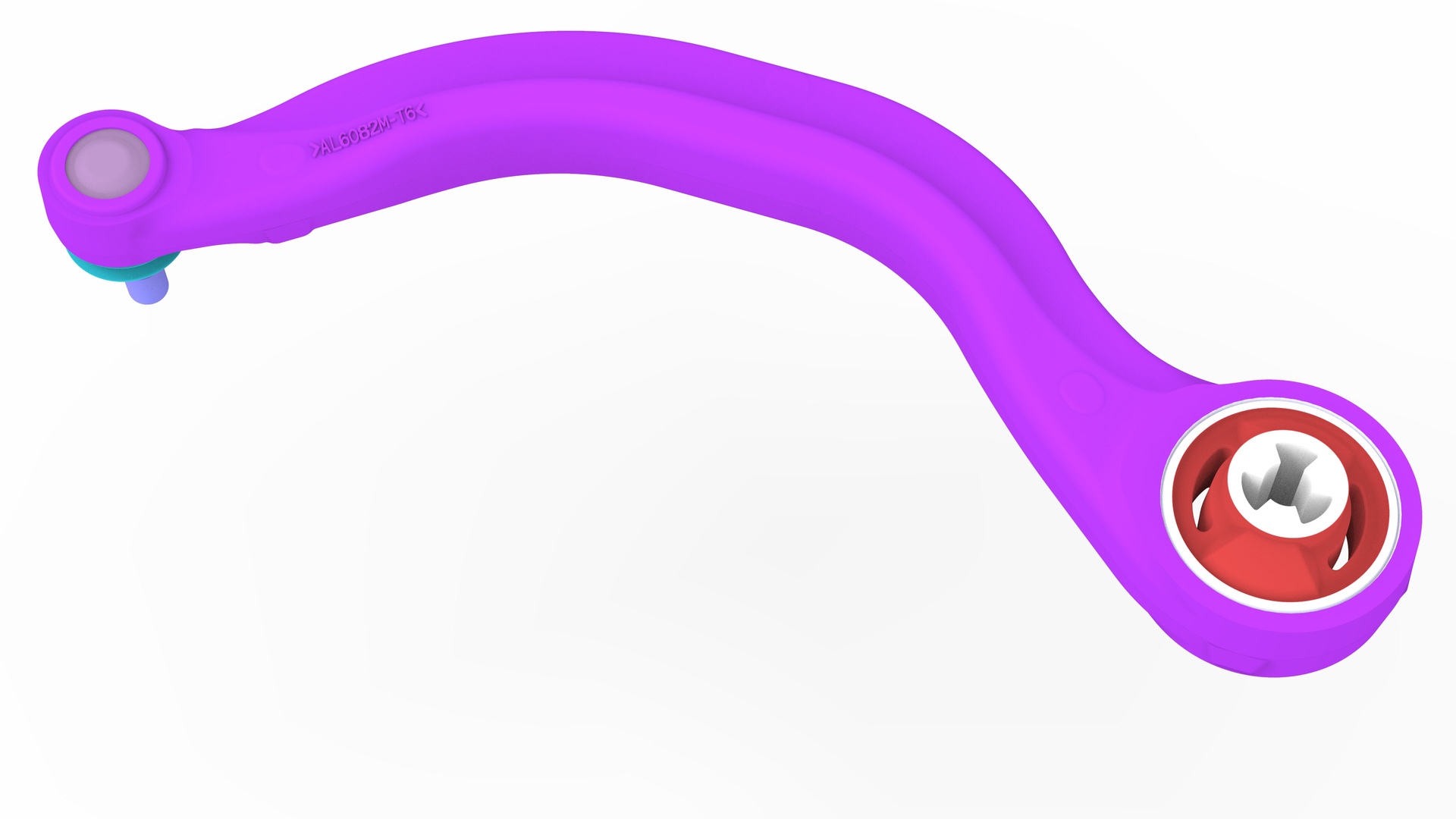

Link - Compliance - Lower - Front - LH (Remove and Replace)
Correction code 3101360231013602
Remove
-
Remove and discard the nut that attaches the front LH lower compliance link to the knuckle.
Torque 180 Nm
-

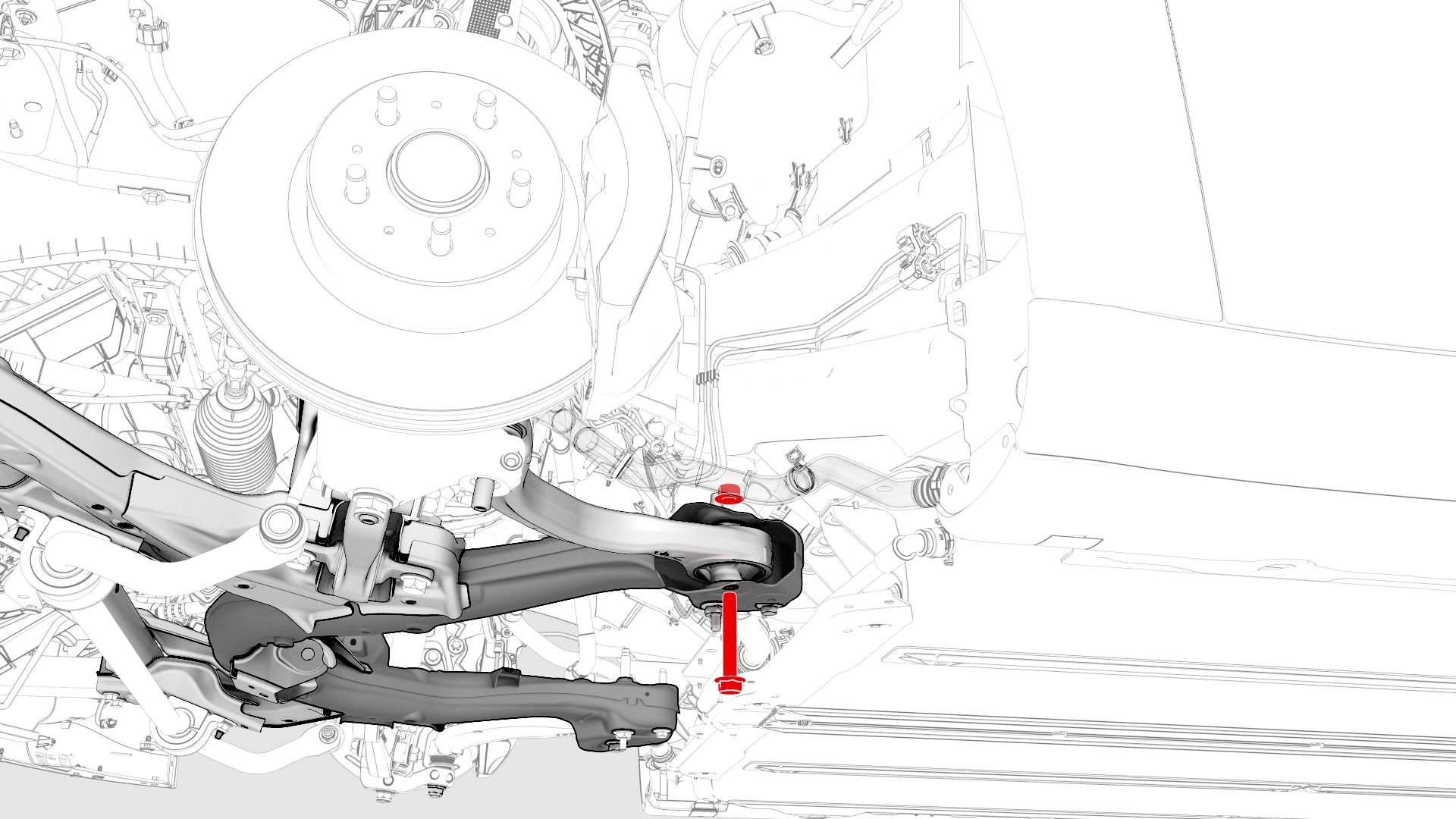

Remove the bolt and nut that attach the link to the front subframe, and then remove the link from the subframe and knuckle.
Torque 115 Nm
Torque 115 Nm
| 1 | Remove the LH front wheel arch liner. See Wheel Arch Liner - Front - LH (Remove and Replace). | ||
| 2 | Remove the front aero shield panel. See Panel - Aero Shield - Front (Remove and Replace). | ||
| 3 | Remove and discard the nut that attaches the front LH lower compliance link to the knuckle. Torque 180 Nm | |
| 4 | Remove the bolt and nut that attach the link to the front subframe, and then remove the link from the subframe and knuckle. Torque 115 Nm Torque 115 Nm |
Install
Installation procedure is the reverse of removal, except for the following:

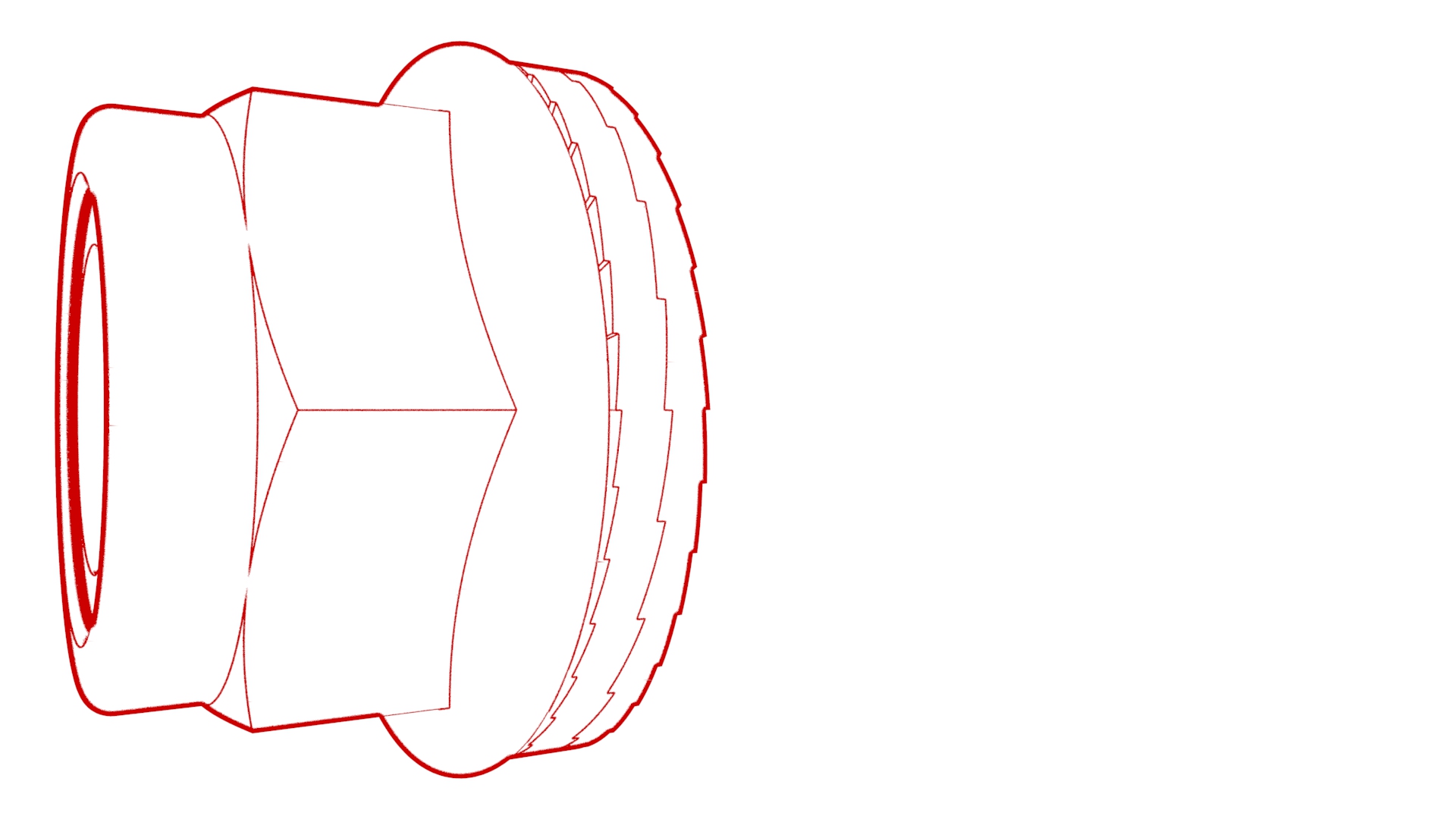

- Replace all nyloc nuts.
- Perform a 4 wheel alignment. See Four Wheel Alignment (Check and Adjust).
