Drop Link - Stabilizer Bar - Rear - LH (Remove and Replace)

Correction code 3103340231033402
Parent topic: 3103 - Rear Suspension (Including Hubs)

Remove

  1. Remove the mid aero shield. See Panel - Aero Shield - Mid (Remove and Replace).

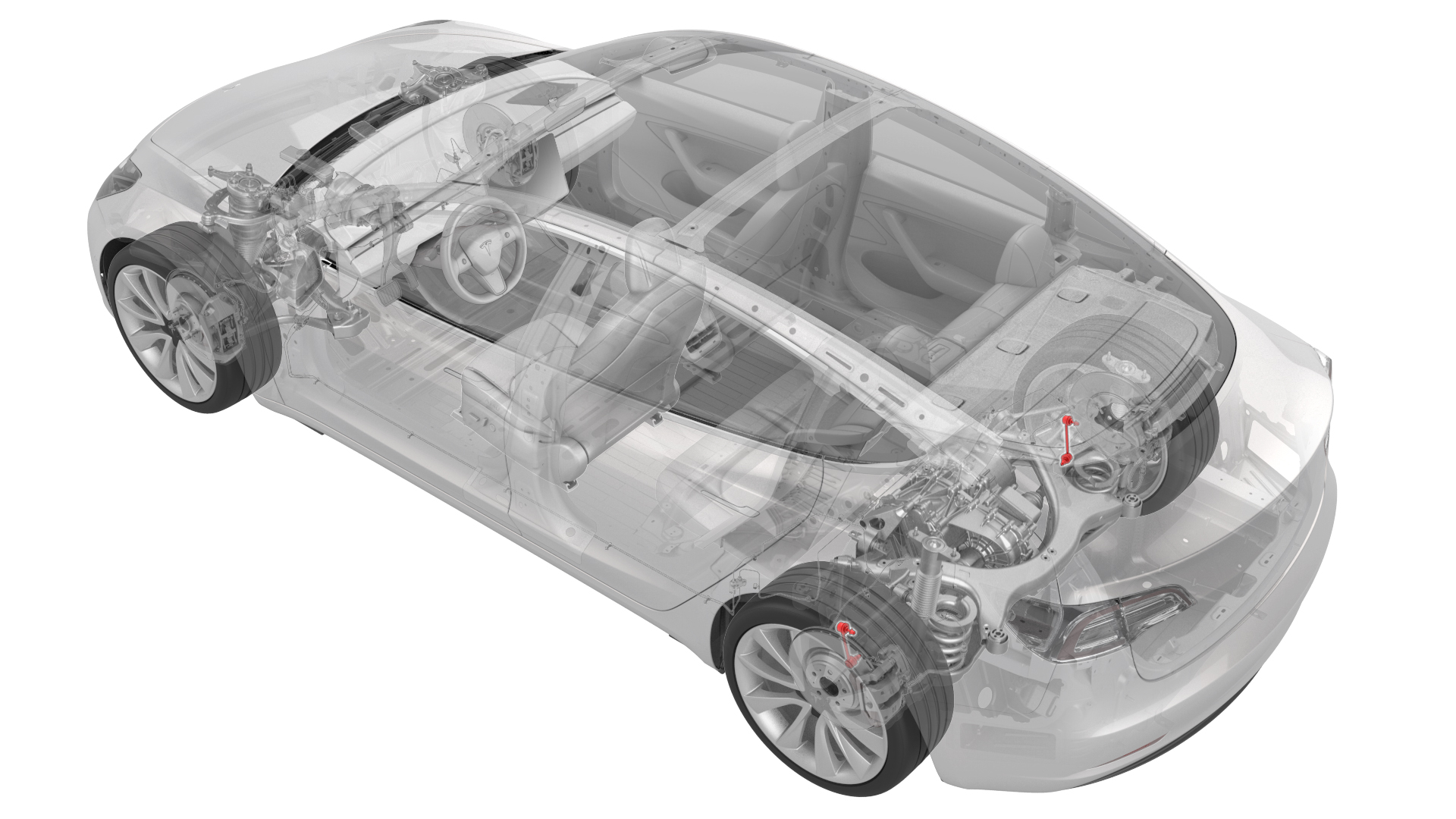

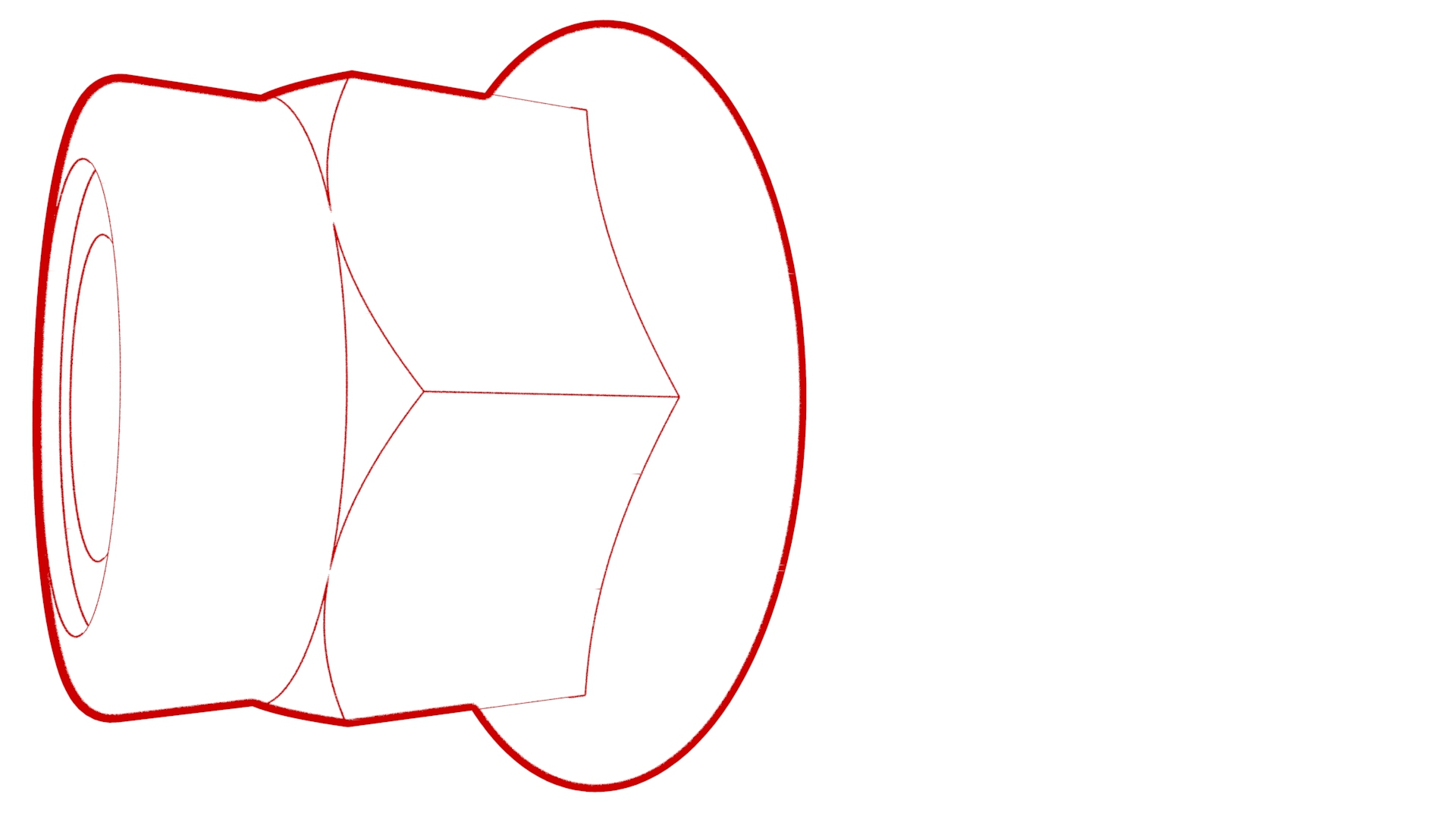

  2. Remove and discard the nuts that attach the LH drop link to the rear stabilizer bar and rear LH knuckle.
    Torque 55 Nm

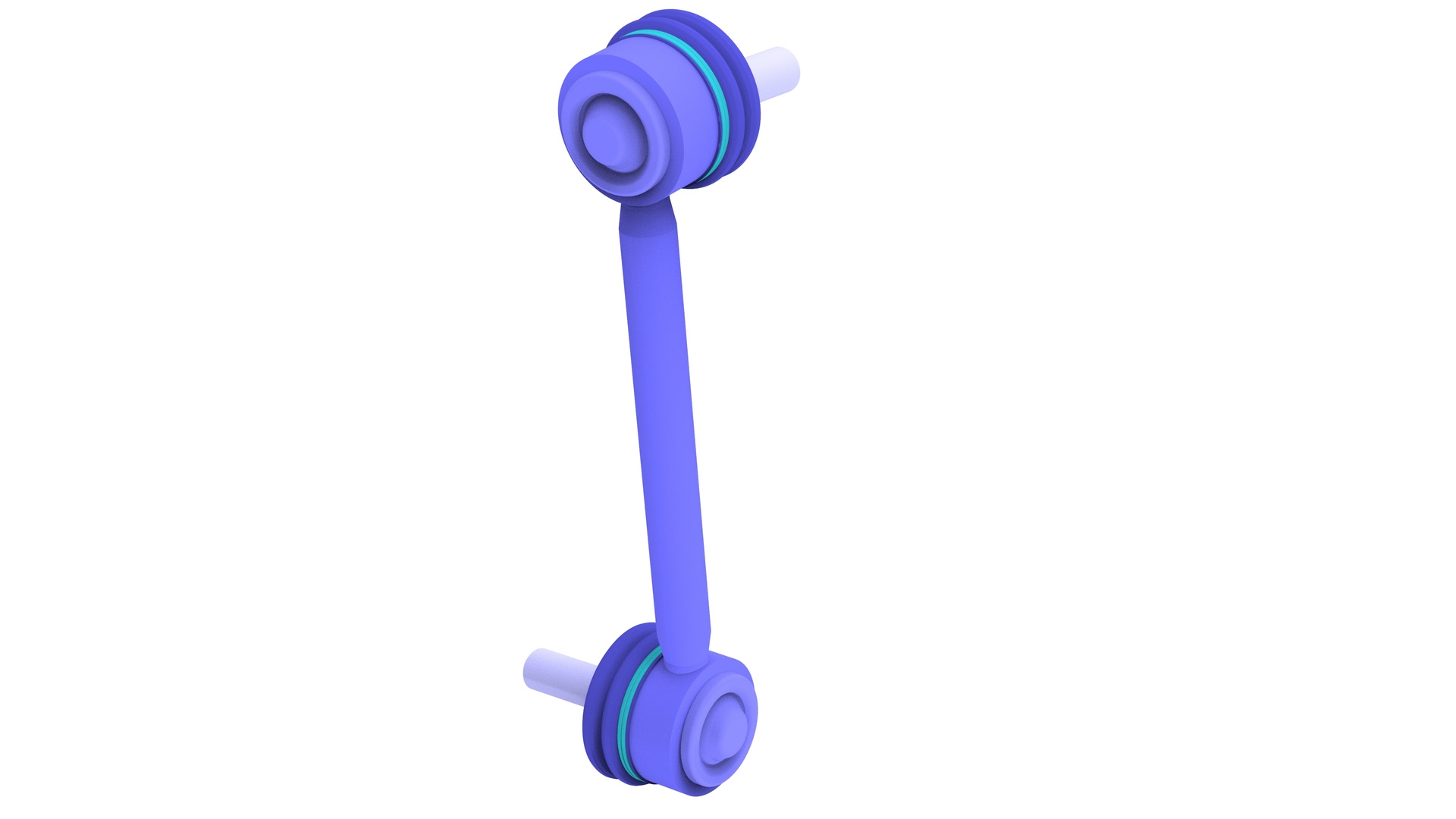

  3. Remove the drop link from the vehicle.
1Remove the mid aero shield. See Panel - Aero Shield - Mid (Remove and Replace).
2Remove and discard the nuts that attach the LH drop link to the rear stabilizer bar and rear LH knuckle.
Torque 55 Nm
3Remove the drop link from the vehicle.

Install

Installation procedure is the reverse of removal, except for the following:

Caution:
Replace all nyloc nuts.
