Garnish - Trunk (Remove and Replace)

Correction code 1511110215111102

Remove

Open the trunk.

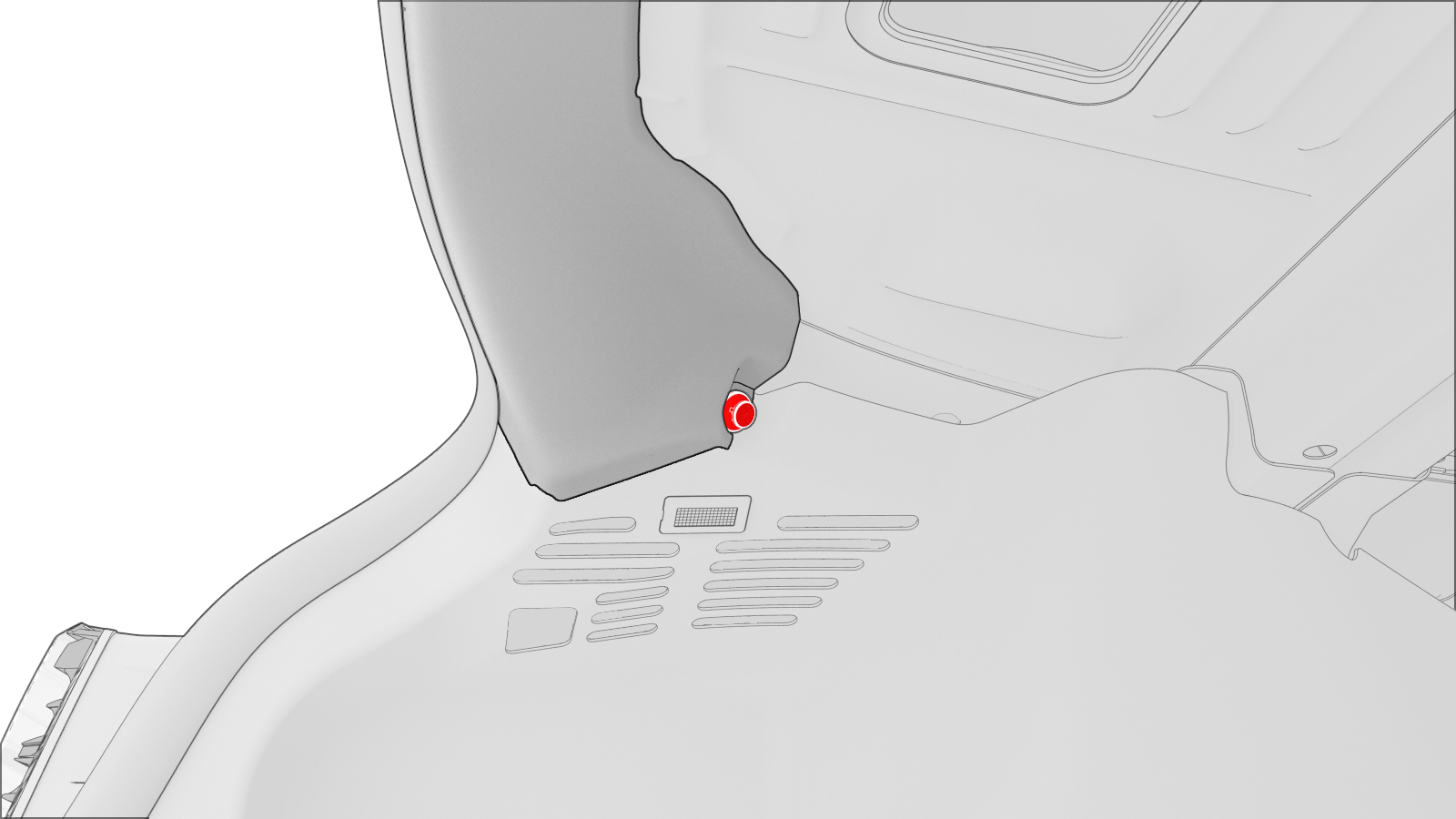

Release the clips (x2) that attach the ends of the trunk garnish to the body.

LH shown, RH similar

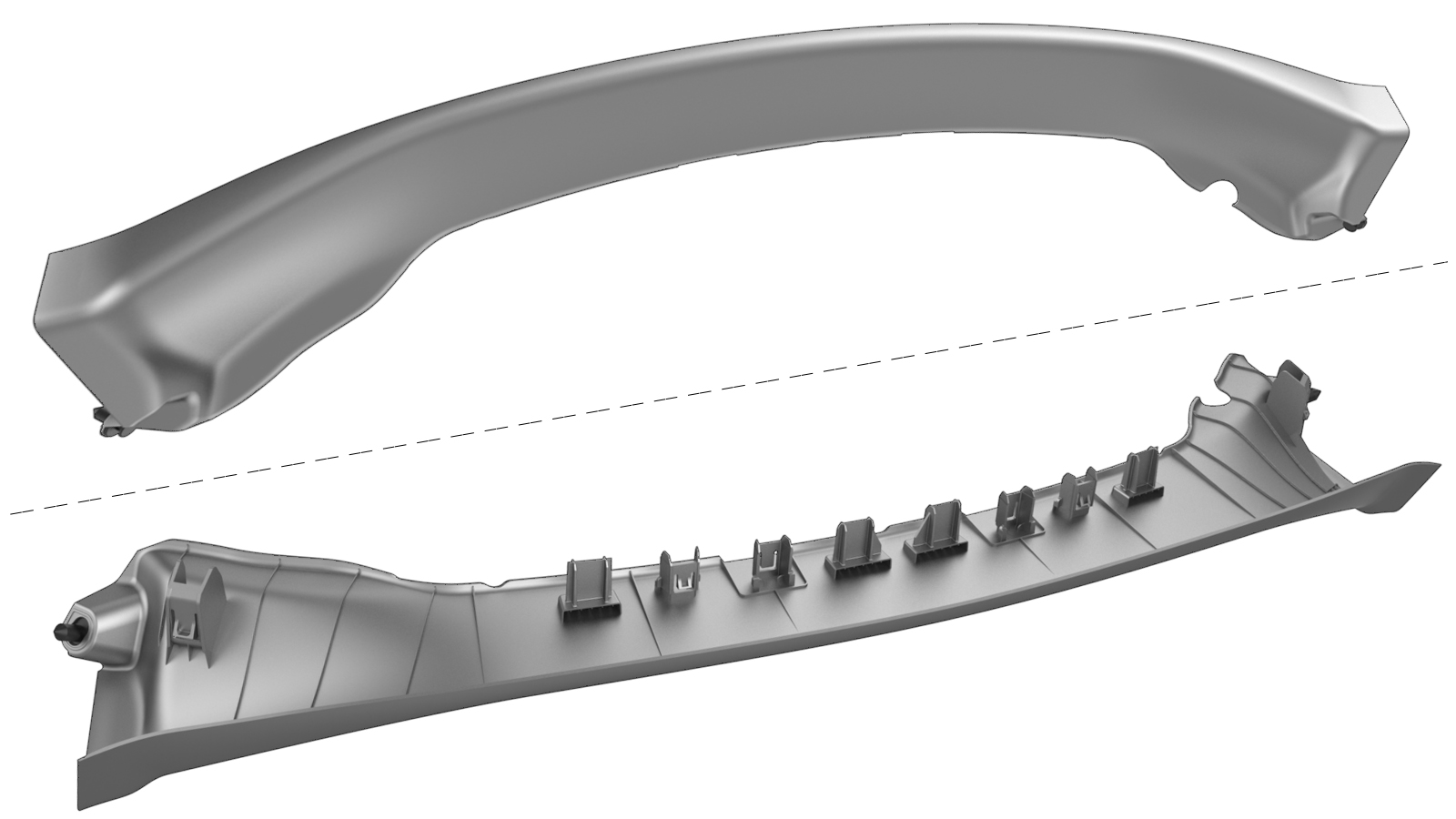

Release the tabs (x10) that attach the trunk garnish to the body, and then remove the trunk garnish from the vehicle.

	1	Open the trunk.
LH shown, RH similar	2	Release the clips (x2) that attach the ends of the trunk garnish to the body.
	3	Release the tabs (x10) that attach the trunk garnish to the body, and then remove the trunk garnish from the vehicle.

Install

Installation procedure is the reverse of removal.
