ECU - Charge Port (Remove and Replace)

Correction code 4401500244015002
Parent topic: 4401 - Charge System Inlet

Remove

  1. Open the trunk.
  2. Remove the LH trunk side trim. See Trim - Side - Trunk - LH (Remove and Replace).
  3. Disconnect 12V power. See 12V Power (Disconnect and Connect).

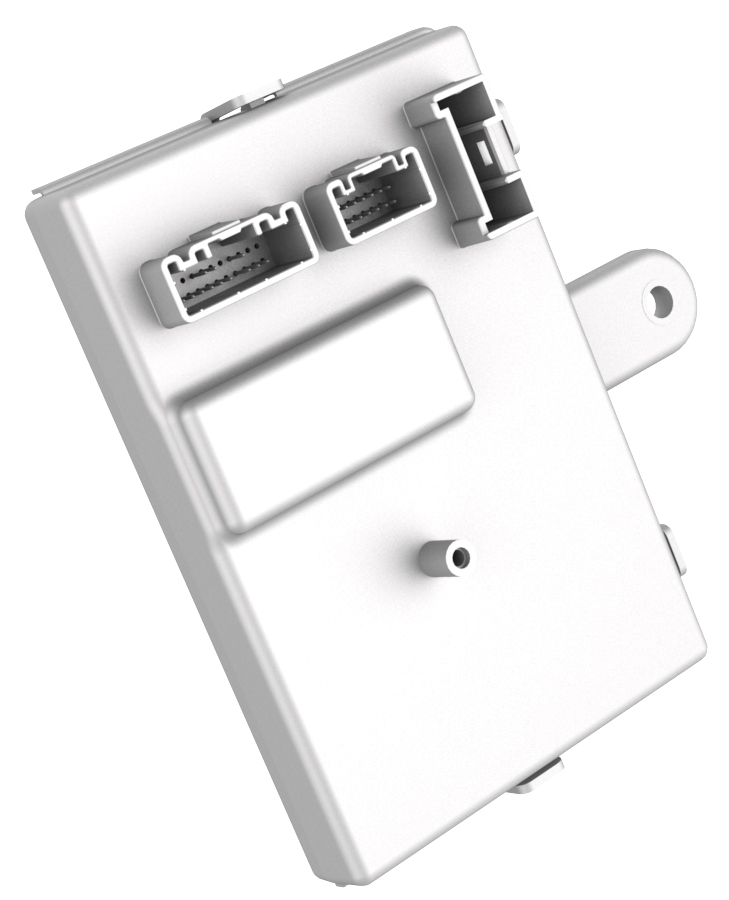

  4. Disconnect the electrical harnesses from the 3 charge port ECU connectors.

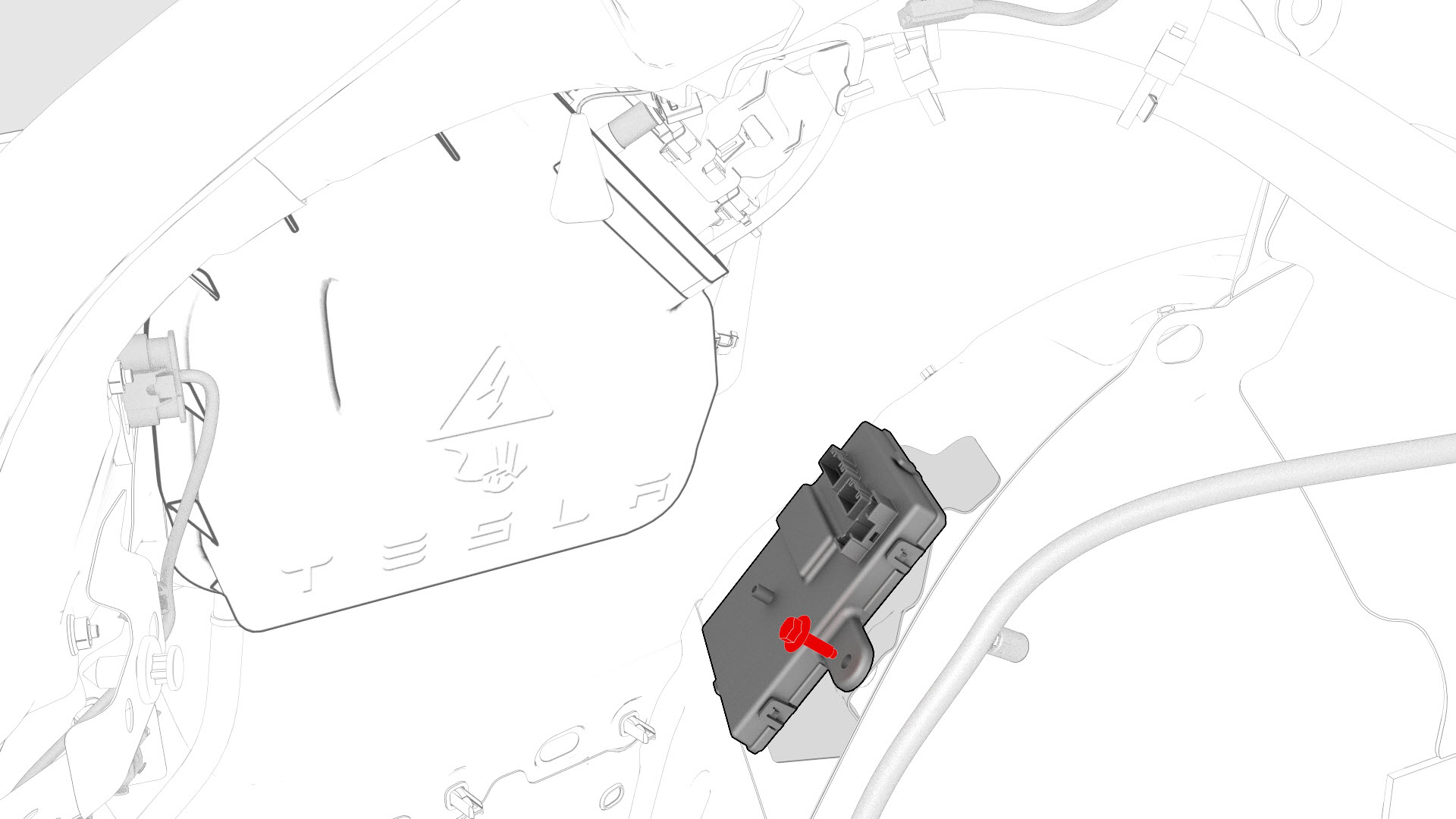

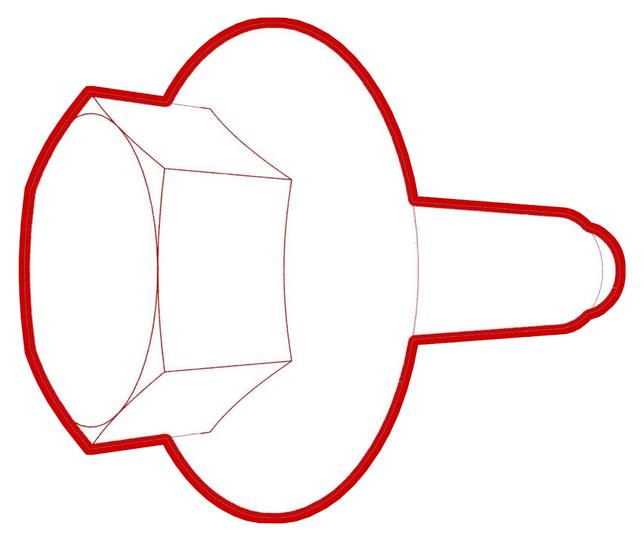

  5. Remove the bolt that attaches the charge port ECU to the body.
    Torque 5.5 Nm

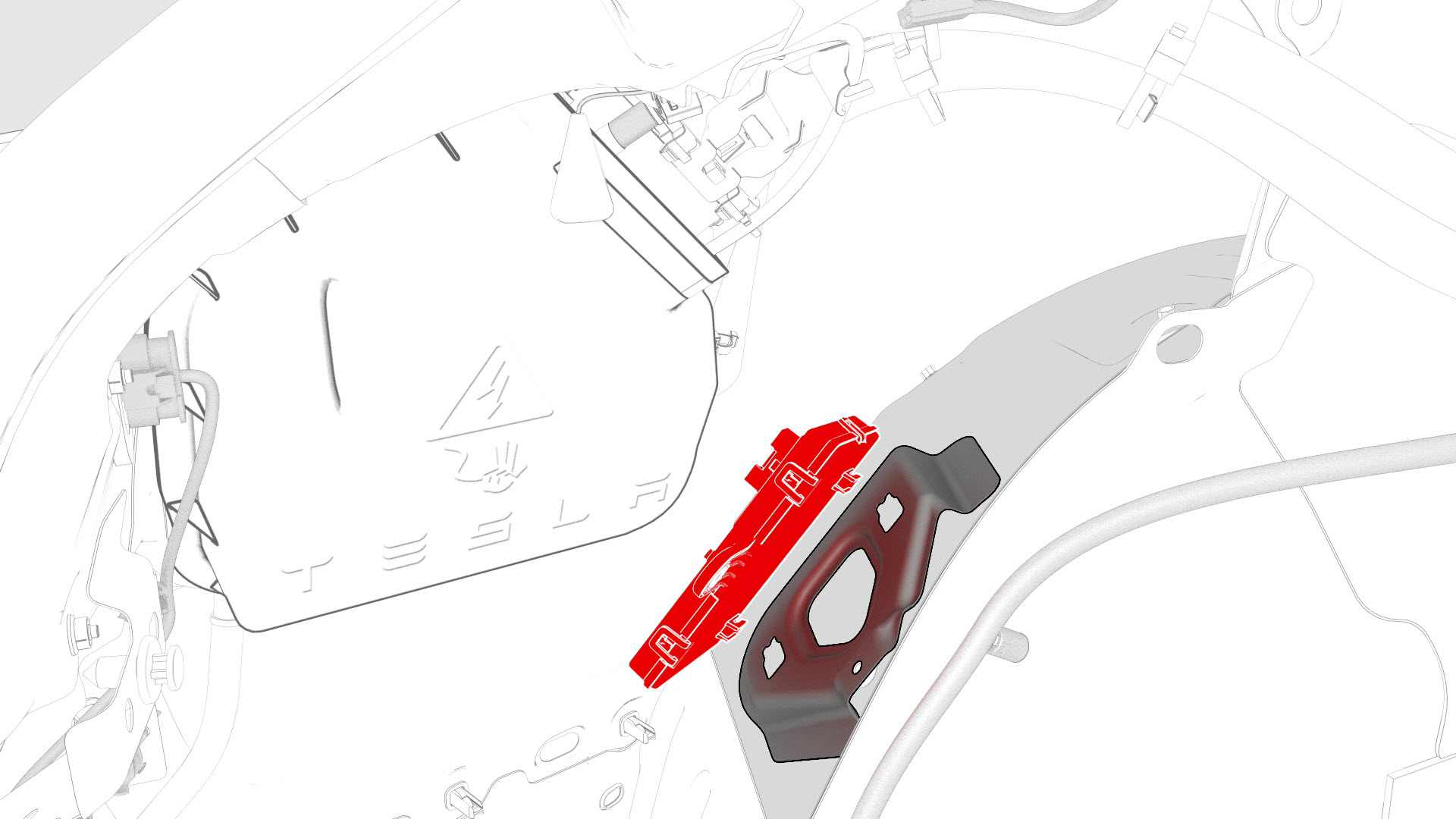

  6. Slide the charge port ECU to the right to release the tabs that attach the ECU to the body, and then remove the ECU from the vehicle.
1Open the trunk.
2Remove the LH trunk side trim. See Trim - Side - Trunk - LH (Remove and Replace).
3Disconnect 12V power. See 12V Power (Disconnect and Connect).
4Disconnect the electrical harnesses from the 3 charge port ECU connectors.
5Remove the bolt that attaches the charge port ECU to the body.
Torque 5.5 Nm
6Slide the charge port ECU to the right to release the tabs that attach the ECU to the body, and then remove the ECU from the vehicle.

Install

Installation procedure is the reverse of removal, except for the following:

Update the firmware.
