USB Hub - Center Console - Rear (Remove and Replace)

Correction code 2126060221260602

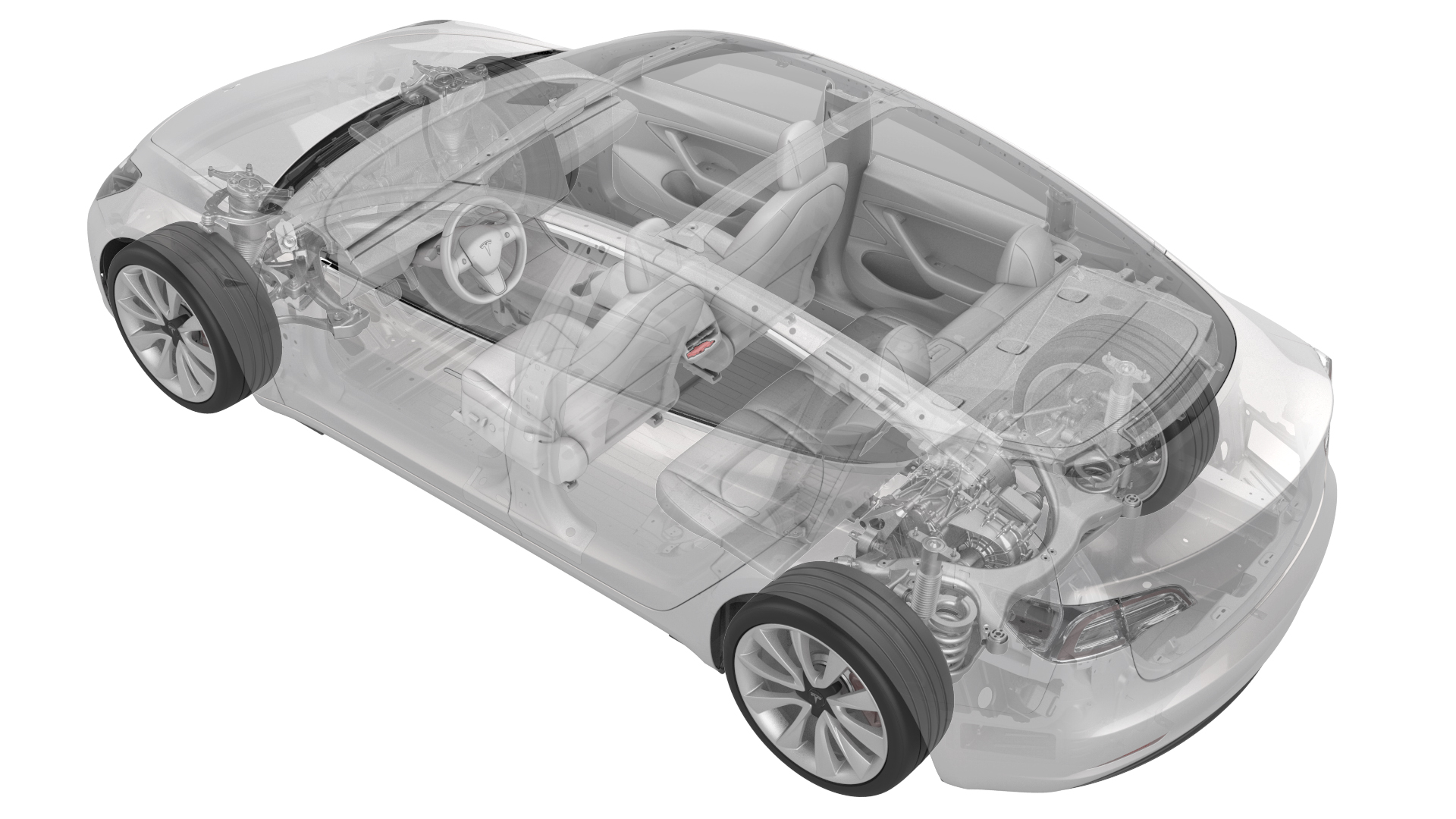

Remove

Remove the center console air vent panel. See Panel - Air Vent - Center Console (Remove and Replace).

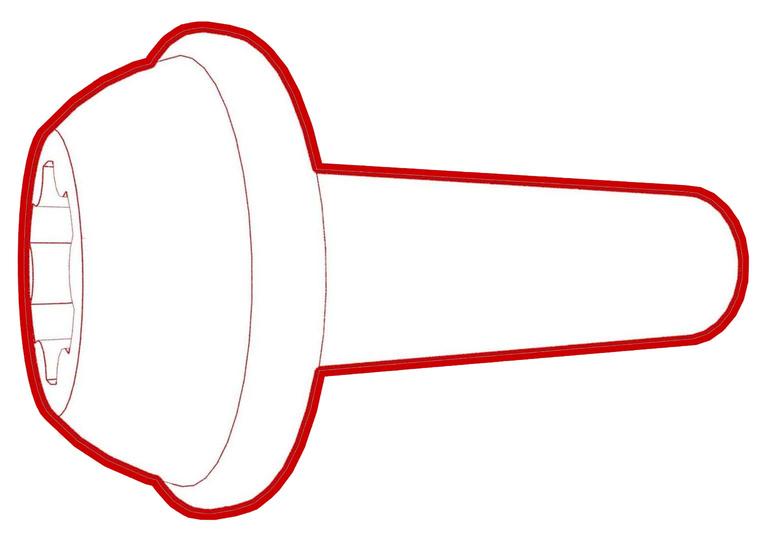

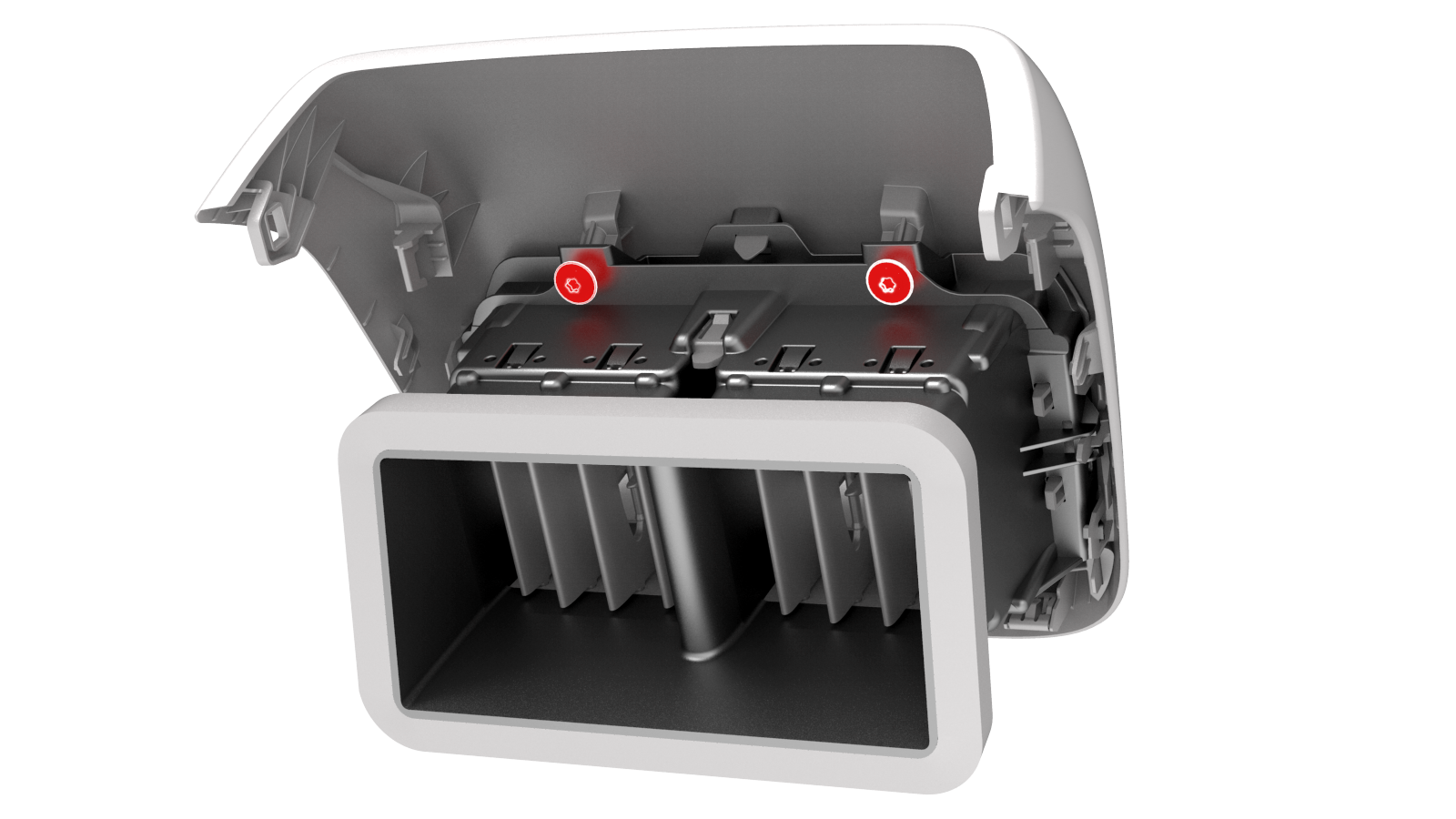

Remove the screws that attach the vent unit to the center console air vent panel, and remove the vent unit from the panel.
Torque 1.6 Nm

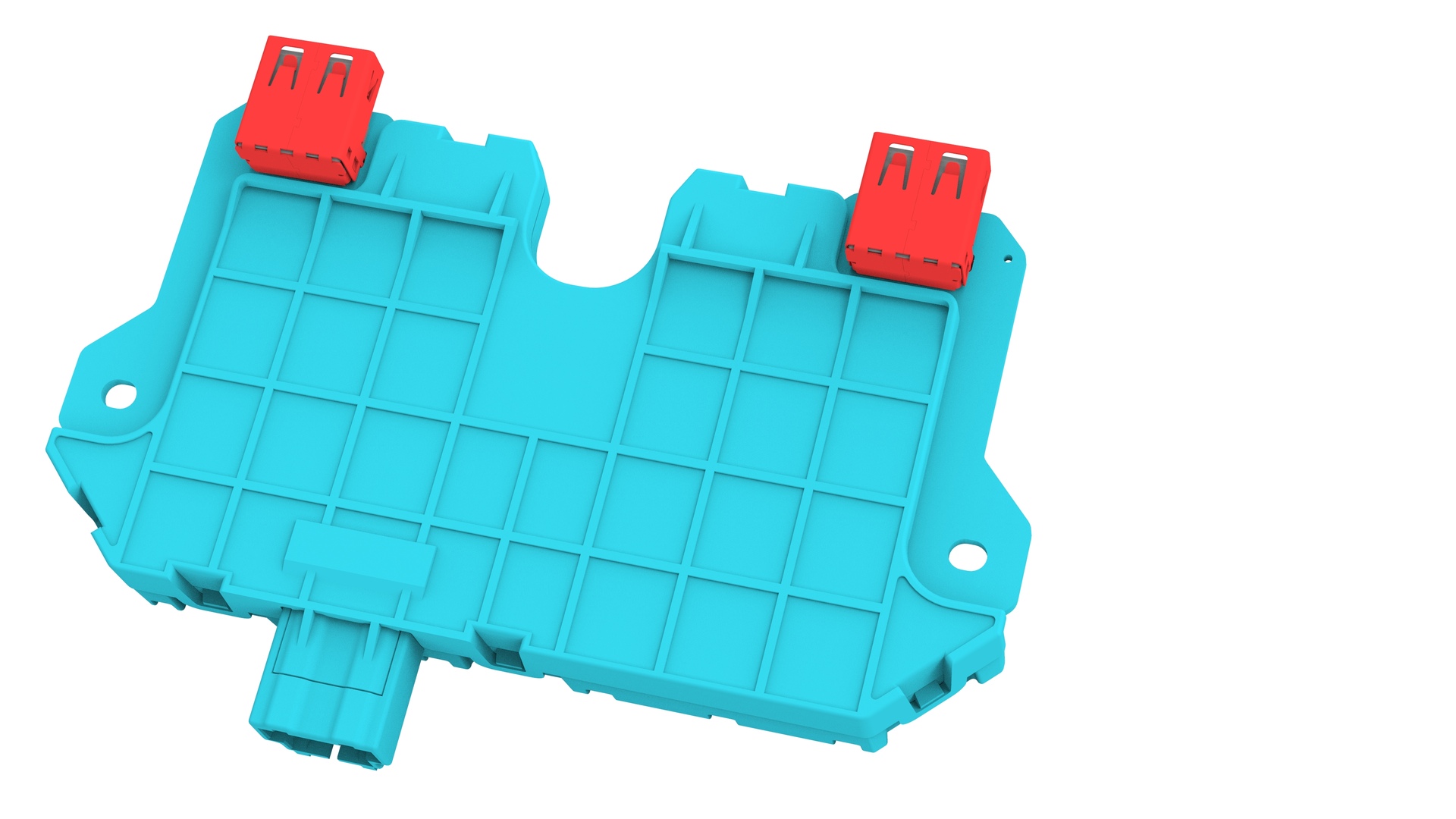

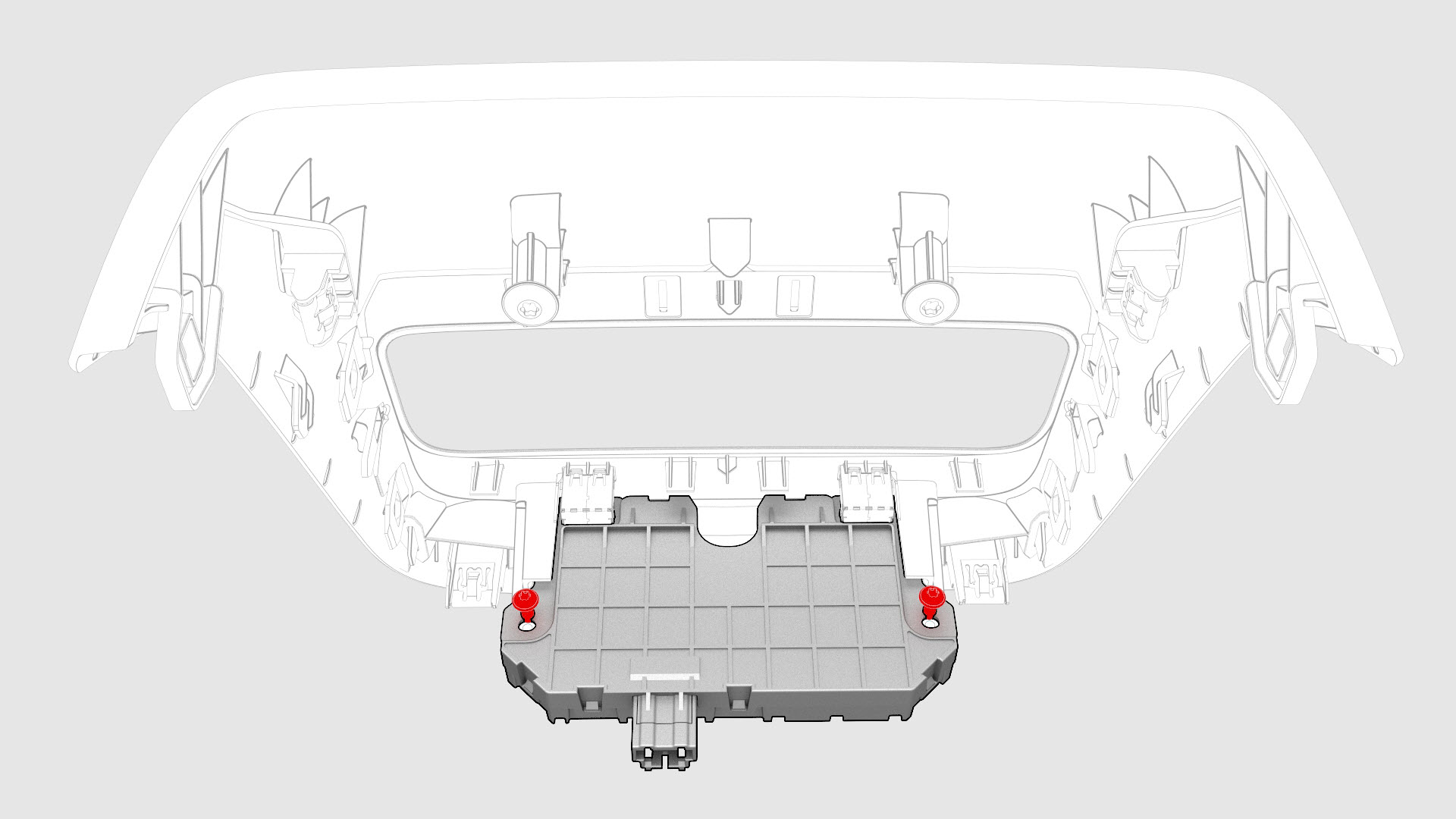

Remove the screws that attach the rear center console USB hub to the center console air vent, and remove the USB hub from the vent.
Torque 1.1 Nm

		1	Remove the center console air vent panel. See Panel - Air Vent - Center Console (Remove and Replace).
		2	Remove the screws that attach the vent unit to the center console air vent panel, and remove the vent unit from the panel. Torque 1.6 Nm
		3	Remove the screws that attach the rear center console USB hub to the center console air vent, and remove the USB hub from the vent. Torque 1.1 Nm

Install

Installation procedure is the reverse of removal.
