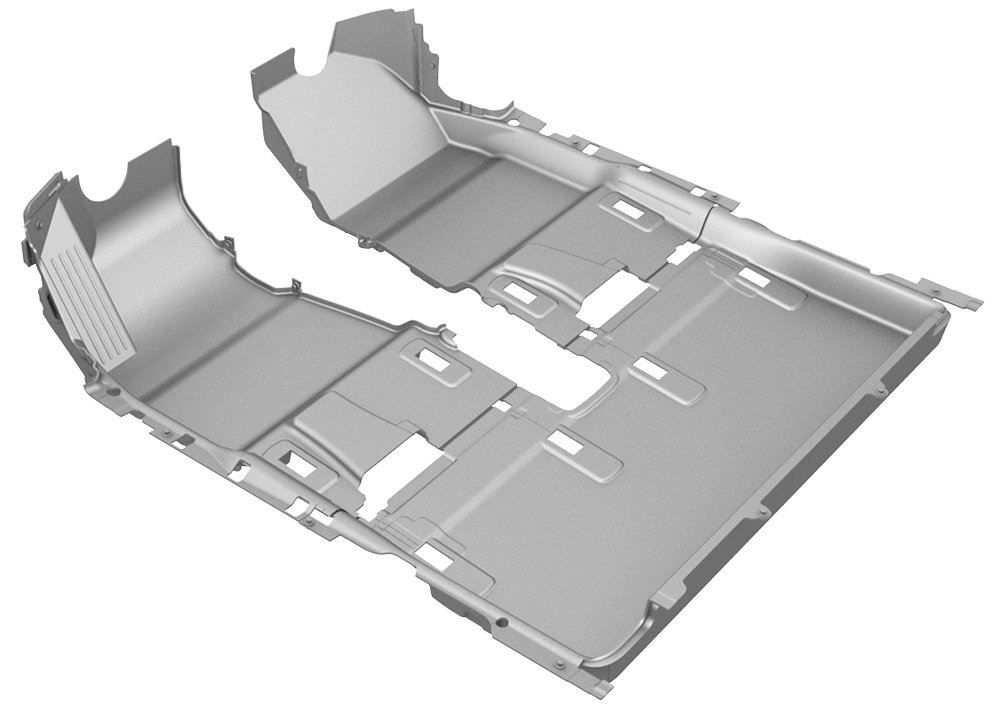

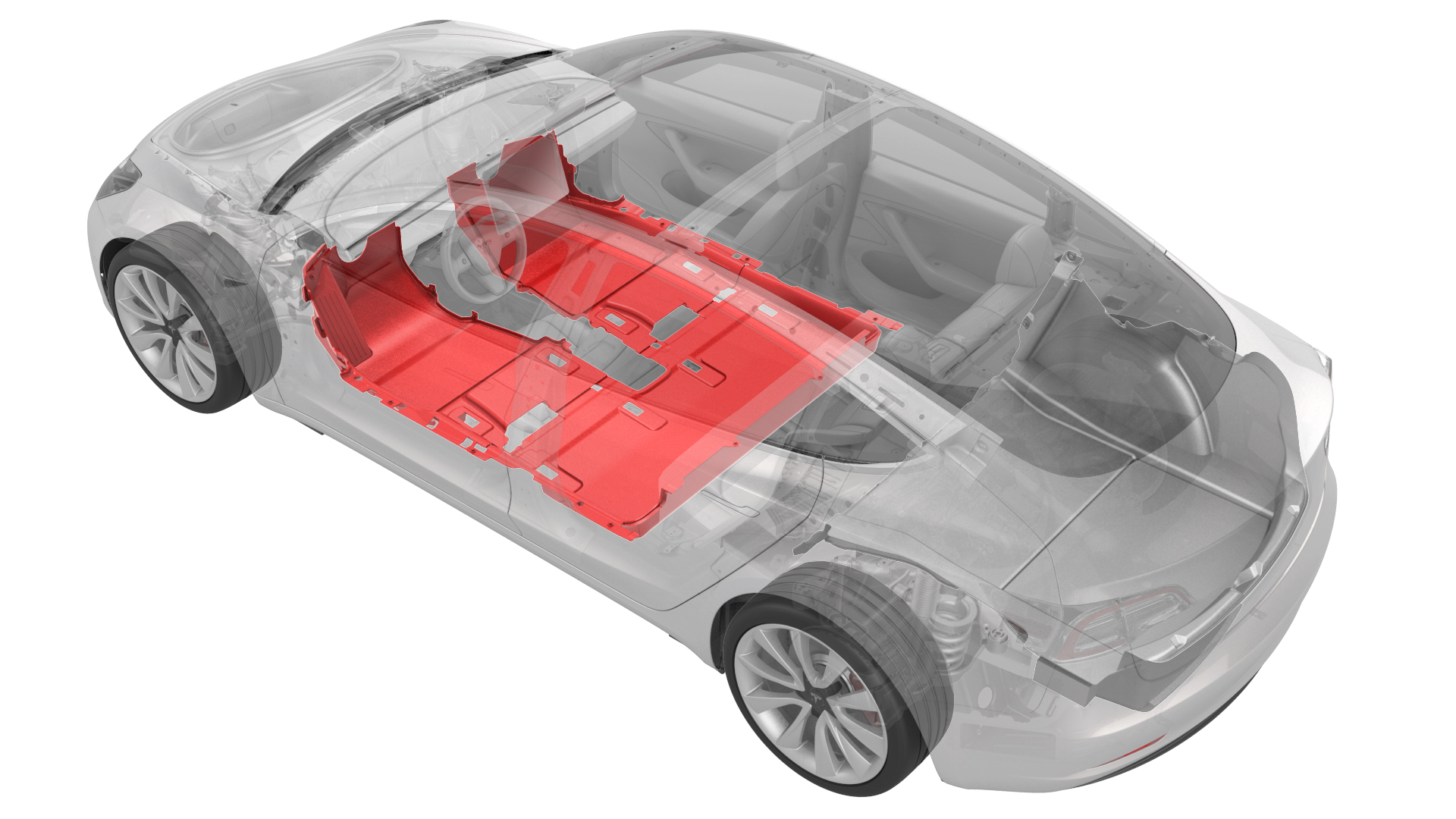

OBSOLETE - Carpet - Interior Complete (Remove and Replace)

Correction code 1530210215302102

DRAFT

from-cad
Warning:

This procedure was derived from pre-production computer models, and might not reflect the real-world situation. Warnings and cautions might be missing. Follow safety requirements and use extreme caution when working on or near high voltage systems and components.

Do not redistribute this content. Provide corrections and feedback to servicemanualfeedback@tesla.com.

Parent topic: 1530 - Carpeting and Mats

Remove

  1. Open all doors.
  2. Roll down all the windows.
  3. Remove the driver knee airbag. See Airbag - Knee - Driver (Remove and Install).
  4. Remove the driver footrest. See Footrest - Driver (Remove and Replace).
  5. Remove the glove box. See Glove Box (LHD) (Remove and Replace).
  6. Remove the front passenger knee airbag. See Airbag - Knee - Front Passenger (Remove and Replace).

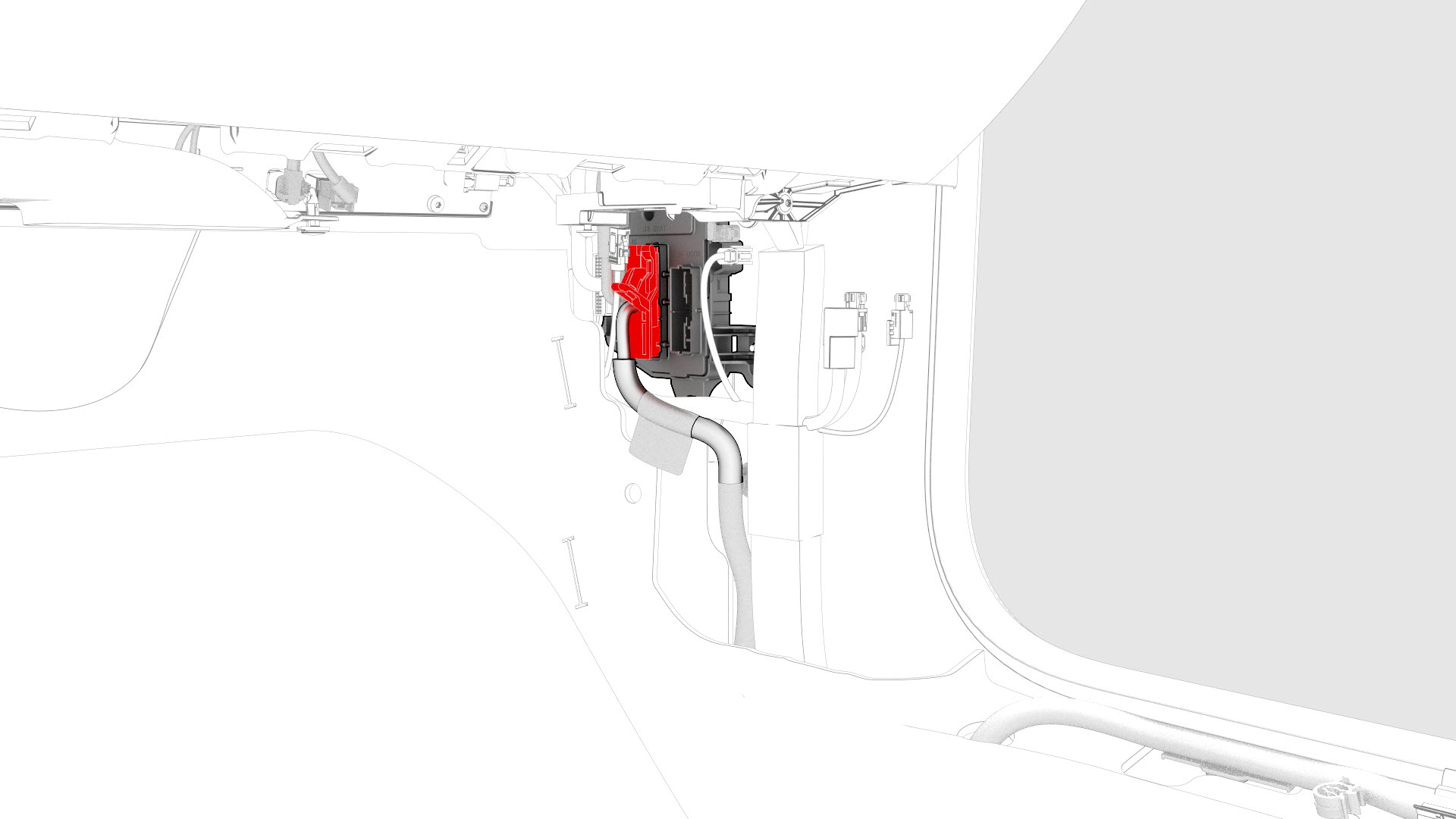

  7. Disconnect the front passenger seat wiring harness connectors from the RH body controller module.

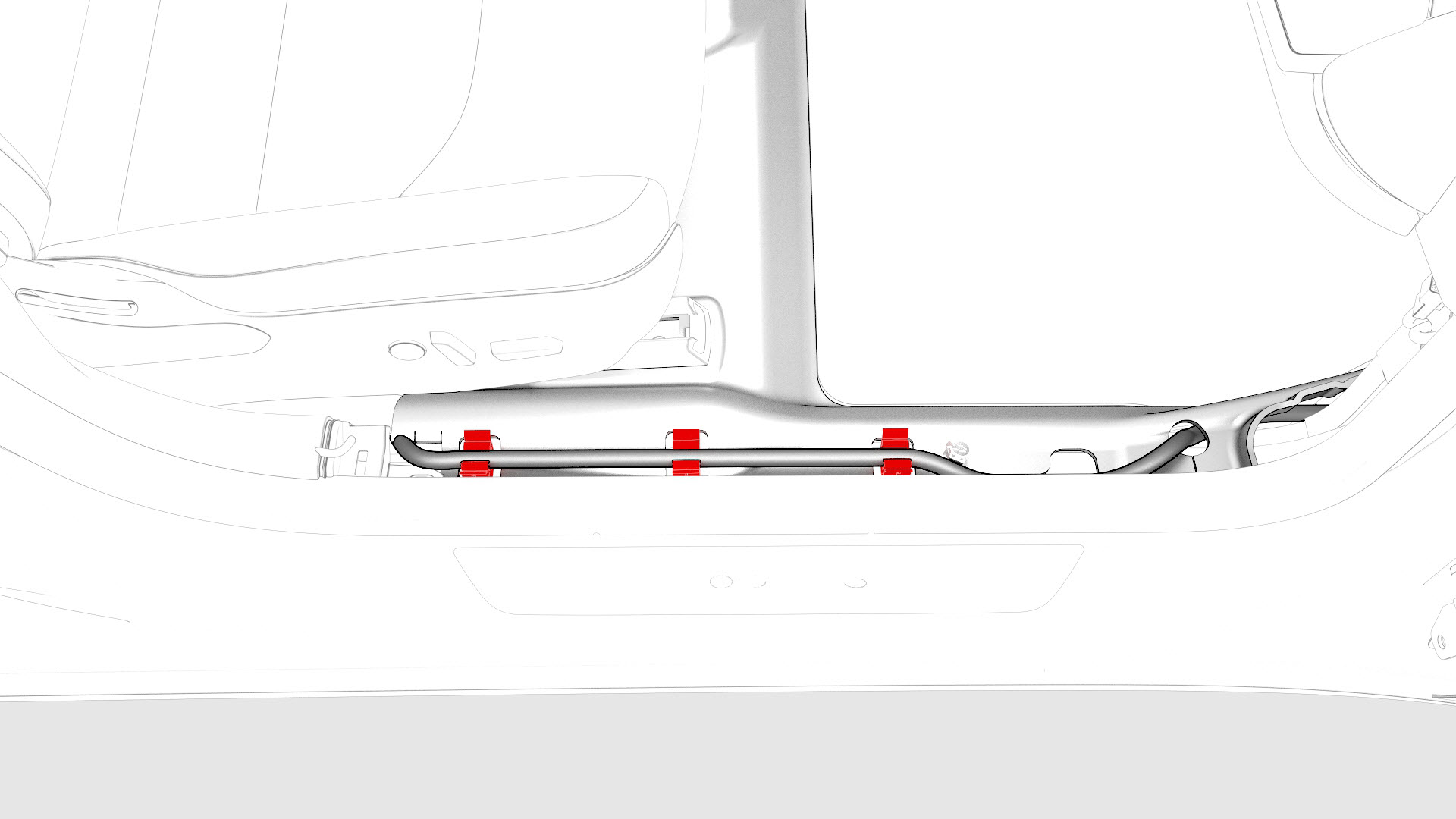

  8. Release the clips that secure the RH seat wiring harness to the sill trim.
  9. Remove the front passenger seat. See Seat - Driver (Remove and Replace).
  10. Disconnect the driver seat wiring harness connectors from the LH body controller module.
  11. Release the clips that secure the LH seat wiring harness to the sill trim.
  12. Remove the driver seat. See Seat - Driver (Remove and Replace).
  13. Remove the center console. See Center Console (Remove and Install).
  14. Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
  15. Remove the LH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
  16. Remove the LH rear sill panel trim. See Trim - Sill Panel - Rear - LH (Remove and Replace).
  17. Remove the LH lower B-pillar trim. See Trim - B-Pillar - Lower - LH (Remove and Replace).
  18. Remove the RH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
  19. Remove the RH rear sill panel trim. See Trim - Sill Panel - Rear - LH (Remove and Replace).
  20. Remove the RH lower B-pillar trim. See Trim - B-Pillar - Lower - LH (Remove and Replace).

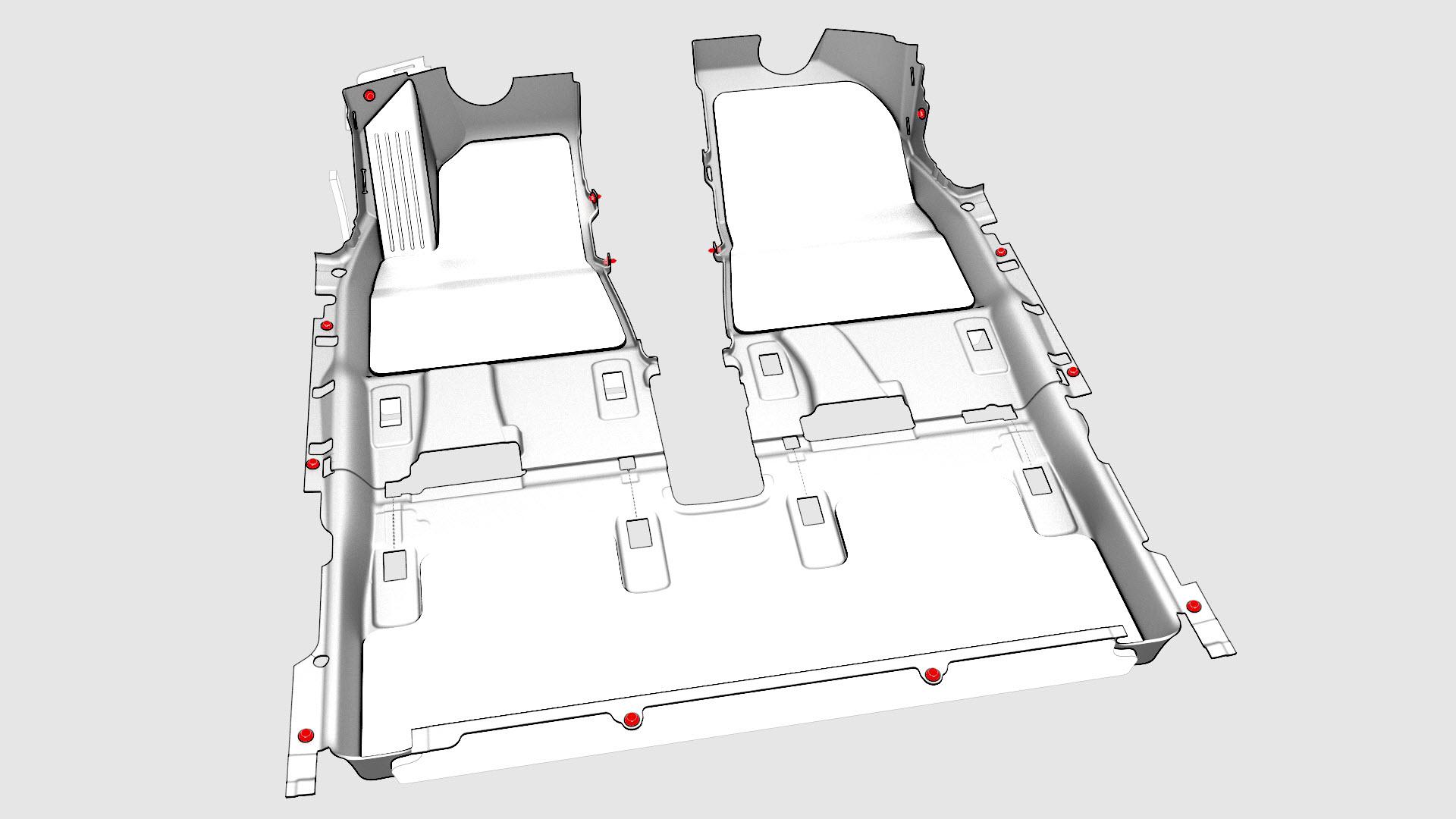

  21. Remove the clips that secure the carpet to the body.
  22. Remove the clips that secure the carpet to the LH and RH footwell ducts.
  23. Remove the carpet from the vehicle.
1Open all doors.
2Roll down all the windows.
3Remove the driver knee airbag. See Airbag - Knee - Driver (Remove and Install).
4Remove the driver footrest. See Footrest - Driver (Remove and Replace).
5Remove the glove box. See Glove Box (LHD) (Remove and Replace).
6Remove the front passenger knee airbag. See Airbag - Knee - Front Passenger (Remove and Replace).
7Disconnect the front passenger seat wiring harness connectors from the RH body controller module.
8Release the clips that secure the RH seat wiring harness to the sill trim.
9Remove the front passenger seat. See Seat - Driver (Remove and Replace).
10Disconnect the driver seat wiring harness connectors from the LH body controller module.
11Release the clips that secure the LH seat wiring harness to the sill trim.
12Remove the driver seat. See Seat - Driver (Remove and Replace).
13Remove the center console. See Center Console (Remove and Install).
14Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
15Remove the LH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
16Remove the LH rear sill panel trim. See Trim - Sill Panel - Rear - LH (Remove and Replace).
17Remove the LH lower B-pillar trim. See Trim - B-Pillar - Lower - LH (Remove and Replace).
18Remove the RH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
19Remove the RH rear sill panel trim. See Trim - Sill Panel - Rear - LH (Remove and Replace).
20Remove the RH lower B-pillar trim. See Trim - B-Pillar - Lower - LH (Remove and Replace).
21Remove the clips that secure the carpet to the body.
22Remove the clips that secure the carpet to the LH and RH footwell ducts.
23Remove the carpet from the vehicle.

Install

Installation procedure is the reverse of removal.
