Brake Pad Kit - Front (Base Brakes) (Remove and Replace)

Correction code 3301070233010702

Remove

Remove the LH front wheel. See Wheel (Remove and Install).

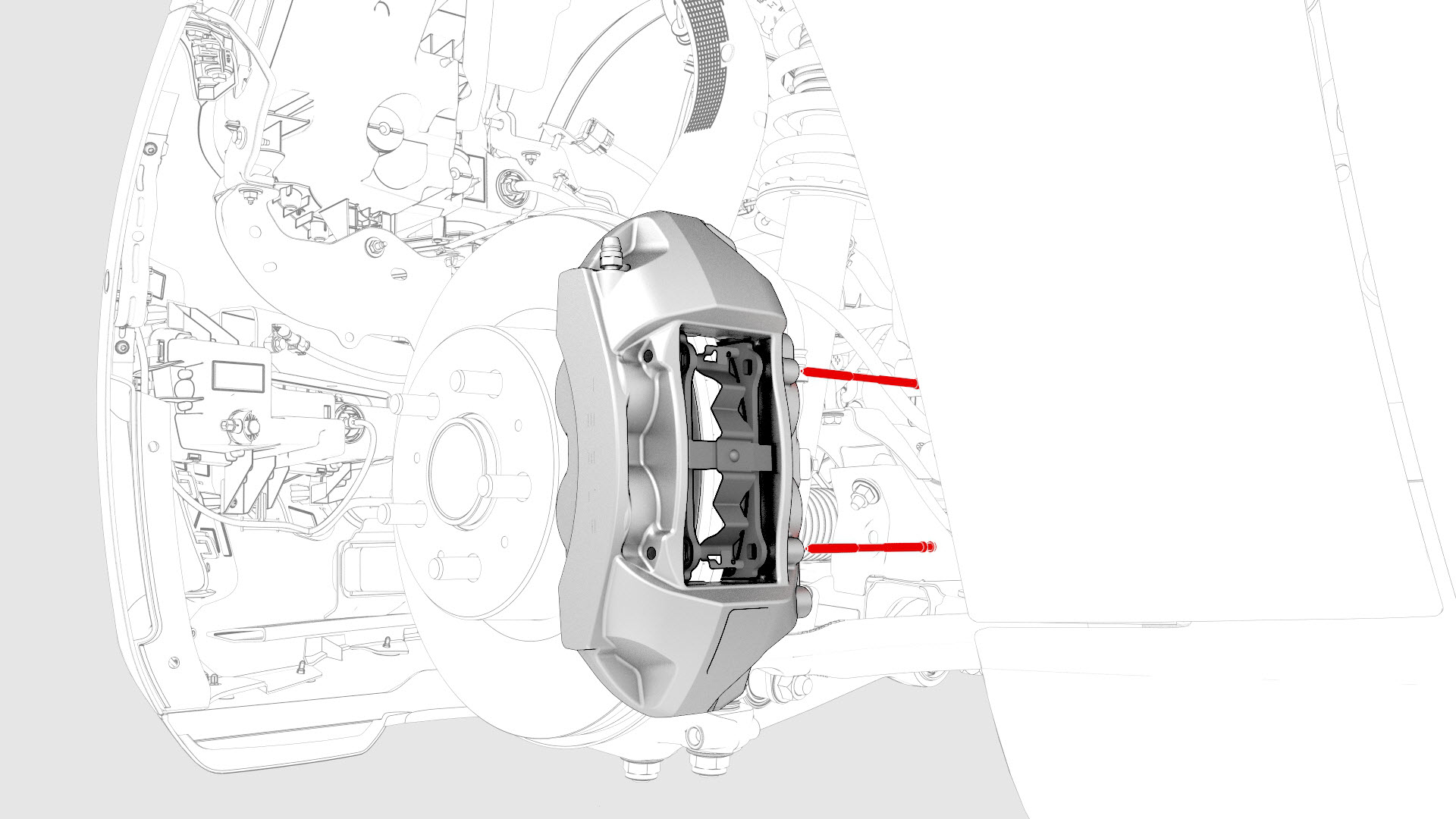

Remove the brake pad retaining pins that attach the anti-rattle spring from the LH front brake caliper.
Remove the front brake pads from the LH front brake caliper.
Use the caliper spreader kit or similar tool to gently push the piston back into the caliper.
Clean the caliper pins and anti-rattle spring with soapy water and a hand brush.
Repeat step 1 through step 5 for the RH front brake caliper.

		1	Remove the LH front wheel. See Wheel (Remove and Install).
		2	Remove the brake pad retaining pins that attach the anti-rattle spring from the LH front brake caliper.
		3	Remove the front brake pads from the LH front brake caliper.
		4	Use the caliper spreader kit or similar tool to gently push the piston back into the caliper.
		5	Clean the caliper pins and anti-rattle spring with soapy water and a hand brush.
		6	Repeat step 1 through step 5 for the RH front brake caliper.

Install

Apply an even layer of Silaramic lubricant to the brake caliper slides.
Install the LH front brake pads to the LH front brake caliper.
Install the brake pad retaining pins that attach the anti-rattle spring.
Install the LH front wheel. SeeWheel (Remove and Install).
Repeat step 1 through step 4 for the RH front brake caliper.
Pump the brake pedal 3-5 times to seat the pads against the brake rotor until the brake pedal feels firm.
Perform vehicle road test using a series of ABS-active stops and make sure proper brake pedal feel and performance is achieved.

		1	Apply an even layer of Silaramic lubricant to the brake caliper slides.
		2	Install the LH front brake pads to the LH front brake caliper.
		3	Install the brake pad retaining pins that attach the anti-rattle spring.
		4	Install the LH front wheel. SeeWheel (Remove and Install).
		5	Repeat step 1 through step 4 for the RH front brake caliper.
		6	Pump the brake pedal 3-5 times to seat the pads against the brake rotor until the brake pedal feels firm.
		7	Perform vehicle road test using a series of ABS-active stops and make sure proper brake pedal feel and performance is achieved.
