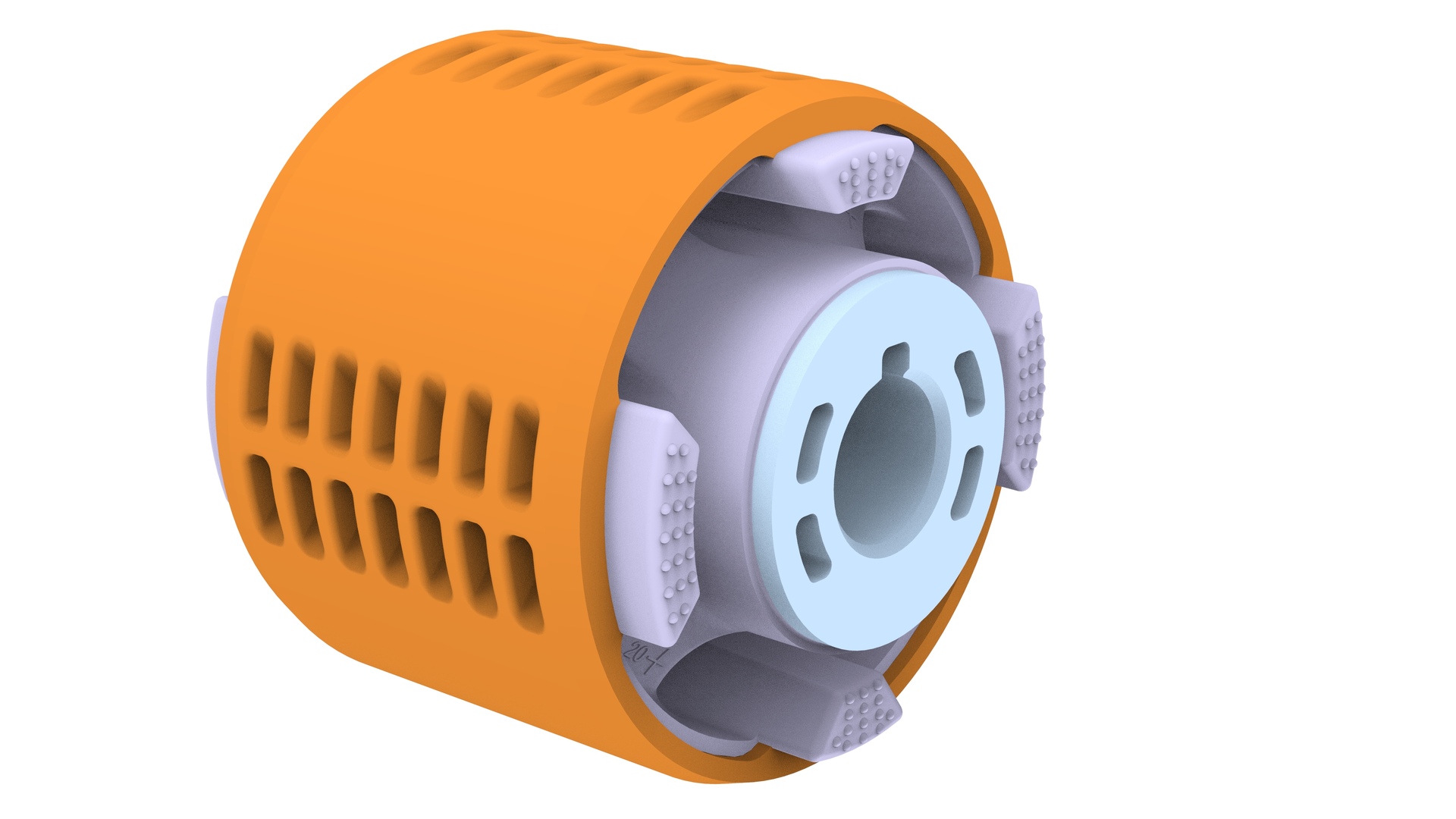

Bushing - Rear Drive Unit - RH (Remove and Replace)
Correction code 4001240240012402
- 1137785-00-AKit, Drive Unit Bushing R&R, Model 3
SPECIAL TOOLS
Kit, Drive Unit Bushing R&R, Model 3 (1137785-00-A) |
Remove
-

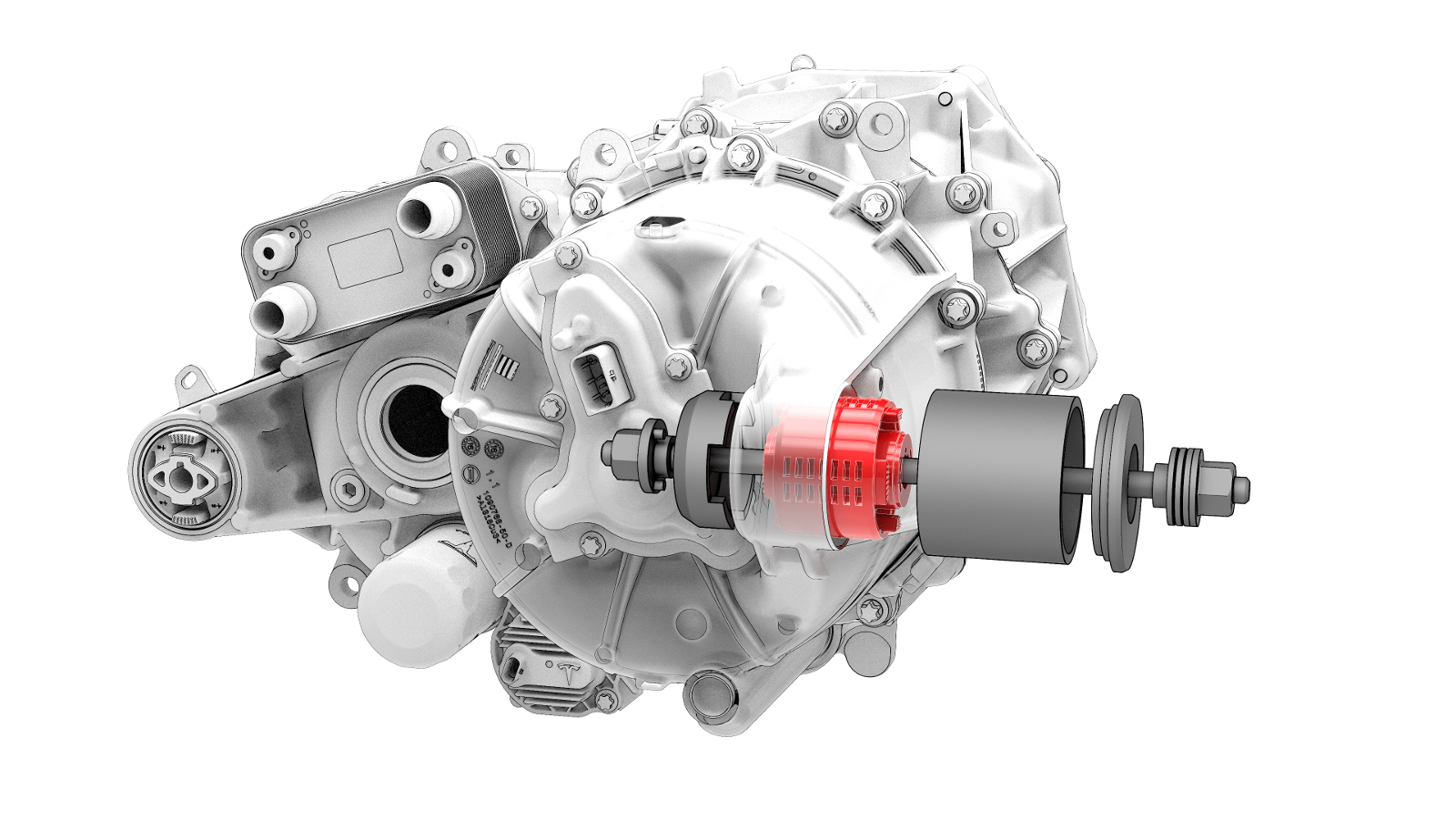

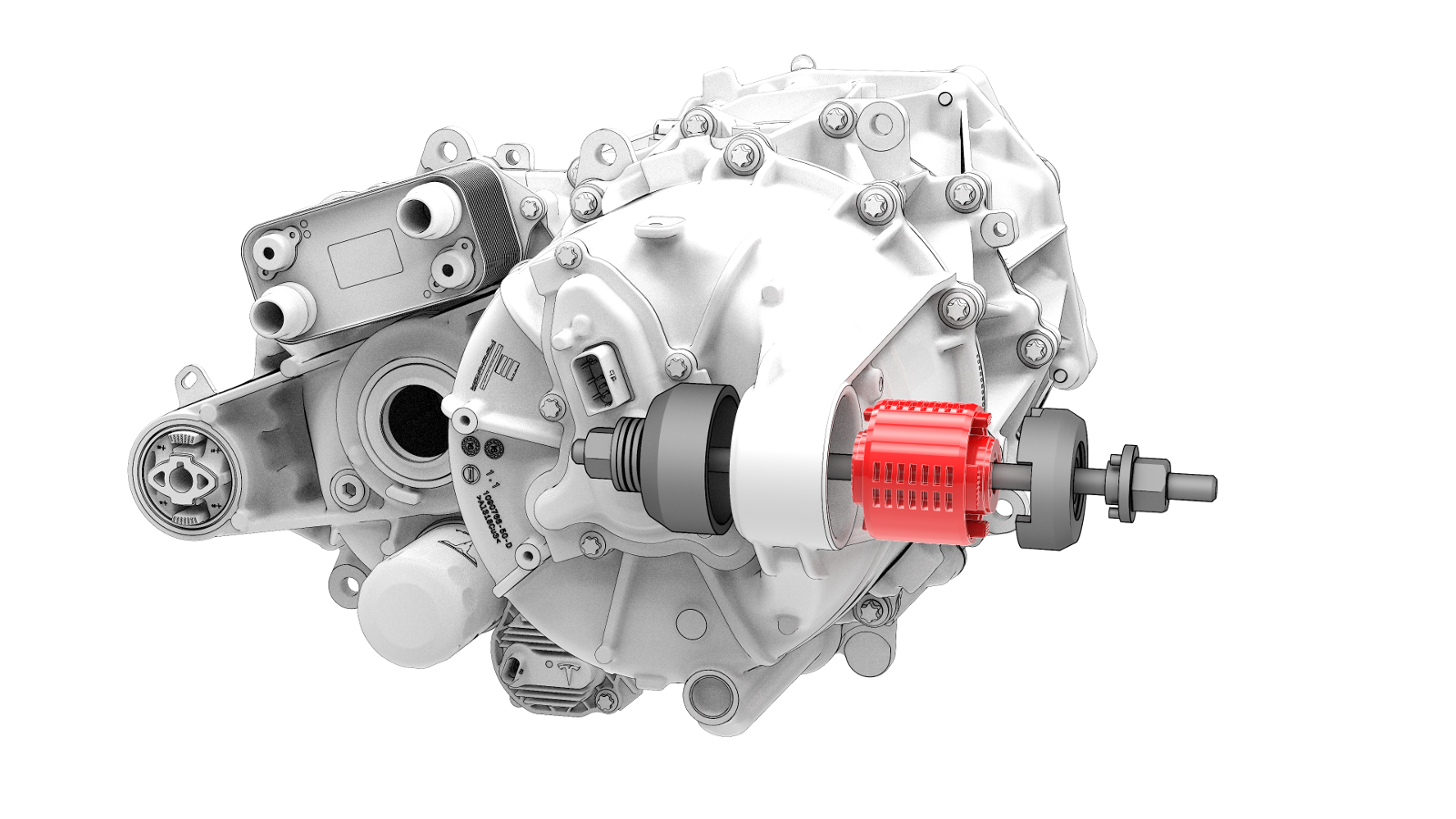

Install the bushing removal tool on the RH bushing.
Note: Use cups "A", "C", and "D" when assembling the special tool, as shown.
-
When the bushing has been pushed out of the drive unit, separate the bushing removal tool, and then remove it from the drive unit.
| 1 | Remove the rear drive unit. See Drive Unit - Rear (Remove and Install). | ||
| 2 | Position the rear drive unit above an empty rear drive unit crate. Note: Use a pallet if no crate is available.
| ||
| 3 | Install the bushing removal tool on the RH bushing. Note: Use cups "A", "C", and "D" when assembling the special tool, as shown.
| |
| 4 | Turn the bushing removal tool nut furthest away from the drive unit with a wrench while holding the other nut in place. | ||
| 5 | When the bushing has been pushed out of the drive unit, separate the bushing removal tool, and then remove it from the drive unit. |
Install
-
Set up the bushing tool to press in the new bushing.
Note: Use cups "D" and "E" when assembling the special tool, as shown.
| 1 | Set up the bushing tool to press in the new bushing. Note: Use cups "D" and "E" when assembling the special tool, as shown.
| |
| 2 | Turn the nut on the thrust washer to press the new bushing into the drive unit. | ||
| 3 | Separate the bushing tool, and then remove it from the drive unit. | ||
| 4 | Install the rear drive unit. See Drive Unit - Rear (Remove and Install). |
