Fluid Coupling (Straight) - Rear Drive Unit (Remove and Replace)
Correction code 4001420240014202
- 1135762-00-AKit, Svc Plug, Cooling Hose, Model 3
SPECIAL TOOLS
Kit, Svc Plug, Cooling Hose, Model 3 (1135762-00-A) |
Remove
-

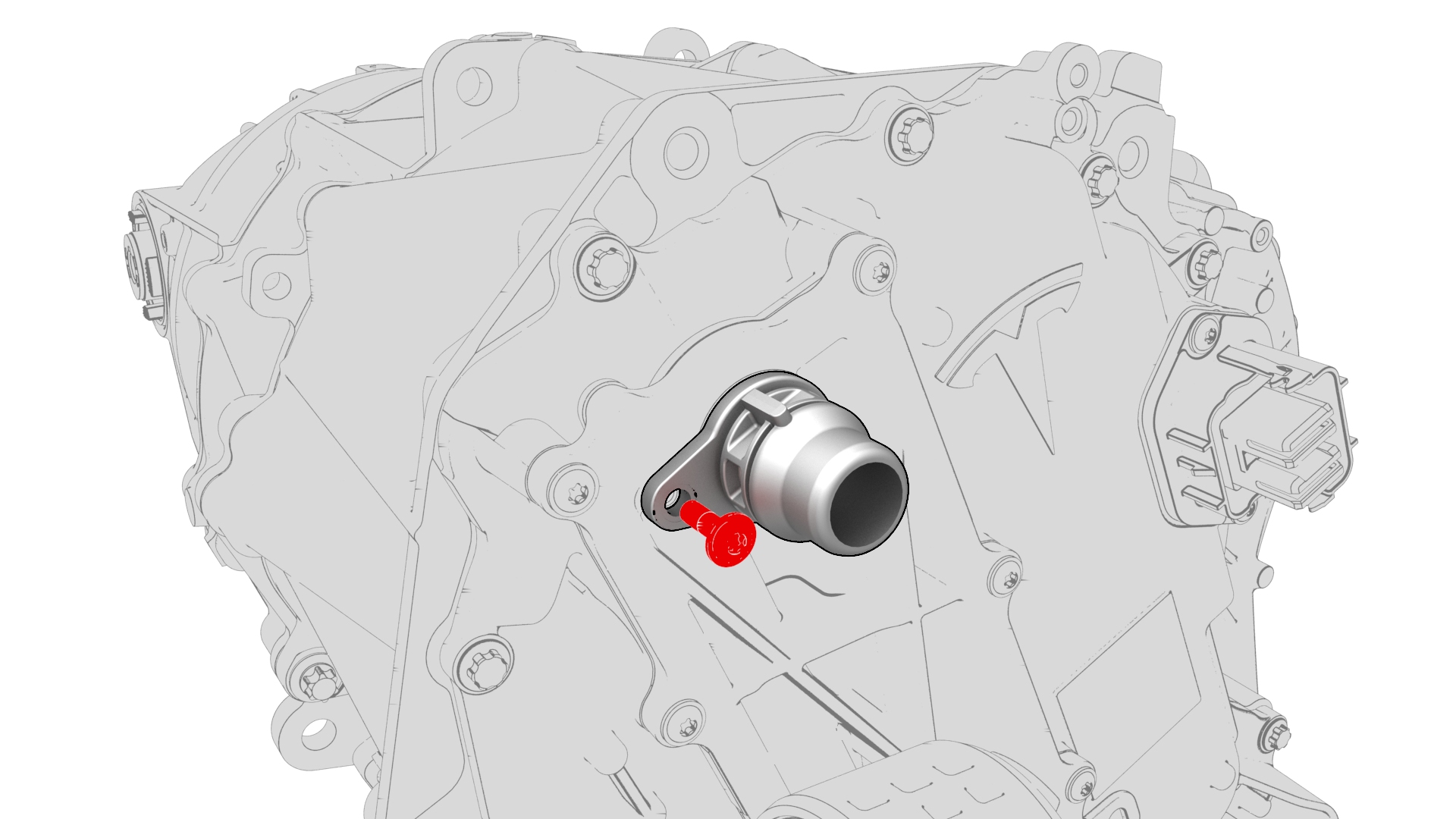

Remove the bolt that attaches the straight fluid coupling to the rear drive unit inverter.
Torque 6 Nm
-

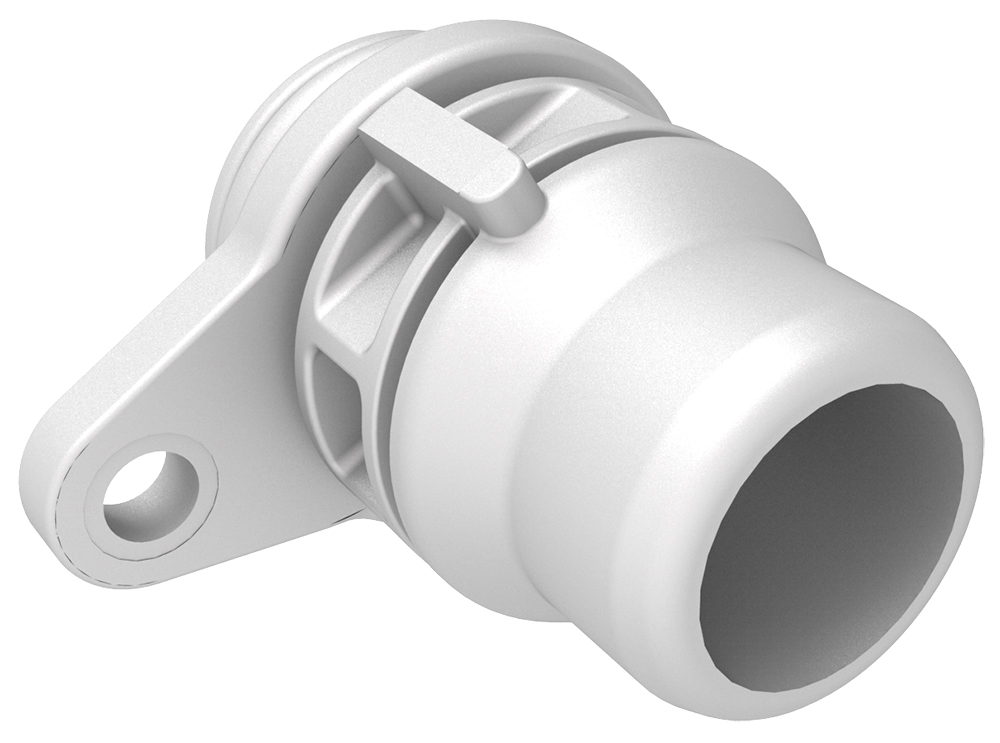

Remove the straight fluid coupling.
| 1 | Remove the LH rear drive unit mount. See Mount - Rear Drive Unit - LH (Remove and Replace). | ||
| 2 | Remove the bolt that attaches the straight fluid coupling to the rear drive unit inverter. Torque 6 Nm | |
| 3 | Remove the straight fluid coupling. |
Install
Installation procedure is the reverse of removal, except for the following:
Caution:
Replace all patchbolts.
- Perform an inverter coolant leak test. See Inverter Coolant Leak Test.
- Refill the coolant. See Powertrain Coolant (Drain and Refill).
