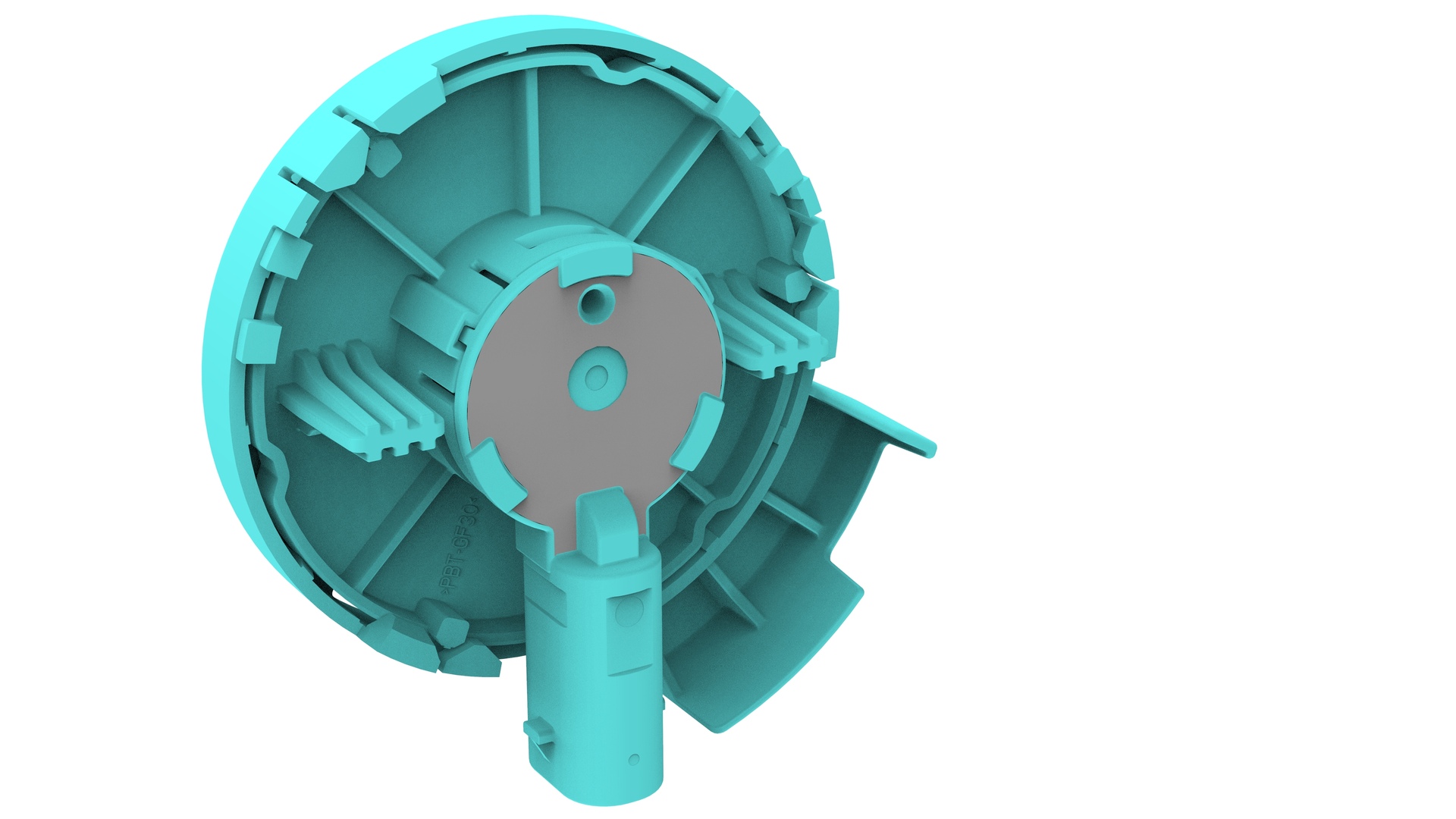

Sensor - Airbag - Door - Front (Remove and Replace)

Correction code 2020010220200102
from-rc
Note:

This procedure was formulated using a release candidate or production model. Follow safety requirements and use extreme caution when working on or near high-voltage systems and components.

Provide corrections and feedback to servicemanualfeedback@tesla.com.

Parent topic: 2020 - Sensors

Remove

  1. Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
  2. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  3. Disconnect 12V power. See 12V Power (Disconnect and Connect).
  4. Remove the front LH door trim panel. See Panel - Door Trim - Front - LH (Remove and Install).

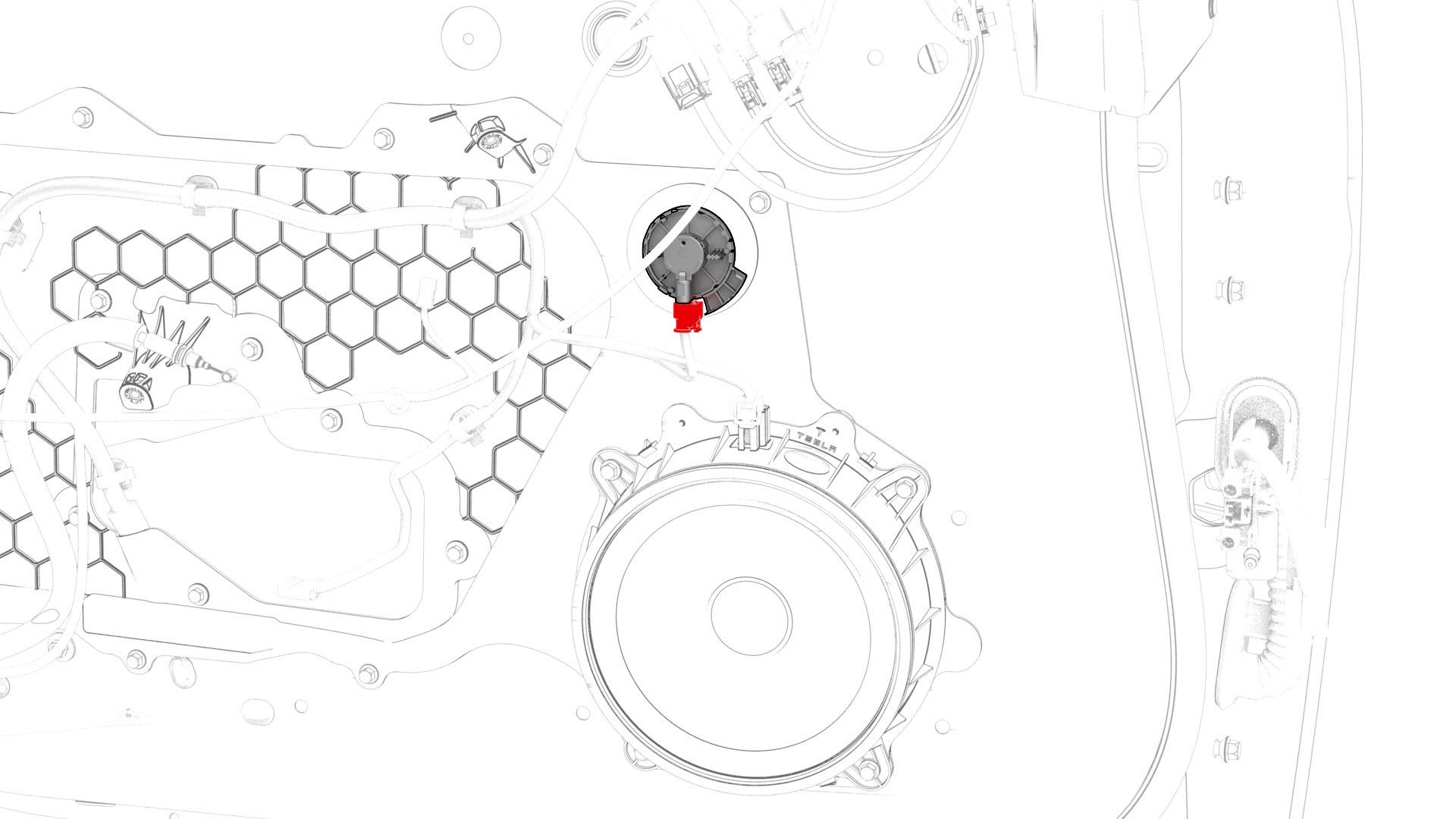

  5. Disconnect the electrical connector from the front door airbag sensor.
  6. Twist the tabs counterclockwise and remove the front door airbag sensor from the closeout panel.
1Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
2Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
3Disconnect 12V power. See 12V Power (Disconnect and Connect).
4Remove the front LH door trim panel. See Panel - Door Trim - Front - LH (Remove and Install).
5Disconnect the electrical connector from the front door airbag sensor.
6Twist the tabs counterclockwise and remove the front door airbag sensor from the closeout panel.

Install

Installation procedure is the reverse of removal.
