Seal - Body - Side - Rear - Primary - LH (Remove and Replace)

Correction code 1170050211700502
Parent topic: 1170 - Seals Body Closures

Remove

  1. Remove the LH B-pillar applique. See Applique - B-Pillar - LH (Remove and Replace).

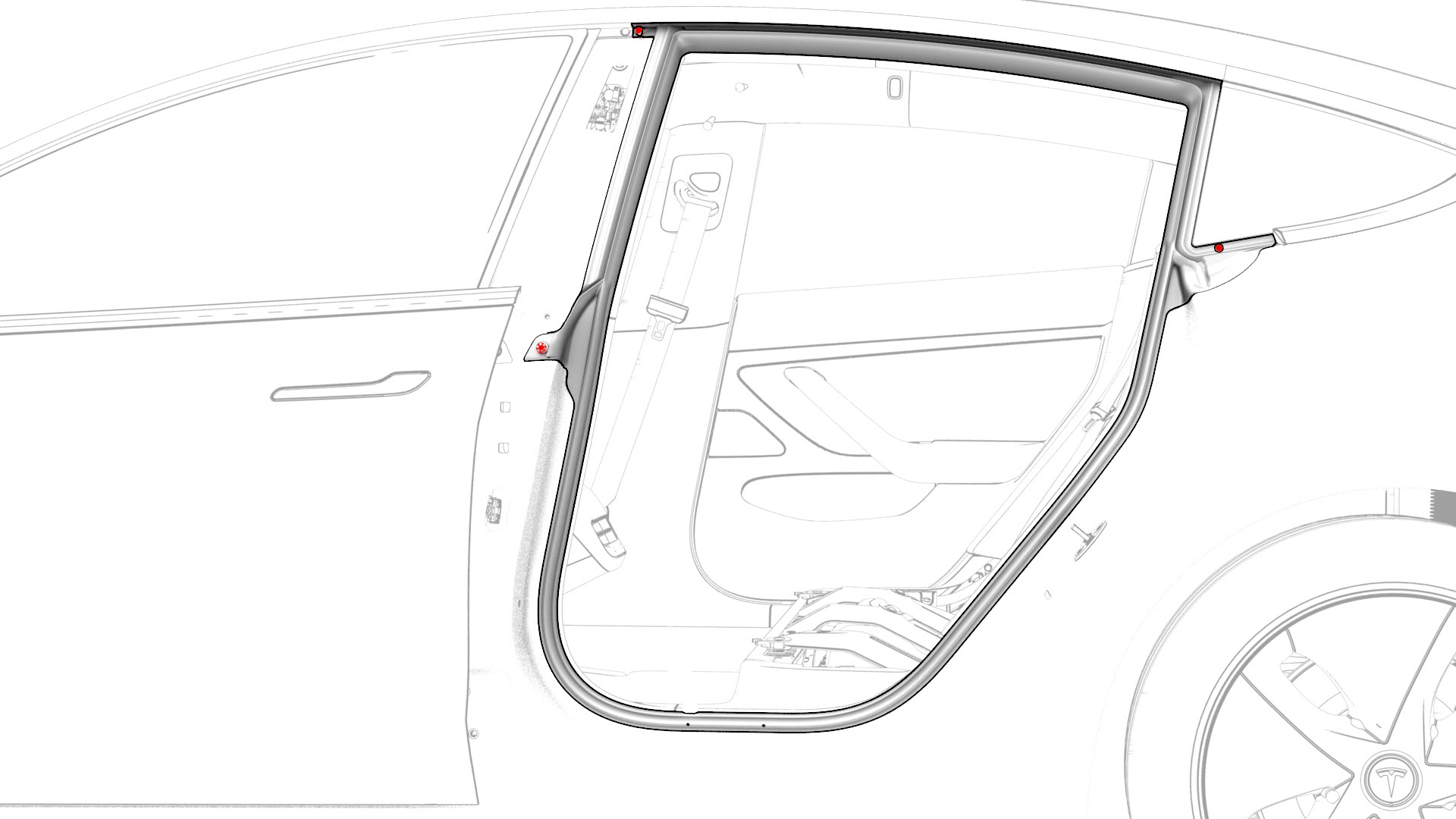

  2. Release the clips (x3) that attach the rear LH primary body seal to the mid B-pillar, the upper B-pillar, and the mid C-pillar.
  3. Pull on the seal to remove it from the body.
1Remove the LH B-pillar applique. See Applique - B-Pillar - LH (Remove and Replace).
2Release the clips (x3) that attach the rear LH primary body seal to the mid B-pillar, the upper B-pillar, and the mid C-pillar.
3Pull on the seal to remove it from the body.

Install

  1. Loosely install the rear LH primary body seal to the body.
  2. Fasten the clips (x3) that attach the rear LH primary body seal to the mid C-pillar, the upper B-pillar, and the mid B-pillar.
  3. Pull the seal strings from the new seal.
  4. Tuck the seal into the bright molding, and make sure that it fits properly to the trim panels and the headliner.
  5. Press the seal into the lower corners, and then install the rest of the seal to the body.
    Note: Stretch and tuck the seal so that it is evenly distributed around the perimeter.
  6. Install the LH B-pillar applique. See Applique - B-Pillar - LH (Remove and Replace).
1Loosely install the rear LH primary body seal to the body.
2Fasten the clips (x3) that attach the rear LH primary body seal to the mid C-pillar, the upper B-pillar, and the mid B-pillar.
3Pull the seal strings from the new seal.
4Tuck the seal into the bright molding, and make sure that it fits properly to the trim panels and the headliner.
5Press the seal into the lower corners, and then install the rest of the seal to the body.
Note: Stretch and tuck the seal so that it is evenly distributed around the perimeter.
6Install the LH B-pillar applique. See Applique - B-Pillar - LH (Remove and Replace).
