Sun Visor - Driver (Remove and Replace)

Correction code 1505100215051002

Remove

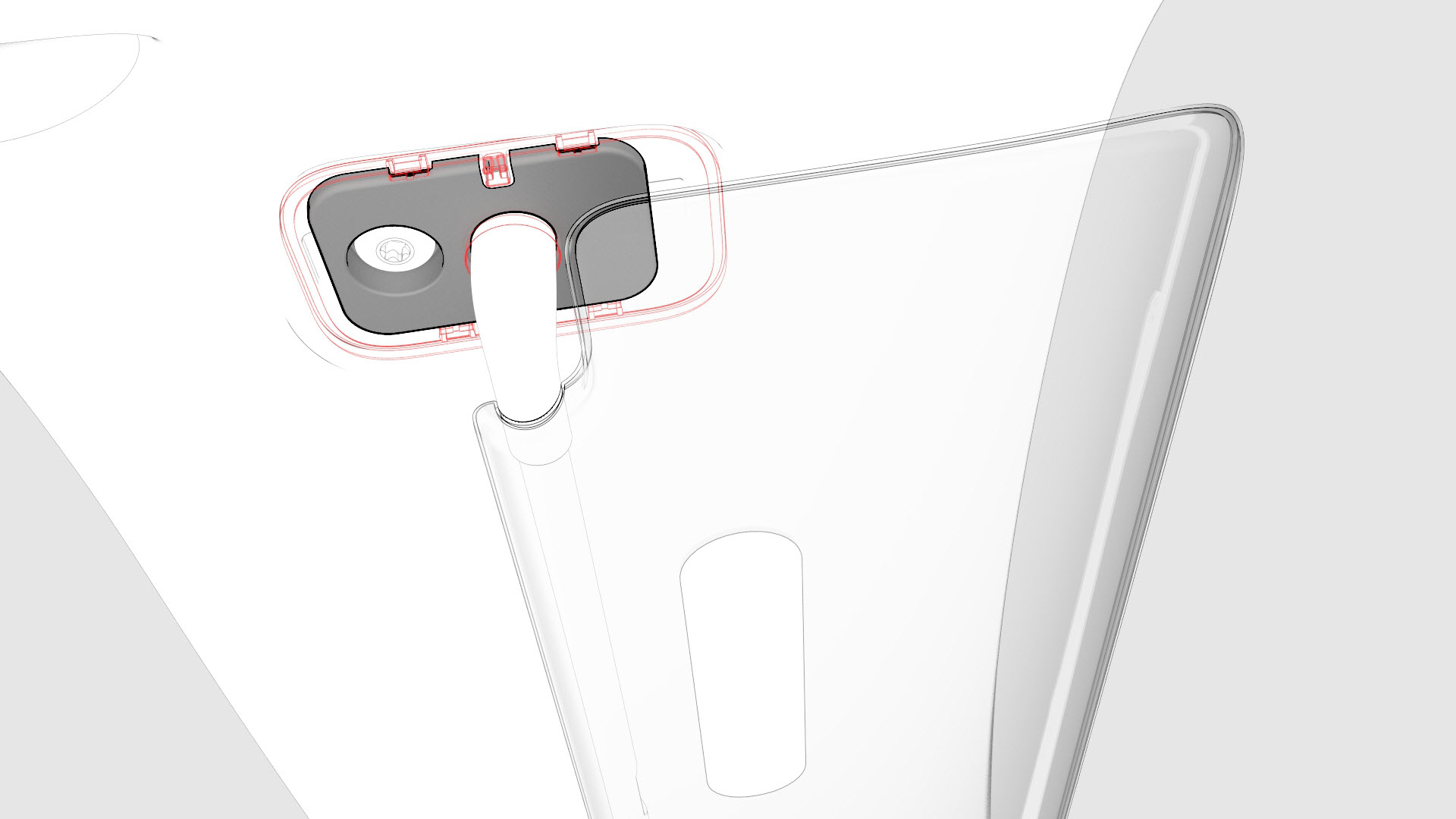

Release the clips (x4) that attach the driver sun visor bracket cover to the vehicle.

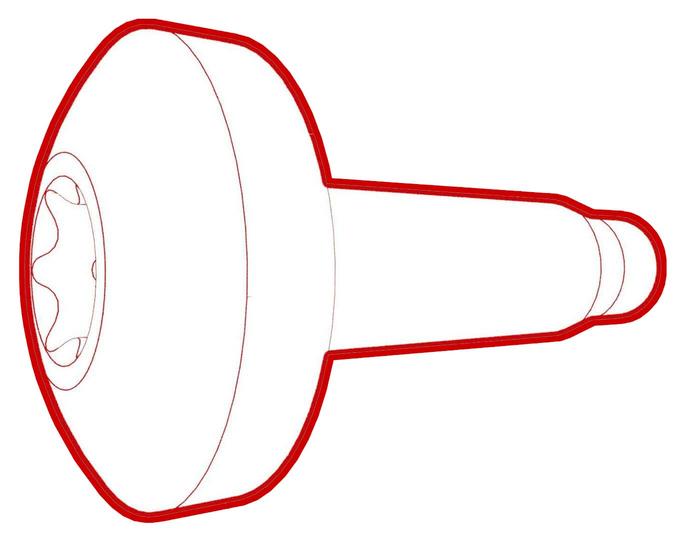

Remove the fastener that attaches the driver sun visor to the vehicle.
Torque 6 Nm
Disconnect the electrical connector from the driver sun visor.

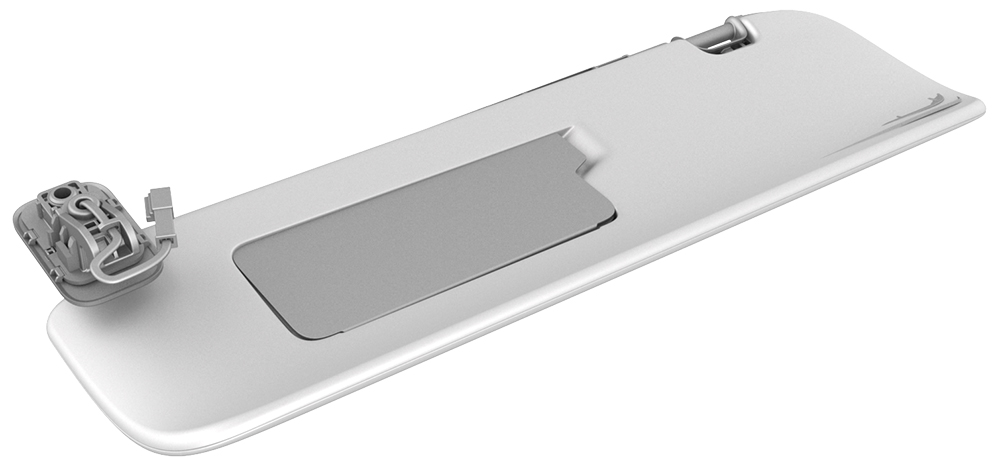

Remove the driver sun visor from the vehicle.

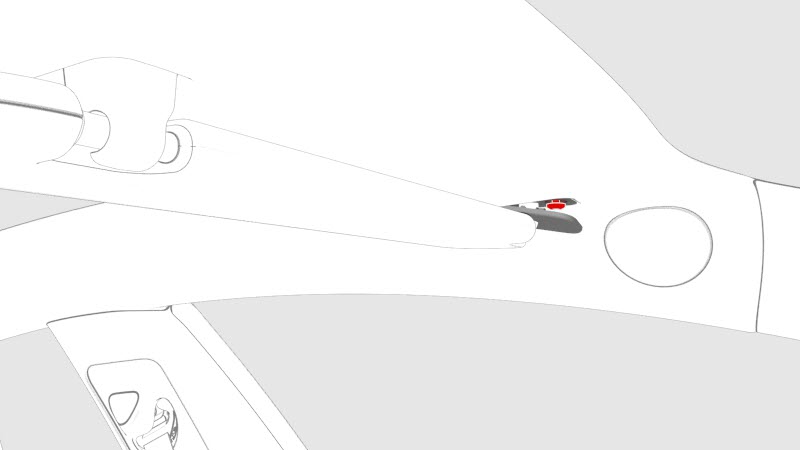

		1	Release the clips (x4) that attach the driver sun visor bracket cover to the vehicle.
		2	Remove the fastener that attaches the driver sun visor to the vehicle. Torque 6 Nm
		3	Disconnect the electrical connector from the driver sun visor.
		4	Remove the driver sun visor from the vehicle.

Install

Installation procedure is the reverse of removal.
